汽车继电器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 线圈类型 | 线圈电流 | 线圈电压 | 触点形式 | 触点额定值（电流） | 切换电压 | 必须动作电压 | 必须释放电压 | 动作时间 | 释放时间 | 特性 | 安装类型 | 端接样式 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AZ9731-1C-12DC3RELAY AUTOMOTIVE SPDT 30A 12V |
2,460 |
|
数据手册 |
AZ9731 | Tray | Active | Non Latching | 133.3 mA | 12VDC | SPDT (1 Form C) | 30 A | 75VDC - Max | 7.8 VDC | 1.8 VDC | 7 ms | 5 ms | MINI-ISO | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
PC792A-1C-C1-24S-RN-XRELAY AUTOMOTIVE SPDT 20A 24V |
846 |
|
数据手册 |
- | Bag | Active | Non Latching | 75.6 mA | 24VDC | SPDT (1 Form C) | 20 A | 75VDC - Max | 15.6 VDC | 2.4 VDC | 7 ms | 2 ms | Resistor, Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
ACJ1112RELAY AUTOMOTIVE SPDT 20A 12V |
2,808 |
|
数据手册 |
ACJ | Tube | Active | Non Latching | 66.7 mA | 12VDC | SPDT (1 Form C) | 20 A | 14VDC - Nom | 6.5 VDC | 0.8 VDC | 10 ms | 10 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|

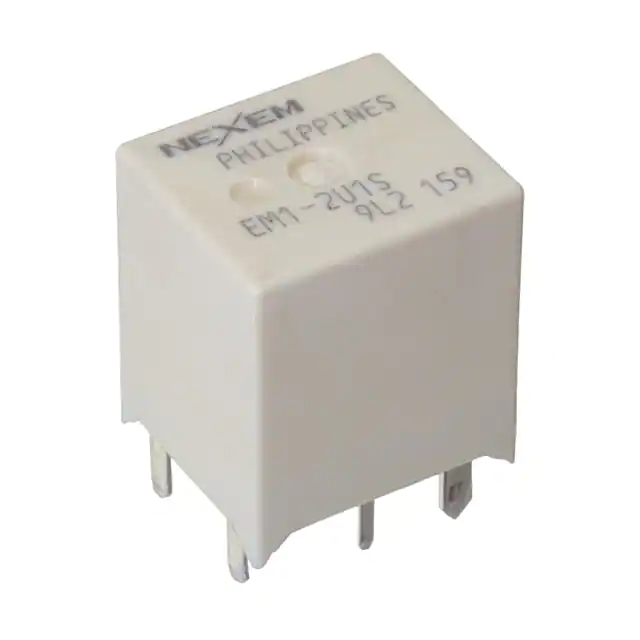

EM1-2U1SAUTO RELAY 1 FORM U 12V 1A |
2,271 |
|
数据手册 |
EM1 | Tube | Active | Non Latching | 53.3 mA | 12VDC | SPST-NO (DM) (1 Form U) | 54 A | 16VDC - Max | 6.5 VDC | 0.9 VDC | 6 ms | 1 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 125°C |
|
A2M1CSQ24VDC1.6DRELAY AUTOMOTIVE SPDT 40A 24V |
303 |
|
数据手册 |
A2 | Tray | Active | Non Latching | 66.7 mA | 24VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Diode, Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|

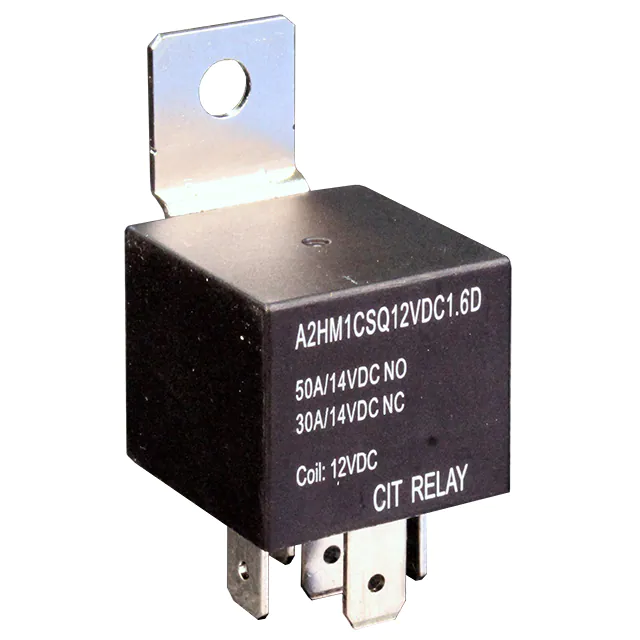

A2HM1CSQ12VDC1.6DRELAY AUTOMOTIVE SPDT 50A 12V |
1,813 |
|
数据手册 |
A2H | Tray | Active | Non Latching | 133.3 mA | 12VDC | SPDT (1 Form C) | 50 A | 75VDC - Max | 7.8 VDC | 1.2 VDC | 10 ms | 10 ms | Diode, Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
AZ9731-1C-12DC1RELAY AUTOMOTIVE SPDT 30A 12V |
1,970 |
|
数据手册 |
AZ9731 | Tray | Active | Non Latching | 133.3 mA | 12VDC | SPDT (1 Form C) | 30 A | 75VDC - Max | 7.8 VDC | 1.8 VDC | 7 ms | 5 ms | MINI-ISO w/ Steel Mounting Bracket | Chassis Mount | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|

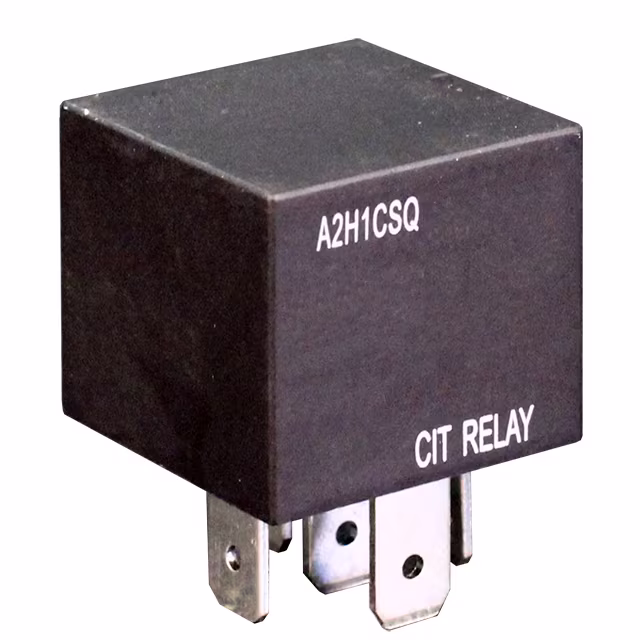

A2H1CSQ24VDC1.6DRELAY AUTOMOTIVE SPDT 50A 24V |
515 |
|
数据手册 |
A2H | Tray | Active | Non Latching | 66.7 mA | 24VDC | SPDT (1 Form C) | 50 A | 75VDC - Max | 15.6 VDC | 2.4 VDC | 10 ms | 10 ms | Diode, Sealed - Fully | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
A2H1CSP24VDC1.6DRELAY AUTOMOTIVE SPDT 50A 24V |
103 |
|
数据手册 |
A2H | Tray | Active | Non Latching | 66.7 mA | 24VDC | SPDT (1 Form C) | 50 A | 75VDC - Max | 15.6 VDC | 2.4 VDC | 10 ms | 10 ms | Diode | Through Hole | PC Pin | -40°C ~ 125°C |
|
PC792C-1A-C-12C-N-XRELAY AUTOMOTIVE SPST 50A 12V |
2,932 |
|
数据手册 |
- | Bag | Active | Non Latching | 150 mA | 12VDC | SPST-NO (1 Form A) | 50 A | 75VDC - Max | 7.8 VDC | 1.2 VDC | 7 ms | 2 ms | - | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
ACTP112RELAY AUTOMOTIVE SPDT 30A 12V |
446 |
|
数据手册 |
ACTP | Tube | Active | Non Latching | 83.3 mA | 12VDC | SPDT (1 Form C) | 30 A | 14VDC - Nom | 7.2 VDC | 1 VDC | 10 ms | 10 ms | - | Through Hole | PC Pin | -40°C ~ 85°C |
|
A171AHS12VDC.96DRELAY AUTOMOTIVE SPST 30A 12V |
428 |
|
数据手册 |
A17 | Tray | Active | Non Latching | 80 mA | 12VDC | SPST-NO (1 Form A) | 30 A | 75VDC - Max | 9 VDC | 1.2 VDC | 10 ms | 5 ms | Diode, Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|

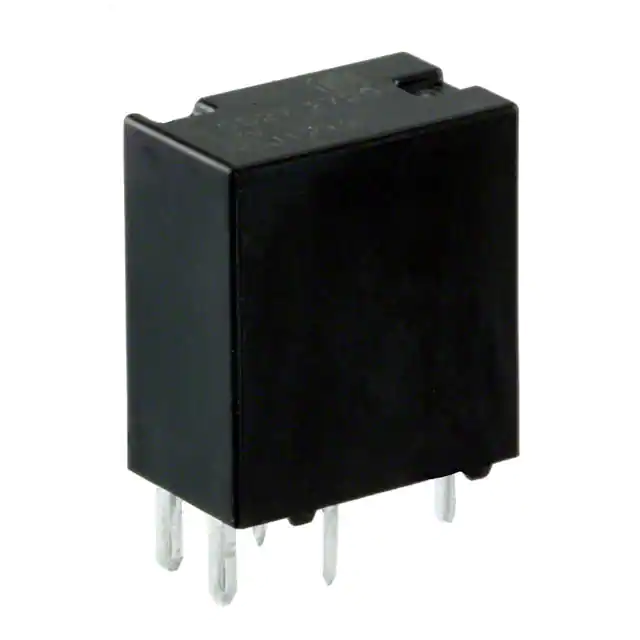

ACJ1212RELAY AUTOMOTIVE SPDT 20A 12V |
3,471 |
|
数据手册 |
ACJ | Box | Active | Non Latching | 53.3 mA | 12VDC | SPDT (1 Form C) | 20 A | 14VDC - Nom | 7.2 VDC | 1 VDC | 10 ms | 10 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|

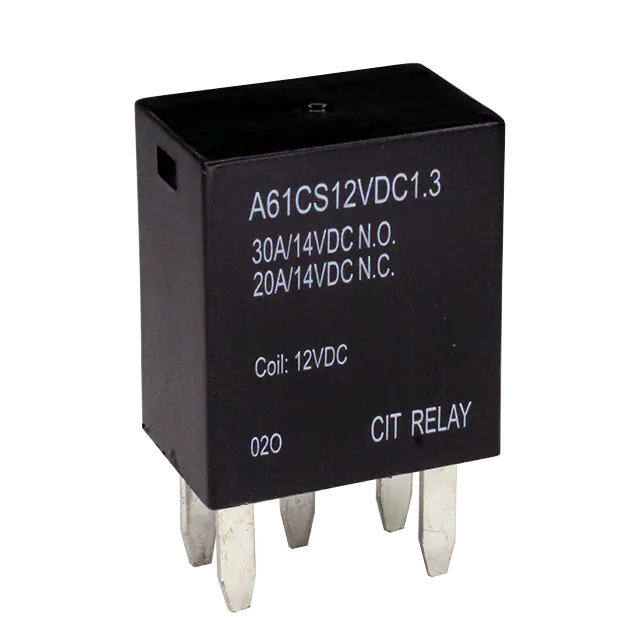

A61CS12VDC1.3RELAY AUTOMOTIVE SPDT 30A 12V |
390 |
|
数据手册 |
A6 | Tray | Active | Non Latching | 110.1 mA | 12VDC | SPDT (1 Form C) | 30 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 5 ms | 2 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|
AZ9731-1C-12DC1ERELAY AUTOMOTIVE SPDT 40A 12V |
116 |
|
数据手册 |
AZ9731 | Box | Active | Non Latching | 133.3 mA | 12VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 7.8 VDC | 1.8 VDC | 7 ms | 5 ms | MINI-ISO w/ Steel Mounting Bracket, Sealed - Epoxy | Chassis Mount | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
ET1-B3M1SAUTOMOTIVE RELAYS 1 FORM C SEALE |
2,686 |
|
数据手册 |
ET1 | Tube | Active | Non Latching | 53.3 mA | 12VDC | SPDT (1 Form C) | 25 A | 16VDC - Max | 6.5 VDC | 0.9 VDC | 2.5 ms | 3 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|
|
AZ9871-2C-12DETRELAY AUTOMOTIVE DPDT 30A 12V |
811 |
|
数据手册 |
AZ9871 | Tray | Active | Non Latching | 47.2 mA | 12VDC | DPDT (2 Form C) | 30 A | 24VDC - Max | 6.9 VDC | 1.5 VDC | 3 ms | 1.5 ms | Sealed - Epoxy | Through Hole | PC Pin | -40°C ~ 105°C |
|

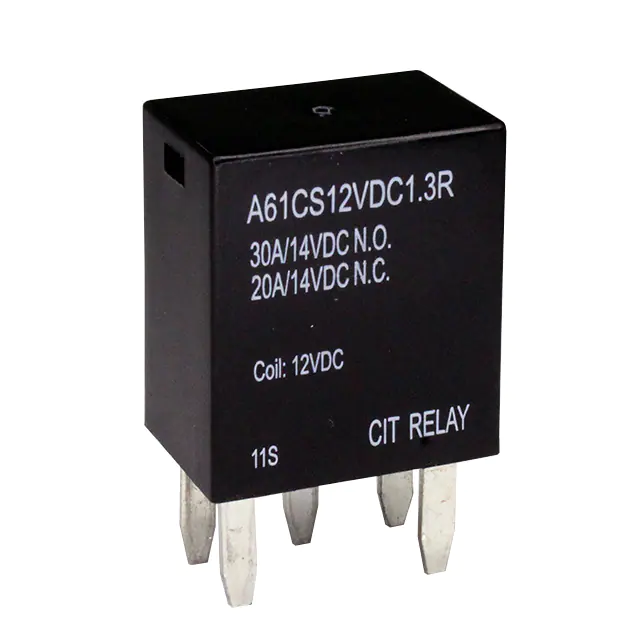

A61CS12VDC1.3RRELAY AUTOMOTIVE SPDT 30A 12V |
531 |
|
数据手册 |
A6 | Tray | Active | Non Latching | 110.1 mA | 12VDC | SPDT (1 Form C) | 30 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 5 ms | 2 ms | Resistor, Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|

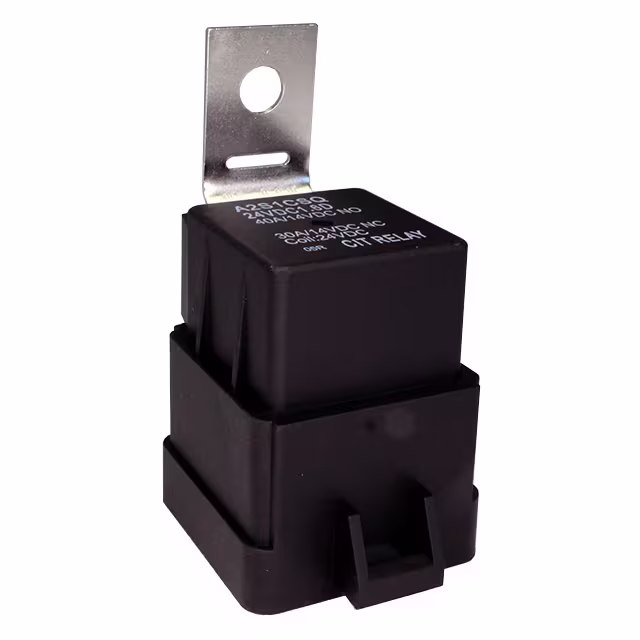

A2S1CSQ24VDC1.6DRELAY AUTOMOTIVE SPDT 40A 24V |
4,840 |
|
数据手册 |
A2 | Tray | Active | Non Latching | 66.7 mA | 24VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Diode, Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
G8NW-2H DC12RELAY AUTOMOTIVE SPDT 30A 12V |
485 |
|
数据手册 |
G8NW-2 | Tray | Active | Non Latching | 66.7 mA | 12VDC | SPDT (1 Form C) x 2 | 30 A | 16VDC - Max | 6.5 VDC | 1 VDC | 10 ms | 10 ms | - | Through Hole | PC Pin | -40°C ~ 105°C |
