汽车继电器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 线圈类型 | 线圈电流 | 线圈电压 | 触点形式 | 触点额定值（电流） | 切换电压 | 必须动作电压 | 必须释放电压 | 动作时间 | 释放时间 | 特性 | 安装类型 | 端接样式 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AZ979-1A-24DERELAY AUTOMOTIVE SPST 80A 24V |
518 |
|
数据手册 |
AZ979 | Box | Active | Non Latching | 66.7 mA | 24VDC | SPST-NO (1 Form A) | 80 A | 30VDC - Max | 15.6 VDC | 2.4 VDC | 7 ms | 5 ms | Sealed - Epoxy, SUPER-ISO w/ Plastic Mounting Bracket | Chassis Mount | Plug In, Quick Connect - Multiple Sizes | -40°C ~ 85°C |
|
CB1F-12VRELAY AUTOMOTIVE SPDT 40A 12V |
2,152 |
|
数据手册 |
CB | Bulk | Active | Non Latching | 117 mA | 12VDC | SPDT (1 Form C) | 40 A | 14VDC - Nom | 7 VDC | 1.2 VDC | 15 ms | 15 ms | Sealed - Flux Protection | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 85°C |
|
|
AZ983-1A-24DERELAY AUTOMOTIVE SPST 80A 24V |
930 |
|
数据手册 |
AZ983 | Box | Active | Non Latching | 75 mA | 24VDC | SPST-NO (1 Form A) | 80 A | 75VDC - Max | 15.6 VDC | 2.4 VDC | 7 ms | 5 ms | Sealed - Epoxy | Through Hole | PC Pin | -40°C ~ 85°C |
|
CB1A-P-24VRELAY AUTOMOTIVE SPST 20A 24V |
2,034 |
|
数据手册 |
CB | Bulk | Active | Non Latching | 75 mA | 24VDC | SPST-NO (1 Form A) | 20 A | 28VDC - Nom | 14 VDC | 2.4 VDC | 15 ms | 15 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|
|
ET2-B3M1SAUTOMOTIVE RELAYS 1 FORM C X2 SE |
858 |
|
数据手册 |
ET2 | Tube | Active | Non Latching | 53.3 mA | 12VDC | SPDT (1 Form C) x 2 | 25 A | 16VDC - Max | 6.5 VDC | 0.9 VDC | 2.5 ms | 3 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|
|
EP2F-B3N1STAUTOMOTIVE RELAYS HIGH TEMP/HIGH |
234 |
|
数据手册 |
EP2F | Tube | Active | Non Latching | 53.3 mA | 12VDC | SPDT (1 Form C) x 2 | 25 A | 16VDC - Max | 6.5 VDC | 0.9 VDC | 5 ms | 2 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 125°C |
|
PC795-1C-P-12S-XRLEAY AUTOMOTIVE SPDT 80A 12V |
118 |
|
数据手册 |
- | Tray | Active | Non Latching | 150 mA | 12VDC | SPDT (1 Form C) | - | 75VDC - Max | 7.8 VDC | 1.2 VDC | 7 ms | 2 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 125°C |
|

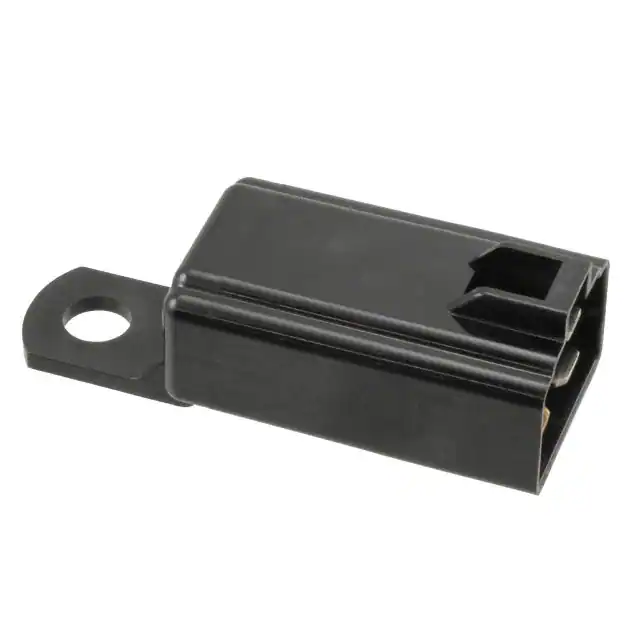

CA1A-DC12V-NRELAY AUTOMOTIVE SPST 30A 12V |
523 |
|
数据手册 |
CA | Tray | Active | Non Latching | 150 mA | 12VDC | SPST-NO (1 Form A) | 30 A | 16VDC - Max | 8 VDC | 0.6 VDC | 10 ms | 10 ms | - | Chassis Mount | Plug In | -30°C ~ 80°C |
|
1-1393277-4RELAY AUTOMOTIVE SPST 45A 12V |
4,726 |
|
数据手册 |
V23076 | Bulk | Active | Non Latching | 133 mA | 12VDC | SPST-NO (1 Form A) | 45 A | 12VDC - Nom | 6.9 VDC | 1.2 VDC | 5 ms | 3 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|
CB1-R-M-12VRELAY AUTOMOTIVE SPDT 40A 12V |
699 |
|
数据手册 |
CB | Bulk | Active | Non Latching | 134 mA | 12VDC | SPDT (1 Form C) | 40 A | 14VDC - Nom | 7 VDC | 1.2 VDC | 15 ms | 15 ms | Resistor, Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 85°C |
|
|
G8PM-1AW7R DC12AUTOMOTIVE PCB RELAY, DC 12V |
1,579 |
|
数据手册 |
G8PM | Tube | Active | Non Latching | 53.3 mA | 12VDC | SPST-NO (1 Form A) | 60 A | - | 7.2 VDC | 0.8 VDC | 10 ms | 5 ms | Sealed - Flux Protection | Socketable | Plug In | -40°C ~ 125°C |
|
CM1-R-12VRELAY AUTOMOTIVE SPDT 35A 12V |
451 |
|
数据手册 |
CM | Bulk | Active | Non Latching | 125 mA | 12VDC | SPDT (1 Form C) | 35 A | 14VDC - Nom | 7 VDC | 1.2 VDC | 10 ms | 10 ms | Resistor, Sealed - Fully | Socketable | Plug In | -40°C ~ 85°C |
|
|
CB1F-R-M-12VRELAY AUTOMOTIVE SPDT 40A 12V |
366 |
|
数据手册 |
CB | Bulk | Active | Non Latching | 134 mA | 12VDC | SPDT (1 Form C) | 40 A | 14VDC - Nom | 7 VDC | 1.2 VDC | 15 ms | 15 ms | Resistor, Sealed - Flux Protection | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 85°C |
|
|
5-1393292-8RELAY GEN PURPOSE SPST 25A 12V |
598 |
|
数据手册 |
VFMA | Bulk | Active | Non Latching | 100.8 mA | 12VDC | SPST-NO (1 Form A) | 25 A | 14VDC - Nom | 7.2 VDC | 1.6 VDC | 6 ms | 3 ms | Diode | Socketable | Plug In | -40°C ~ 125°C |
|
AZ979-1C-12DERELAY AUTOMOTIVE SPDT 60A 12V |
681 |
|
数据手册 |
AZ979 | Tray | Active | Non Latching | 133.3 mA | 12VDC | SPDT (1 Form C) | 60 A | 30VDC - Max | 7.8 VDC | 1.2 VDC | 7 ms | 5 ms | Sealed - Epoxy, SUPER-ISO w/ Plastic Mounting Bracket | Chassis Mount | Plug In, Quick Connect - Multiple Sizes | -40°C ~ 85°C |
|

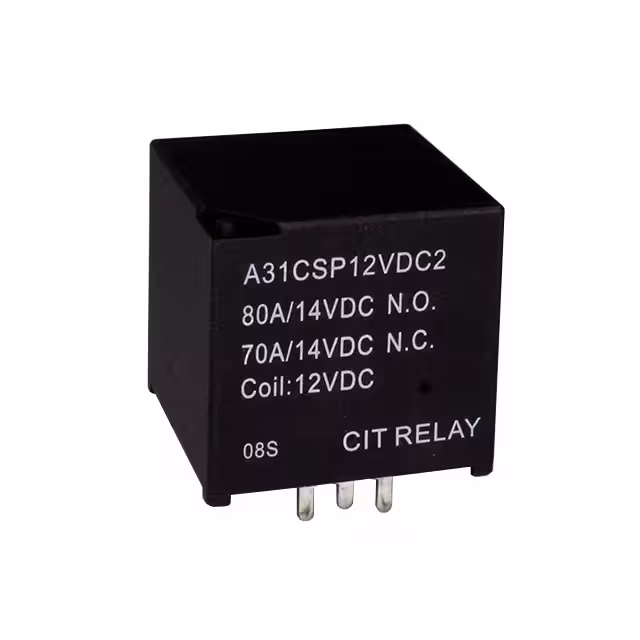

A31CSP12VDC2RELAY AUTOMOTIVE SPDT 80A 12V |
1,501 |
|
数据手册 |
A3 | Tray | Active | Non Latching | 150 mA | 12VDC | SPDT (1 Form C) | 80 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 125°C |
|
|
CB1F-M-12VRELAY AUTOMOTIVE SPDT 40A 12V |
1,240 |
|
数据手册 |
CB | Bulk | Active | Non Latching | 117 mA | 12VDC | SPDT (1 Form C) | 40 A | 14VDC - Nom | 7 VDC | 1.2 VDC | 15 ms | 15 ms | Sealed - Flux Protection | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 85°C |
|

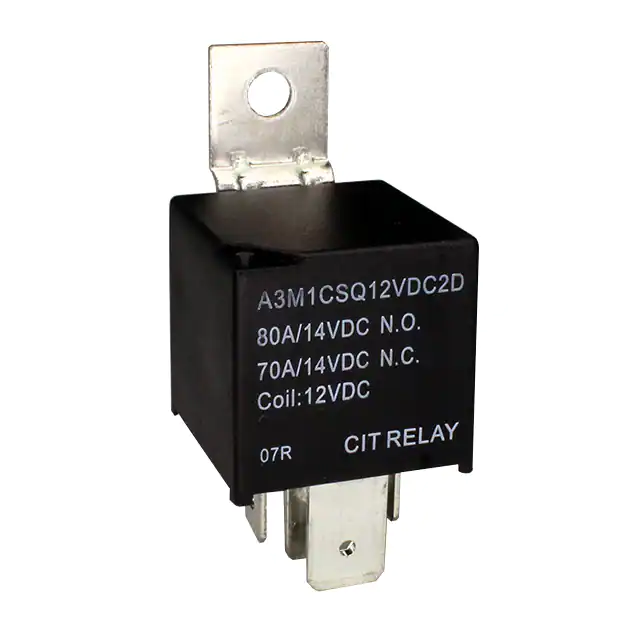

A3M1CSQ12VDC2DRELAY AUTOMOTIVE SPDT 80A 12V |
140 |
|
数据手册 |
A3 | Tray | Active | Non Latching | 150 mA | 12VDC | SPDT (1 Form C) | 80 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Diode, Sealed - Fully | Chassis Mount | Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
|
CB1F-R-24VRELAY AUTOMOTIVE SPDT 20A 24V |
366 |
|
数据手册 |
CB | Bulk | Active | Non Latching | 84 mA | 24VDC | SPDT (1 Form C) | 20 A | 28VDC - Nom | 14 VDC | 2.4 VDC | 15 ms | 15 ms | Resistor, Sealed - Flux Protection | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 85°C |
|
|
CB1F-M-24VRELAY AUTOMOTIVE SPDT 20A 24V |
574 |
|
数据手册 |
CB | Bulk | Active | Non Latching | 75 mA | 24VDC | SPDT (1 Form C) | 20 A | 28VDC - Nom | 14 VDC | 2.4 VDC | 15 ms | 15 ms | Sealed - Flux Protection | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 85°C |
