汽车继电器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 线圈类型 | 线圈电流 | 线圈电压 | 触点形式 | 触点额定值（电流） | 切换电压 | 必须动作电压 | 必须释放电压 | 动作时间 | 释放时间 | 特性 | 安装类型 | 端接样式 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

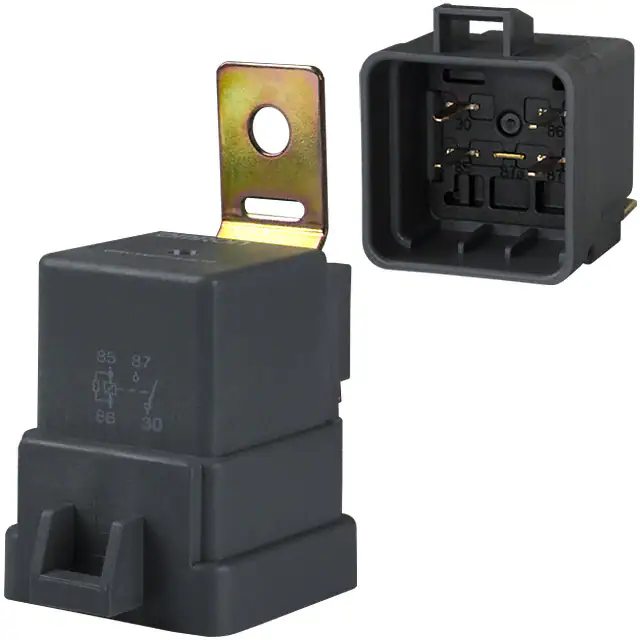

G8W-1A6T-F-R-DC12RELAY AUTOMOTIVE SPST 35A 12V Omron Electronics Inc-EMC Div |
1,907 |
|
数据手册 |
G8W | Bulk | Obsolete | Non Latching | - | 12VDC | SPST-NO (1 Form A) | 35 A | 16VDC - Max | 8 VDC | 1 VDC | 20 ms | 10 ms | Resistor | Socketable | Plug In | -40°C ~ 125°C |
|
G8W-1A6T-R-DC12RELAY AUTOMOTIVE SPST 35A 12V Omron Electronics Inc-EMC Div |
4,396 |
|
数据手册 |
G8W | Bulk | Obsolete | Non Latching | - | 12VDC | SPST-NO (1 Form A) | 35 A | 16VDC - Max | 8 VDC | 1 VDC | 20 ms | 10 ms | Resistor | Socketable | Plug In | -40°C ~ 125°C |
|

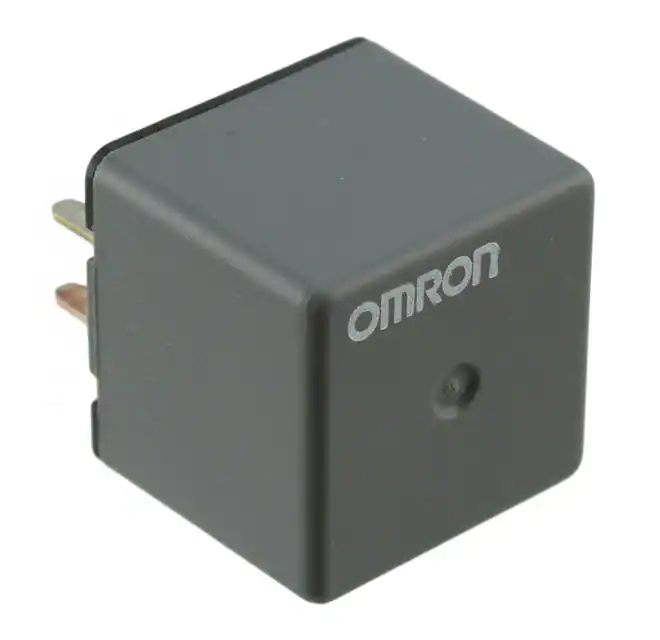

G8W-1A7T-R-DC12RELAY AUTOMOTIVE SPST 35A 12V Omron Electronics Inc-EMC Div |
3,259 |
|
数据手册 |
G8W | Tray | Obsolete | Non Latching | - | 12VDC | SPST-NO (1 Form A) | 35 A | 16VDC - Max | 8 VDC | 1 VDC | 20 ms | 10 ms | Resistor | Socketable | Plug In | -40°C ~ 125°C |
|
|
G8W-1C6T-F-R-DC12RELAY AUTOMOTIVE SPDT 20A 12V Omron Electronics Inc-EMC Div |
2,108 |
|
数据手册 |
G8W | Bulk | Obsolete | Non Latching | - | 12VDC | SPDT (1 Form C) | 20 A | 16VDC - Max | 8 VDC | 1 VDC | 20 ms | 10 ms | Resistor | Socketable | Plug In | -40°C ~ 125°C |
|

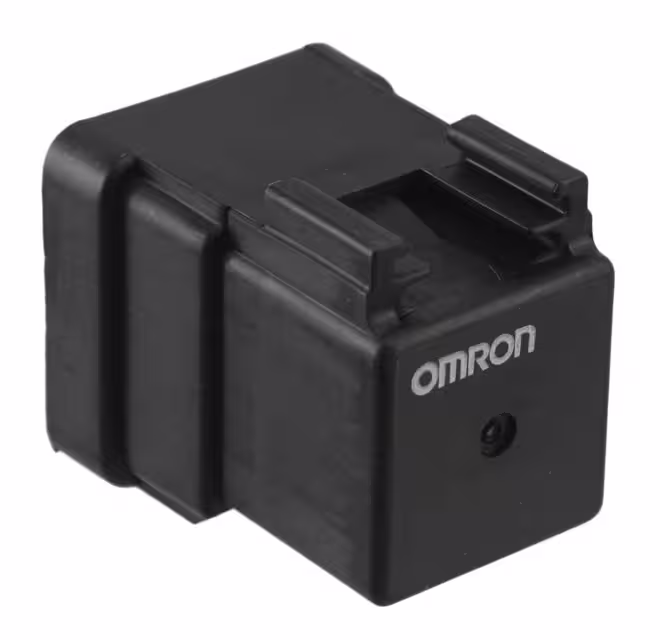

G8W-1C6T-R-DC12RELAY AUTOMOTIVE SPDT 20A 12V Omron Electronics Inc-EMC Div |
3,763 |
|
数据手册 |
G8W | Tray | Obsolete | Non Latching | - | 12VDC | SPDT (1 Form C) | 20 A | 16VDC - Max | 8 VDC | 1 VDC | 20 ms | 10 ms | Resistor | Socketable | Plug In | -40°C ~ 125°C |
|

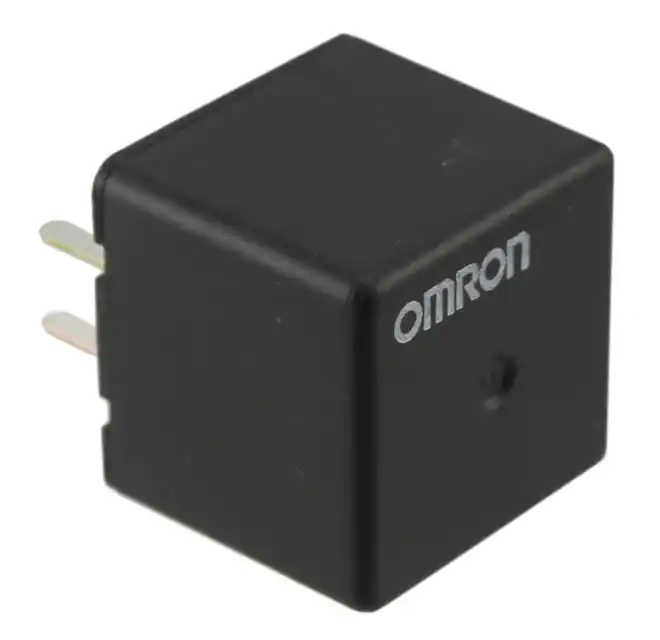

G8W-1C7T-R-DC12RELAY AUTOMOTIVE SPDT 20A 12V Omron Electronics Inc-EMC Div |
3,491 |
|
数据手册 |
G8W | Bulk | Obsolete | Non Latching | - | 12VDC | SPDT (1 Form C) | 20 A | 16VDC - Max | 8 VDC | 1 VDC | 20 ms | 10 ms | Resistor | Socketable | Plug In | -40°C ~ 125°C |
|

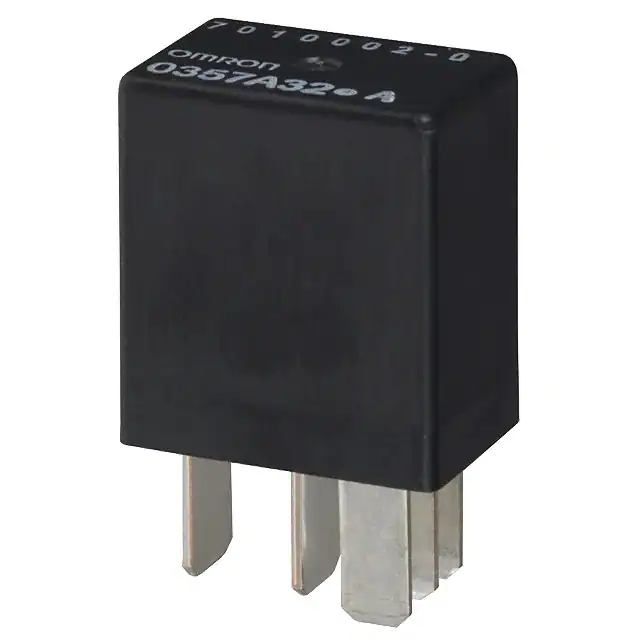

G8HN-1C2T-R DC12RELAY AUTOMOTIVE SPDT 10A 12V Omron Electronics Inc-EMC Div |
4,535 |
|
数据手册 |
G8HN | Bulk | Active | Non Latching | - | 12VDC | SPDT (1 Form C) | 10 A | 16VDC - Max | 8.5 VDC | 1 VDC | 20 ms | 10 ms | - | Socketable | Plug In | -40°C ~ 125°C |
|
G8JN-1C7T-R-DC12RELAY AUTOMOTIVE SPDT 35A 12V Omron Electronics Inc-EMC Div |
1,027 |
|
数据手册 |
G8JN | Bulk | Obsolete | Non Latching | - | 12VDC | SPDT (1 Form C) | 35 A | 16VDC - Max | 8 VDC | 1 VDC | 20 ms | 10 ms | Resistor | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|

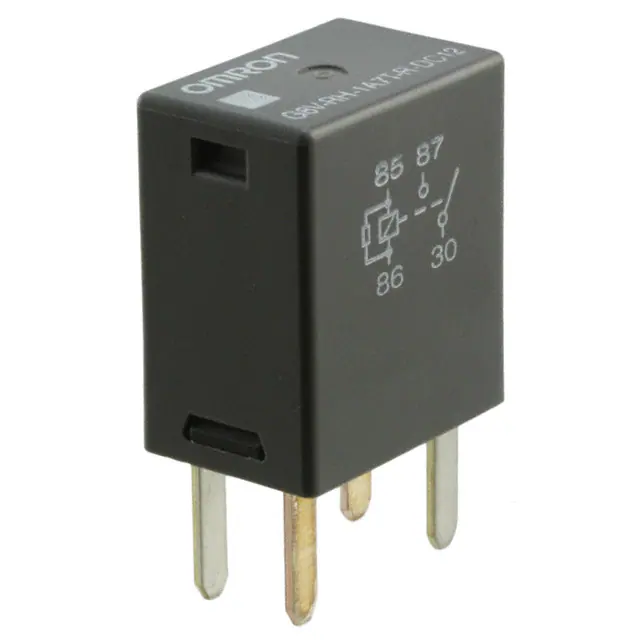

G8V-RH-1A7T-R-DC12RELAY AUTOMOTIVE SPST 35A 12V Omron Electronics Inc-EMC Div |
4,563 |
|
数据手册 |
G8V-RH | Bulk | Obsolete | Non Latching | - | 12VDC | SPST-NO (1 Form A) | 35 A | 16VDC - Max | 8 VDC | 1 VDC | 20 ms | 20 ms | - | Socketable | Plug In | -40°C ~ 125°C |
|
G8V-RH-1C7T-R-DC12RELAY AUTOMOTIVE SPDT 20A 12V Omron Electronics Inc-EMC Div |
2,231 |
|
数据手册 |
G8V-RH | Bulk | Obsolete | Non Latching | - | 12VDC | SPDT (1 Form C) | 20 A | 16VDC - Max | 8 VDC | 1 VDC | 20 ms | 20 ms | - | Socketable | Plug In | -40°C ~ 125°C |
