汽车继电器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 线圈类型 | 线圈电流 | 线圈电压 | 触点形式 | 触点额定值（电流） | 切换电压 | 必须动作电压 | 必须释放电压 | 动作时间 | 释放时间 | 特性 | 安装类型 | 端接样式 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
G8G-1SV DC24AUTO MOTIVE PCB RELAY, DC 12V Omron Electronics Inc-EMC Div |
1,699 |
|
数据手册 |
G8G | Tube | Active | Non Latching | 106.7 mA | 24VDC | SPDT (1 Form C) | 14 A | 28VDC - Nom | 14.4 VDC | 1 VDC | 10 ms | 5 ms | Sealed - Fully | Socketable | Plug In | -40°C ~ 85°C |
|
|
G8K-27R DC12AUTO MOTIVE PCB RELAY, DC 12V Omron Electronics Inc-EMC Div |
2,898 |
|
数据手册 |
G8K | Tube | Active | Non Latching | 75 mA | 12VDC | SPDT (1 Form C) x 2 | 30 A | - | 6.9 VDC | 1 VDC | 10 ms | 5 ms | Sealed - Flux Protection | Socketable | Plug In | -40°C ~ 125°C |
|
|
G8PM-K1A7R DC12LATCHING AUTOMOTIVE PCB RELAY Omron Electronics Inc-EMC Div |
1,197 |
|
数据手册 |
- | Tube | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
G8N-1U-AS DC12RELAY AUTOMOTIVE SPDT 30A 12V Omron Electronics Inc-EMC Div |
2,932 |
|
数据手册 |
G8N-1 | Tube | Active | Non Latching | 92.3 mA | 12VDC | SPDT (1 Form C) | 30 A | 16VDC - Max | 5.5 VDC | 0.8 VDC | 10 ms | 10 ms | - | Through Hole | PC Pin | -40°C ~ 85°C |
|
|
G8ND-2S-ASSKPCB RELAY Omron Electronics Inc-EMC Div |
781 |
|
数据手册 |
G8ND-2 | Bulk | Active | Non Latching | - | 12VDC | SPDT (1 Form C) x 2 | 30 A | 16VDC - Max | 6.5 VDC | 1 VDC | 10 ms | 10 ms | - | Through Hole | PC Pin | -40°C ~ 85°C |
|
|
G8JR-1A2T-R-F1-DC12AUTOMOTIVE RELAY Omron Electronics Inc-EMC Div |
8,302 |
|
数据手册 |
G8JR | Bulk | Active | Non Latching | - | 12VDC | SPST-NO (1 Form A) | 50 A | 16VDC - Max | 8 VDC | 1 VDC | 20 ms | 20 ms | Resistor | Socketable | Plug In | -40°C ~ 125°C |
|

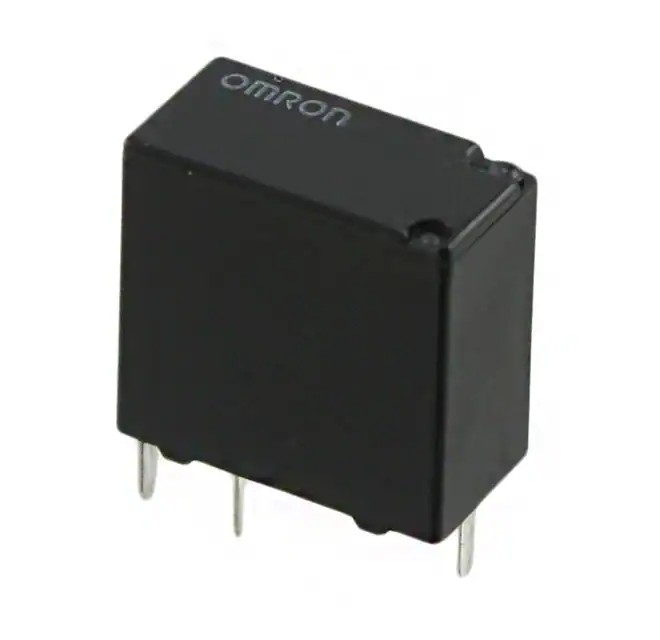

G8N-1 DC12 SKRELAY AUTOMOTIVE SPDT 30A 12V Omron Electronics Inc-EMC Div |
1,899 |
|
数据手册 |
G8N-1 | Bulk | Active | Non Latching | 53.3 mA | 12VDC | SPDT (1 Form C) | 30 A | 16VDC - Max | 7.2 VDC | 1 VDC | 10 ms | 10 ms | - | Through Hole | PC Pin | -40°C ~ 85°C |
|
|
G9EJ-1-E-UVD DC24RELAY AUTOMOTIVE SPST 15A 24V Omron Electronics Inc-EMC Div |
3,265 |
|
数据手册 |
G9EJ-1-E | Tray | Active | Non Latching | 50 mA | 24VDC | SPST-NO (1 Form A) | 15 A | 400VDC - Max | 14.4 VDC | 1.2 VDC | 50 ms | 30 ms | - | Chassis Mount | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 70°C |
|

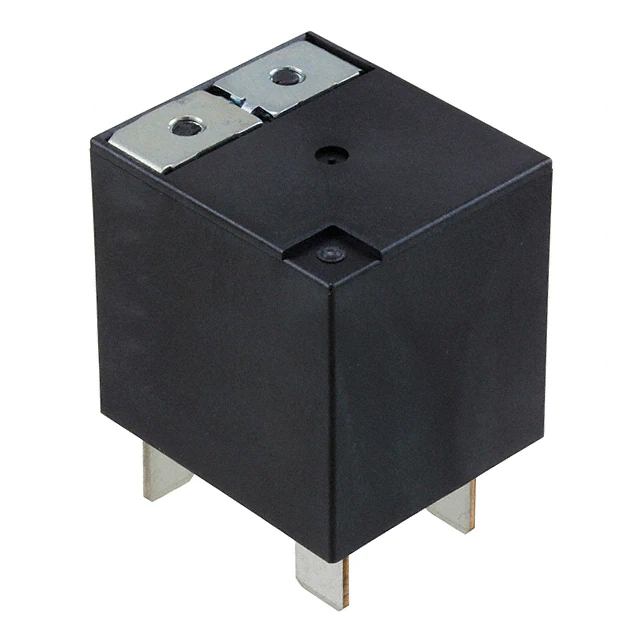

G9EJ-1-DC12RELAY AUTOMOTIVE SPST 25A 12V Omron Electronics Inc-EMC Div |
1,151 |
|
数据手册 |
G9EJ | Bulk | Active | Non Latching | 167 mA | 12VDC | SPST-NO (1 Form A) | 25 A | 400VDC - Max | 7.2 VDC | 0.6 VDC | 50 ms | 30 ms | - | - | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 85°C |
|
|
G9EJ-1-P-E-UVD DC24DC POWER RELAY Omron Electronics Inc-EMC Div |
2,058 |
|
数据手册 |
G9EJ | Bulk | Active | Non Latching | 50 mA | 24VDC | SPST-NO (1 Form A) | 15 A | 400VDC - Max | 14.4 VDC | 1.2 VDC | 50 ms | 30 ms | - | Through Hole | PC Pin | -40°C ~ 70°C |
