汽车继电器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 线圈类型 | 线圈电流 | 线圈电压 | 触点形式 | 触点额定值（电流） | 切换电压 | 必须动作电压 | 必须释放电压 | 动作时间 | 释放时间 | 特性 | 安装类型 | 端接样式 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A31CSP24VDC2RELAY AUTOMOTIVE SPDT 80A 24V |
166 |
|
数据手册 |
A3 | Tray | Active | Non Latching | 75 mA | 24VDC | SPDT (1 Form C) | 80 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 125°C |
|
CB1F-24VRELAY AUTOMOTIVE SPDT 20A 24V |
257 |
|
数据手册 |
CB | Bulk | Active | Non Latching | 75 mA | 24VDC | SPDT (1 Form C) | 20 A | 28VDC - Nom | 14 VDC | 2.4 VDC | 15 ms | 15 ms | Sealed - Flux Protection | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 85°C |
|
CM1A-R-24VRELAY AUTOMOTIVE SPST 15A 24V |
120 |
|
数据手册 |
CM | Bulk | Active | Non Latching | 75 mA | 24VDC | SPST-NO (1 Form A) | 15 A | 28VDC - Nom | 14 VDC | 2.4 VDC | 10 ms | 10 ms | Resistor, Sealed - Fully | Socketable | Plug In | -40°C ~ 85°C |
|
A2KM1CSQ12VDC1.6DRELAY AUTOMOTIVE SPDT 120A 12V |
613 |
|
数据手册 |
A2K | Tray | Active | Non Latching | 133.3 mA | 12VDC | SPDT (1 Form C) | 60 A | 110VDC - Max | 7.8 VDC | 1.2 VDC | 15 ms | 15 ms | Diode, Sealed - Fully, Magnetic Blowout | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
A3K1ASQ12VDC1.6DRELAY AUTOMOTIVE SPST 150A 12V |
289 |
|
数据手册 |
A3K | Tray | Active | Non Latching | 133.3 mA | 12VDC | SPST-NO (1 Form A) | 80 A | 145VDC - Max | 7.8 VDC | 1.2 VDC | 15 ms | 15 ms | Diode, Sealed - Fully, Magnetic Blowout | Socketable | Plug In, Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
A3KM1ASQ12VDC1.6DRELAY AUTOMOTIVE SPST 150A 12V |
300 |
|
数据手册 |
A3K | Tray | Active | Non Latching | 133.3 mA | 12VDC | SPST-NO (1 Form A) | 80 A | 145VDC - Max | 7.8 VDC | 1.2 VDC | 15 ms | 15 ms | Diode, Sealed - Fully, Magnetic Blowout | Chassis Mount | Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
|
A3KM1ASQ24VDC1.6RRELAY AUTOMOTIVE SPST 150A 24V |
290 |
|
数据手册 |
A3K | Tray | Active | Non Latching | 66.7 mA | 24VDC | SPST-NO (1 Form A) | 80 A | 145VDC - Max | 15.6 VDC | 2.4 VDC | 15 ms | 15 ms | Magnetic Blowout, Resistor, Sealed - Fully | Chassis Mount | Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
|
A3KM1ASQ24VDC1.6DRELAY AUTOMOTIVE SPST 150A 24V |
252 |
|
数据手册 |
A3K | Tray | Active | Non Latching | 66.7 mA | 24VDC | SPST-NO (1 Form A) | 80 A | 145VDC - Max | 15.6 VDC | 2.4 VDC | 15 ms | 15 ms | Diode, Sealed - Fully, Magnetic Blowout | Chassis Mount | Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
1393278-2V23076A3001D142T |
258 |
|
数据手册 |
- | Bag | Active | Non Latching | - | 12VDC | - | - | - | 6.9 VDC | 1.2 VDC | 5 ms | 3 ms | - | Through Hole | PC Pin | -40°C ~ 85°C |
|

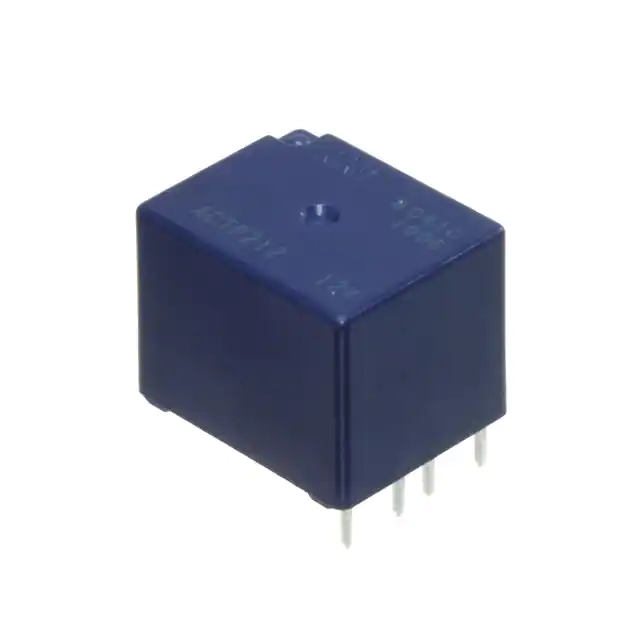

ACTP212RELAY AUTOMOTIVE SPDTX2 30A 12V |
221 |
|
数据手册 |
ACTP | Tube | Active | Non Latching | 83.3 mA | 12VDC | SPDT (1 Form C) x 2 | 30 A | 14VDC - Nom | 7.2 VDC | 1 VDC | 10 ms | 10 ms | - | Through Hole | PC Pin | -40°C ~ 85°C |
|
CB1AHF-24VRELAY AUTOMOTIVE SPST 70A 24V |
661 |
|
数据手册 |
CB | Bulk | Active | Non Latching | 75 mA | 24VDC | SPST-NO (1 Form A) | 20 A | 28VDC - Nom | 14 VDC | 2.4 VDC | 15 ms | 15 ms | Sealed - Flux Protection | Socketable | Plug In, Quick Connect - Multiple Sizes | -40°C ~ 85°C |
|
CB1-T-P-12VRELAY AUTOMOTIVE SPDT 40A 12V |
578 |
|
数据手册 |
CB | Bulk | Active | Non Latching | 117 mA | 12VDC | SPDT (1 Form C) | 40 A | 14VDC - Nom | 7 VDC | 1.2 VDC | 15 ms | 15 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 125°C |
|
A2K1ASQ12VDC1.6RRELAY AUTOMOTIVE SPST 120A 12V |
158 |
|
数据手册 |
A2K | Tray | Active | Non Latching | 133.3 mA | 12VDC | SPST-NO (1 Form A) | 60 A | 110VDC - Max | 7.8 VDC | 1.2 VDC | 15 ms | 15 ms | Magnetic Blowout, Resistor, Sealed - Fully | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
A2KM1ASQ12VDC1.6DRELAY AUTOMOTIVE SPST 120A 12V |
207 |
|
数据手册 |
A2K | Tray | Active | Non Latching | 133.3 mA | 12VDC | SPST-NO (1 Form A) | 60 A | 110VDC - Max | 7.8 VDC | 1.2 VDC | 15 ms | 15 ms | Diode, Sealed - Fully, Magnetic Blowout | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
A2K1CSQ12VDC1.6RELAY AUTOMOTIVE SPDT 120A 12V |
261 |
|
数据手册 |
A2K | Tray | Active | Non Latching | 133.3 mA | 12VDC | SPDT (1 Form C) | 60 A | 110VDC - Max | 7.8 VDC | 1.2 VDC | 15 ms | 15 ms | Magnetic Blowout, Sealed - Fully | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
A2K1CSQ12VDC1.6DRELAY AUTOMOTIVE SPDT 120A 12V |
238 |
|
数据手册 |
A2K | Tray | Active | Non Latching | 133.3 mA | 12VDC | SPDT (1 Form C) | 60 A | 110VDC - Max | 7.8 VDC | 1.2 VDC | 15 ms | 15 ms | Diode, Sealed - Fully, Magnetic Blowout | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
1393277-9RELAY AUTOMOTIVE SPDT 40A 24V |
495 |
|
数据手册 |
V23076 | Bulk | Active | Non Latching | 66 mA | 24VDC | SPDT (1 Form C) | 40 A | 12VDC - Nom | 14.1 VDC | 2.4 VDC | 5 ms | 3 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|
|
A3K1ASQ12VDC1.6RELAY AUTOMOTIVE SPST 150A 12V |
324 |
|
数据手册 |
A3K | Tray | Active | Non Latching | 133.3 mA | 12VDC | SPST-NO (1 Form A) | 80 A | 145VDC - Max | 7.8 VDC | 1.2 VDC | 15 ms | 15 ms | Magnetic Blowout, Sealed - Fully | Socketable | Plug In, Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
CB1A-T-M-24VCB RELAY HR 1 FORM A 24V |
198 |
|
数据手册 |
CB | Bulk | Active | Non Latching | 75 mA | 24VDC | SPST-NO (1 Form A) | 40 A | 28VDC - Nom | 14 VDC | 2.4 VDC | 15 ms | 15 ms | Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
A3K1ASQ24VDC1.6DRELAY AUTOMOTIVE SPST 150A 24V |
636 |
|
数据手册 |
A3K | Tray | Active | Non Latching | 66.7 mA | 24VDC | SPST-NO (1 Form A) | 80 A | 145VDC - Max | 15.6 VDC | 2.4 VDC | 15 ms | 15 ms | Diode, Sealed - Fully, Magnetic Blowout | Socketable | Plug In, Quick Connect - Multiple Sizes | -40°C ~ 125°C |
