汽车继电器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 线圈类型 | 线圈电流 | 线圈电压 | 触点形式 | 触点额定值（电流） | 切换电压 | 必须动作电压 | 必须释放电压 | 动作时间 | 释放时间 | 特性 | 安装类型 | 端接样式 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

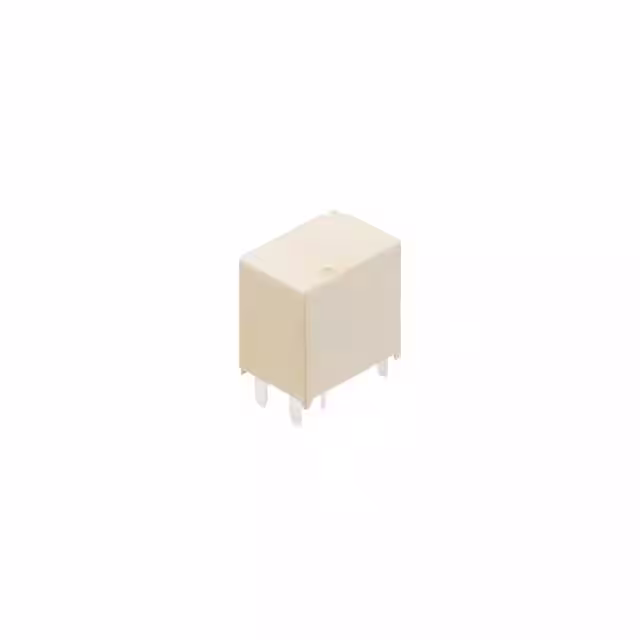

ACTBPDR4VRELAY AUTOMOTIVE SPST 30A 12V |
550 |
|
数据手册 |
ACTBP | Tube | Active | Non Latching | 40 mA | 12VDC | SPST-NO (1 Form A) | 30 A | 14VDC - Nom | 7 VDC | 0.5 VDC | 10 ms | 10 ms | Sealed - Flux Protection | Through Hole | PC Pin | -40°C ~ 110°C |
|
AZ9871-2C-24DETRELAY AUTOMOTIVE DPDT 30A 24V |
2,378 |
|
数据手册 |
AZ9871 | Tray | Active | Non Latching | 23.8 mA | 24VDC | DPDT (2 Form C) | 30 A | 24VDC - Max | 13.8 VDC | 3 VDC | 3 ms | 1.5 ms | Sealed - Epoxy | Through Hole | PC Pin | -40°C ~ 105°C |
|
A21CSQ6VDC1.6RELAY AUTOMOTIVE SPDT 40A 6V |
343 |
|
数据手册 |
A2 | Tray | Active | Non Latching | 266.7 mA | 6VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 4.2 VDC | 0.6 VDC | 7 ms | 5 ms | Sealed - Fully | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
ACTE3CH2A05VRELAY AUTOMOTIVE SPDTX2 20A 12V |
1,563 |
|
数据手册 |
ACTE | Tube | Active | Non Latching | 75 mA | 12VDC | SPDT (1 Form C) x 2 | 20 A | 14VDC - Nom | 6.5 VDC | 0.8 VDC | 10 ms | 10 ms | Sealed - Flux Protection | Through Hole | PC Pin | -40°C ~ 110°C |
|

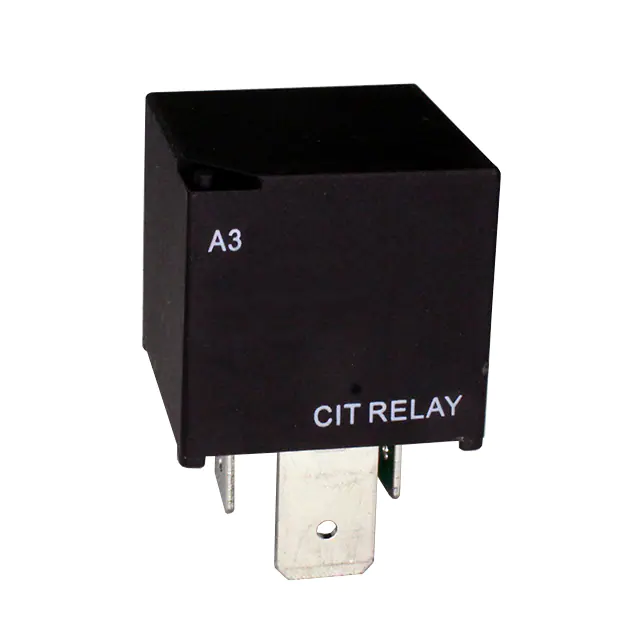

A31CCQ12VDC1RELAY AUTOMOTIVE SPDT 60A 12V |
478 |
|
数据手册 |
A3 | Tray | Active | Non Latching | 150 mA | 12VDC | SPDT (1 Form C) | 60 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | - | Socketable | Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
A2S1ASQ12VDC1.6RELAY AUTOMOTIVE SPST 40A 12V |
356 |
|
数据手册 |
A2 | Tray | Active | Non Latching | 133.3 mA | 12VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
A31CCQ12VDC1DRELAY AUTOMOTIVE SPDT 60A 12V |
469 |
|
数据手册 |
A3 | Tray | Active | Non Latching | 150 mA | 12VDC | SPDT (1 Form C) | 60 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Diode | Socketable | Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
AZ9891J-2C-12DERELAY AUTOMOTIVE DPDT 30A 12V |
998 |
|
数据手册 |
AZ9891J | Tray | Active | Non Latching | 66.7 mA | 12VDC | DPDT (2 Form C) | 30 A | 16VDC - Max | 7.2 VDC | 1 VDC | 10 ms | 10 ms | Sealed - Epoxy | Through Hole | PC Pin | -40°C ~ 85°C |
|
A2M1CSQ48VDC1.6DRELAY AUTOMOTIVE SPDT 40A 48V |
300 |
|
数据手册 |
A2 | Tray | Active | Non Latching | 33.3 mA | 48VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 33.6 VDC | 4.8 VDC | 7 ms | 5 ms | Diode, Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
EP1-B3G1SAUTO RELAY 1 FORM C 12V |
1,499 |
|
数据手册 |
EP1 | Tube | Active | Non Latching | 53.3 mA | 12VDC | SPDT (1 Form C) | 25 A | 16VDC - Max | 6.5 VDC | 0.9 VDC | 5 ms | 2 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|

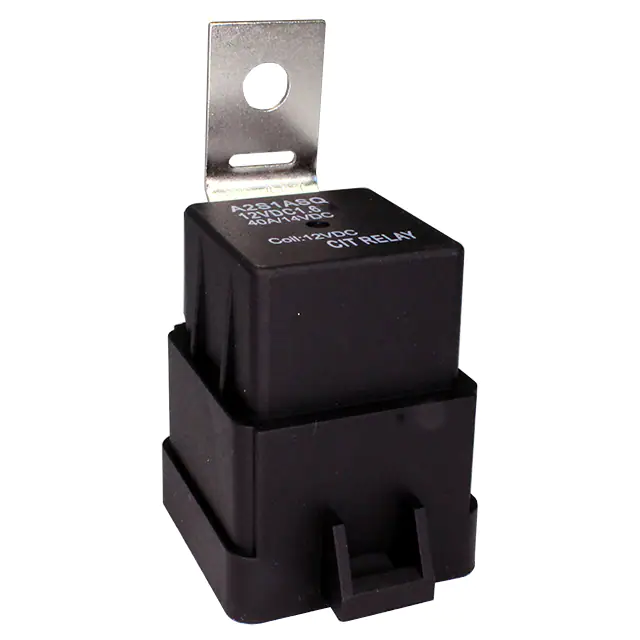

A2S1ASQ12VDC1.6DRELAY AUTOMOTIVE SPST 40A 12V |
344 |
|
数据手册 |
A2 | Tray | Active | Non Latching | 133.3 mA | 12VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Diode, Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
CP1SA-12V-ZRELAY AUTOMOTIVE SPDT 20A 12V |
4,916 |
|
数据手册 |
CP | Tape & Reel (TR) | Active | Non Latching | 53.3 mA | 12VDC | SPDT (1 Form C) | 20 A | 14VDC - Nom | 7.2 VDC | 1 VDC | 10 ms | 10 ms | Sealed - Fully | Surface Mount | Gull Wing | -40°C ~ 85°C |
|
A11CSP48VDC1.2RELAY AUTOMOTIVE SPDT 30A 48V |
223 |
|
数据手册 |
A1 | Tube | Active | Non Latching | 25 mA | 48VDC | SPDT (1 Form C) | 30 A | 75VDC - Max | 33.6 VDC | 4.8 VDC | 10 ms | 7 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|
A102CS24VDCRELAY AUTOMOTIVE DPDT 30A 24V |
998 |
|
数据手册 |
A10 | Tube | Active | Non Latching | 20.8 mA | 24VDC | DPDT (2 Form C) | 30 A | 28VDC - Max | 16.8 VDC | 2.4 VDC | 4 ms | 1.5 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 105°C |
|

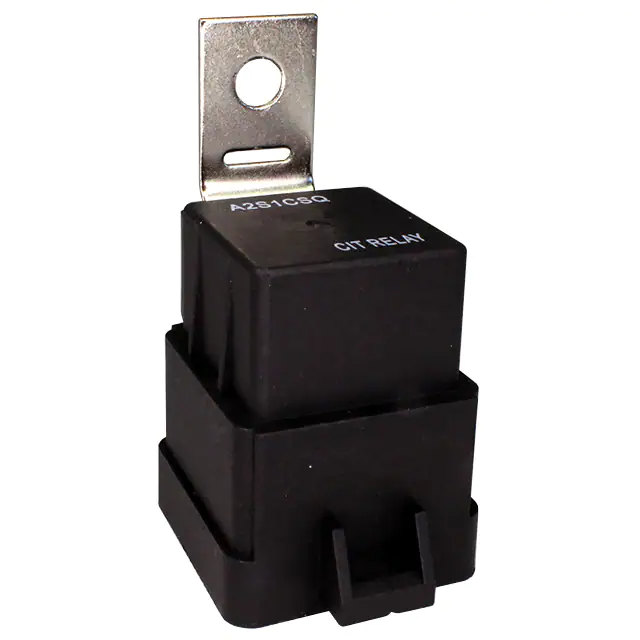

A2S1CSQ12VDC1.6DRELAY AUTOMOTIVE SPDT 40A 12V |
418 |
|
数据手册 |
A2 | Tray | Active | Non Latching | 133.3 mA | 12VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Diode, Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
A31CSQ12VDC2RELAY AUTOMOTIVE SPDT 80A 12V |
448 |
|
数据手册 |
A3 | Tray | Active | Non Latching | 150 mA | 12VDC | SPDT (1 Form C) | 80 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Sealed - Fully | Socketable | Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
A2S1ASQ6VDC1.6RELAY AUTOMOTIVE SPST 40A 6V |
134 |
|
数据手册 |
A2 | Tray | Active | Non Latching | 266.7 mA | 6VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 4.2 VDC | 0.6 VDC | 7 ms | 5 ms | Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|

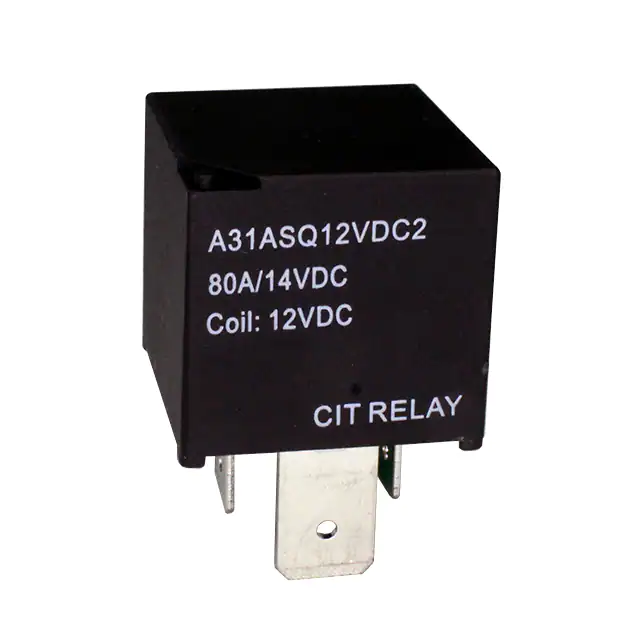

A31ASQ12VDC2RELAY AUTOMOTIVE SPST 80A 12V |
266 |
|
数据手册 |
A3 | Tray | Active | Non Latching | 150 mA | 12VDC | SPST-NO (1 Form A) | 80 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Sealed - Fully | Socketable | Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
CB1A-R-12VRELAY AUTOMOTIVE SPST 40A 12V |
961 |
|
数据手册 |
CB | Tube | Active | Non Latching | 134 mA | 12VDC | SPST-NO (1 Form A) | 40 A | 14VDC - Nom | 7 VDC | 1.2 VDC | 15 ms | 15 ms | Resistor, Sealed - Fully | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 85°C |
|

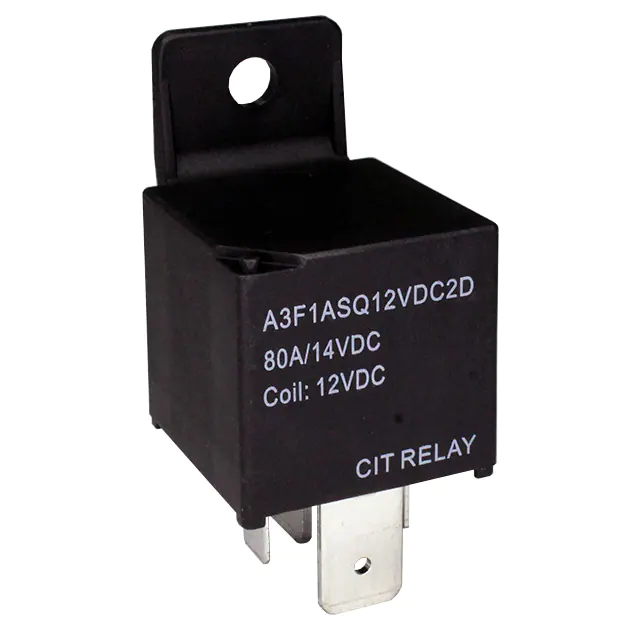

A3F1ASQ12VDC2DRELAY AUTOMOTIVE SPST 80A 12V |
918 |
|
数据手册 |
A3F | Tray | Active | Non Latching | 150 mA | 12VDC | SPST-NO (1 Form A) | 80 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Diode, Sealed - Fully | Chassis Mount | Quick Connect - Multiple Sizes | -40°C ~ 125°C |
