铝 - 聚合物电容器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 电容 | 容差 | 额定电压 | ESR（等效串联电阻） | 寿命 @ 温度 | 工作温度 | 额定值 | 应用 | 特性 | 纹波电流 @ 低频 | 纹波电流 @ 高频 | 阻抗 | 引线间距 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） | 表面贴装焊盘尺寸 | 安装类型 | 封装/外壳 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HHXE500ARA330MHA0GCAP ALUM HYBRID 33UF 20% 50V SMD |
4,170 |
|
数据手册 |
HXE | Bulk | Active | Hybrid | 33 µF | ±20% | 50 V | 30mOhm | 4000 Hrs @ 135°C | -55°C ~ 135°C | AEC-Q200 | Automotive | - | 168 mA @ 120 Hz | 2.4 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
|
PCL0G561MCL1GSCAP ALUM POLY 560UF 20% 4V SMD |
1,709 |
|
数据手册 |
PCL | Tape & Reel (TR) | Active | Polymer | 560 µF | ±20% | 4 V | 22mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | 160 mA @ 120 Hz | 3.2 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.291" (7.40mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
URP1C471MNN0808UCAP ALUM POLY 470UF 20% 16V TH |
3,035 |
|
数据手册 |
URP | Active | Polymer | 470 µF | ±20% | 16 V | 12mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 4.7 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.354" (9.00mm) | - | Through Hole | ||
|
PLG0E182MCO1CAP ALUM POLY 1800UF 20% 2.5V TH |
1,048 |
|
数据手册 |
PLG | Bulk | Active | Polymer | 1800 µF | ±20% | 2.5 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 6 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.354" (9.00mm) | - | Through Hole | |
|
|
PLG0G122MCO1CAP ALUM POLY 1200UF 20% 4V TH |
3,136 |
|
数据手册 |
PLG | Bulk | Active | Polymer | 1200 µF | ±20% | 4 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.9 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.354" (9.00mm) | - | Through Hole | |
|
|
PLG1A561MCO1CAP ALUM POLY 560UF 20% 10V TH |
3,538 |
|
数据手册 |
PLG | Bulk | Active | Polymer | 560 µF | ±20% | 10 V | 11mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.1 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.354" (9.00mm) | - | Through Hole | |
|
ESRD2R2M16BCAP ALUM POLY 2.2UF 20% 16V SMD |
3,280 |
|
数据手册 |
ESRD | Bulk | Obsolete | Polymer | 2.2 µF | ±20% | 16 V | 110mOhm | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | Bypass, Decoupling | - | - | 1 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.071" (1.80mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|
|
ESRD8R2M08BCAP ALUM POLY 8.2UF 20% 8V SMD |
4,786 |
|
数据手册 |
ESRD | Bulk | Obsolete | Polymer | 8.2 µF | ±20% | 8 V | 55mOhm | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | Bypass, Decoupling | - | - | 1.4 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.071" (1.80mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|
|
F862DU105K310ZV054V215CAP ALUM POLY 82UF 20% 2.5V SMD |
1,090 |
|
数据手册 |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
HHXE500ARA470MHA0GCAP ALUM HYBRID 47UF 20% 50V SMD |
2,092 |
|
数据手册 |
HXE | Bulk | Active | Hybrid | 47 µF | ±20% | 50 V | 30mOhm | 4000 Hrs @ 135°C | -55°C ~ 135°C | AEC-Q200 | Automotive | - | 240 mA @ 120 Hz | 2.4 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
MAL218597505E3CAP ALUM POLY 150UF 20% 16V SMD |
2,190 |
|
数据手册 |
185 CPNZ | Box | Active | Polymer | 150 µF | ±20% | 16 V | 33mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 155 mA @ 120 Hz | 3.1 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.354" (9.00mm) | - | Surface Mount | |
|
|
RHA0809220M063BCAP ALUM HYBRID 22UF 20% 63V TH |
3,676 |
|
数据手册 |
RHA | Bulk | Active | Hybrid | 22 µF | ±20% | 63 V | 40mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 75 mA @ 100 Hz | 1.5 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.433" (11.00mm) | - | Through Hole | |
|
|
URH0J821MNN1012UCAP ALUM POLY 820UF 20% 6.3V TH |
2,810 |
|
数据手册 |
URH | Active | Polymer | 820 µF | ±20% | 6.3 V | 12mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 5.44 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.531" (13.50mm) | - | Through Hole | ||
|
|
UGS1E681MNN0816UCAP ALUM POLY 680UF 20% 25V TH |
2,021 |
|
数据手册 |
UGS | Active | Polymer | 680 µF | ±20% | 25 V | 16mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 4.65 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.689" (17.50mm) | - | Through Hole | ||
|
|
VHTB0581V220MVCGCAP ALUM HYBRID 22UF 20% 35V SMD |
2,051 |
|
数据手册 |
VHT | Bulk | Active | Hybrid | 22 µF | ±20% | 35 V | 100mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 66 mA @ 120 Hz | 550 mA @ 100 kHz | 100 mOhms | - | 0.197" Dia (5.00mm) | 0.248" (6.30mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | |
|
APXJ2R5ARA821MFA0GCAP ALUM POLY 820UF 20% 2.5V SMD |
4,677 |
|
数据手册 |
NPCAP™-PXJ | Tape & Reel (TR) | Active | Polymer | 820 µF | ±20% | 2.5 V | 10mOhm | 15000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 215 mA @ 120 Hz | 4.3 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.394" (10.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
|
P295BL332M500CL29KCAP ALUM POLY 220UF 20% 6.3V SMD |
4,324 |
|
数据手册 |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
P295BL332M500CL30CCAP ALUM POLY 270UF 20% 2.5V SMD |
2,590 |
|
数据手册 |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
PLF1E560MDO2CAP ALUM POLY 56UF 20% 25V TH |
2,976 |
|
数据手册 |
PLF | Bulk | Active | Polymer | 56 µF | ±20% | 25 V | 28mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 3.8 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | - | Through Hole | |
|

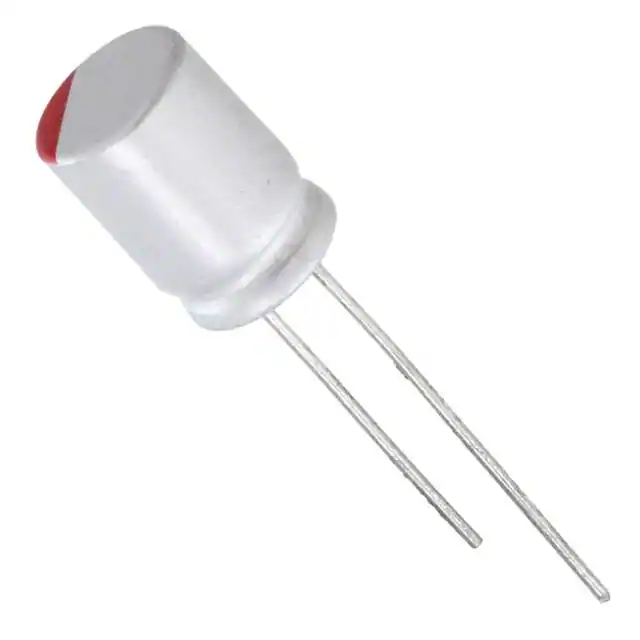

RHT1C331MDN1PHCAP ALUM POLY 330UF 20% 16V TH |
2,112 |
|
数据手册 |
FPCAP, RHT | Tape & Box (TB) | Active | Polymer | 330 µF | ±20% | 16 V | 16mOhm | 1000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 475 mA @ 120 Hz | 4.75 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole |
