铝 - 聚合物电容器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 电容 | 容差 | 额定电压 | ESR（等效串联电阻） | 寿命 @ 温度 | 工作温度 | 额定值 | 应用 | 特性 | 纹波电流 @ 低频 | 纹波电流 @ 高频 | 阻抗 | 引线间距 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） | 表面贴装焊盘尺寸 | 安装类型 | 封装/外壳 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
4SXE82M1.9X7.3CAP ALUM POLY 82UF 20% 4V SMD |
4,648 |
|
数据手册 |
PC-CON, SXE | Tape & Reel (TR) | Active | Polymer | 82 µF | ±20% | 4 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | - | Surface Mount | |
|
RNE1C821MDN1CAP ALUM POLY 820UF 20% 16V TH |
1,475 |
|
数据手册 |
FPCAP, RNE | Bulk | Active | Polymer | 820 µF | ±20% | 16 V | 11mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 560 mA @ 120 Hz | 5.6 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole | |
|
20SEPF390M+TSSCAP ALUM POLY 390UF 20% 20V TH |
4,430 |
|
数据手册 |
OS-CON™, SEPF | Tape & Box (TB) | Active | Polymer | 390 µF | ±20% | 20 V | 14mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 247.5 mA @ 120 Hz | 4.95 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | - | Through Hole | |
|
|
A700V476M010ATE018CAP ALUM POLY 47UF 20% 10V SMD |
4,728 |
|
数据手册 |
AO-Cap A700 | Tape & Reel (TR) | Active | Polymer | 47 µF | ±20% | 10 V | 18mOhm | - | - | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|
|
PCL1A151MCL1GSCAP ALUM POLY 150UF 20% 10V SMD |
1,349 |
|
数据手册 |
PCL | Tape & Reel (TR) | Active | Polymer | 150 µF | ±20% | 10 V | 21mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | 144 mA @ 120 Hz | 2.88 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.291" (7.40mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
MAL218497606E3CAP ALUM POLY 47UF 20% 25V SMD |
3,564 |
|
数据手册 |
184 CPNS | Box | Active | Polymer | 47 µF | ±20% | 25 V | 20mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 210.5 mA @ 120 Hz | 4.21 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|

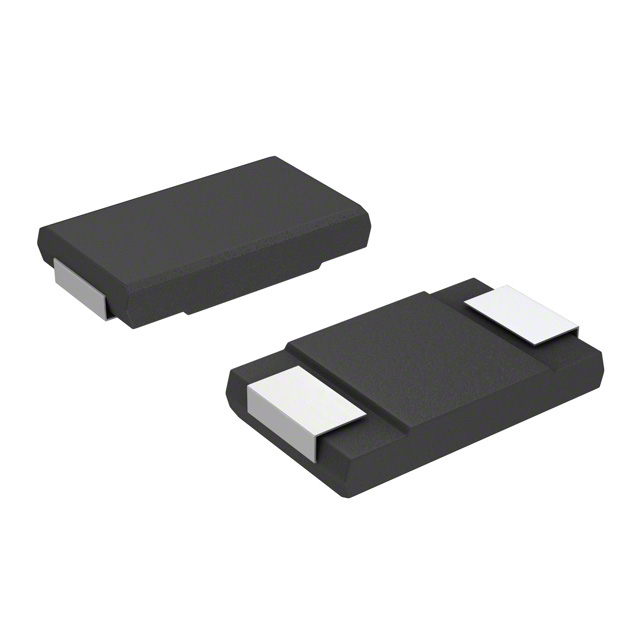

ESRL150M12RCAP ALUM POLY 15UF 20% 12.5V SMD |
4,771 |
|
数据手册 |
ESRL | Tape & Reel (TR) | Obsolete | Polymer | 15 µF | ±20% | 12.5 V | 40mOhm | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | Bypass, Decoupling | - | - | 1.4 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.043" (1.10mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|
|
ESRL470M04RCAP ALUM POLY 47UF 20% 4V SMD |
4,165 |
|
数据手册 |
ESRL | Tape & Reel (TR) | Obsolete | Polymer | 47 µF | ±20% | 4 V | 35mOhm | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | Bypass, Decoupling | - | - | 1.6 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.043" (1.10mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|
|
ESRL680M02RCAP ALUM POLY 68UF 20% 2V SMD |
1,513 |
|
数据手册 |
ESRL | Tape & Reel (TR) | Obsolete | Polymer | 68 µF | ±20% | 2 V | 35mOhm | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | Bypass, Decoupling | - | - | 1.6 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.043" (1.10mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|
SPCX121M06RCAP ALUM POLY 120UF 20% 6.3V SMD |
2,071 |
|
数据手册 |
SPCX | Tape & Reel (TR) | Obsolete | Polymer | 120 µF | ±20% | 6.3 V | 15mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | 2.7 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|
|
SPCX221M04RCAP ALUM POLY 220UF 20% 4V SMD |
4,816 |
|
数据手册 |
SPCX | Tape & Reel (TR) | Obsolete | Polymer | 220 µF | ±20% | 4 V | 15mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | 2.7 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|
|
SPCX391M02RCAP ALUM POLY 390UF 20% 2V SMD |
4,869 |
|
数据手册 |
SPCX | Tape & Reel (TR) | Obsolete | Polymer | 390 µF | ±20% | 2 V | 15mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | 2.7 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|
|
SPCX391M0ERCAP ALUM POLY 390UF 20% 2.5V SMD |
4,897 |
|
数据手册 |
SPCX | Tape & Reel (TR) | Obsolete | Polymer | 390 µF | ±20% | 2.5 V | 15mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | 2.7 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|
|
SPCX471M02RCAP ALUM POLY 470UF 20% 2V SMD |
4,877 |
|
数据手册 |
SPCX | Tape & Reel (TR) | Obsolete | Polymer | 470 µF | ±20% | 2 V | 15mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | 2.7 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|
UPS0J471MCG0808CAP ALUM POLY 470UF 20% 6.3V TH |
4,696 |
|
数据手册 |
UPS | Active | Polymer | 470 µF | ±20% | 6.3 V | 7mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.7 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.354" (9.00mm) | - | Through Hole | ||
|
875105142003CAP ALUM POLY 68UF 20% 6.3V SMD |
3,847 |
|
数据手册 |
WCAP-PSLP | Tape & Reel (TR) | Active | Polymer | 68 µF | ±20% | 6.3 V | 30mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 98.5 mA @ 120 Hz | 1.97 A @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.217" (5.50mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | |
|
|
UGS1E681MP20816UXCAP ALUM POLY 680UF 20% 25V TH |
4,148 |
|
数据手册 |
UGS | Active | Polymer | 680 µF | ±20% | 25 V | 16mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 4.65 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.689" (17.50mm) | - | Through Hole | ||
|
|
UGS1C102MP30816RUCAP ALUM POLY 1000UF 20% 16V TH |
4,200 |
|
数据手册 |
UGS | Active | Polymer | 1000 µF | ±20% | 16 V | 10mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 6.1 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.689" (17.50mm) | - | Through Hole | ||
|
|
UPE1E681MP51012RCAP ALUM POLY 680UF 20% 25V TH |
3,559 |
|
数据手册 |
UPE | Active | Polymer | 680 µF | ±20% | 25 V | 12mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.4 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.531" (13.50mm) | - | Through Hole | ||
|
|
UGS1C182MP51020UCAP ALUM POLY 1800UF 20% 16V TH |
4,192 |
|
数据手册 |
UGS | Active | Polymer | 1800 µF | ±20% | 16 V | 8mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 6.1 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.846" (21.50mm) | - | Through Hole |
