铝 - 聚合物电容器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 电容 | 容差 | 额定电压 | ESR（等效串联电阻） | 寿命 @ 温度 | 工作温度 | 额定值 | 应用 | 特性 | 纹波电流 @ 低频 | 纹波电流 @ 高频 | 阻抗 | 引线间距 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） | 表面贴装焊盘尺寸 | 安装类型 | 封装/外壳 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
APZ0609101M035RCAP ALUM POLY 100UF 20% 35V SMD |
3,455 |
|
数据手册 |
APZ | Tape & Reel (TR) | Active | Polymer | 100 µF | ±20% | 35 V | 40mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 105 mA @ 120 Hz | 2.1 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.386" (9.80mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
|
APZ0609271M016RCAP ALUM POLY 270UF 20% 16V SMD |
1,600 |
|
数据手册 |
APZ | Tape & Reel (TR) | Active | Polymer | 270 µF | ±20% | 16 V | 25mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 130 mA @ 120 Hz | 2.6 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.386" (9.80mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
APA0812681M010RCAP ALUM POLY 680UF 20% 10V SMD |
4,634 |
|
数据手册 |
APA | Tape & Reel (TR) | Active | Polymer | 680 µF | ±20% | 10 V | 25mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 207.5 mA @ 120 Hz | 4.15 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.492" (12.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
|
A7C5MN826M1JBAS030CAP ALU HYBRID RADL 82UF 63V |
1,372 |
|
数据手册 |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
RR50J471MDN1PXCAP ALUM POLY 470UF 20% 6.3V TH |
3,959 |
|
数据手册 |
FPCAP, RR5 | Tape & Reel (TR) | Active | Polymer | 470 µF | ±20% | 6.3 V | 5mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 663 mA @ 120 Hz | 6.63 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole | |
|

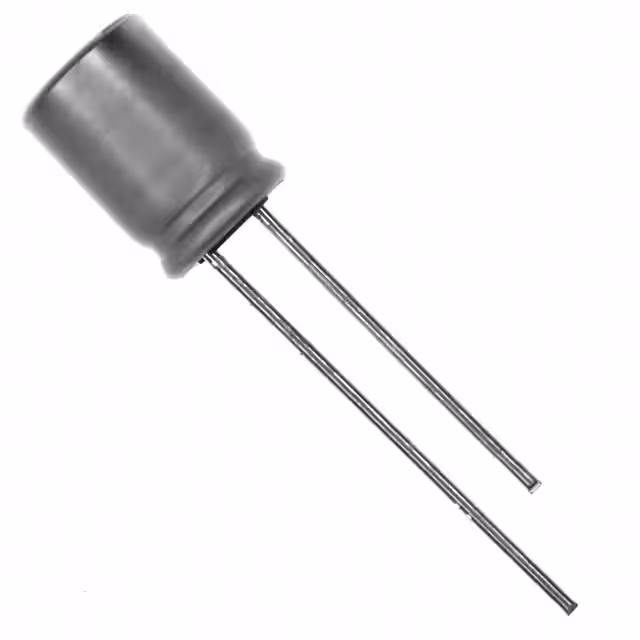

APSC4R0ELL681MHB5SCAP ALUM POLY 680UF 20% 4V TH |
2,680 |
|
数据手册 |
NPCAP™-PSC | Bulk | Active | Polymer | 680 µF | ±20% | 4 V | 7mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 6.1 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole | |
|

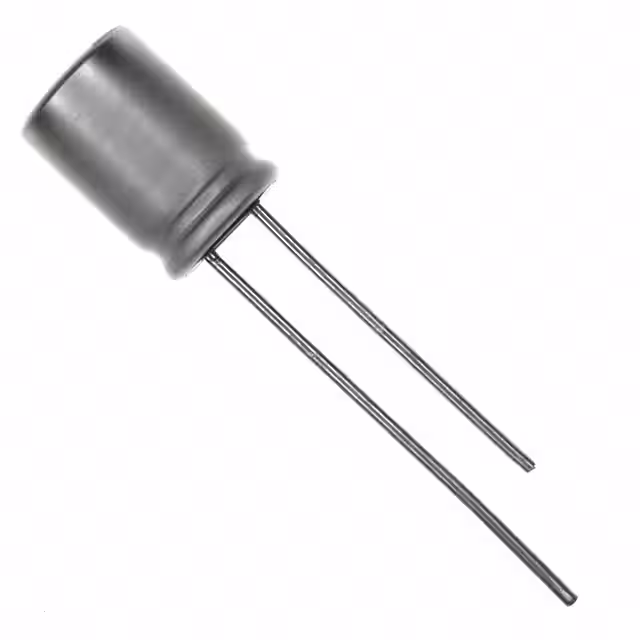

APSC2R5ELL152MHB5SCAP ALUM POLY 1500UF 20% 2.5V TH |
4,524 |
|
数据手册 |
NPCAP™-PSC | Bulk | Active | Polymer | 1500 µF | ±20% | 2.5 V | 7mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 6.1 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole | |
|
|
A768MS476M1KLAS034CAP ALUM POLY 47UF 20% 80V SMD |
1,581 |
|
数据手册 |
A768 | Tape & Reel (TR) | Active | Polymer | 47 µF | ±20% | 80 V | 34mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 90 mA @ 120 Hz | 1.8 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.500" (12.70mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
|
RKS1D390MCNAFGGSCAP ALUM POLY 39UF 20% 20V SMD |
1,334 |
|
数据手册 |
FPCAP, RKS | Tape & Reel (TR) | Active | Polymer | 39 µF | ±20% | 20 V | 30mOhm | 3000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 290 mA @ 120 Hz | 2.9 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
|
RKS1D680MCNAFGGSCAP ALUM POLY 68UF 20% 20V SMD |
4,925 |
|
数据手册 |
FPCAP, RKS | Tape & Reel (TR) | Active | Polymer | 68 µF | ±20% | 20 V | 30mOhm | 3000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 290 mA @ 120 Hz | 2.9 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
|
APD0606220M063RCAP ALUM POLY 22UF 20% 63V SMD |
3,626 |
|
数据手册 |
APD | Tape & Reel (TR) | Active | Polymer | 22 µF | ±20% | 63 V | 72mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 26 mA @ 120 Hz | 520 mA @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.256" (6.50mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
|
RS81C271MDN1CACAP ALUM POLY 120UF 20% 6.3V SMD |
2,353 |
|
数据手册 |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
RKS1E390MCNAFGGSCAP ALUM POLY 39UF 20% 25V SMD |
3,889 |
|
数据手册 |
FPCAP, RKS | Tape & Reel (TR) | Active | Polymer | 39 µF | ±20% | 25 V | 30mOhm | 3000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 290 mA @ 120 Hz | 2.9 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
|
RKS1V390MCNAFGGSCAP ALUM POLY 39UF 20% 35V SMD |
3,387 |
|
数据手册 |
FPCAP, RKS | Tape & Reel (TR) | Active | Polymer | 39 µF | ±20% | 35 V | 35mOhm | 3000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 290 mA @ 120 Hz | 2.9 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
MAL218497511E3CAP ALUM POLY 47UF 20% 16V SMD |
4,266 |
|
数据手册 |
184 CPNS | Box | Active | Polymer | 47 µF | ±20% | 16 V | 40mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 100 mA @ 120 Hz | 2 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.500" (12.70mm) | - | Surface Mount | |
|
|
RKS1J100MCNAFGGSCAP ALUM POLY 10UF 20% 63V SMD |
2,171 |
|
数据手册 |
FPCAP, RKS | Tape & Reel (TR) | Active | Polymer | 10 µF | ±20% | 63 V | 80mOhm | 3000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 186 mA @ 120 Hz | 1.86 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
|
A7C5MN127M1HEAS028CAP ALU HYBRID RADL 120UF 50V |
1,059 |
|
数据手册 |
* | Tape & Box (TB) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|

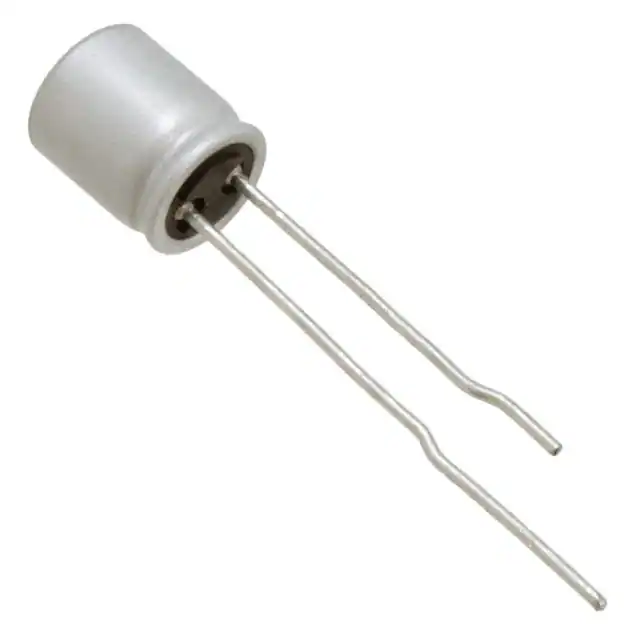

RS80J561MDNASQPXCAP ALUM POLY 560UF 20% 6.3V TH |
1,780 |
|
数据手册 |
FPCAP, RS8 | Tape & Box (TB) | Active | Polymer | 560 µF | ±20% | 6.3 V | 8mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 500 mA @ 120 Hz | 5 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.354" (9.00mm) | - | Through Hole | |
|
|
MAL218497355E3CAP ALUM POLY 220UF 20% 4V SMD |
4,725 |
|
数据手册 |
184 CPNS | Box | Active | Polymer | 220 µF | ±20% | 4 V | 22mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 140 mA @ 120 Hz | 2.8 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.240" (6.10mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
|
RKS1E270MCNAFGGSCAP ALUM POLY 27UF 20% 25V SMD |
1,285 |
|
数据手册 |
FPCAP, RKS | Tape & Reel (TR) | Active | Polymer | 27 µF | ±20% | 25 V | 30mOhm | 3000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 290 mA @ 120 Hz | 2.9 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
