铝 - 聚合物电容器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 电容 | 容差 | 额定电压 | ESR（等效串联电阻） | 寿命 @ 温度 | 工作温度 | 额定值 | 应用 | 特性 | 纹波电流 @ 低频 | 纹波电流 @ 高频 | 阻抗 | 引线间距 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） | 表面贴装焊盘尺寸 | 安装类型 | 封装/外壳 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
URP1C471MCG1012ERUCAP ALUM POLY 470UF 20% 16V TH |
1,312 |
|
数据手册 |
URP | Active | Polymer | 470 µF | ±20% | 16 V | 10mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 6.1 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.531" (13.50mm) | - | Through Hole | ||
|
A768KS476M1JLAS031CAP ALUM POLY 47UF 20% 63V SMD |
4,279 |
|
数据手册 |
A768 | Tape & Reel (TR) | Active | Polymer | 47 µF | ±20% | 63 V | 31mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 90 mA @ 120 Hz | 1.8 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.492" (12.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
|
A769MS227M1GLAS014CAP ALUM POLY 220UF 20% 40V SMD |
4,461 |
|
数据手册 |
A769 | Tape & Reel (TR) | Active | Polymer | 220 µF | ±20% | 40 V | 14mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 148.5 mA @ 120 Hz | 2.97 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.500" (12.70mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|

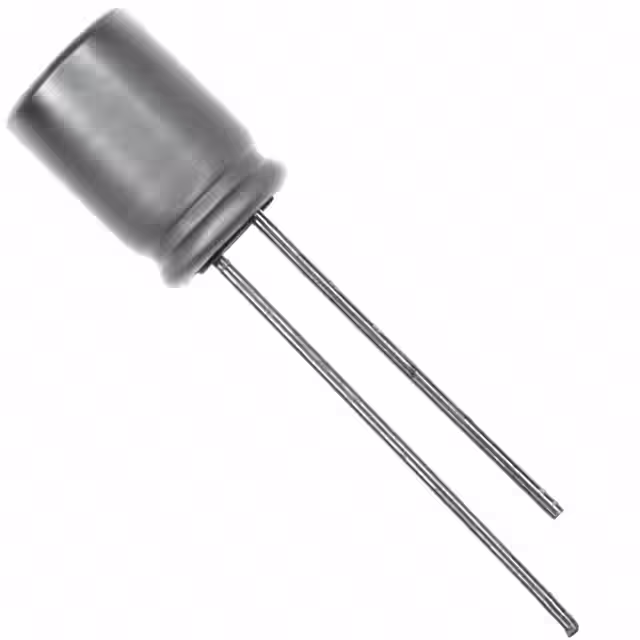

APSC2R5ELL102MHB5SCAP ALUM POLY 1000UF 20% 2.5V TH |
4,469 |
|
数据手册 |
NPCAP™-PSC | Bulk | Active | Polymer | 1000 µF | ±20% | 2.5 V | 7mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 6.1 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole | |
|
MAL218497253E3CAP ALUM POLY 220UF 20% 2.5V SMD |
3,961 |
|
数据手册 |
184 CPNS | Box | Active | Polymer | 220 µF | ±20% | 2.5 V | 22mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 140 mA @ 120 Hz | 2.8 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.240" (6.10mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
RL80E152MDN1CAP ALUM POLY 1500UF 20% 2.5V TH |
1,398 |
|
数据手册 |
FPCAP, RL8 | Bulk | Active | Polymer | 1500 µF | ±20% | 2.5 V | 7mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 610 mA @ 120 Hz | 6.1 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.354" (9.00mm) | - | Through Hole | |
|
|
RDS0J181MCNAHFGSCAP ALUM POLY 180UF 20% 6.3V SMD |
2,110 |
|
数据手册 |
FPCAP, RDS | Tape & Reel (TR) | Active | Polymer | 180 µF | ±20% | 6.3 V | 18mOhm | 3000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 430 mA @ 120 Hz | 4.3 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
|
RS60E561MCNASQCAP ALUM POLY 560UF 20% 2.5V TH |
1,356 |
|
数据手册 |
FPCAP, RS6 | Tape & Box (TB) | Active | Polymer | 560 µF | ±20% | 2.5 V | 13mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 360 mA @ 120 Hz | 3.6 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | - | Through Hole | |
|
|
MAL218497506E3CAP ALUM POLY 22UF 20% 16V SMD |
3,449 |
|
数据手册 |
184 CPNS | Box | Active | Polymer | 22 µF | ±20% | 16 V | 30mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 130.5 mA @ 120 Hz | 2.61 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
|
A7C5MN127M1HAAS028CAP ALU HYBRID RADL 120UF 50V |
4,179 |
|
数据手册 |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|

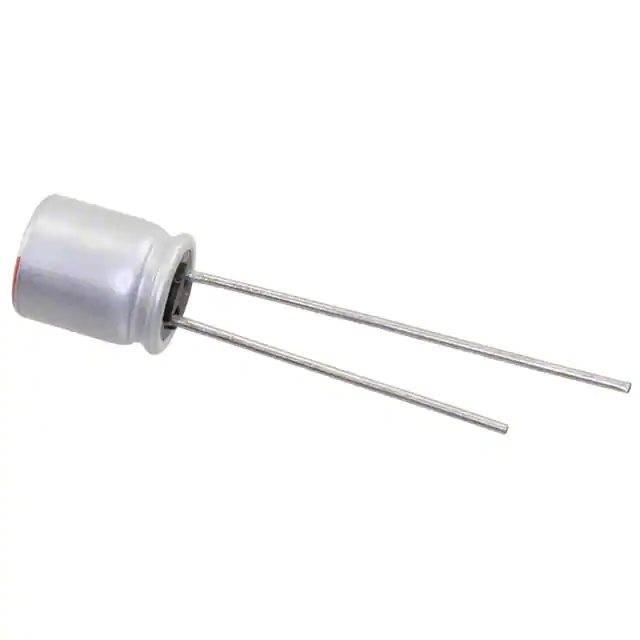

RS80E471MDNASQCAP ALUM POLY 470UF 20% 2.5V TH |
1,549 |
|
数据手册 |
FPCAP, RS8 | Bulk | Active | Polymer | 470 µF | ±20% | 2.5 V | 7mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 560 mA @ 120 Hz | 5.6 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.354" (9.00mm) | - | Through Hole | |
|
|
RS80J471MDNASQCAP ALUM POLY 470UF 20% 6.3V TH |
2,208 |
|
数据手册 |
FPCAP, RS8 | Bulk | Active | Polymer | 470 µF | ±20% | 6.3 V | 8mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 500 mA @ 120 Hz | 5 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.354" (9.00mm) | - | Through Hole | |
|
|
RL81C221MCN1CAP ALUM POLY 47UF 20% 63V SMD |
1,395 |
|
数据手册 |
- | Tape & Box (TB) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
RNU0G102MDN1PXCAP ALUM POLY 1000UF 20% 4V TH |
3,350 |
|
数据手册 |
FPCAP, RNU | Tape & Box (TB) | Active | Polymer | 1000 µF | ±20% | 4 V | 7mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 570 mA @ 120 Hz | 5.7 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole | |
|
|
RS80E471MDNASQPXCAP ALUM POLY 470UF 20% 2.5V TH |
3,565 |
|
数据手册 |
FPCAP, RS8 | Tape & Box (TB) | Active | Polymer | 470 µF | ±20% | 2.5 V | 7mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 560 mA @ 120 Hz | 5.6 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.354" (9.00mm) | - | Through Hole | |
|
|
RS80J471MDNASQPXCAP ALUM POLY 470UF 20% 6.3V TH |
2,777 |
|
数据手册 |
FPCAP, RS8 | Tape & Box (TB) | Active | Polymer | 470 µF | ±20% | 6.3 V | 8mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 500 mA @ 120 Hz | 5 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.354" (9.00mm) | - | Through Hole | |
|
|
RS81C101MDN1PXCAP ALUM POLY 100UF 20% 16V TH |
2,192 |
|
数据手册 |
FPCAP, RS8 | Tape & Reel (TR) | Active | Polymer | 100 µF | ±20% | 16 V | 14mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 380 mA @ 120 Hz | 3.8 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.354" (9.00mm) | - | Through Hole | |
|
|
RS81C101MCN1CGCAP ALUM HYBRID 68UF 20% 50V SMD |
1,627 |
|
数据手册 |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
RHT1A221MDN1KXCAP ALUM POLY 220UF 20% 10V TH |
4,562 |
|
数据手册 |
FPCAP, RHT | Tape & Box (TB) | Active | Polymer | 220 µF | ±20% | 10 V | 17mOhm | 1000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 395 mA @ 120 Hz | 3.95 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole | |
|
|
RHT1A221MDN1PXCAP ALUM POLY 220UF 20% 10V TH |
4,927 |
|
数据手册 |
FPCAP, RHT | Tape & Box (TB) | Active | Polymer | 220 µF | ±20% | 10 V | 17mOhm | 1000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 395 mA @ 120 Hz | 3.95 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole |
