铝 - 聚合物电容器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 电容 | 容差 | 额定电压 | ESR（等效串联电阻） | 寿命 @ 温度 | 工作温度 | 额定值 | 应用 | 特性 | 纹波电流 @ 低频 | 纹波电流 @ 高频 | 阻抗 | 引线间距 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） | 表面贴装焊盘尺寸 | 安装类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PCV1J270MCL7GSCAP ALUM POLY 27UF 20% 63V SMD Nichicon |
11,212 |
|
数据手册 |
PCV | Tape & Reel (TR) | Active | Polymer | 27 µF | ±20% | 63 V | 30mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 3.2 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.394" (10.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
PCV1V820MCL1GSCAP ALUM POLY 82UF 20% 35V SMD Nichicon |
540 |
|
数据手册 |
PCV | Tape & Reel (TR) | Active | Polymer | 82 µF | ±20% | 35 V | 29mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 2.2 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|

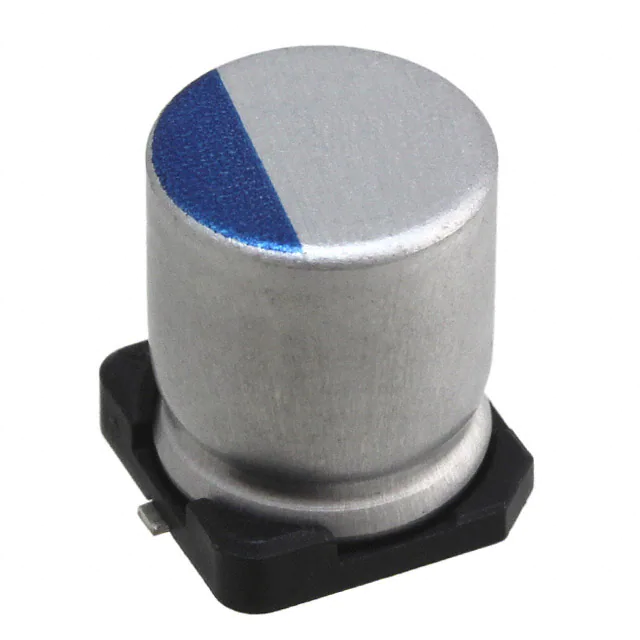

PCX1H220MCL6GSCAP ALUM POLY 22UF 20% 50V SMD Nichicon |
265 |
|
数据手册 |
PCX | Tape & Reel (TR) | Active | Polymer | 22 µF | ±20% | 50 V | 37mOhm | 3000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | General Purpose | - | - | 1.7 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.394" (10.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
|
PCV1V820MCL7GSCAP ALUM POLY 82UF 20% 35V SMD Nichicon |
641 |
|
数据手册 |
PCV | Tape & Reel (TR) | Active | Polymer | 82 µF | ±20% | 35 V | 24mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 3.6 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.394" (10.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
PCX1D151MCL1GSCAP ALUM POLY 150UF 20% 20V SMD Nichicon |
385 |
|
数据手册 |
PCX | Tape & Reel (TR) | Active | Polymer | 150 µF | ±20% | 20 V | 28mOhm | 3000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | General Purpose | - | - | 2.2 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
PLX1V390MCL1TDCAP ALUM POLY 39UF 20% 35V TH Nichicon |
145 |
|
数据手册 |
PLX | Cut Tape (CT) | Active | Polymer | 39 µF | ±20% | 35 V | 33mOhm | 3000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 1.8 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.354" (9.00mm) | - | Through Hole |
|

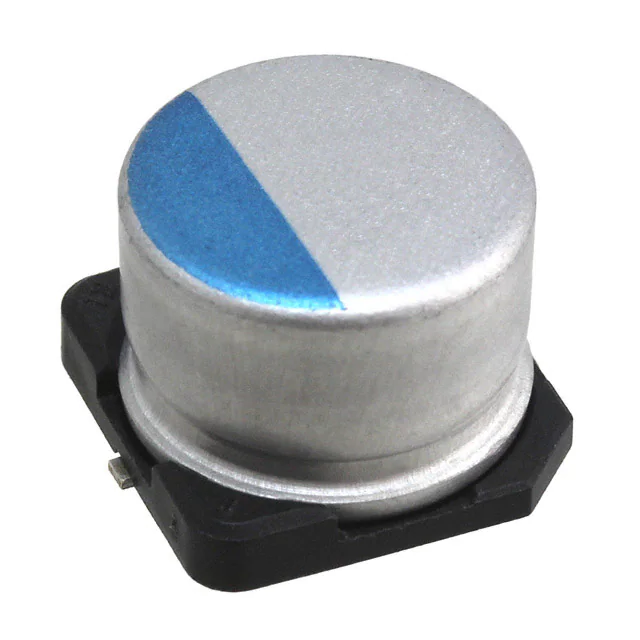

PCX1D121MCL1GSCAP ALUM POLY 120UF 20% 20V SMD Nichicon |
1,393 |
|
数据手册 |
PCX | Tape & Reel (TR) | Active | Polymer | 120 µF | ±20% | 20 V | 35mOhm | 3000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | General Purpose | - | - | 1.8 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.315" (8.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
|
PCV1J390MCL2GSCAP ALUM POLY 39UF 20% 63V SMD Nichicon |
11,056 |
|
数据手册 |
PCV | Tape & Reel (TR) | Active | Polymer | 39 µF | ±20% | 63 V | 29mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 3.4 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
PCR1D331MCL6GSCAP ALUM POLY 330UF 20% 20V SMD Nichicon |
1,589 |
|
数据手册 |
PCR | Tape & Reel (TR) | Active | Polymer | 330 µF | ±20% | 20 V | 19mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 3.3 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.394" (10.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
RNL1C222MDS1CAP ALUM POLY 2200UF 20% 16V TH Nichicon |
773 |
|
数据手册 |
FPCAP, RNL | Bulk | Active | Polymer | 2200 µF | ±20% | 16 V | 8mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 810 mA @ 120 Hz | 8.1 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.846" (21.50mm) | - | Through Hole |
