铝 - 聚合物电容器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 电容 | 容差 | 额定电压 | ESR（等效串联电阻） | 寿命 @ 温度 | 工作温度 | 额定值 | 应用 | 特性 | 纹波电流 @ 低频 | 纹波电流 @ 高频 | 阻抗 | 引线间距 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） | 表面贴装焊盘尺寸 | 安装类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RHS1E101MCN1GSCAP ALUM POLY 100UF 20% 25V SMD Nichicon |
3,667 |
|
数据手册 |
FPCAP, RHS | Tape & Reel (TR) | Active | Polymer | 100 µF | ±20% | 25 V | 18mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 400 mA @ 120 Hz | 4 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.354" (9.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
PCR1J390MCL1GSCAP ALUM POLY 39UF 20% 63V SMD Nichicon |
2,938 |
|
数据手册 |
PCR | Tape & Reel (TR) | Active | Polymer | 39 µF | ±20% | 63 V | 28mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 2.7 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.394" (10.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
PCG1A821MCL1GSCAP ALUM POLY 820UF 20% 10V SMD Nichicon |
7,171 |
|
数据手册 |
PCG | Tape & Reel (TR) | Active | Polymer | 820 µF | ±20% | 10 V | 15mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 4.3 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.394" (10.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
|
PCG0G222MCL1GSCAP ALUM POLY 2200UF 20% 4V SMD Nichicon |
1,291 |
|
数据手册 |
PCG | Tape & Reel (TR) | Active | Polymer | 2200 µF | ±20% | 4 V | 13mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 4.6 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.394" (10.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
|
PCG0J182MCL1GSCAP ALUM POLY 1800UF 20% 6.3V Nichicon |
2,162 |
|
数据手册 |
PCG | Tape & Reel (TR) | Active | Polymer | 1800 µF | ±20% | 6.3 V | 14mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 4.4 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.394" (10.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|

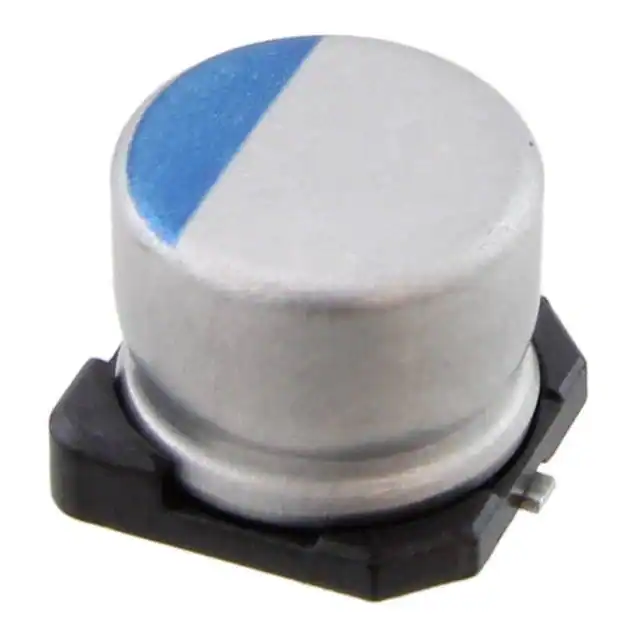

PCX1H100MCL1GSCAP ALUM POLY 10UF 20% 50V SMD Nichicon |
934 |
|
数据手册 |
PCX | Tape & Reel (TR) | Active | Polymer | 10 µF | ±20% | 50 V | 75mOhm | 3000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | General Purpose | - | - | 1 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
|
PCG0E272MCL1GSCAP ALUM POLY 2700UF 20% 2.5V Nichicon |
840 |
|
数据手册 |
PCG | Tape & Reel (TR) | Active | Polymer | 2700 µF | ±20% | 2.5 V | 12mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 4.7 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.394" (10.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
RPS1H220MCN1GSCAP ALUM POLY 22UF 20% 50V SMD Nichicon |
3,329 |
|
数据手册 |
FPCAP, RPS | Tape & Reel (TR) | Active | Polymer | 22 µF | ±20% | 50 V | 37mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 155 mA @ 120 Hz | 1.55 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
RNL1C122MDS1KXCAP ALUM POLY 1200UF 20% 16V TH Nichicon |
3,484 |
|
数据手册 |
FPCAP, RNL | Cut Tape (CT) | Active | Polymer | 1200 µF | ±20% | 16 V | 8mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 750 mA @ 120 Hz | 7.5 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.846" (21.50mm) | - | Through Hole |
|
|
RNL1C152MDS1PHCAP ALUM POLY 1500UF 20% 16V TH Nichicon |
514 |
|
数据手册 |
FPCAP, RNL | Cut Tape (CT) | Active | Polymer | 1500 µF | ±20% | 16 V | 8mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 810 mA @ 120 Hz | 8.1 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.846" (21.50mm) | - | Through Hole |
