铝 - 聚合物电容器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 电容 | 容差 | 额定电压 | ESR（等效串联电阻） | 寿命 @ 温度 | 工作温度 | 额定值 | 应用 | 特性 | 纹波电流 @ 低频 | 纹波电流 @ 高频 | 阻抗 | 引线间距 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） | 表面贴装焊盘尺寸 | 安装类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GYA1C151MCW1GSCAP ALUMHYB 150UF 20% 16V SMD Nichicon |
1,303 |
|
数据手册 |
GYA | Tape & Reel (TR) | Active | Hybrid | 150 µF | ±20% | 16 V | 30mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 225 mA @ 120 Hz | 1.5 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.343" (8.70mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
PCJ1A680MCL1GSCAP ALUM POLY 68UF 20% 10V SMD Nichicon |
2,453 |
|
数据手册 |
PCJ | Tape & Reel (TR) | Active | Polymer | 68 µF | ±20% | 10 V | 28mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 2.31 A @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.236" (6.00mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount |
|
RNU1C271MDNASQKXCAP ALUM POLY 270UF 20% 16V TH Nichicon |
510 |
|
数据手册 |
FPCAP, RNU | Cut Tape (CT) | Active | Polymer | 270 µF | ±20% | 16 V | 8mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 500 mA @ 120 Hz | 5 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
GYC1J330MCQ1GSCAP ALUM HYBRID 33UF 20% 63V SMD Nichicon |
2,925 |
|
数据手册 |
GYC | Tape & Reel (TR) | Active | Hybrid | 33 µF | ±20% | 63 V | 40mOhm | 4000 Hrs @ 135°C | -55°C ~ 135°C | AEC-Q200 | Automotive | - | 285 mA @ 120 Hz | 1.9 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
HT-Series.jpg)
|

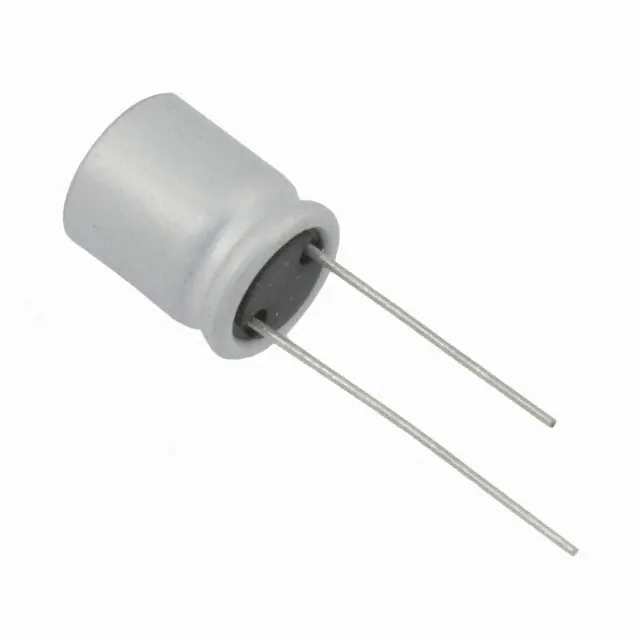

RHT1D151MDN1CAP ALUM POLY 150UF 20% 20V TH Nichicon |
5,800 |
|
数据手册 |
FPCAP, RHT | Bulk | Active | Polymer | 150 µF | ±20% | 20 V | 20mOhm | 1000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 435 mA @ 120 Hz | 4.35 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.492" (12.50mm) | - | Through Hole |
|
|
GYC1V680MCW1GSCAP ALUM HYBRID 68UF 20% 35V SMD Nichicon |
1,773 |
|
数据手册 |
GYC | Tape & Reel (TR) | Active | Hybrid | 68 µF | ±20% | 35 V | 40mOhm | 2000 Hrs @ 135°C | -55°C ~ 135°C | AEC-Q200 | Automotive | - | 285 mA @ 120 Hz | 1.9 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.343" (8.70mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
RNU1C471MDN1PHCAP ALUM POLY 470UF 20% 16V TH Nichicon |
678 |
|
数据手册 |
FPCAP, RNU | Cut Tape (CT) | Active | Polymer | 470 µF | ±20% | 16 V | 10mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 610 mA @ 120 Hz | 6.1 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole |
|
|
GYC1H680MCQ1GSCAP ALUM HYBRID 68UF 20% 50V SMD Nichicon |
814 |
|
数据手册 |
GYC | Tape & Reel (TR) | Active | Hybrid | 68 µF | ±20% | 50 V | 30mOhm | 4000 Hrs @ 135°C | -55°C ~ 135°C | AEC-Q200 | Automotive | - | 330 mA @ 120 Hz | 2.2 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
PCS0J391MCL1GSCAP ALUM POLY 390UF 20% 6.3V SMD Nichicon |
1,720 |
|
数据手册 |
PCS | Tape & Reel (TR) | Active | Polymer | 390 µF | ±20% | 6.3 V | 22mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 3.2 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
|
RNU1J330MDN1KXCAP ALUM POLY 33UF 20% 63V TH Nichicon |
628 |
|
数据手册 |
FPCAP, RNU | Cut Tape (CT) | Active | Polymer | 33 µF | ±20% | 63 V | 26mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 230 mA @ 120 Hz | 2.3 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole |
