铝 - 聚合物电容器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 电容 | 容差 | 额定电压 | ESR（等效串联电阻） | 寿命 @ 温度 | 工作温度 | 额定值 | 应用 | 特性 | 纹波电流 @ 低频 | 纹波电流 @ 高频 | 阻抗 | 引线间距 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） | 表面贴装焊盘尺寸 | 安装类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PLF1C331MDO1CAP ALUM POLY 330UF 20% 16V TH Nichicon |
525 |
|
数据手册 |
PLF | Bulk | Active | Polymer | 330 µF | ±20% | 16 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 6.1 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
RHA0E102MCN1GSCAP ALUM POLY 1000UF 20% 2.5V Nichicon |
3,029 |
|
数据手册 |
FPCAP, RHA | Tape & Reel (TR) | Active | Polymer | 1000 µF | ±20% | 2.5 V | 8mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 500 mA @ 120 Hz | 5 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.303" (7.70mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
PLS0E821MCO8TDCAP ALUM POLY 820UF 20% 2.5V TH Nichicon |
1,241 |
|
数据手册 |
PLS | Cut Tape (CT) | Active | Polymer | 820 µF | ±20% | 2.5 V | 8mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 4.8 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.354" (9.00mm) | - | Through Hole |
|

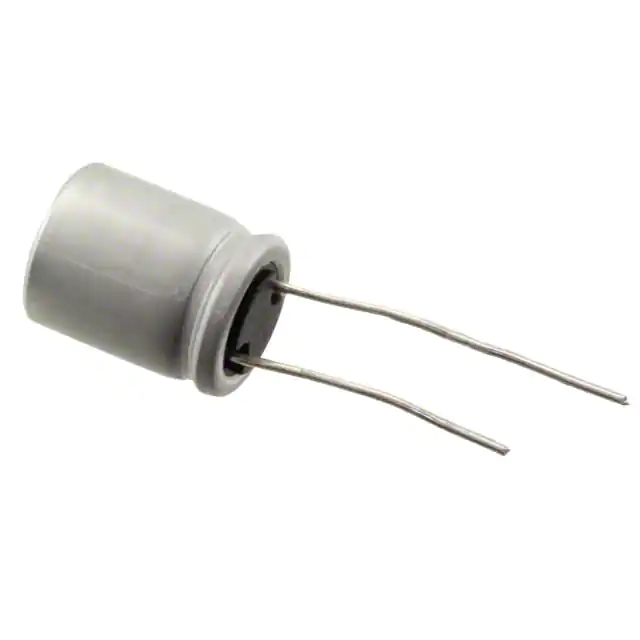

PLF1A471MDO1TDCAP ALUM POLY 470UF 20% 10V TH Nichicon |
1,000 |
|
数据手册 |
PLF | Cut Tape (CT) | Active | Polymer | 470 µF | ±20% | 10 V | 7mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.7 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
|
PLF1C471MDO1TDCAP ALUM POLY 470UF 20% 16V TH Nichicon |
682 |
|
数据手册 |
PLF | Cut Tape (CT) | Active | Polymer | 470 µF | ±20% | 16 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 6.1 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | - | Through Hole |
|

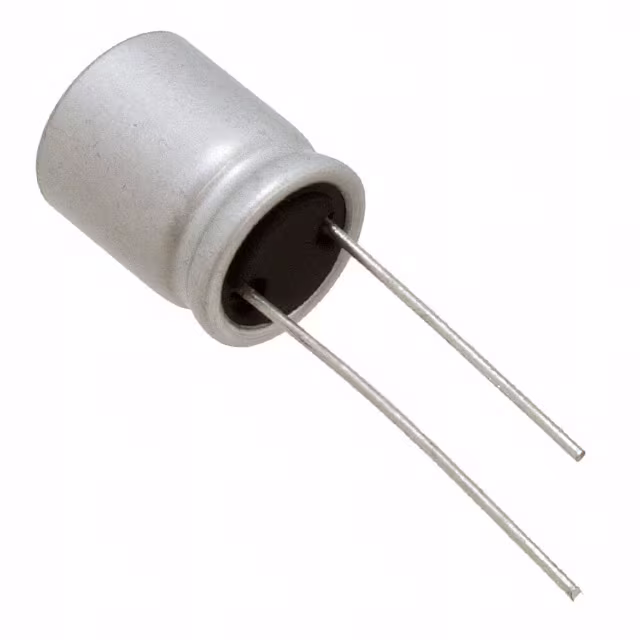

RR71C271MDN1PHCAP ALUM POLY 270UF 20% 16V TH Nichicon |
8,480 |
|
数据手册 |
FPCAP, RR7 | Cut Tape (CT) | Active | Polymer | 270 µF | ±20% | 16 V | 7mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 610 mA @ 120 Hz | 6.1 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole |
|
GYC1E221MCW1GSCAP ALUMHYB 220UF 20% 25V SMD Nichicon |
4,802 |
|
数据手册 |
GYC | Tape & Reel (TR) | Active | Hybrid | 220 µF | ±20% | 25 V | 27mOhm | 4000 Hrs @ 135°C | -55°C ~ 135°C | AEC-Q200 | Automotive | - | 435 mA @ 120 Hz | 2.9 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.433" (11.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
RNS1C151MDN1PHCAP ALUM POLY 150UF 20% 16V TH Nichicon |
2,338 |
|
数据手册 |
FPCAP, RNS | Cut Tape (CT) | Active | Polymer | 150 µF | ±20% | 16 V | 10mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 550 mA @ 120 Hz | 5.5 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole |
|
GYB1H330MCW1GSCAP ALUM HYBRID 33UF 20% 50V SMD Nichicon |
1,073 |
|
数据手册 |
GYB | Tape & Reel (TR) | Active | Hybrid | 33 µF | ±20% | 50 V | 40mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | 240 mA @ 120 Hz | 1.6 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.323" (8.20mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
RNU1C471MDN1CAP ALUM POLY 470UF 20% 16V TH Nichicon |
325 |
|
数据手册 |
FPCAP, RNU | Bulk | Active | Polymer | 470 µF | ±20% | 16 V | 10mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 610 mA @ 120 Hz | 6.1 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole |
