铝 - 聚合物电容器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 电容 | 容差 | 额定电压 | ESR（等效串联电阻） | 寿命 @ 温度 | 工作温度 | 额定值 | 应用 | 特性 | 纹波电流 @ 低频 | 纹波电流 @ 高频 | 阻抗 | 引线间距 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） | 表面贴装焊盘尺寸 | 安装类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PCV1J270MCL1GSCAP ALUM POLY 27UF 20% 63V SMD Nichicon |
570 |
|
数据手册 |
PCV | Tape & Reel (TR) | Active | Polymer | 27 µF | ±20% | 63 V | 35mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 2 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
PLG0J182MDO1CAP ALUM POLY 1800UF 20% 6.3V TH Nichicon |
4,593 |
|
数据手册 |
PLG | Bulk | Active | Polymer | 1800 µF | ±20% | 6.3 V | 8mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 6.6 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
RNU1E221MDN1KXCAP ALUM POLY 220UF 20% 25V TH Nichicon |
1,548 |
|
数据手册 |
FPCAP, RNU | Cut Tape (CT) | Active | Polymer | 220 µF | ±20% | 25 V | 16mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 465 mA @ 120 Hz | 4.65 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
PLX1C151MCL1TDCAP ALUM POLY 150UF 20% 16V TH Nichicon |
4,595 |
|
数据手册 |
PLX | Cut Tape (CT) | Active | Polymer | 150 µF | ±20% | 16 V | 26mOhm | 3000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 2.1 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.354" (9.00mm) | - | Through Hole |
|
|
PLX1C151MCL1CAP ALUM POLY 150UF 20% 16V TH Nichicon |
2,526 |
|
数据手册 |
PLX | Bulk | Active | Polymer | 150 µF | ±20% | 16 V | 26mOhm | 3000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | General Purpose | - | - | 2.1 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.354" (9.00mm) | - | Through Hole |
|

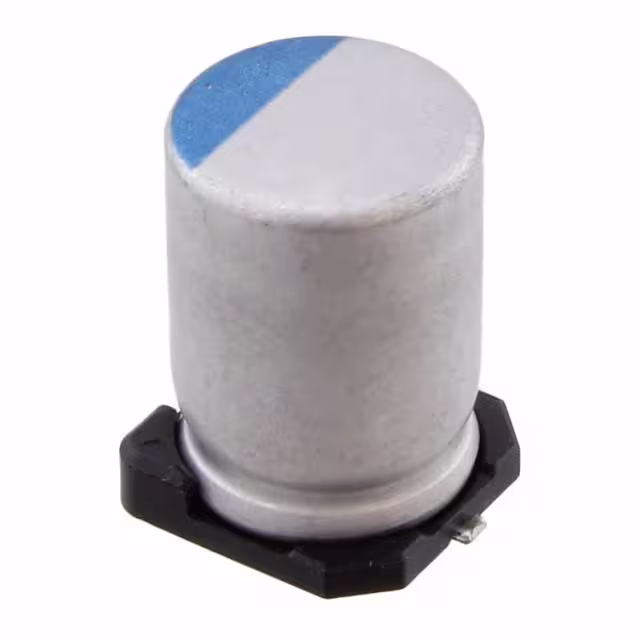

PCX1V560MCL1GSCAP ALUM POLY 56UF 20% 35V SMD Nichicon |
1,420 |
|
数据手册 |
PCX | Tape & Reel (TR) | Active | Polymer | 56 µF | ±20% | 35 V | 33mOhm | 3000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | General Purpose | - | - | 2 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
PLX1D151MDL1TDCAP ALUM POLY 150UF 20% 20V TH Nichicon |
1,072 |
|
数据手册 |
PLX | Cut Tape (CT) | Active | Polymer | 150 µF | ±20% | 20 V | 26mOhm | 3000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 2.3 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | - | Through Hole |
|
RNS1E470MDN1PHCAP ALUM POLY 47UF 20% 25V TH Nichicon |
4,410 |
|
数据手册 |
FPCAP, RNS | Cut Tape (CT) | Active | Polymer | 47 µF | ±20% | 25 V | 20mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 380 mA @ 120 Hz | 3.8 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole |
|
PCV1K100MCL1GSCAP ALUM POLY 10UF 20% 80V SMD Nichicon |
3,676 |
|
数据手册 |
PCV | Tape & Reel (TR) | Active | Polymer | 10 µF | ±20% | 80 V | 43mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 1.6 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.394" (10.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|

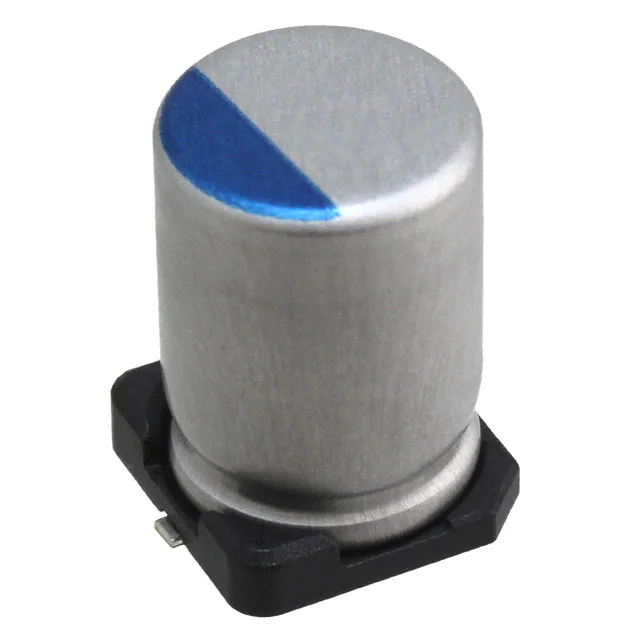

PCV2B8R2MCL1GSCAP ALUM POLY 8.2UF 20% 125V SMD Nichicon |
2,750 |
|
数据手册 |
PCV | Tape & Reel (TR) | Active | Polymer | 8.2 µF | ±20% | 125 V | 84mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 1.3 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.476" (12.10mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
