铝 - 聚合物电容器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 电容 | 容差 | 额定电压 | ESR（等效串联电阻） | 寿命 @ 温度 | 工作温度 | 额定值 | 应用 | 特性 | 纹波电流 @ 低频 | 纹波电流 @ 高频 | 阻抗 | 引线间距 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） | 表面贴装焊盘尺寸 | 安装类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RNS1C181MDN1KXCAP ALUM POLY 180UF 20% 16V TH Nichicon |
781 |
|
数据手册 |
FPCAP, RNS | Cut Tape (CT) | Active | Polymer | 180 µF | ±20% | 16 V | 16mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 470 mA @ 120 Hz | 4.7 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
RS60E561MCN1JTCAP ALUM POLY 560UF 20% 2.5V TH Nichicon |
759 |
|
数据手册 |
FPCAP, RS6 | Cut Tape (CT) | Active | Polymer | 560 µF | ±20% | 2.5 V | 13mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 360 mA @ 120 Hz | 3.6 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | - | Through Hole |
|
PLF0J331MDL4TDCAP ALUM POLY 330UF 20% 6.3V TH Nichicon |
289 |
|
数据手册 |
PLF | Cut Tape (CT) | Active | Polymer | 330 µF | ±20% | 6.3 V | 24mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.3 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.413" (10.50mm) | - | Through Hole |
|
RNU0E152MDN1KXCAP ALUM POLY 1500UF 20% 2.5V TH Nichicon |
917 |
|
数据手册 |
FPCAP, RNU | Cut Tape (CT) | Active | Polymer | 1500 µF | ±20% | 2.5 V | 7mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 570 mA @ 120 Hz | 5.7 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
PLF0G821MDO1TDCAP ALUM POLY 820UF 20% 4V TH Nichicon |
153 |
|
数据手册 |
PLF | Cut Tape (CT) | Active | Polymer | 820 µF | ±20% | 4 V | 6mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 6.5 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | - | Through Hole |
|

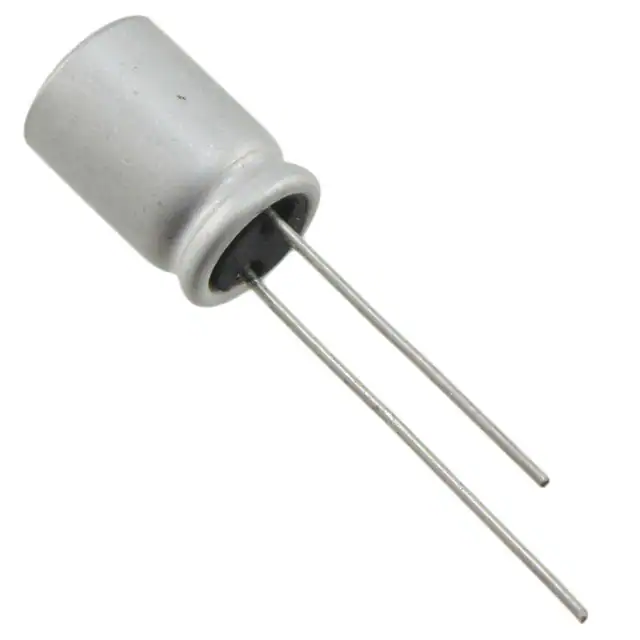

RHT1A221MDN1CAP ALUM POLY 220UF 20% 10V TH Nichicon |
528 |
|
数据手册 |
FPCAP, RHT | Bulk | Active | Polymer | 220 µF | ±20% | 10 V | 17mOhm | 1000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 395 mA @ 120 Hz | 3.95 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.453" (11.50mm) | - | Through Hole |
|
PCF0E221MCL4GBCAP ALUM POLY 220UF 20% 2.5V SMD Nichicon |
940 |
|
数据手册 |
PCF | Tape & Reel (TR) | Active | Polymer | 220 µF | ±20% | 2.5 V | 20mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 2.8 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.217" (5.50mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
RNS0J102MDN1PHCAP ALUM POLY 1000UF 20% 6.3V TH Nichicon |
940 |
|
数据手册 |
FPCAP, RNS | Cut Tape (CT) | Active | Polymer | 1000 µF | ±20% | 6.3 V | 10mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 550 mA @ 120 Hz | 5.5 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole |
|
|
PCF0G151MCL4GBCAP ALUM POLY 150UF 20% 4V SMD Nichicon |
852 |
|
数据手册 |
PCF | Tape & Reel (TR) | Active | Polymer | 150 µF | ±20% | 4 V | 22mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 2.8 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.217" (5.50mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
|
PCF0G221MCL1GSCAP ALUM POLY 220UF 20% 4V SMD Nichicon |
177 |
|
数据手册 |
PCF | Tape & Reel (TR) | Active | Polymer | 220 µF | ±20% | 4 V | 21mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 3.2 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
