铝 - 聚合物电容器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 电容 | 容差 | 额定电压 | ESR（等效串联电阻） | 寿命 @ 温度 | 工作温度 | 额定值 | 应用 | 特性 | 纹波电流 @ 低频 | 纹波电流 @ 高频 | 阻抗 | 引线间距 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） | 表面贴装焊盘尺寸 | 安装类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RL80J681MDN1KXCAP ALUM POLY 680UF 20% 6.3V TH Nichicon |
1,901 |
|
数据手册 |
FPCAP, RL8 | Cut Tape (CT) | Active | Polymer | 680 µF | ±20% | 6.3 V | 8mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 570 mA @ 120 Hz | 5.7 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.315" (8.00mm) | - | Through Hole |
|
|
RL80G561MDNASQKXCAP ALUM POLY 560UF 20% 4V TH Nichicon |
892 |
|
数据手册 |
FPCAP, RL8 | Cut Tape (CT) | Active | Polymer | 560 µF | ±20% | 4 V | 6mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 610 mA @ 120 Hz | 6.1 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.315" (8.00mm) | - | Through Hole |
|

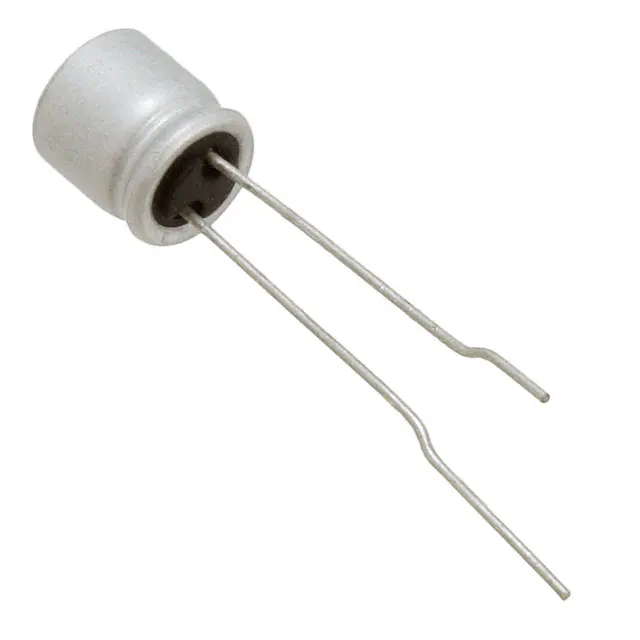

RS61C101MDS1JTCAP ALUM POLY 100UF 20% 16V TH Nichicon |
699 |
|
数据手册 |
FPCAP, RS6 | Cut Tape (CT) | Active | Polymer | 100 µF | ±20% | 16 V | 24mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 249 mA @ 120 Hz | 2.49 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.276" (7.00mm) | - | Through Hole |
|
GYA1C271MCW1GSCAP ALUMHYB 270UF 20% 16V SMD Nichicon |
1,383 |
|
数据手册 |
GYA | Tape & Reel (TR) | Active | Hybrid | 270 µF | ±20% | 16 V | 25mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 255 mA @ 120 Hz | 1.7 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.433" (11.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
PLF0J471MDO1TDCAP ALUM POLY 470UF 20% 6.3V TH Nichicon |
798 |
|
数据手册 |
PLF | Cut Tape (CT) | Active | Polymer | 470 µF | ±20% | 6.3 V | 7mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.5 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | - | Through Hole |
|
RHA0E681MCN1GSCAP ALUM POLY 680UF 20% 2.5V SMD Nichicon |
794 |
|
数据手册 |
FPCAP, RHA | Tape & Reel (TR) | Active | Polymer | 680 µF | ±20% | 2.5 V | 8mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 500 mA @ 120 Hz | 5 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.264" (6.70mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
|
RL80E821MDN1CAP ALUM POLY 820UF 20% 2.5V TH Nichicon |
370 |
|
数据手册 |
FPCAP, RL8 | Bulk | Active | Polymer | 820 µF | ±20% | 2.5 V | 6mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 610 mA @ 120 Hz | 6.1 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.354" (9.00mm) | - | Through Hole |
|
RNU1C331MDN1KXCAP ALUM POLY 330UF 20% 16V TH Nichicon |
1,293 |
|
数据手册 |
FPCAP, RNU | Cut Tape (CT) | Active | Polymer | 330 µF | ±20% | 16 V | 8mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 610 mA @ 120 Hz | 6.1 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
PCJ1C330MCL1GSCAP ALUM POLY 33UF 20% 16V SMD Nichicon |
968 |
|
数据手册 |
PCJ | Tape & Reel (TR) | Active | Polymer | 33 µF | ±20% | 16 V | 35mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 2.07 A @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.236" (6.00mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount |
|
RFS1C220MCN1GSCAP ALUM POLY 22UF 20% 16V SMD Nichicon |
771 |
|
数据手册 |
FPCAP, RFS | Tape & Reel (TR) | Active | Polymer | 22 µF | ±20% | 16 V | 45mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 121 mA @ 120 Hz | 1.21 A @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.236" (6.00mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount |
