铝 - 聚合物电容器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 电容 | 容差 | 额定电压 | ESR（等效串联电阻） | 寿命 @ 温度 | 工作温度 | 额定值 | 应用 | 特性 | 纹波电流 @ 低频 | 纹波电流 @ 高频 | 阻抗 | 引线间距 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） | 表面贴装焊盘尺寸 | 安装类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PLV1K220MDL1TDCAP ALUM POLY 22UF 20% 80V TH Nichicon |
1,613 |
|
数据手册 |
PLV | Cut Tape (CT) | Obsolete | Polymer | 22 µF | ±20% | 80 V | - | 3000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.3 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
RNU0J152MDN1PHCAP ALUM POLY 1500UF 20% 6.3V TH Nichicon |
984 |
|
数据手册 |
FPCAP, RNU | Cut Tape (CT) | Active | Polymer | 1500 µF | ±20% | 6.3 V | 7mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 610 mA @ 120 Hz | 6.1 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole |
|

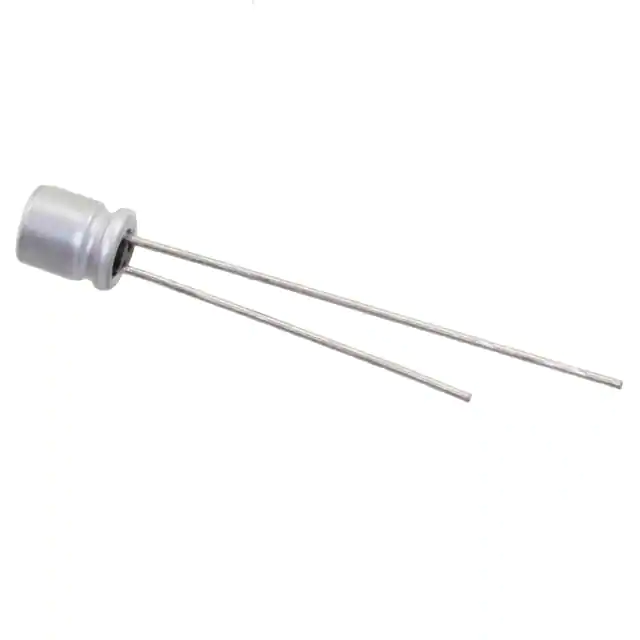

RNU1A100MDS1CAP ALUM POLY 10UF 20% 10V TH Nichicon |
3,529 |
|
数据手册 |
FPCAP, RNU | Bulk | Active | Polymer | 10 µF | ±20% | 10 V | 220mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 70 mA @ 120 Hz | 700 mA @ 100 kHz | - | 0.059" (1.50mm) | 0.157" Dia (4.00mm) | 0.236" (6.00mm) | - | Through Hole |
|
RFS0J470MCN1GSCAP ALUM POLY 47UF 20% 6.3V SMD Nichicon |
1,650 |
|
数据手册 |
FPCAP, RFS | Tape & Reel (TR) | Active | Polymer | 47 µF | ±20% | 6.3 V | 30mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 200 mA @ 120 Hz | 2 A @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.224" (5.70mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount |
|
GYB1J220MCQ1GSCAP ALUM HYBRID 22UF 20% 63V SMD Nichicon |
990 |
|
数据手册 |
GYB | Tape & Reel (TR) | Active | Hybrid | 22 µF | ±20% | 63 V | 80mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | 225 mA @ 120 Hz | 1.5 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
PCF0J101MCL4GBCAP ALUM POLY 100UF 20% 6.3V SMD Nichicon |
4,511 |
|
数据手册 |
PCF | Tape & Reel (TR) | Active | Polymer | 100 µF | ±20% | 6.3 V | 23mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 2.8 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.217" (5.50mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
|
GYB1V680MCW1GSCAP ALUM HYBRID 68UF 20% 35V SMD Nichicon |
900 |
|
数据手册 |
GYB | Tape & Reel (TR) | Active | Hybrid | 68 µF | ±20% | 35 V | 35mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | 300 mA @ 120 Hz | 2 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.323" (8.20mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
RSS1E470MCN1GSCAP ALUM POLY 47UF 20% 25V SMD Nichicon |
1,000 |
|
数据手册 |
FPCAP, RSS | Tape & Reel (TR) | Active | Polymer | 47 µF | ±20% | 25 V | 30mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 280 mA @ 120 Hz | 2.8 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | 0.256" L x 0.256" W (6.50mm x 6.50mm) | Surface Mount |
|
GYC1V331MCQ1GSCAP ALUMHYB 330UF 20% 35V SMD Nichicon |
4,448 |
|
数据手册 |
GYC | Tape & Reel (TR) | Active | Hybrid | 330 µF | ±20% | 35 V | 16mOhm | 4000 Hrs @ 135°C | -55°C ~ 135°C | AEC-Q200 | Automotive | - | 525 mA @ 120 Hz | 3.5 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
|
PCM1K120MCL1GSCAP ALUM POLY 12UF 20% 80V SMD Nichicon |
914 |
|
数据手册 |
PCM | Tape & Reel (TR) | Active | Polymer | 12 µF | ±20% | 80 V | 50mOhm | 6000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 50 mA @ 120 Hz | 1 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.327" (8.30mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
