交流直流桌面、墙式电源适配器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 使用区域 | 形式 | 输入类型 | 电压 - 输入 | 电压 - 输出 | 电流 - 输出（最大值） | 功率（瓦特） | 空载功耗 | 极化 | 应用 | 效率 | 工作温度 | 输出连接器 | 电线长度 | 输入连接器 | 特性 | 尺寸 / 尺寸 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TE40A1203B01AC/DC WALL MOUNT ADAPTER 12V 41W |
2,133 |
|
数据手册 |
TE40 (40W) | Bulk | Active | North America | Wall Mount (Class II) | Fixed Blade, Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 12V | 3.4A | 41 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI | -20°C ~ 50°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 57" (1.45m) | NEMA 1-15P, Multi-Blade (Sold Separately) | - | 3.78" L x 2.17" W x 1.32" H (96.0mm x 55.0mm x 33.6mm) | CB, CE, DEMKO, UL | |
|
|
TE40A1802B01AC/DC WALL MOUNT ADAPTER 18V 40W |
3,914 |
|
数据手册 |
TE40 (40W) | Bulk | Active | North America | Wall Mount (Class II) | Fixed Blade, Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 18V | 2.22A | 40 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI | -20°C ~ 50°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 57" (1.45m) | NEMA 1-15P, Multi-Blade (Sold Separately) | - | 3.78" L x 2.17" W x 1.32" H (96.0mm x 55.0mm x 33.6mm) | CB, CE, DEMKO, UL | |
|
SMI36-15-V-P6AC/DC WALL MOUNT ADAPTER 15V 36W |
2,556 |
|
数据手册 |
SMI36 (36W) | Bulk | Active | International | Wall Mount (Class II) | Multi-Blade (Included) | 90 ~ 264 VAC | 15V | 2.4A | 36 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | Multi-Blade | - | 3.10" L x 1.34" W x 2.60" H (78.5mm x 34.0mm x 66.0mm) | CB Scheme, CCC, CSA, EN, FCC, IEC, PSE, UL | |
|
SWI36-5-E-P5AC-DC, 5 VDC, 5 A, SW, WALL-PLUG |
345 |
|
数据手册 |
SWI36-E (36W) | Box | Active | Europe | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 5V | 5A | 25 W | 75mW | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | -20°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 39" (1.00m) | KSC 8305 | - | 3.11" L x 1.34" W x 2.20" H (79.0mm x 34.0mm x 56.0mm) | CE | |
|

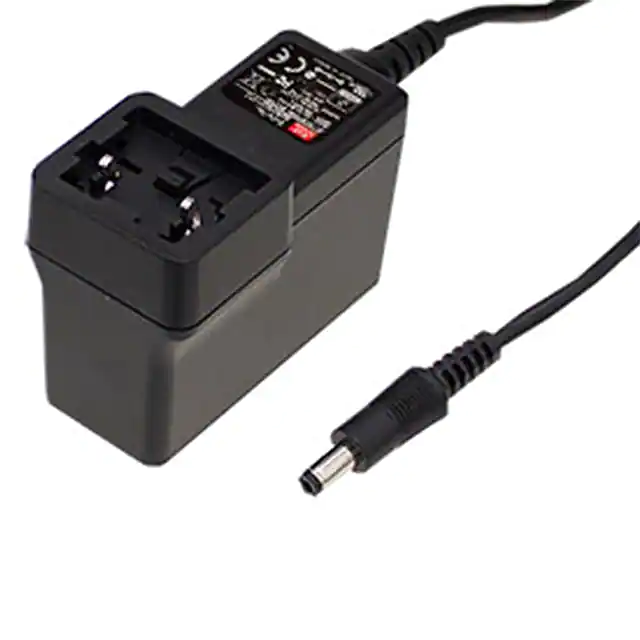

GEM30I12-P1JAC/DC WALL MOUNT ADAPTER 12V 30W |
325 |
|
数据手册 |
GEM30I (30W) | Box | Obsolete | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 80 ~ 264 VAC | 12V | 2.5A | 30 W | 100mW (Max) | Positive Center | Medical | Level VI | -25°C ~ 70°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 39.4" (1.00m) | Multi-Blade (Sold Separately) | - | 2.97" L x 1.54" W x 2.21" H (75.5mm x 39.1mm x 56.2mm) | CB, CE, cRUus, TUV | |
|
|
SWI36-5-B-P5AC-DC, 5 VDC, 5 A, SW, WALL-PLUG |
357 |
|
数据手册 |
SWI36-B (36W) | Box | Active | United Kingdom | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 5V | 5A | 25 W | 75mW | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | -20°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | BS 1363 | - | 3.11" L x 1.93" W x 2.20" H (79.0mm x 49.0mm x 56.0mm) | CE, UKCA | |
|
SDI50-18-UD-P5AC/DC DESKTOP ADAPTER 18V 50W |
3,446 |
|
数据手册 |
SDI50-UD (50W) | Bulk | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 18V | 2.78A | 50 W | 150mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 72" (1.83m) | IEC 320-C8 | - | 4.53" L x 2.09" W x 1.50" H (115.0mm x 53.0mm x 38.0mm) | CB Scheme, CSA, EN, FCC, IEC, PSE, UL | |
|
CENB1040A4803F01AC/DC DESKTOP ADAPTER 48V 40W |
4,172 |
|
数据手册 |
CENB1040 (40W) | Bulk | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 100 ~ 240 VAC | 48V | 830mA | 40 W | 300mW (Max) | Positive Center | ITE (Commercial) | Level V | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C14 | - | 3.98" L x 2.40" W x 1.34" H (101.0mm x 61.0mm x 34.0mm) | CE, cULus | |
|

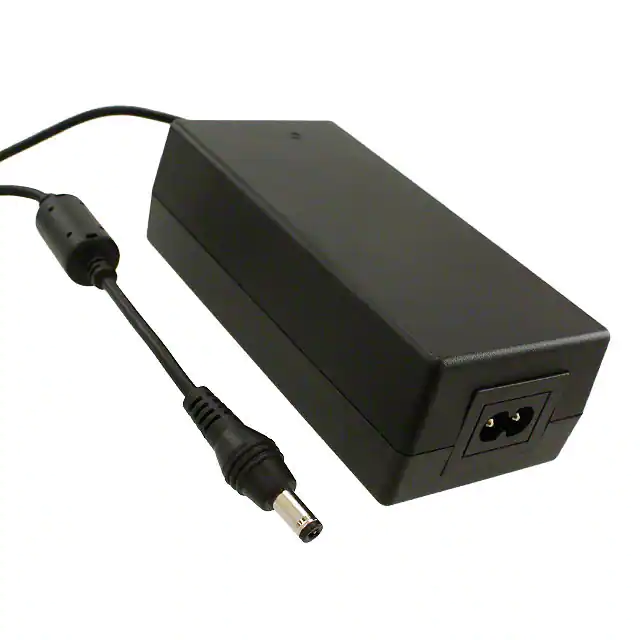

DP4024N2MAC/DC DESKTOP ADAPTER 24V 40W |
303 |
|
数据手册 |
DP40 (40W) | Bag | Obsolete | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 24V | 1.67A | 40 W | 300mW (Max) | Positive Center | ITE (Commercial), Medical | Level V | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 48" (1.22m) | IEC 320-C8 | - | 4.88" L x 2.40" W x 1.55" H (124.0mm x 61.0mm x 39.5mm) | CB, CE | |
|

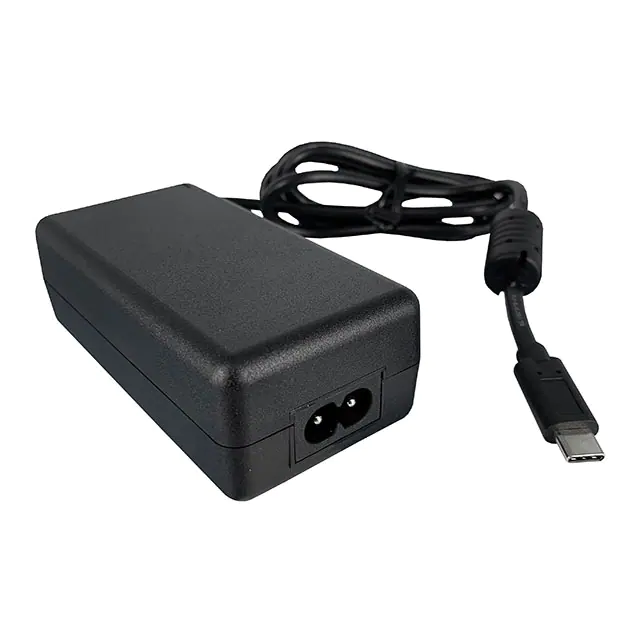

QADC-45-20-08CBAC/DC DESKTOP ADAPTER 20V 45W |
967 |
|
数据手册 |
QADC-45 (45W) | Bulk | Active | International | Desktop (Class II) | Cord (Sold Separately) | 100 ~ 240 VAC | 20V | 2.25A | 45 W | 100mW (Max) | - | ITE (Commercial) | Level VI | 0°C ~ 40°C | USB C | 39.4" (1.00m) | IEC 320-C8 | - | 3.90" L x 1.96" W x 1.29" H (99.0mm x 49.9mm x 32.8mm) | BSMI, CB, CE, cULus, FCC, GS, PSE, RCM | |
|
SGA40U24-P1JAC/DC WALL MOUNT ADAPTER 24V 40W |
478 |
|
数据手册 |
SGA40U (40W) | Box | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 24V | 1.67A | 40 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI | -20°C ~ 50°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 59" (1.50m) | NEMA 1-15P | - | 2.97" L x 1.26" W x 1.87" H (75.5mm x 32.0mm x 47.5mm) | CB, cULus | |
|

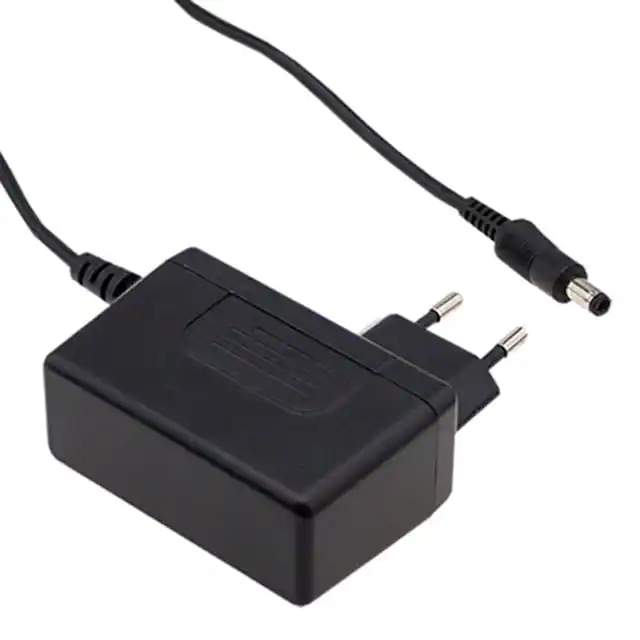

SGA40E24-P1JAC/DC WALL MOUNT ADAPTER 24V 40W |
207 |
|
数据手册 |
SGA40E (40W) | Box | Obsolete | Europe | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 24V | 1.67A | 40 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI | -20°C ~ 50°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 59" (1.50m) | CEE 7/16 | - | 2.97" L x 1.26" W x 1.87" H (75.5mm x 32.0mm x 47.5mm) | CB, CE, GS | |
|
|
SGA40E12-P1JAC/DC WALL MOUNT ADAPTER 12V 40W |
115 |
|
数据手册 |
SGA40E (40W) | Box | Obsolete | Europe | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 12V | 3.33A | 40 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI | -20°C ~ 50°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 39.4" (1.00m) | CEE 7/16 | - | 2.97" L x 1.26" W x 1.87" H (75.5mm x 32.0mm x 47.5mm) | CB, CE, GS | |
|
TE30A1202F01AC/DC DESKTOP ADAPTER 12V 30W |
4,658 |
|
数据手册 |
TE30 (30W) | Bulk | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 12V | 2.5A | 30 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI | -20°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 57" (1.45m) | IEC 320-C14 | - | 3.76" L x 2.13" W x 1.22" H (95.5mm x 54.0mm x 31.0mm) | CB, CE, CSA, UL | |
|
MW172KB1203B01AC/DC WALL MOUNT ADAPTER 12V 18W |
4,117 |
|
数据手册 |
MW172KB (15-18W) | Bulk | Obsolete | North America | Wall Mount (Class II) | Fixed Blade, Multi-Blade (Sold Separately) | 100 ~ 240 VAC | 12V | 1.5A | 18 W | 500mW (Max) | Positive Center | Medical | Level IV | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 70.9" (1.80m) | NEMA 1-15P, Multi-Blade (Sold Separately) | - | 3.30" L x 1.81" W x 1.26" H (84.6mm x 46.0mm x 33.0mm) | CE, cULus | |
|
SDM36-12-U2-P5AC/DC DESKTOP ADAPTER 12V 36W |
3,069 |
|
数据手册 |
SDM36-U (36W) | Tray | Active | Europe | Desktop (Class I) | Cord | 90 ~ 264 VAC | 12V | 3A | 36 W | 100mW (Max) | Positive Center | ITE (Commercial), Medical | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C14 | - | 3.94" L x 1.97" W x 1.30" H (100.0mm x 50.0mm x 33.0mm) | CB Scheme, CSA, EN, FCC, IEC, PSE, UL | |
|
|
SDM36-18-U2-P5AC/DC DESKTOP ADAPTER 18V 36W |
1,993 |
|
数据手册 |
SDM36-U (36W) | Tray | Active | Europe | Desktop (Class I) | Cord | 90 ~ 264 VAC | 18V | 2A | 36 W | 100mW (Max) | Positive Center | ITE (Commercial), Medical | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C14 | - | 3.94" L x 1.97" W x 1.30" H (100.0mm x 50.0mm x 33.0mm) | CB Scheme, CSA, EN, FCC, IEC, PSE, UL | |
|
|
SDM36-24-U2-P5AC/DC DESKTOP ADAPTER 24V 36W |
3,762 |
|
数据手册 |
SDM36-U (36W) | Bulk | Active | Europe | Desktop (Class I) | Cord | 90 ~ 264 VAC | 24V | 1.5A | 36 W | 100mW (Max) | Positive Center | ITE (Commercial), Medical | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C14 | - | 3.94" L x 1.97" W x 1.30" H (100.0mm x 50.0mm x 33.0mm) | CB Scheme, CSA, EN, FCC, IEC, PSE, UL | |
|
MW173KB2403F01AC/DC DESKTOP ADAPTER 24V 32W |
3,830 |
|
数据手册 |
MW173KB (20-32W) | Bulk | Not For New Designs | International | Desktop (Class I) | Cord (Sold Separately) | 100 ~ 240 VAC | 24V | 1.33A | 32 W | 500mW (Max) | Positive Center | Medical | Level IV | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 70.9" (1.80m) | IEC 320-C14 | - | 3.74" L x 2.13" W x 1.26" H (95.0mm x 54.0mm x 33.0mm) | CE, cULus | |
|
|
ME40A2403N01AC/DC DESKTOP ADAPTER 24V 41W |
2,865 |
|
数据手册 |
ME40 (40W) | Bulk | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 24V | 1.7A | 41 W | 100mW (Max) | Positive Center | Medical | Level VI | -20°C ~ 50°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 57" (1.45m) | IEC 320-C8 | - | 3.76" L x 2.13" W x 1.22" H (95.5mm x 54.0mm x 31.0mm) | CB, CE, DEMKO, UL |
