交流直流桌面、墙式电源适配器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 使用区域 | 形式 | 输入类型 | 电压 - 输入 | 电压 - 输出 | 电流 - 输出（最大值） | 功率（瓦特） | 空载功耗 | 极化 | 应用 | 效率 | 工作温度 | 输出连接器 | 电线长度 | 输入连接器 | 特性 | 尺寸 / 尺寸 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RR9KG4000LCPCIMR6BAC/DC DSKTP/WALL MT ADPT 15V 60W |
110 |
|
数据手册 |
GTM96600-6015-R2 | Bulk | Active | International | Desktop, Wall Mount (Class II) | Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 15V | 4A | 60 W | 150mW (Max) | Positive Center | ITE (Commercial), Medical | Level VI, CoC Tier 2 | -20°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm | 47.2" (1.20m) | IEC 320-C8, Multi-Blade (Sold Separately) | - | 4.63" L x 2.11" W x 1.44" H (117.5mm x 53.5mm x 36.6mm) | BSMI, CB, CCC, CETLus, EAC, ETL, LPS, NrCAN, PSE, S-Mark, Ukraine, UKCA, UL, VCCI, WEEE | |
|
|
UA100AWorld Travel Adapter with USB-A |
300 |
|
数据手册 |
- | Retail Package | Active | International | Wall Mount | Fixed Blade | 100 ~ 240 VAC | 5V | 2.1A | 11 W | - | - | ITE (Commercial) | - | - | USB A Receptacle, USB C Receptacle | - | Multi-Blade (Included) | - | 2.56" L x 1.97" W x 2.17" H (65.0mm x 50.0mm x 55.0mm) | - | |
.jpg)
|
ME30A0503B01AC/DC WALL MOUNT ADAPTER 5V 20W |
1,487 |
|
数据手册 |
ME30 (30W) | Bulk | Active | North America | Wall Mount (Class II) | Fixed Blade, Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 5V | 4A | 20 W | 100mW (Max) | Positive Center | Medical | Level VI | -20°C ~ 50°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 57" (1.45m) | NEMA 1-15P, Multi-Blade (Sold Separately) | - | 3.78" L x 2.17" W x 1.32" H (96.0mm x 55.0mm x 33.6mm) | CE | |
|
|
TE40A0503F01AC/DC DESKTOP ADAPTER 5V 25W |
1,392 |
|
数据手册 |
TE40 (40W) | Bulk | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 5V | 5A | 25 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI | -20°C ~ 50°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 57" (1.45m) | IEC 320-C14 | - | 3.76" L x 2.13" W x 1.22" H (95.5mm x 54.0mm x 31.0mm) | CE | |
|
TE40A1803F01AC/DC DESKTOP ADAPTER 18V 40W |
1,502 |
|
数据手册 |
TE40 (40W) | Bulk | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 18V | 2.22A | 40 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI | -20°C ~ 50°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 57" (1.45m) | IEC 320-C14 | - | 3.76" L x 2.13" W x 1.22" H (95.5mm x 54.0mm x 31.0mm) | CB, CE, DEMKO, UL | |
|
|
TE40A1803N01AC/DC DESKTOP ADAPTER 18V 40W |
2,332 |
|
数据手册 |
TE40 (40W) | Bulk | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 18V | 2.22A | 40 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI | -20°C ~ 50°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 57" (1.45m) | IEC 320-C8 | - | 3.76" L x 2.13" W x 1.22" H (95.5mm x 54.0mm x 31.0mm) | CB, CE, DEMKO, UL | |
|
TE40A2403C01AC/DC WALL MOUNT ADAPTER 24V 41W |
2,154 |
|
数据手册 |
TE40 (40W) | Bulk | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 24V | 1.7A | 41 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI | -20°C ~ 50°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 57" (1.45m) | NEMA 1-15P | - | 3.78" L x 2.17" W x 1.32" H (96.0mm x 55.0mm x 33.6mm) | CB, CE, DEMKO, UL | |
|
|
TE40A1802N01AC/DC DESKTOP ADAPTER 18V 40W |
2,777 |
|
数据手册 |
TE40 (40W) | Bulk | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 18V | 2.22A | 40 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI | -20°C ~ 50°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 57" (1.45m) | IEC 320-C8 | - | 3.76" L x 2.13" W x 1.22" H (95.5mm x 54.0mm x 31.0mm) | CB, CE, DEMKO, UL | |
|
|
TE40A1202N01AC/DC DESKTOP ADAPTER 12V 41W |
2,424 |
|
数据手册 |
TE40 (40W) | Bulk | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 12V | 3.4A | 41 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI | -20°C ~ 50°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 57" (1.45m) | IEC 320-C8 | - | 3.76" L x 2.13" W x 1.22" H (95.5mm x 54.0mm x 31.0mm) | CB, CE, DEMKO, UL | |
|
|
TE40A2403N01AC/DC DESKTOP ADAPTER 24V 41W |
2,790 |
|
数据手册 |
TE40 (40W) | Bulk | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 24V | 1.7A | 41 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI | -20°C ~ 50°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 57" (1.45m) | IEC 320-C8 | - | 3.76" L x 2.13" W x 1.22" H (95.5mm x 54.0mm x 31.0mm) | CB, CE, DEMKO, UL | |
|
|
TE40A1802F01AC/DC DESKTOP ADAPTER 18V 40W |
1,678 |
|
数据手册 |
TE40 (40W) | Bulk | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 18V | 2.22A | 40 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI | -20°C ~ 50°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 57" (1.45m) | IEC 320-C14 | - | 3.76" L x 2.13" W x 1.22" H (95.5mm x 54.0mm x 31.0mm) | CB, CE, DEMKO, UL | |
|
SDI65-48-U-P6RAC/DC DESKTOP ADAPTER 48V 65W |
3,019 |
|
数据手册 |
SDI65-U (65W) | Bulk | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 48V | 1.36A | 65 W | 210mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug R/A, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C14 | - | 4.53" L x 2.09" W x 1.50" H (115.0mm x 53.0mm x 38.0mm) | CB Scheme, CCC, CSA, EN, FCC, IEC, PSE, RCM, UL | |
|
CENB1030A4803B01AC/DC WALL MOUNT ADAPTER 48V 32W |
1,063 |
|
数据手册 |
CENB1030 (30W) | Bulk | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 100 ~ 240 VAC | 48V | 670mA | 32 W | 300mW (Max) | Positive Center | ITE (Commercial) | Level V | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | NEMA 1-15P | - | 3.76" L x 2.13" W x 1.22" H (95.5mm x 54.0mm x 31.0mm) | CE, cULus | |
|
IPD3019-760AC/DC DESKTOP ADAPTER 19V 30W |
134 |
|
数据手册 |
IPD30 (30W) | Box | Active | North America | Desktop (Class I) | Cord (Sold Separately) | 85 ~ 264 VAC | 19V | 1.6A | 30 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 60°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 48" (1.22m) | IEC 320-C6 | - | 3.53" L x 1.92" W x 0.99" H (89.6mm x 48.8mm x 25.2mm) | CE, cTUVus | |
|

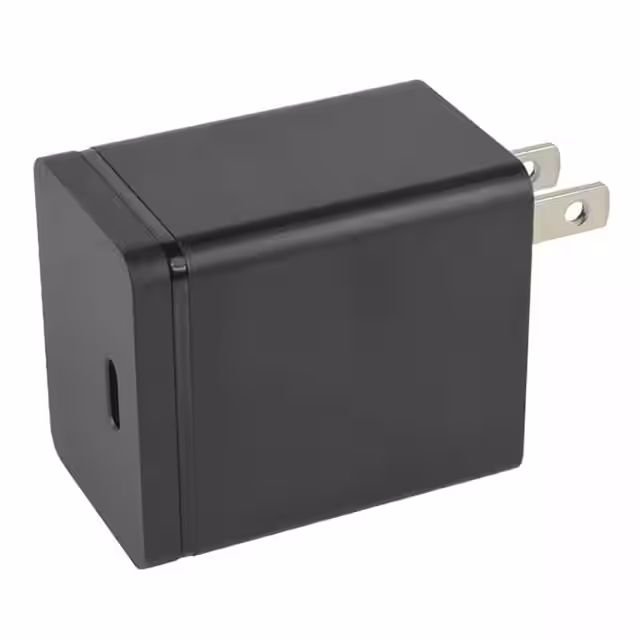

SWC27-T5912-NBAC/DC WALL MT ADPT 5V/9V/12V 27W |
3,257 |
|
数据手册 |
SWC27-N (27W) | Bulk | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 5V, 9V, 12V | 3A, 3A, 2.25A | 27 W | 75mW (Max) | - | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | USB C Power Delivery (PD) | - | NEMA 1-15P | - | 1.74" L x 1.31" W x 2.07" H (44.2mm x 33.2mm x 52.5mm) | cULus, FCC, PSE | |
|

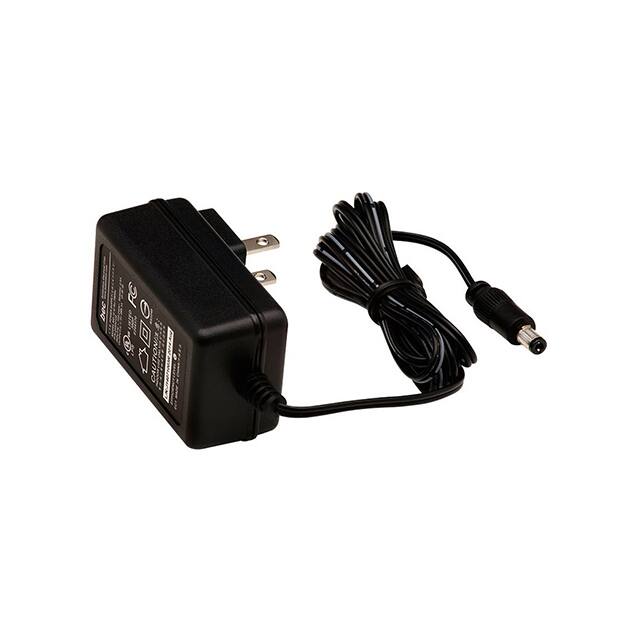

76000934AC/DC WALL MOUNT ADAPTER 5V 15W |
181 |
|
数据手册 |
- | Bulk | Obsolete | - | Wall Mount (Class II) | Fixed Blade | 100 ~ 240 VAC | 5V | 3A | 15 W | - | - | - | - | 0°C ~ 40°C | - | 60" (1.52m) | - | - | 2.76" L x 2.17" W x 1.77" H (70.0mm x 55.0mm x 45.0mm) | - | |
|
SDM36-12-UDC-P5AC/DC DESKTOP ADAPTER 12V 36W |
4,095 |
|
数据手册 |
SDM36-UD (36W) | Tray | Active | North America | Desktop (Class II) | Cord | 90 ~ 264 VAC | 12V | 3A | 36 W | 100mW (Max) | Positive Center | ITE (Commercial), Medical | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C8 | - | 3.90" L x 1.97" W x 1.30" H (99.0mm x 50.0mm x 33.0mm) | CB Scheme, CSA, EN, FCC, IEC, PSE, UL | |
|

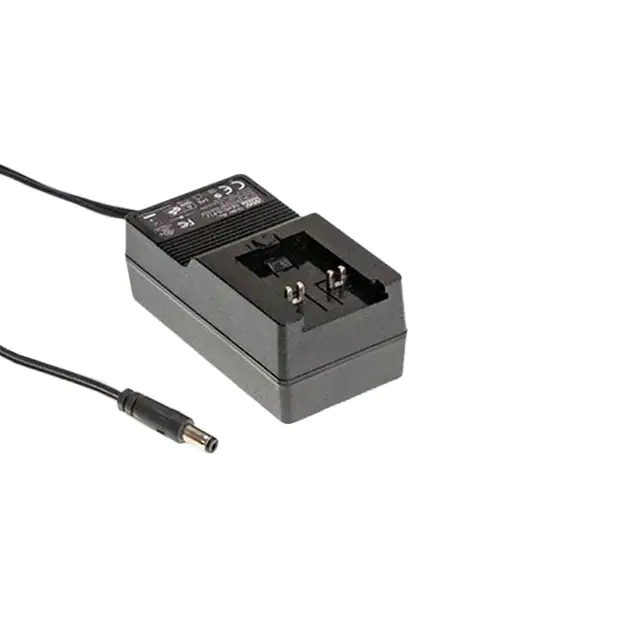

GE40I12-P1JAC/DC WALL MOUNT ADAPTER 12V 40W |
115 |
|
数据手册 |
GE40 (40W) | Box | Obsolete | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 12V | 3.3A | 40 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | -30°C ~ 70°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 39.4" (1.00m) | Multi-Blade | - | 3.70" L x 1.91" W x 1.57" H (94.0mm x 48.4mm x 40.0mm) | CCC, CE, cULus, EAC, FCC, GS, RCM, TUV | |
|
|
CENB1030A2403B01AC/DC WALL MOUNT ADAPTER 24V 32W |
1,707 |
|
数据手册 |
CENB1030 (30W) | Bulk | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 100 ~ 240 VAC | 24V | 1.33A | 32 W | 300mW (Max) | Positive Center | ITE (Commercial) | Level V | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | NEMA 1-15P | - | 3.78" L x 2.17" W x 1.32" H (96.0mm x 55.0mm x 33.6mm) | CE, cULus | |
|
|
TE40A1803B01AC/DC WALL MOUNT ADAPTER 18V 40W |
3,251 |
|
数据手册 |
TE40 (40W) | Bulk | Active | North America | Wall Mount (Class II) | Fixed Blade, Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 18V | 2.22A | 40 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI | -20°C ~ 50°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 57" (1.45m) | NEMA 1-15P, Multi-Blade (Sold Separately) | - | 3.78" L x 2.17" W x 1.32" H (96.0mm x 55.0mm x 33.6mm) | CB, CE, DEMKO, UL |
