交流直流桌面、墙式电源适配器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 使用区域 | 形式 | 输入类型 | 电压 - 输入 | 电压 - 输出 | 电流 - 输出（最大值） | 功率（瓦特） | 空载功耗 | 极化 | 应用 | 效率 | 工作温度 | 输出连接器 | 电线长度 | 输入连接器 | 特性 | 尺寸 / 尺寸 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SDI18-5.9-U2-P6AC/DC DESKTOP ADAPTER 5.9V 18W |
2,000 |
|
数据手册 |
SDI18-U (18W) | Box | Active | Europe | Desktop (Class I) | Cord | 90 ~ 264 VAC | 5.9V | 3A | 18 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C14 | - | 3.94" L x 1.97" W x 1.30" H (100.0mm x 50.0mm x 33.0mm) | CB Scheme, CCC, CSA, EN, FCC, IEC, PSE, UL | |
|
|
SDI18-5.9-U2-P6RAC/DC DESKTOP ADAPTER 5.9V 18W |
1,039 |
|
数据手册 |
SDI18-U (18W) | Box | Active | Europe | Desktop (Class I) | Cord | 90 ~ 264 VAC | 5.9V | 3A | 18 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug R/A, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C14 | - | 3.94" L x 1.97" W x 1.30" H (100.0mm x 50.0mm x 33.0mm) | CB Scheme, CCC, CSA, EN, FCC, IEC, PSE, UL | |
|
|
SDI18-5-U2-P5AC/DC DESKTOP ADAPTER 5V 15W |
2,196 |
|
数据手册 |
SDI18-U (18W) | Box | Active | Europe | Desktop (Class I) | Cord | 90 ~ 264 VAC | 5V | 3A | 15 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C14 | - | 3.94" L x 1.97" W x 1.30" H (100.0mm x 50.0mm x 33.0mm) | CB Scheme, CCC, CSA, EN, FCC, IEC, PSE, UL | |
|
|
SDI18-5-U2-P5RAC/DC DESKTOP ADAPTER 5V 15W |
2,862 |
|
数据手册 |
SDI18-U (18W) | Box | Active | Europe | Desktop (Class I) | Cord | 90 ~ 264 VAC | 5V | 3A | 15 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C14 | - | 3.94" L x 1.97" W x 1.30" H (100.0mm x 50.0mm x 33.0mm) | CB Scheme, CCC, CSA, EN, FCC, IEC, PSE, UL | |
|
|
SDI18-5-U2-P6AC/DC DESKTOP ADAPTER 5V 15W |
2,723 |
|
数据手册 |
SDI18-U (18W) | Box | Active | Europe | Desktop (Class I) | Cord | 90 ~ 264 VAC | 5V | 3A | 15 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C14 | - | 3.94" L x 1.97" W x 1.30" H (100.0mm x 50.0mm x 33.0mm) | CB Scheme, CCC, CSA, EN, FCC, IEC, PSE, UL | |
|
|
SDI18-5-U2-P6RAC/DC DESKTOP ADAPTER 5V 15W |
4,028 |
|
数据手册 |
SDI18-U (18W) | Box | Active | Europe | Desktop (Class I) | Cord | 90 ~ 264 VAC | 5V | 3A | 15 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug R/A, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C14 | - | 3.94" L x 1.97" W x 1.30" H (100.0mm x 50.0mm x 33.0mm) | CB Scheme, CCC, CSA, EN, FCC, IEC, PSE, UL | |
|
IPD3024-760AC/DC DESKTOP ADAPTER 24V 30W |
2,974 |
|
数据手册 |
IPD30 (30W) | Box | Active | North America | Desktop (Class I) | Cord (Sold Separately) | 85 ~ 264 VAC | 24V | 1.25A | 30 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 60°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 48" (1.22m) | IEC 320-C6 | - | 3.53" L x 1.92" W x 0.99" H (89.6mm x 48.8mm x 25.2mm) | CE, cTUVus | |
|
IPD3024-760SAC/DC DESKTOP ADAPTER 24V 30W |
1,785 |
|
数据手册 |
IPD30 (30W) | Box | Active | North America | Desktop (Class I) | Cord (Sold Separately) | 85 ~ 264 VAC | 24V | 1.25A | 30 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 60°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 48" (1.22m) | IEC 320-C6 | - | 3.53" L x 1.92" W x 0.99" H (89.6mm x 48.8mm x 25.2mm) | CE, cTUVus | |
|
GE18I12-P1JAC/DC WALL MOUNT ADAPTER 12V 18W |
3,721 |
|
数据手册 |
GE18 (18W) | Box | Obsolete | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 12V | 1.5A | 18 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI | -10°C ~ 50°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 39.4" (1.00m) | Multi-Blade (Sold Separately) | - | 3.19" L x 1.69" W x 1.59" H (81.0mm x 43.0mm x 40.5mm) | CCC, CE, cULus, GS, RCM | |
|

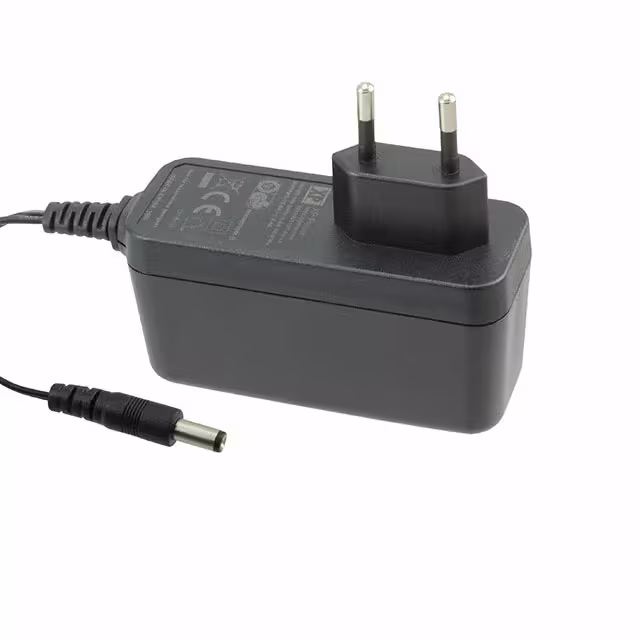

VEL36US150-EU-JAAC/DC WALL MOUNT ADAPTER 15V 36W |
2,568 |
|
数据手册 |
VEL36 (36W) | Box | Active | Europe | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 15V | 2.4A | 36 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 60°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 12.0mm | 59" (1.50m) | CEE 7/16 | - | 3.70" L x 1.38" W x 1.83" H (94.0mm x 35.0mm x 46.6mm) | CB, CCC | |
|
VEL36US180-US-JAAC/DC WALL MOUNT ADAPTER 18V 36W |
3,002 |
|
数据手册 |
VEL36 (36W) | Box | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 18V | 2A | 36 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 60°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 12.0mm | 59" (1.50m) | NEMA 1-15P | - | 3.70" L x 1.95" W x 2.11" H (94.0mm x 49.6mm x 53.6mm) | CB, CCC | |
|
RR9KR1000CCPYIM(RVB)PWR SUPP, BATT, COND |
4,656 |
|
数据手册 |
GTM91120-3036-6.0-T2 | Bulk | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 30V | 1A | 30 W | - | Positive Center | Household Appliances, ITE (Commercial), Medical | Level V | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 72" (1.83m) | IEC 320-C8 | - | 4.01" L x 1.87" W x 1.45" H (101.8mm x 47.5mm x 36.7mm) | CCC, CE, cURus, EAC, ETL, FCC, PSE, RCM, SIQ, UKCA, Ukraine, VCCI, WEEE | |
|
SDI24-5-UC-P5AC/DC DESKTOP ADAPTER 5V 20W |
1,276 |
|
数据手册 |
SDI24-U (24W) | Box | Active | North America | Desktop (Class I) | Cord | 90 ~ 264 VAC | 5V | 4A | 20 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 39.4" (1.00m) | IEC 320-C14 | - | 3.94" L x 1.97" W x 1.30" H (100.0mm x 50.0mm x 33.0mm) | CB Scheme, CCC, CSA, EN, FCC, IEC, PSE, UL | |
|
|
SDI24-5-UC-P5RAC/DC DESKTOP ADAPTER 5V 20W |
3,411 |
|
数据手册 |
SDI24-U (24W) | Box | Active | North America | Desktop (Class I) | Cord | 90 ~ 264 VAC | 5V | 4A | 20 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 39.4" (1.00m) | IEC 320-C14 | - | 3.94" L x 1.97" W x 1.30" H (100.0mm x 50.0mm x 33.0mm) | CB Scheme, CCC, CSA, EN, FCC, IEC, PSE, UL | |
|
|
SDI24-5-UC-P6AC/DC DESKTOP ADAPTER 5V 20W |
4,230 |
|
数据手册 |
SDI24-U (24W) | Box | Active | North America | Desktop (Class I) | Cord | 90 ~ 264 VAC | 5V | 4A | 20 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 39.4" (1.00m) | IEC 320-C14 | - | 3.94" L x 1.97" W x 1.30" H (100.0mm x 50.0mm x 33.0mm) | CB Scheme, CCC, CSA, EN, FCC, IEC, PSE, UL | |
|
|
SDI24-5-UC-P6RAC/DC DESKTOP ADAPTER 5V 20W |
1,914 |
|
数据手册 |
SDI24-U (24W) | Box | Active | North America | Desktop (Class I) | Cord | 90 ~ 264 VAC | 5V | 4A | 20 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug R/A, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 39.4" (1.00m) | IEC 320-C14 | - | 3.94" L x 1.97" W x 1.30" H (100.0mm x 50.0mm x 33.0mm) | CB Scheme, CCC, CSA, EN, FCC, IEC, PSE, UL | |
|
|
SDI24-9-UC-P5AC/DC DESKTOP ADAPTER 9V 23W |
3,882 |
|
数据手册 |
SDI24-U (24W) | Box | Active | North America | Desktop (Class I) | Cord | 90 ~ 264 VAC | 9V | 2.5A | 23 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C14 | - | 3.94" L x 1.97" W x 1.30" H (100.0mm x 50.0mm x 33.0mm) | CB Scheme, CCC, CSA, EN, FCC, IEC, PSE, UL | |
|
|
SDI24-9-UC-P5RAC/DC DESKTOP ADAPTER 9V 23W |
4,671 |
|
数据手册 |
SDI24-U (24W) | Box | Active | North America | Desktop (Class I) | Cord | 90 ~ 264 VAC | 9V | 2.5A | 23 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C14 | - | 3.94" L x 1.97" W x 1.30" H (100.0mm x 50.0mm x 33.0mm) | CB Scheme, CCC, CSA, EN, FCC, IEC, PSE, UL | |
|
|
SDI24-9-UC-P6AC/DC DESKTOP ADAPTER 9V 23W |
2,706 |
|
数据手册 |
SDI24-U (24W) | Box | Active | North America | Desktop (Class I) | Cord | 90 ~ 264 VAC | 9V | 2.5A | 23 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C14 | - | 3.94" L x 1.97" W x 1.30" H (100.0mm x 50.0mm x 33.0mm) | CB Scheme, CCC, CSA, EN, FCC, IEC, PSE, UL | |
|
|
SDI24-9-UC-P6RAC/DC DESKTOP ADAPTER 9V 23W |
2,519 |
|
数据手册 |
SDI24-U (24W) | Box | Active | North America | Desktop (Class I) | Cord | 90 ~ 264 VAC | 9V | 2.5A | 23 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug R/A, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C14 | - | 3.94" L x 1.97" W x 1.30" H (100.0mm x 50.0mm x 33.0mm) | CB Scheme, CCC, CSA, EN, FCC, IEC, PSE, UL |
