交流直流桌面、墙式电源适配器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 使用区域 | 形式 | 输入类型 | 电压 - 输入 | 电压 - 输出 | 电流 - 输出（最大值） | 功率（瓦特） | 空载功耗 | 极化 | 应用 | 效率 | 工作温度 | 输出连接器 | 电线长度 | 输入连接器 | 特性 | 尺寸 / 尺寸 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SMM30-18-K-P6AC/DC WALL MOUNT ADAPTER 18V 30W |
4,701 |
|
数据手册 |
SMM30 (36W) | Box | Active | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 18V | 1.66A | 30 W | 100mW (Max) | Positive Center | Medical | Level VI | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 47.2" (1.20m) | Multi-Blade (Sold Separately) | - | 2.90" L x 1.69" W x 1.28" H (73.6mm x 42.8mm x 32.5mm) | CB Scheme, CSA, EN, FCC, IEC, PSE, UL | |
|
|
SMM30-18-K-P7AC/DC WALL MOUNT ADAPTER 18V 30W |
4,020 |
|
数据手册 |
SMM30 (36W) | Box | Active | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 18V | 1.66A | 30 W | 100mW (Max) | Positive Center | Medical | Level VI | 0°C ~ 40°C | Barrel Plug, 1.35mm I.D. x 3.5mm O.D. x 9.5mm | 47.2" (1.20m) | Multi-Blade (Sold Separately) | - | 2.90" L x 1.69" W x 1.28" H (73.6mm x 42.8mm x 32.5mm) | CB Scheme, CSA, EN, FCC, IEC, PSE, UL | |
|
TR9KR2100LNP-R-MED(RAC/DC DESKTOP ADAPTER 28V 59W |
4,997 |
|
数据手册 |
GT-500160-30-2.0-T2 | Bulk | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 28V | 2.1A | 59 W | - | Negative Center | ITE (Commercial) | 85% | 0°C ~ 70°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm | 72" (1.83m) | IEC 320-C8 | - | 4.92" L x 2.44" W x 1.26" H (125.0mm x 62.0mm x 32.0mm) | CE, cUL, UL, VDE | |
|
|
WR9QA3000EJ1IMR6WPWR SUPP, BATT, COND |
3,928 |
|
数据手册 |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|

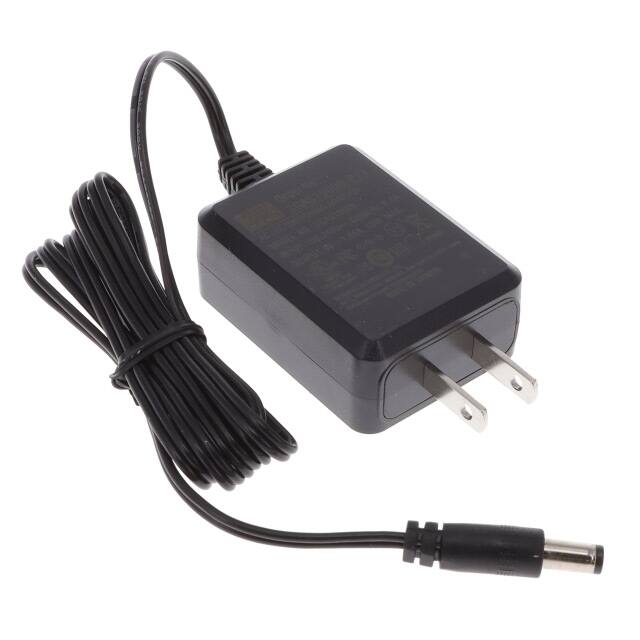

SGAS15U09-P1JAC/DC WALL MOUNT ADAPTER 9V 15W |
3,648 |
|
数据手册 |
SGAS15U (15W) | Box | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 9V | 1.66A | 15 W | 75mW | Positive Center | ITE (Commercial) | 84% | -20°C ~ 70°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 47" (1.20m) | NEMA 1-15P | - | 2.27" L x 1.66" W x 0.97" H (57.6mm x 42.1mm x 24.7mm) | CB, cULus, EAC, FCC | |
|
FWA020005A-10AAC/DC DESKTOP ADAPTER 5V 20W |
1,455 |
|
数据手册 |
FWA020 (20W) | Bulk | Active | International | Desktop (Class I) | Cord (Sold Separately) | 85 ~ 264 VAC | 5V | 4A | 20 W | 300mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 60°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 48" (1.22m) | IEC 320-C14 | - | 3.45" L x 2.04" W x 1.30" H (87.7mm x 51.8mm x 33.0mm) | CB, CE, GS, TUV | |
|
|
SWI36-24-BW-P5RAC-DC, 24 VDC, 1.5 A, SW, WALL-P |
3,331 |
|
数据手册 |
SWI36-B (36W) | Box | Active | United Kingdom | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 24V | 1.5A | 36 W | 75mW | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | -20°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | BS 1363 | - | 3.11" L x 1.93" W x 2.20" H (79.0mm x 49.0mm x 56.0mm) | CE, UKCA | |
|
|
SWI36-24-BW-P6AC-DC, 24 VDC, 1.5 A, SW, WALL-P |
3,291 |
|
数据手册 |
SWI36-B (36W) | Box | Active | United Kingdom | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 24V | 1.5A | 36 W | 75mW | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | -20°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | BS 1363 | - | 3.11" L x 1.93" W x 2.20" H (79.0mm x 49.0mm x 56.0mm) | CE, UKCA | |
|
|
SWI36-12-B-P11AC-DC, 12 VDC, 3 A, SW, WALL-PLU |
1,465 |
|
数据手册 |
SWI36-B (36W) | Box | Active | United Kingdom | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 12V | 3A | 36 W | 75mW | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | -20°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | BS 1363 | - | 3.11" L x 1.93" W x 2.20" H (79.0mm x 49.0mm x 56.0mm) | CE, UKCA | |
|
|
SWI36-48-B-P10AC-DC, 48 VDC, 0.75 A, SW, WALL- |
4,449 |
|
数据手册 |
SWI36-B (36W) | Box | Active | United Kingdom | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 48V | 750mA | 36 W | 75mW | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | -20°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | BS 1363 | - | 3.11" L x 1.93" W x 2.20" H (79.0mm x 49.0mm x 56.0mm) | CE, UKCA | |
|
|
SWI36-24-BW-P5AC-DC, 24 VDC, 1.5 A, SW, WALL-P |
4,853 |
|
数据手册 |
SWI36-B (36W) | Box | Active | United Kingdom | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 24V | 1.5A | 36 W | 75mW | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | -20°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | BS 1363 | - | 3.11" L x 1.93" W x 2.20" H (79.0mm x 49.0mm x 56.0mm) | CE, UKCA | |
|
|
SWI36-12-B-P10AC-DC, 12 VDC, 3 A, SW, WALL-PLU |
1,920 |
|
数据手册 |
SWI36-B (36W) | Box | Active | United Kingdom | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 12V | 3A | 36 W | 75mW | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | -20°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | BS 1363 | - | 3.11" L x 1.93" W x 2.20" H (79.0mm x 49.0mm x 56.0mm) | CE, UKCA | |
|
|
SWI36-24-BW-P6RAC-DC, 24 VDC, 1.5 A, SW, WALL-P |
2,039 |
|
数据手册 |
SWI36-B (36W) | Box | Active | United Kingdom | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 24V | 1.5A | 36 W | 75mW | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | -20°C ~ 40°C | Barrel Plug R/A, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | BS 1363 | - | 3.11" L x 1.93" W x 2.20" H (79.0mm x 49.0mm x 56.0mm) | CE, UKCA | |
|
|
SWI36-48-B-P11AC-DC, 48 VDC, 0.75 A, SW, WALL- |
3,437 |
|
数据手册 |
SWI36-B (36W) | Box | Active | United Kingdom | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 48V | 750mA | 36 W | 75mW | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | -20°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | BS 1363 | - | 3.11" L x 1.93" W x 2.20" H (79.0mm x 49.0mm x 56.0mm) | CE, UKCA | |
|
SDI30-12-U2-P5AC/DC DESKTOP ADAPTER 12V 30W |
2,068 |
|
数据手册 |
SDI30-U (30W) | Box | Obsolete | Europe | Desktop (Class I) | Cord | 90 ~ 264 VAC | 12V | 2.5A | 30 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 60.2" (1.53m) | IEC 320-C14 | - | 4.37" L x 2.05" W x 1.27" H (111.0mm x 52.0mm x 32.3mm) | CB Scheme, CCC, CSA, EN, FCC, IEC, RCM, SIQ, TUV, UL | |
|
|
SDI30-12-U2-P5RAC/DC DESKTOP ADAPTER 12V 30W |
3,028 |
|
数据手册 |
SDI30-U (30W) | Box | Obsolete | Europe | Desktop (Class I) | Cord | 90 ~ 264 VAC | 12V | 2.5A | 30 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 60.2" (1.53m) | IEC 320-C14 | - | 4.37" L x 2.05" W x 1.27" H (111.0mm x 52.0mm x 32.3mm) | CB Scheme, CCC, CSA, EN, FCC, IEC, RCM, SIQ, TUV, UL | |
|
|
SDI30-12-U2-P6AC/DC DESKTOP ADAPTER 12V 30W |
3,936 |
|
数据手册 |
SDI30-U (30W) | Box | Obsolete | Europe | Desktop (Class I) | Cord | 90 ~ 264 VAC | 12V | 2.5A | 30 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 60.2" (1.53m) | IEC 320-C14 | - | 4.37" L x 2.05" W x 1.27" H (111.0mm x 52.0mm x 32.3mm) | CB Scheme, CCC, CSA, EN, FCC, IEC, RCM, SIQ, TUV, UL | |
|
|
SDI30-12-U2-P6RAC/DC DESKTOP ADAPTER 12V 30W |
1,596 |
|
数据手册 |
SDI30-U (30W) | Box | Obsolete | Europe | Desktop (Class I) | Cord | 90 ~ 264 VAC | 12V | 2.5A | 30 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug R/A, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 60.2" (1.53m) | IEC 320-C14 | - | 4.37" L x 2.05" W x 1.27" H (111.0mm x 52.0mm x 32.3mm) | CB Scheme, CCC, CSA, EN, FCC, IEC, RCM, SIQ, TUV, UL | |
|

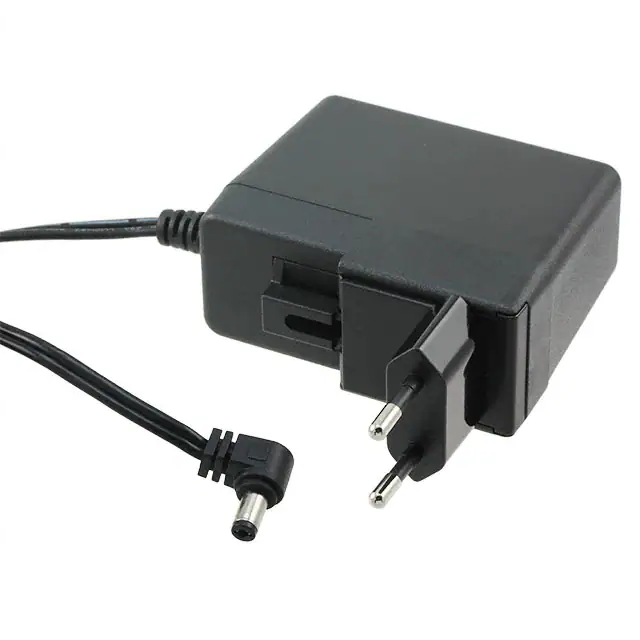

SMI36-12-E-P5RAC/DC WALL MOUNT ADAPTER 12V 36W |
3,173 |
|
数据手册 |
SMI36 (36W) | Box | Active | Europe | Wall Mount (Class II) | Multi-Blade (Included) | 90 ~ 264 VAC | 12V | 3A | 36 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | CEE 7/16 | - | 3.09" L x 1.39" W x 2.60" H (78.5mm x 35.3mm x 66.0mm) | CB Scheme, CCC, CSA, EN, FCC, IEC, PSE, UL | |
|
MWA020009A-10AAC/DC DESKTOP ADAPTER 9V 20W |
2,077 |
|
数据手册 |
MWA020 (20W) | Bulk | Active | International | Desktop (Class I) | Cord (Sold Separately) | 85 ~ 264 VAC | 9V | 2.22A | 20 W | 300mW (Max) | Positive Center | Medical | Level V | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 72" (1.83m) | IEC 320-C14 | - | 3.45" L x 2.04" W x 1.30" H (87.7mm x 51.8mm x 33.0mm) | CB, CE, cTUVus |
