交流直流桌面、墙式电源适配器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 使用区域 | 形式 | 输入类型 | 电压 - 输入 | 电压 - 输出 | 电流 - 输出（最大值） | 功率（瓦特） | 空载功耗 | 极化 | 应用 | 效率 | 工作温度 | 输出连接器 | 电线长度 | 输入连接器 | 特性 | 尺寸 / 尺寸 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SMM12-6-4W-P6AC-DC, 6 VDC, 2 A, SW, MULTI-BLA |
3,466 |
|
数据手册 |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
SMM12-6-4W-P6RAC-DC, 6 VDC, 2 A, SW, MULTI-BLA |
4,470 |
|
数据手册 |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
SMM12-6-4W-P5RAC-DC, 6 VDC, 2 A, SW, MULTI-BLA |
2,953 |
|
数据手册 |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
SMM12-6-4W-P5AC-DC, 6 VDC, 2 A, SW, MULTI-BLA |
4,358 |
|
数据手册 |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
GSM06U24-P1JAC/DC WALL MOUNT ADAPTER 24V 6W |
4,693 |
|
数据手册 |
GSM06U (6W) | Box | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 85 ~ 264 VAC | 24V | 250mA | 6 W | 300mW (Max) | Positive Center | Medical | Level V | 0°C ~ 50°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 72" (1.83m) | NEMA 1-15P | - | 2.60" L x 1.26" W x 1.89" H (66.0mm x 32.0mm x 48.0mm) | cURus | |
|
|
GS06U05-P1JPWR SUPP, BATT & COND |
3,931 |
|
数据手册 |
- | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
L6R48-360133PWE SUPP BATTERIES COND |
1,579 |
|
数据手册 |
Tri-Mag®, L6R48 (48W) | Bulk | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 36V | 1.3A | 47 W | 100mW | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 39" (1.00m) | NEMA 1-15P | - | 4.62" L x 2.02" W x 1.36" H (117.3mm x 51.3mm x 34.5mm) | cUL, FCC, UL | |
|
|
L6R48-300160PWE SUPP BATTERIES COND |
3,105 |
|
数据手册 |
Tri-Mag®, L6R48 (48W) | Bulk | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 30V | 1.6A | 48 W | 100mW | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 39" (1.00m) | NEMA 1-15P | - | 4.62" L x 2.02" W x 1.36" H (117.3mm x 51.3mm x 34.5mm) | cUL, FCC, UL | |
|
|
SLE36N2403N01AC DC ADAPTOR |
1,787 |
|
数据手册 |
SLE36N (36W) | Box | Active | International | Desktop (Class II) | Cord (Sold Separately) | 80 ~ 264 VAC | 24V | 1.5A | 36 W | - | Positive Center | ITE (Commercial), Medical | Level VI | -10°C ~ 45°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C8 | - | 4.08" L x 2.26" W x 1.18" H (103.7mm x 57.5mm x 30.0mm) | CCC, CE, cULus, cURus, GS, TUV, UKCA, UL | |
|
|
SLE36N0903B01AC DC ADAPTOR |
2,621 |
|
数据手册 |
SLE36N (36W) | Box | Active | International | Wall Mount (Class II) | Multi-Blade (Included) | 80 ~ 264 VAC | 9V | 4A | 36 W | - | Positive Center | ITE (Commercial), Medical | Level VI | -10°C ~ 45°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | Multi-Blade (Included) | - | 4.08" L x 2.26" W x 1.18" H (103.7mm x 57.5mm x 30.0mm) | CCC, CE, cULus, cURus, GS, TUV, UKCA, UL | |
|
|
SLE36N1203B01AC DC ADAPTOR |
2,746 |
|
数据手册 |
SLE36N (36W) | Box | Active | International | Wall Mount (Class II) | Multi-Blade (Included) | 80 ~ 264 VAC | 12V | 3A | 36 W | - | Positive Center | ITE (Commercial), Medical | Level VI | -10°C ~ 45°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | Multi-Blade (Included) | - | 4.08" L x 2.26" W x 1.18" H (103.7mm x 57.5mm x 30.0mm) | CCC, CE, cULus, cURus, GS, TUV, UKCA, UL | |
|
|
SLE36N1203N01AC DC ADAPTOR |
4,868 |
|
数据手册 |
SLE36N (36W) | Box | Active | International | Desktop (Class II) | Cord (Sold Separately) | 80 ~ 264 VAC | 12V | 3A | 36 W | - | Positive Center | ITE (Commercial), Medical | Level VI | -10°C ~ 45°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C8 | - | 4.08" L x 2.26" W x 1.18" H (103.7mm x 57.5mm x 30.0mm) | CCC, CE, cULus, cURus, GS, TUV, UKCA, UL | |
|
|
SLE36N3603B01AC DC ADAPTOR |
3,103 |
|
数据手册 |
SLE36N (36W) | Box | Active | International | Wall Mount (Class II) | Multi-Blade (Included) | 80 ~ 264 VAC | 36V | 1A | 36 W | - | Positive Center | ITE (Commercial), Medical | Level VI | -10°C ~ 45°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | Multi-Blade (Included) | - | 4.08" L x 2.26" W x 1.18" H (103.7mm x 57.5mm x 30.0mm) | CCC, CE, cULus, cURus, GS, TUV, UKCA, UL | |
|
|
SLE36N3603N01AC DC ADAPTOR |
3,912 |
|
数据手册 |
SLE36N (36W) | Box | Active | International | Desktop (Class II) | Cord (Sold Separately) | 80 ~ 264 VAC | 36V | 1A | 36 W | - | Positive Center | ITE (Commercial), Medical | Level VI | -10°C ~ 45°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C8 | - | 4.08" L x 2.26" W x 1.18" H (103.7mm x 57.5mm x 30.0mm) | CCC, CE, cULus, cURus, GS, TUV, UKCA, UL | |
|
|
SLE36N0903N01AC DC ADAPTOR |
1,250 |
|
数据手册 |
SLE36N (36W) | Box | Active | International | Desktop (Class II) | Cord (Sold Separately) | 80 ~ 264 VAC | 9V | 4A | 36 W | - | Positive Center | ITE (Commercial), Medical | Level VI | -10°C ~ 45°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C8 | - | 4.08" L x 2.26" W x 1.18" H (103.7mm x 57.5mm x 30.0mm) | CCC, CE, cULus, cURus, GS, TUV, UKCA, UL | |
|
|
SLE36N2403B01AC DC ADAPTOR |
1,515 |
|
数据手册 |
SLE36N (36W) | Box | Active | International | Wall Mount (Class II) | Multi-Blade (Included) | 80 ~ 264 VAC | 24V | 1.5A | 36 W | - | Positive Center | ITE (Commercial), Medical | Level VI | -10°C ~ 45°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | Multi-Blade (Included) | - | 4.08" L x 2.26" W x 1.18" H (103.7mm x 57.5mm x 30.0mm) | CCC, CE, cULus, cURus, GS, TUV, UKCA, UL | |
|

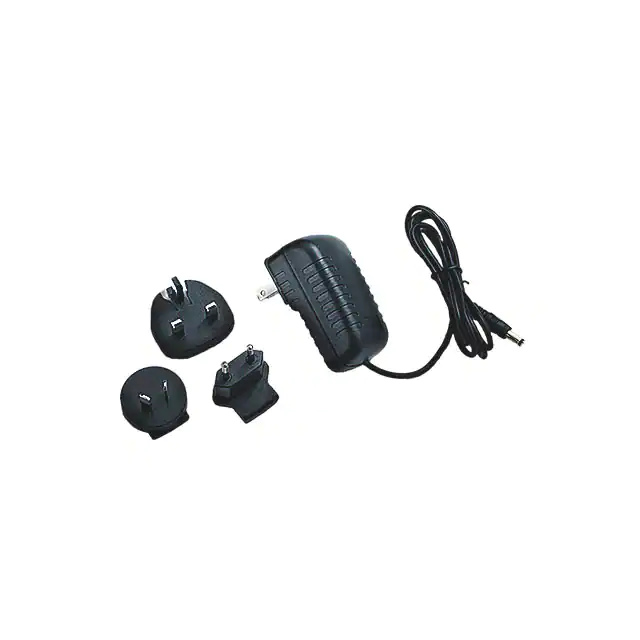

ADAPTOR-5V1AAC/DC WALL MOUNT ADAPTER 5V |
2,826 |
|
数据手册 |
- | Bulk | Active | International | Wall Mount (Class II) | Multi-Blade (Included) | 90 ~ 264 VAC | 5V | 1A | - | - | Positive Center | ITE (Commercial) | 80% | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | - | Multi-Blade (Included) | - | 2.68" L x 1.57 " W x 1.36" H (68.0mm x 40.0mm x 34.5mm) | - | |
|
2591AC/DC WALL MOUNT ADAPTER +/-12V |
4,583 |
|
数据手册 |
- | Bulk | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 12V, -12V | 500mA | - | - | Positive Center | ITE (Commercial) | 86% | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 47.2" (1.20m) | NEMA 1-15P | - | 3.40" L x 1.90" W x 1.20" H (86.4mm x 48.3mm x 30.5mm) | - | |
|

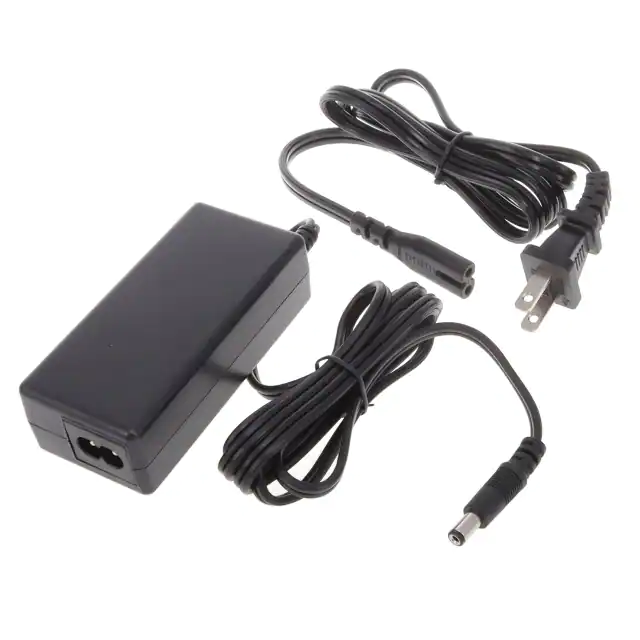

1466AC/DC DESKTOP ADAPTER 5V |
1,439 |
|
数据手册 |
- | Bulk | Active | International | Desktop (Class II) | Cord | 110 ~ 240 VAC | 5V | 4A | - | - | Positive Center | ITE (Commercial) | - | - | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 4.8' (1.47m) | IEC 320-C8 | - | 3.84" L x 1.70" W x 1.10" H (97.5mm x 43.2mm x 27.9mm) | UL | |
|
|
2297AC/DC DSKTP/WALL MT ADAPTER 5V |
4,448 |
|
数据手册 |
- | Bulk | Obsolete | International | Desktop, Wall Mount (Class II) | Cord, Multi-Blade (Sold Separately) | 110 ~ 240 VAC | 5V | 2A | - | - | - | ITE (Commercial) | - | - | - | - | Multi-Blade (Included) | - | - | CE, FCC, UL |
