交流直流桌面、墙式电源适配器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 使用区域 | 形式 | 输入类型 | 电压 - 输入 | 电压 - 输出 | 电流 - 输出（最大值） | 功率（瓦特） | 空载功耗 | 极化 | 应用 | 效率 | 工作温度 | 输出连接器 | 电线长度 | 输入连接器 | 特性 | 尺寸 / 尺寸 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SDI40-15-UD-P6AC/DC DESKTOP ADAPTER 15V 41W |
1,761 |
|
数据手册 |
SDI40-UD (40W) | Box | Obsolete | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 15V | 2.7A | 41 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 60.2" (1.53m) | IEC 320-C8 | - | 4.37" L x 2.05" W x 1.27" H (111.0mm x 52.0mm x 32.3mm) | CE, cULus, GS, PSE | |
|
|
SDI40-15-UD-P6RAC/DC DESKTOP ADAPTER 15V 41W |
4,509 |
|
数据手册 |
SDI40-UD (40W) | Box | Obsolete | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 15V | 2.7A | 41 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug R/A, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 60.2" (1.53m) | IEC 320-C8 | - | 4.37" L x 2.05" W x 1.27" H (111.0mm x 52.0mm x 32.3mm) | CE, cULus, GS, PSE | |
|
|
SDI40-19-UD-P5AC/DC DESKTOP ADAPTER 19V 40W |
4,262 |
|
数据手册 |
SDI40-UD (40W) | Box | Obsolete | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 19V | 2.1A | 40 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 60.2" (1.53m) | IEC 320-C8 | - | 4.37" L x 2.05" W x 1.27" H (111.0mm x 52.0mm x 32.3mm) | CE, cULus, GS, PSE | |
|
SMM12-5-4W-I38AC/DC WALL MOUNT ADAPTER 5V 12W |
2,785 |
|
数据手册 |
SMM12-USB (12W) | Box | Active | International | Wall Mount (Class II) | Multi-Blade (Included) | 90 ~ 264 VAC | 5V | 2.4A | 12 W | 100mW (Max) | - | ITE (Commercial), Medical | Level VI | 0°C ~ 40°C | USB A Receptacle | - | Multi-Blade (Included) | - | 2.24" L x 1.54" W x 1.34" H (57.0mm x 39.0mm x 34.0mm) | CE, cULus, FCC, PSE, TUV | |
|
ADP-45FE FS45W / 19V ADAPTER - C6 - BARREL |
4,139 |
|
数据手册 |
Non-PD | Box | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 19.5V | 2.37A | 45 W | 75mW | - | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 35°C | - | 59" (1.50m) | IEC 320-C6 | - | 3.70" L x 1.54" W x 1.04" H (94.0mm x 39.0mm x 26.5mm) | CCC, CE, cULus, PSE | |
|
|
ICM24-240V1INT'L 24W WALL MOUNT,POWER, 24V |
3,340 |
|
数据手册 |
Tri-Mag®, ICM24 (24W) | Bulk | Active | International | Wall Mount | Multi-Blade (Included) | 90 ~ 264 VAC | 24V | 1A | 24 W | 100mW | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | Multi-Blade (Included) | - | 2.80" L x 1.70" W x 1.43" H (71.2mm x 43.2mm x 36.2mm) | cUL, UL | |
|
|
SMM12-18-4B-CUBAC-DC, 18 VDC, .66 A, SW, MULTI- |
3,281 |
|
数据手册 |
SMM12 (12W) | Box | Active | International | Wall Mount | Multi-Blade (Included) | 90 ~ 264 VAC | 18V | 660mA | 12 W | 100mW | - | ITE (Commercial), Medical | Level VI | 0°C ~ 40°C | USB C | 59" (1.50m) | Multi-Blade (Included) | - | 2.24" L x 1.54" W x 1.34" H (57.0mm x 39.0mm x 34.0mm) | CE, cURus, FCC, PSE, TUV | |
|
|
SMM12-24-4B-CUBAC-DC, 24 VDC, .50 A, SW, MULTI- |
1,389 |
|
数据手册 |
SMM12 (12W) | Box | Active | International | Wall Mount | Multi-Blade (Included) | 90 ~ 264 VAC | 24V | 500mA | 12 W | 100mW | - | ITE (Commercial), Medical | Level VI | 0°C ~ 40°C | USB C | 59" (1.50m) | Multi-Blade (Included) | - | 2.24" L x 1.54" W x 1.34" H (57.0mm x 39.0mm x 34.0mm) | CE, cURus, FCC, PSE, TUV | |
|
SDI30-15-U-P5RAC/DC DESKTOP ADAPTER 15V 30W |
4,103 |
|
数据手册 |
SDI30-U (30W) | Box | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 15V | 2A | 30 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 60.2" (1.53m) | IEC 320-C14 | - | 4.37" L x 2.05" W x 1.27" H (111.0mm x 52.0mm x 32.3mm) | CB Scheme, CCC, CSA, EN, FCC, IEC, RCM, SIQ, TUV, UL | |
|
|
SMM12-5-4B-MUBAC-DC, 5 VDC, 2.4 A, SW, MULTI-B |
3,345 |
|
数据手册 |
SMM12 (12W) | Box | Active | International | Wall Mount | Multi-Blade (Included) | 90 ~ 264 VAC | 5V | 2.4A | 12 W | 100mW | - | ITE (Commercial), Medical | Level VI | 0°C ~ 40°C | USB Micro | 59" (1.50m) | Multi-Blade (Included) | - | 2.24" L x 1.54" W x 1.34" H (57.0mm x 39.0mm x 34.0mm) | CE, cURus, FCC, PSE, TUV | |
|
SWI25-18-E-P5AC/DC WALL MOUNT ADAPTER 18V 25W |
3,419 |
|
数据手册 |
SWI25-E (25.2W) | Box | Active | Europe | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 18V | 1.4A | 25 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI | -20°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 70.9" (1.80m) | CEE 7/16 | - | 2.80" L x 1.30" W x 1.91" H (71.0mm x 33.0mm x 48.4mm) | EN, FCC, SIQ, TUV | |
|

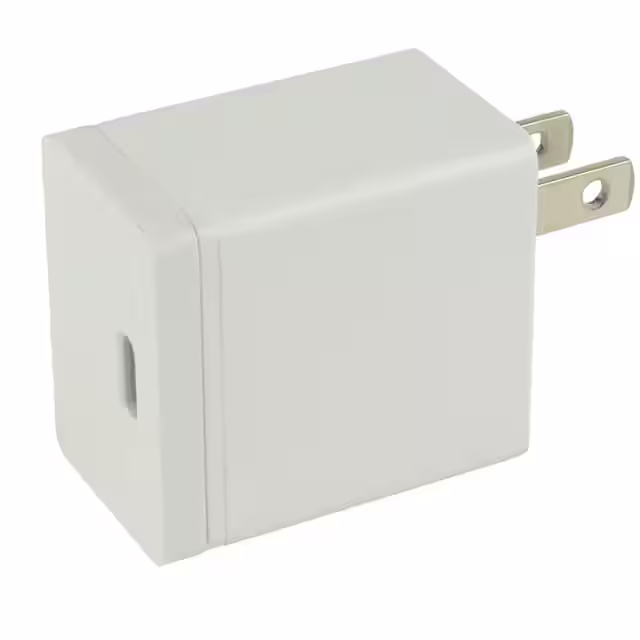

SWC15-S5-NWAC/DC WALL MOUNT ADAPTER 5V 15W |
2,059 |
|
数据手册 |
SWC15-N (15W) | Box | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 5V | 3A | 15 W | 75mW (Max) | - | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | USB C Receptacle | - | NEMA 1-15P | - | 1.56" L x 1.08" W x 1.70" H (39.6mm x 27.4mm x 43.3mm) | cULus, FCC, PSE | |
|
AMA24UR4-120150YAC/DC WALL MOUNT ADAPTER 12V 18W |
4,032 |
|
数据手册 |
AMA24-Y | Box | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 12V | 1.5A | 18 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 60.2" (1.50m) | NEMA 1-15P | - | 2.83" L x 1.34" W x 2.87" H (72.0mm x 34.0mm x 73.0mm) | CE, UL | |
|
|
AMA24UR5-120200YAC/DC WALL MOUNT ADAPTER 12V 24W |
1,377 |
|
数据手册 |
AMA24-Y | Box | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 12V | 2A | 24 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 60.2" (1.50m) | NEMA 1-15P | - | 2.83" L x 1.34" W x 2.87" H (72.0mm x 34.0mm x 73.0mm) | CE, UL | |
|
KTPS24-05940MP-VI-P1AC/DC WALL MNT ADAPTER 5.9V 24W |
3,040 |
|
数据手册 |
KTPS24 (24W) | Box | Active | International | Wall Mount (Class II) | Multi-Blade (Included) | 100 ~ 240 VAC | 5.9V | 4A | 24 W | - | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | Multi-Blade | - | 2.95" L x 1.41" W x 2.58" H (75.0mm x 35.8mm x 65.6mm) | CB, CE, cUL, GS, PSE, RCM, UL | |
|
|
KTPS24-07030MP-VI-P1AC/DC WALL MOUNT ADAPTER 7V 21W |
4,022 |
|
数据手册 |
KTPS24 (24W) | Box | Active | International | Wall Mount (Class II) | Multi-Blade (Included) | 100 ~ 240 VAC | 7V | 3A | 21 W | - | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | Multi-Blade | - | 2.95" L x 1.41" W x 2.58" H (75.0mm x 35.8mm x 65.6mm) | CB, CE, cUL, GS, PSE, RCM, UL | |
|
|
KTPS24-07530MP-VI-P1AC/DC WALL MNT ADAPTER 7.5V 23W |
1,991 |
|
数据手册 |
KTPS24 (24W) | Box | Active | International | Wall Mount (Class II) | Multi-Blade (Included) | 100 ~ 240 VAC | 7.5V | 3A | 23 W | - | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | Multi-Blade | - | 2.95" L x 1.41" W x 2.58" H (75.0mm x 35.8mm x 65.6mm) | CB, CE, cUL, GS, PSE, RCM, UL | |
|
|
KTPS24-15016MP-VI-P1AC/DC WALL MOUNT ADAPTER 15V 24W |
4,890 |
|
数据手册 |
KTPS24 (24W) | Box | Active | International | Wall Mount (Class II) | Multi-Blade (Included) | 100 ~ 240 VAC | 15V | 1.6A | 24 W | - | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | Multi-Blade | - | 2.95" L x 1.41" W x 2.58" H (75.0mm x 35.8mm x 65.6mm) | CB, CE, cUL, GS, PSE, RCM, UL | |
|
|
KTPS24-48005MP-VI-P1AC/DC WALL MOUNT ADAPTER 48V 24W |
1,476 |
|
数据手册 |
KTPS24 (24W) | Box | Active | International | Wall Mount (Class II) | Multi-Blade (Included) | 100 ~ 240 VAC | 48V | 500mA | 24 W | - | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | Multi-Blade | - | 2.95" L x 1.41" W x 2.58" H (75.0mm x 35.8mm x 65.6mm) | CB, CE, cUL, GS, PSE, RCM, UL | |
|
|
KTPS24-05940MP-VI-P2AC/DC WALL MNT ADAPTER 5.9V 24W |
3,712 |
|
数据手册 |
KTPS24 (24W) | Box | Active | International | Wall Mount (Class II) | Multi-Blade (Included) | 100 ~ 240 VAC | 5.9V | 4A | 24 W | - | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | Multi-Blade | - | 2.95" L x 1.41" W x 2.58" H (75.0mm x 35.8mm x 65.6mm) | CB, CE, cUL, GS, PSE, RCM, UL |
