交流直流桌面、墙式电源适配器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 使用区域 | 形式 | 输入类型 | 电压 - 输入 | 电压 - 输出 | 电流 - 输出（最大值） | 功率（瓦特） | 空载功耗 | 极化 | 应用 | 效率 | 工作温度 | 输出连接器 | 电线长度 | 输入连接器 | 特性 | 尺寸 / 尺寸 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TR18RDM050-01G03 BK-BK VIAC/DC WALL MOUNT ADAPTER 5V 18W |
1,932 |
|
数据手册 |
TR18RDM (18W) | Box | Active | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 80 ~ 264 VAC | 5V | 3A | 18 W | 75mW (Max) | Positive Center | Household Appliances, Medical | Level VI, CoC Tier 2 | -30°C ~ 70°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 12.0mm | 28.35" (720mm) | Multi-Blade (Sold Separately) | - | 3.17" L x 1.69" W x 1.45" H (80.4mm x 43.0mm x 36.9mm) | CE, cURus, FCC, PSE, TUV | |
|
TR18RDM120-01G03 BK-BK VIAC/DC WALL MOUNT ADAPTER 12V 18W |
4,953 |
|
数据手册 |
TR18RDM (18W) | Box | Active | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 80 ~ 264 VAC | 12V | 1.5A | 18 W | 75mW (Max) | Positive Center | Household Appliances, Medical | Level VI, CoC Tier 2 | -30°C ~ 70°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 12.0mm | 28.35" (720mm) | Multi-Blade (Sold Separately) | - | 3.17" L x 1.69" W x 1.45" H (80.4mm x 43.0mm x 36.9mm) | CE, cURus, FCC, PSE, TUV | |
|
|
TR18RDM150-01G03 BK-BK VIAC/DC WALL MOUNT ADAPTER 15V 18W |
1,765 |
|
数据手册 |
TR18RDM (18W) | Box | Active | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 80 ~ 264 VAC | 15V | 1.2A | 18 W | 75mW (Max) | Positive Center | Household Appliances, Medical | Level VI, CoC Tier 2 | -30°C ~ 70°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 12.0mm | 28.35" (720mm) | Multi-Blade (Sold Separately) | - | 3.17" L x 1.69" W x 1.45" H (80.4mm x 43.0mm x 36.9mm) | CE, cURus, FCC, PSE, TUV | |
|
|
TR18RDM090-01G03 BK-BK VIAC/DC WALL MOUNT ADAPTER 9V 18W |
2,201 |
|
数据手册 |
TR18RDM (18W) | Box | Active | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 80 ~ 264 VAC | 9V | 2A | 18 W | 75mW (Max) | Positive Center | Household Appliances, Medical | Level VI, CoC Tier 2 | -30°C ~ 70°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 12.0mm | 28.35" (720mm) | Multi-Blade (Sold Separately) | - | 3.17" L x 1.69" W x 1.45" H (80.4mm x 43.0mm x 36.9mm) | CE, cURus, FCC, PSE, TUV | |
|
TRG1524-E-01E03 VIAC/DC WALL MOUNT ADAPTER 24V 15W |
4,819 |
|
数据手册 |
TRG15 (15W) | Box | Active | Europe | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 24V | 630mA | 15 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | -20°C ~ 60°C | - | 70.9" (1.80m) | KSC 8305 | - | 2.84" L x 1.38" W x 2.05" H (72.0mm x 35.0mm x 52.0mm) | CE, cULus, FCC, GS, PSE, TUV | |
|
15DYS850-150336W-KAC/DC WALL MOUNT ADAPTER 15V 50W |
1,678 |
|
数据手册 |
- | Box | Active | International | Wall Mount (Class II) | Multi-Blade (Included) | 90 ~ 264 VAC | 15V | 3.36A | 50 W | 210mW (Max) | Positive Center | ITE (Commercial) | 88% | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 12.0mm | 47.2" (1.20m) | Multi-Blade (Included) | - | 3.33" L x 2.05" W x 1.38" H (84.5mm x 52.0mm x 35.0mm) | CE, GS, SAA, UL | |
|
15DYS830-300100W-KAC/DC WALL MOUNT ADAPTER 30V 30W |
3,302 |
|
数据手册 |
- | Box | Active | International | Wall Mount (Class II) | Multi-Blade (Included) | 90 ~ 264 VAC | 30V | 1A | 30 W | 100mW (Max) | Positive Center | ITE (Commercial) | 86.94% | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 12.0mm | 59" (1.50m) | Multi-Blade (Included) | - | 3.02" L x 1.87" W x 1.38" H (76.8mm x 47.5mm x 35.0mm) | CE, GS, SAA, UL | |
|

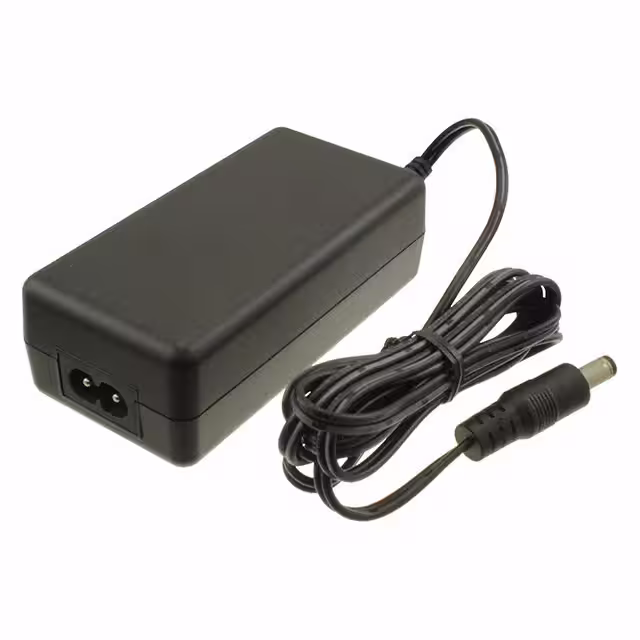

L6R36DM-090-C8AC/DC DESKTOP ADAPTER 9V 36W |
4,888 |
|
数据手册 |
Tri-Mag®, L6R36DM (36W) | Box | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 9V | 4A | 36 W | 150mW (Max) | Positive Center | Medical | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C8 | - | 3.94" L x 1.97" W x 1.30" H (100.1mm x 50.0mm x 33.0mm) | CE, cULus, EN, FCC, TUV | |
|
WSX050-4000-R13AC/DC WALL MOUNT ADAPTER 5V 20W |
1,647 |
|
数据手册 |
WSX | Bulk | Active | International | Wall Mount (Class II) | Multi-Blade (Included) | 90 ~ 264 VAC | 5V | 4A | 20 W | 100mW (Max) | Negative Center | ITE (Commercial) | Level VI | 0°C ~ 45°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm | 48" (1.22m) | Multi-Blade | - | 3.02" L x 1.87" W x 1.38" H (76.8mm x 47.5mm x 35.0mm) | CE, cETLus, FCC, GS, RCM | |
|
WR9QZ947T00NAIMR6BAC/DC WALL MOUNT ADAPTER 19V 18W |
4,167 |
|
数据手册 |
GTM96180-18VV H/M | Bulk | Active | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 19V | 940mA | 18 W | 75mW (Max) | - | Household Appliances, ITE (Commercial), Medical | Level VI | -20°C ~ 40°C | Barrel Plug Kit, (1.3mm x 3.5mm, 2.1mm x 5.5mm, 2.5mm x 5.5mm) | 59" (1.50m) | Multi-Blade (Sold Separately) | - | 2.91" L x 1.71" W x 1.45" H (74.0mm x 43.5mm x 36.8mm) | BIS, CB, CCC, CE, cETLus, EAC, ETL, LPS, NOM, PSE, RCM, S-Mark, UKRSepro, UL, VCCI | |
|
TR9WE1500T00-IMR6BAC/DC DESKTOP ADAPTER 12V 18W |
1,627 |
|
数据手册 |
GTM96180-1817.9-5.9-T2A | Bulk | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 12V | 1.5A | 18 W | 75mW (Max) | Either | Household Appliances, ITE (Commercial), Medical | Level VI, CoC Tier 2 | -10°C ~ 40°C | Barrel Plug Kit, (1.3mm x 3.5mm, 2.1mm x 5.5mm, 2.5mm x 5.5mm) | 47.2" (1.20m) | IEC 320-C18 | - | 3.43" L x 1.83" W x 1.26" H (87.0mm x 46.5mm x 32.0mm) | CB, CCC, CE, cETLus, EAC, ETL, FCC, LPS, PSE, RCM, S-Mark, UKRSepro, UL, VCCI | |
|
15DYS830-050400W-KAC/DC WALL MOUNT ADAPTER 5V 20W |
4,898 |
|
数据手册 |
15DYS830 (20W) | Bulk | Active | International | Wall Mount (Class II) | Multi-Blade (Included) | 90 ~ 264 VAC | 5V | 4A | 20 W | - | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 12.0mm | 59" (1.50m) | Multi-Blade (Included) | - | 3.02" L x 1.87" W x 1.38" H (76.8mm x 47.5mm x 35.0mm) | CE, cULus, TUV, UL | |
|
TR9CA3600T00-IMR6BAC/DC DESKTOP ADAPTER 5V 18W |
4,747 |
|
数据手册 |
GTM96180-18VV-T3 | Bulk | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 5V | 3.6A | 18 W | 75mW (Max) | - | Household Appliances, ITE (Commercial), Medical | Level VI | -20°C ~ 40°C | Barrel Plug Kit, (1.3mm x 3.5mm, 2.1mm x 5.5mm, 2.5mm x 5.5mm) | 47.2" (1.20m) | IEC 320-C14 | - | 3.43" L x 1.85" W x 1.26" H (87.0mm x 47.0mm x 32.0mm) | BSMI, CB, CCC, CE, cETLus, cULus, EAC, ETL, FCC, LPS, NOM, PSE, RCM, S-Mark, UKRSepro, UL, VCCI | |
|
|
PEAD50B-12-B2AC/DC DESKTOP ADAPTER 12V 50W |
1,161 |
|
数据手册 |
PEAD50B (50W) | Bag | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 12V | 4.19A | 50 W | 150mW | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 60°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 10.0mm | 59" (1.50m) | IEC 320-C14 | - | 4.13" L x 1.81" W x 1.10" H (105.0mm x 46.0mm x 28.0mm) | CB, CCC, CE, cULus, PSE, UKCA | |
|
|
15DYS850-300168W-KAC/DC WALL MOUNT ADAPTER 30V 50W |
3,304 |
|
数据手册 |
- | Box | Active | International | Wall Mount (Class II) | Multi-Blade (Included) | 90 ~ 264 VAC | 30V | 1.68A | 50 W | 210mW (Max) | Positive Center | ITE (Commercial) | 88% | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 12.0mm | 47.2" (1.20m) | Multi-Blade (Included) | - | 3.33" L x 2.05" W x 1.38" H (84.5mm x 52.0mm x 35.0mm) | CB, CCC, CE, FCC, GS, PSE, RCM, TUV | |
|
PEAMD36-13-B1AC/DC DESKTOP ADAPTER 15V 30W |
4,448 |
|
数据手册 |
PEAMD36 (36W) | Bag | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 15V | 2A | 30 W | 210mW | Positive Center | Medical | Level VI | 0°C ~ 60°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 10.0mm | 47" (1.20m) | IEC 320-C14 | - | 3.94" L x 1.77" W x 1.22" H (100.1mm x 45.0mm x 31.0mm) | CB, CE, cURus, FCC, TUV | |
|

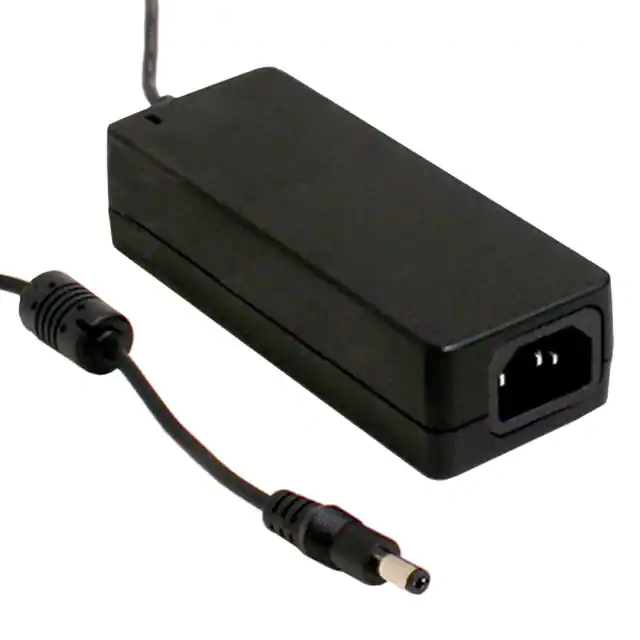

GST40A24-P1MRAC/DC DESKTOP ADAPTER 24V 40W |
4,098 |
|
数据手册 |
GST40A (40W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 24V | 1.67A | 40 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI | -30°C ~ 70°C | Barrel Plug R/A, 2.5mm I.D. x 5.5mm O.D. x 11.0mm | 70.9" (1.80m) | IEC 320-C14 | - | 4.92" L x 1.97" W x 1.24" H (125.0mm x 50.0mm x 31.5mm) | BIS, BSMI, CB, CCC, CE, cULus, EAC, GS, KC, PSE, RCM, SIRIM | |
|
WDU18-600AC/DC WALL MOUNT ADAPTER 18V 11W |
3,856 |
|
数据手册 |
WDU | Bulk | Active | North America | Wall Mount (Class II) | Fixed Blade | 120VAC | 18V | 600mA | 11 W | - | Positive Center | ITE (Commercial) | - | -10°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 72" (1.83m) | NEMA 1-15P | - | 3.15" L x 2.36" W x 1.89" H (80.0mm x 60.0mm x 48.0mm) | cUL, UL | |
|
TR9CE1500T00-IMR6BAC/DC DESKTOP ADAPTER 12V 18W |
3,333 |
|
数据手册 |
GTM96180-18VV-T3 | Bulk | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 12V | 1.5A | 18 W | 75mW (Max) | - | Household Appliances, ITE (Commercial), Medical | Level VI | -20°C ~ 40°C | Barrel Plug Kit, (1.3mm x 3.5mm, 2.1mm x 5.5mm, 2.5mm x 5.5mm) | 47.2" (1.20m) | IEC 320-C14 | - | 3.43" L x 1.85" W x 1.26" H (87.0mm x 47.0mm x 32.0mm) | BSMI, CB, CCC, CE, cETLus, cULus, EAC, ETL, FCC, LPS, NOM, PSE, RCM, S-Mark, UKRSepro, UL, VCCI | |
|
WR9QA3600LCPNAIMR6BAC/DC WALL MOUNT ADAPTER 5V 18W |
1,732 |
|
数据手册 |
GTM96180-18VV H/M | Bulk | Active | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 5V | 3.6A | 18 W | 75mW (Max) | Positive Center | Household Appliances, ITE (Commercial), Medical | Level VI, CoC Tier 2 | -20°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm | 47.2" (1.20m) | Multi-Blade (Sold Separately) | - | 2.91" L x 1.71" W x 1.45" H (74.0mm x 43.5mm x 36.8mm) | BIS, CB, CCC, CE, cETLus, EAC, ETL, LPS, NOM, PSE, RCM, S-Mark, UKRSepro, UL, VCCI |
