交流直流桌面、墙式电源适配器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 使用区域 | 形式 | 输入类型 | 电压 - 输入 | 电压 - 输出 | 电流 - 输出（最大值） | 功率（瓦特） | 空载功耗 | 极化 | 应用 | 效率 | 工作温度 | 输出连接器 | 电线长度 | 输入连接器 | 特性 | 尺寸 / 尺寸 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PEAMW30I-13-B2AC/DC WALL MOUNT ADAPTER 15V 30W |
2,595 |
|
数据手册 |
PEAMW30I (30W) | Bag | Active | International | Wall Mount (Class II) | Multi-Blade (Single Blade Included) | 90 ~ 264 VAC | 15V | 2A | 30 W | 100mW | Positive Center | Medical | Level VI | 0°C ~ 60°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 47" (1.20m) | NEMA 1-15P | - | 2.90" L x 1.69" W x 1.28" H (73.6mm x 42.8mm x 32.5mm) | CB, CCC, CE, cURus, FCC, TUV | |
|
WDU15-600AC/DC WALL MOUNT ADAPTER 15V 9W |
3,720 |
|
数据手册 |
WDU | Bulk | Active | North America | Wall Mount (Class II) | Fixed Blade | 120VAC | 15V | 600mA | 9 W | - | Positive Center | ITE (Commercial) | - | -10°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 72" (1.83m) | NEMA 1-15P | - | 3.15" L x 2.36" W x 1.89" H (80.0mm x 60.0mm x 48.0mm) | cUL, UL | |
|

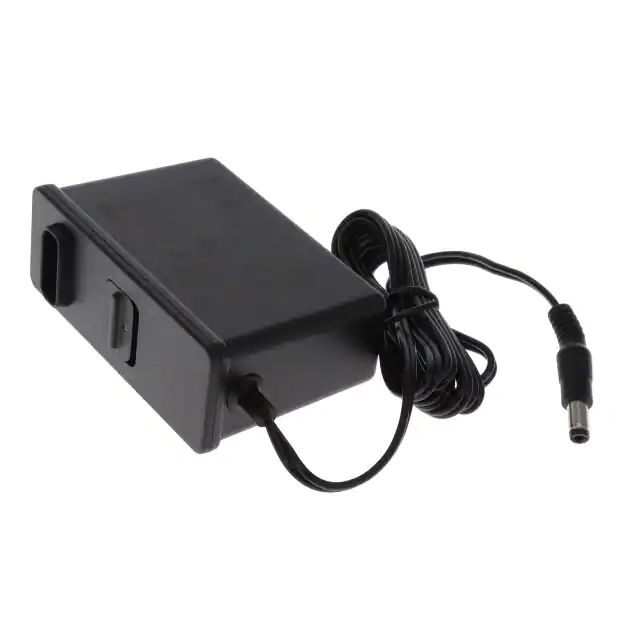

AMF18US09AC/DC WALL MOUNT ADAPTER 9V 18W |
1,107 |
|
数据手册 |
AMF18 (18W) | Box | Active | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 80 ~ 264 VAC | 9V | 2A | 18 W | - | Positive Center | ITE (Commercial), Medical | Level VI | 0°C ~ 60°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11mm | - | Multi-Blade (Sold Separately) | IP22 | 3.56" L x 1.32" W x 2.30" H (90.4mm x 33.5mm x 58.4mm) | CB, CE, CSA, UKCA, UL | |
|

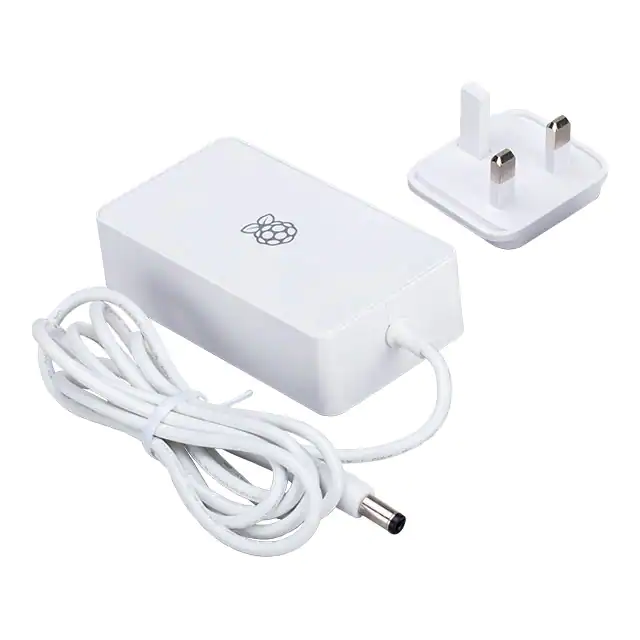

SC0746AC/DC WALL MOUNT ADAPTER 8V 48W |
4,788 |
|
数据手册 |
- | Bulk | Active | United Kingdom | Wall Mount (Class II) | Multi-Blade (Single Blade Included) | 96 ~ 264 VAC | 8V | 6A | 48 W | 100mW | Positive Center | ITE (Commercial) | 87.77% | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 59" (1.50m) | BS 1363 | - | 3.62" L x 2.01" W x 1.00" H (92.0mm x 51.0mm x 25.5mm) | - | |
|

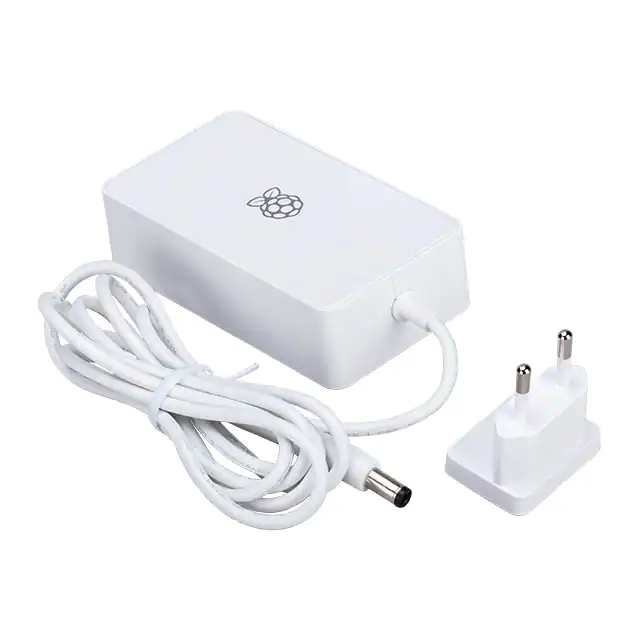

SC0748AC/DC WALL MOUNT ADAPTER 8V 48W |
2,483 |
|
数据手册 |
- | Bulk | Active | International | Wall Mount (Class II) | Multi-Blade (Single Blade Included) | 96 ~ 264 VAC | 8V | 6A | 48 W | 100mW | Positive Center | ITE (Commercial) | 87.77% | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 59" (1.50m) | KSC 8305 | - | 3.62" L x 2.01" W x 1.00" H (92.0mm x 51.0mm x 25.5mm) | - | |
|
15DYS865-240270WAC/DC DESKTOP ADAPTER 24V 65W |
2,944 |
|
数据手册 |
- | Box | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 24V | 2.7A | 65 W | 210mW (Max) | Positive Center | ITE (Commercial) | 88% | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 12.0mm | 59" (1.50m) | IEC 320-C8 | - | 4.72" L x 2.09" W x 1.26" H (120.0mm x 53.0mm x 32.0mm) | CB, CCC, CE, FCC, GS, PSE, RCM, TUV | |
|
WSX135-1770-RAC/DC WALL MNT ADAPTER 13.5V 24W |
2,310 |
|
数据手册 |
WSX | Bulk | Active | International | Wall Mount (Class II) | Multi-Blade (Included) | 90 ~ 264 VAC | 13.5V | 1.77A | 24 W | 100mW (Max) | Negative Center | ITE (Commercial) | Level VI | 0°C ~ 45°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 72" (1.83m) | Multi-Blade | - | 3.02" L x 1.87" W x 1.38" H (76.8mm x 47.5mm x 35.0mm) | CE, cETLus, FCC, GS, RCM | |
|
TRG10R060-01E03 VIAC/DC WALL MOUNT ADAPTER 6V 9W |
4,613 |
|
数据手册 |
TRG10R (10W) | Box | Active | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 6V | 1.5A | 9 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | -20°C ~ 60°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 12.0mm | 70.9" (1.80m) | Multi-Blade (Sold Separately) | - | 2.86" L x 1.40" W x 1.82" H (72.6mm x 35.6mm x 46.3mm) | CE, cULus, FCC, GS, PSE, TUV | |
|
L6R36DM-240-C14AC/DC DESKTOP ADAPTER 24V 36W |
1,640 |
|
数据手册 |
Tri-Mag®, L6R36DM (36W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 24V | 1.5A | 36 W | 150mW (Max) | Positive Center | Medical | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C14 | - | 3.94" L x 1.97" W x 1.30" H (100.1mm x 50.0mm x 33.0mm) | CE, cULus, EN, FCC, TUV | |
|
GSM18U05-P1JAC/DC WALL MOUNT ADAPTER 5V 15W |
4,737 |
|
数据手册 |
GSM18U (18W) | Box | Active | North America | Wall Mount (Class II) | Fixed Blade | 80 ~ 264 VAC | 5V | 3A | 15 W | 100mW (Max) | Positive Center | Medical | Level V | -25°C ~ 60°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 47.2" (1.20m) | NEMA 1-15P | - | 3.11" L x 2.13" W x 1.30" H (79.0mm x 54.0mm x 33.0mm) | CB, cRUus, TUV | |
|

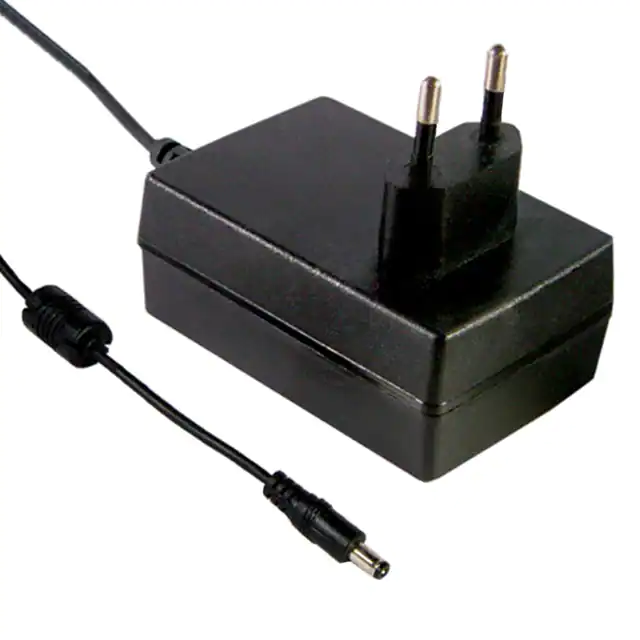

GSM18E05-P1JAC/DC WALL MOUNT ADAPTER 5V 15W |
4,430 |
|
数据手册 |
GSM18E (18W) | Box | Active | Europe | Wall Mount (Class II) | Fixed Blade | 80 ~ 264 VAC | 5V | 3A | 15 W | 100mW (Max) | Positive Center | Medical | Level V | -25°C ~ 60°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 47.2" (1.20m) | CEE 7/16 | - | 3.11" L x 2.13" W x 1.30" H (79.0mm x 54.0mm x 33.0mm) | CB, CE, TUV | |
|
RR9KE5410CCP-IMR6BAC/DC DSKTP/WALL MT ADPT 12V 65W |
2,075 |
|
数据手册 |
GTM96600-6512-R2 | Bulk | Active | International | Desktop, Wall Mount (Class II) | Cord, Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 12V | 5.41A | 65 W | 150mW (Max) | Positive Center | ITE (Commercial), Medical | Level VI, CoC Tier 2 | -20°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 47.2" (1.20m) | IEC 320-C8, Multi-Blade (Sold Separately) | - | 4.63" L x 2.11" W x 1.44" H (117.5mm x 53.5mm x 36.6mm) | BSMI, CB, CE, cETLus, EAC, ETL, FCC, LPS, PSE, S-Mark, UKRSepro, VCCI | |
|
SMM12-5-KB-I38AC/DC WALL MOUNT ADAPTER 5V 12W |
2,774 |
|
数据手册 |
SMM12-USB (12W) | Box | Active | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 5V | 2.4A | 12 W | 100mW (Max) | - | ITE (Commercial), Medical | Level VI | 0°C ~ 40°C | USB A Receptacle | - | Multi-Blade (Sold Separately) | - | 2.24" L x 1.54" W x 1.34" H (57.0mm x 39.0mm x 34.0mm) | CE, cULus, FCC, PSE, TUV | |
|

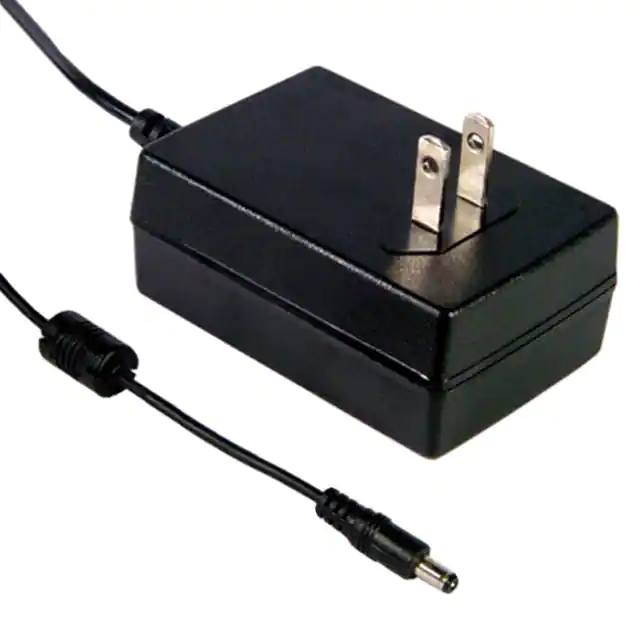

GSM25U05-P1JAC/DC WALL MOUNT ADAPTER 5V 20W |
2,096 |
|
数据手册 |
GSM25U (25W) | Box | Active | North America | Wall Mount (Class II) | Fixed Blade | 80 ~ 264 VAC | 5V | 4A | 20 W | 100mW (Max) | Positive Center | Medical | Level V | -25°C ~ 60°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 47.2" (1.20m) | NEMA 1-15P | - | 3.11" L x 2.13" W x 1.30" H (79.0mm x 54.0mm x 33.0mm) | CB, cRUus, TUV | |
|
|
GSM25U12-P1JAC/DC WALL MOUNT ADAPTER 12V 25W |
3,802 |
|
数据手册 |
GSM25U (25W) | Box | Active | North America | Wall Mount (Class II) | Fixed Blade | 80 ~ 264 VAC | 12V | 2.08A | 25 W | 100mW (Max) | Positive Center | Medical | Level VI | -25°C ~ 60°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 70.9" (1.80m) | NEMA 1-15P | - | 3.11" L x 2.13" W x 1.30" H (79.0mm x 54.0mm x 33.0mm) | CB, cRUus, TUV | |
|
WR9QG1200T00NAIMR6BAC/DC WALL MOUNT ADAPTER 15V 18W |
3,511 |
|
数据手册 |
GTM96180-18VV H/M | Bulk | Active | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 15V | 1.2A | 18 W | 75mW (Max) | - | Household Appliances, ITE (Commercial), Medical | Level VI | -20°C ~ 40°C | Barrel Plug Kit, (1.3mm x 3.5mm, 2.1mm x 5.5mm, 2.5mm x 5.5mm) | 59" (1.50m) | Multi-Blade (Sold Separately) | - | 2.91" L x 1.71" W x 1.45" H (74.0mm x 43.5mm x 36.8mm) | BIS, CB, CCC, CE, cETLus, EAC, ETL, LPS, PSE, RCM, S-Mark, UKRSepro, UL, VCCI | |
|
|
GSM25U09-P1JAC/DC WALL MOUNT ADAPTER 9V 25W |
1,429 |
|
数据手册 |
GSM25U (25W) | Box | Active | North America | Wall Mount (Class II) | Fixed Blade | 80 ~ 264 VAC | 9V | 2.77A | 25 W | 100mW (Max) | Positive Center | Medical | Level V | -25°C ~ 60°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 47.2" (1.20m) | NEMA 1-15P | - | 3.11" L x 2.13" W x 1.30" H (79.0mm x 54.0mm x 33.0mm) | CB, cRUus, TUV | |
|

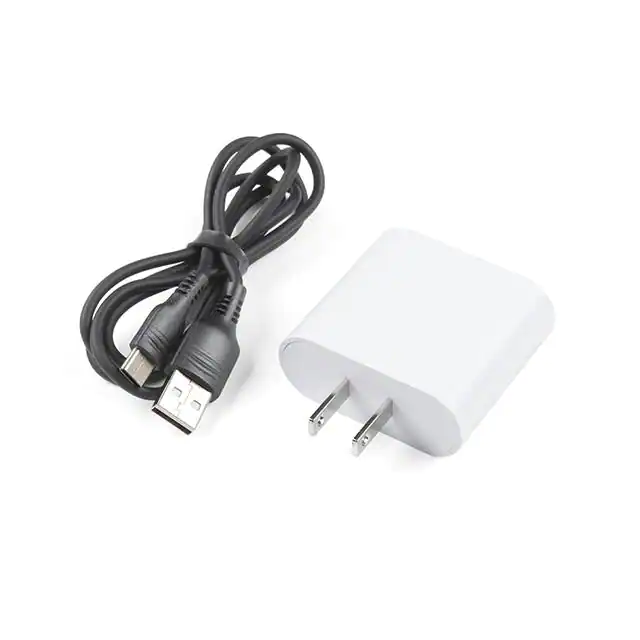

TOL-19466AC/DC WALL MOUNT ADAPTER 6V-12V |
2,987 |
|
数据手册 |
TOL | Bulk | Active | North America | Wall Mount (Class II) | Fixed Blade | 100 ~ 240 VAC | 6V ~ 6.5V, 6.5V ~ 9V, 9V ~ 12V | 3A, 2A, 1.5A | - | - | - | ITE (Commercial) | - | - | USB C Receptacle | - | NEMA 1-15P | - | - | - | |
|
RR9KC3000T00NAIMR6BACDC DSKTP/WALL MT ADPT 7.5V 23W |
1,135 |
|
数据手册 |
GTM96300-36VV-R2 | Bulk | Active | International | Desktop, Wall Mount (Class II) | Cord (Sold Separately), Multi-Blade (Single Blade Included) | 90 ~ 264 VAC | 7.5V | 3A | 23 W | 75mW (Max) | - | Household Appliances, ITE (Commercial), Medical | Level VI | -20°C ~ 40°C | Barrel Plug Kit, (1.3mm x 3.5mm, 2.1mm x 5.5mm, 2.5mm x 5.5mm) | 47.2" (1.20m) | IEC 320-C8, Multi-Blade (Single Blade Included) | - | 4.00" L x 1.83" W x 1.50" H (101.7mm x 46.5mm x 38.2mm) | CB, CCC, CE, cETLus, EAC, ETL, FCC, LPS, PSE, RCM, S-Mark, UKRSepro, UL, VCCI | |
|
TR18RDM180-01G03 BK-BK VIAC/DC WALL MOUNT ADAPTER 18V 18W |
1,348 |
|
数据手册 |
TR18RDM (18W) | Box | Active | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 80 ~ 264 VAC | 18V | 1A | 18 W | 75mW (Max) | Positive Center | Household Appliances, Medical | Level VI, CoC Tier 2 | -30°C ~ 70°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 12.0mm | 28.35" (720mm) | Multi-Blade (Sold Separately) | - | 3.17" L x 1.69" W x 1.45" H (80.4mm x 43.0mm x 36.9mm) | CE, cURus, FCC, PSE, TUV |
