交流直流转换器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 2 | 电流 - 输出 3 | 电流 - 输出 4 | 电流 - 输出 5 | 电流 - 输出 6 | 功率（瓦特） | 应用 | 电压 - 隔离 | 效率 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TXN 100-124100W COST EFFICIENT, METAL ENCAS |
120 |
|
数据手册 |
TXN100 (100W) | Box | Active | Enclosed | 1 | 90 ~ 264 VAC, 140 ~ 340 VDC | 24V | - | - | - | - | - | 4.2 A | - | - | - | - | - | 100W | ITE (Commercial) | 3 kV | -30°C ~ 70°C | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 5.08" L x 3.82" W x 1.18" H (129.0mm x 97.0mm x 30.0mm) | ||
|
|
FSP150-P37J-A12AC DC, 12V, 12.5A, OPEN FRAME J |
132 |
|
数据手册 |
FSP150-P37J (150W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 12V | - | - | - | - | - | 12.5 A | - | - | - | - | - | 150W | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | Standby Output, Universal Input | Chassis Mount | 6.30" L x 2.95" W x 0.93" H (160.0mm x 74.9mm x 23.6mm) | ||
|
MTA040009AAC/DC CONVERTER 9V 40W |
222 |
|
数据手册 |
MTA040 (40W) | Bulk | Active | Open Frame | 1 | 85 ~ 264 VAC | 9V | - | - | - | - | - | 4.4 A | - | - | - | - | - | 40W | Medical | - | -20°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.08" H (101.6mm x 50.8mm x 27.5mm) | ||
|

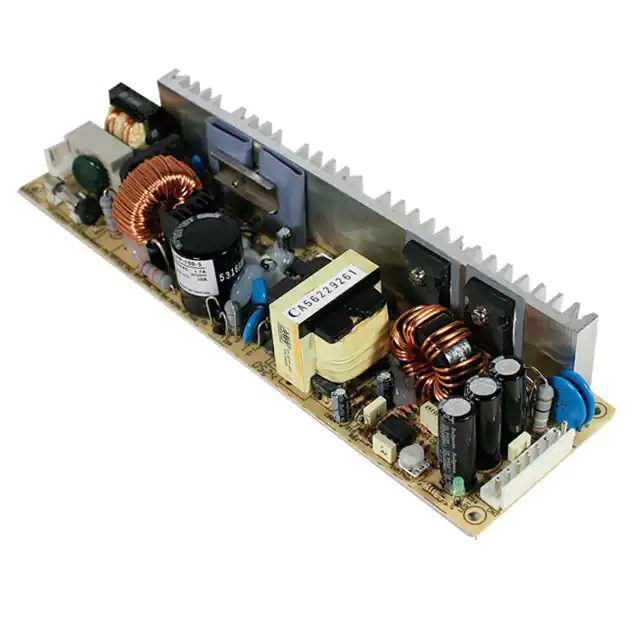

LPP-100-7.5AC/DC CONVERTER 7.5V 101W |
173 |
|
数据手册 |
LPP-100 (100W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 7.5V | - | - | - | - | - | 13.5 A | - | - | - | - | - | 101W | ITE (Commercial) | 3 kV | -10°C ~ 60°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 8.74" L x 2.44" W x 1.32" H (222.0mm x 62.0mm x 33.6mm) | ||
|
|
FSP100-P36J-A24AC DC, 24V, 4.3A, OPEN FRAME J S |
131 |
|
数据手册 |
FSP100-P36J (100W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 4.3 A | - | - | - | - | - | 103W | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | Standby Output, Universal Input | Chassis Mount | 6.10" L x 2.44" W x 0.86" H (155.0mm x 62.0mm x 21.9mm) | ||
|
|
FSP100-P36J-A12AC DC, 12V, 8.5A, OPEN FRAME J S |
130 |
|
数据手册 |
FSP100-P36J (100W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 12V | - | - | - | - | - | 8.5 A | - | - | - | - | - | 102W | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | Standby Output, Universal Input | Chassis Mount | 6.10" L x 2.44" W x 0.86" H (155.0mm x 62.0mm x 21.9mm) | ||
|
|
FSP200-P36P-A48AC DC, 48V, 200W, OPEN FRAME |
119 |
|
数据手册 |
FSP200-P36P (200W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 48V | - | - | - | - | - | 4.17 A | - | - | - | - | - | 200W | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | PFC, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 6.30" L x 2.95" W x 1.38" H (160.0mm x 75.0mm x 35.0mm) | ||
|
|
FSP150-P37J-A24AC DC, 24V, 6.3A, OPEN FRAME J S |
130 |
|
数据手册 |
FSP150-P37J (150W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 6.3 A | - | - | - | - | - | 151W | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | Standby Output, Universal Input | Chassis Mount | 6.30" L x 2.95" W x 0.93" H (160.0mm x 74.9mm x 23.6mm) | ||
|
ECS45US48AC/DC CONVERTER 48V 45W |
239 |
|
数据手册 |
ECS (45W) | Box | Active | Open Frame | 1 | 80 ~ 264 VAC | 48V | - | - | - | - | - | 950 mA | - | - | - | - | - | 45W | ITE (Commercial), Medical | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.05" H (76.2mm x 50.8mm x 26.7mm) | ||
|
|
VFB150PS15AC-DC PSU 15VDC 10.0A |
149 |
|
数据手册 |
VFB150 (150W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 15V | - | - | - | - | - | 10 A | - | - | - | - | - | 101W (150W Forced Air) | ITE (Commercial) | 3 kV | -10°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.43" H (127.0mm x 76.2mm x 36.3mm) | ||
|
|
VFB150PS12AC-DC PSU 12VDC 12.5A |
147 |
|
数据手册 |
VFB150 (150W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 12V | - | - | - | - | - | 12.5 A | - | - | - | - | - | 100W (150W Forced Air) | ITE (Commercial) | 3 kV | -10°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.43" H (127.0mm x 76.2mm x 36.3mm) | ||
|
|
VFB150PS24AC-DC PSU 24VDC 6.25A |
144 |
|
数据手册 |
VFB150 (150W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 24V | - | - | - | - | - | 6.25 A | - | - | - | - | - | 100W (150W Forced Air) | ITE (Commercial) | 3 kV | -10°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.43" H (127.0mm x 76.2mm x 36.3mm) | ||
|
|
VFB150PS48AC-DC PSU 48VDC 3.13A |
144 |
|
数据手册 |
VFB150 (150W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 48V | - | - | - | - | - | 3.13 A | - | - | - | - | - | 100W (150W Forced Air) | ITE (Commercial) | 3 kV | -10°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.43" H (127.0mm x 76.2mm x 36.3mm) | ||
|
|
FSP200-P36P-A24AC DC, 24V, 200W, OPEN FRAME |
118 |
|
数据手册 |
FSP200-P36P (200W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 24V | - | - | - | - | - | 8.33 A | - | - | - | - | - | 200W | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | PFC, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 6.30" L x 2.95" W x 1.38" H (160.0mm x 75.0mm x 35.0mm) | ||
|
RPS-200-48AC/DC CONVERTER 48V 144W |
4,269 |
|
数据手册 |
RPS-200 (200W) | Box | Active | Open Frame | 1 | 80 ~ 264 VAC, 113 ~ 370 VDC | 48V | - | - | - | - | - | 3 A | - | - | - | - | - | 144W (202W Forced Air) | Medical | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 4.00" L x 2.00" W x 1.14" H (101.6mm x 50.8mm x 29.0mm) | ||
|
TPP 40-148A-JAC/DC CONVERTER 48V 40W |
4,386 |
|
数据手册 |
TPP 40A (40W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 48V | - | - | - | - | - | 840 mA | - | - | - | - | - | 40W | Medical | 4 kV | -40°C ~ 85°C (With Derating) | Universal Input | Chassis Mount | 3.00" L x 2.00" W x 0.94" H (76.2mm x 50.8mm x 23.9mm) | ||
|

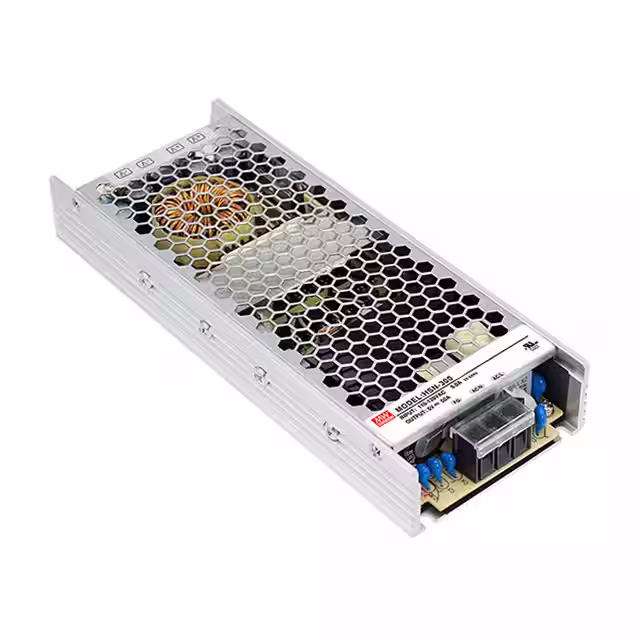

HSN-300-4.2AAC/DC CONVERTER 4.2V 210W |
2,542 |
|
数据手册 |
HSN-300 (300W) | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 90 ~ 132 VAC, 254 ~ 373 VDC | 4.2V | - | - | - | - | - | 50 A | - | - | - | - | - | 210W | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 8.27" L x 3.19" W x 1.22" H (210.0mm x 81.0mm x 31.0mm) | ||
|

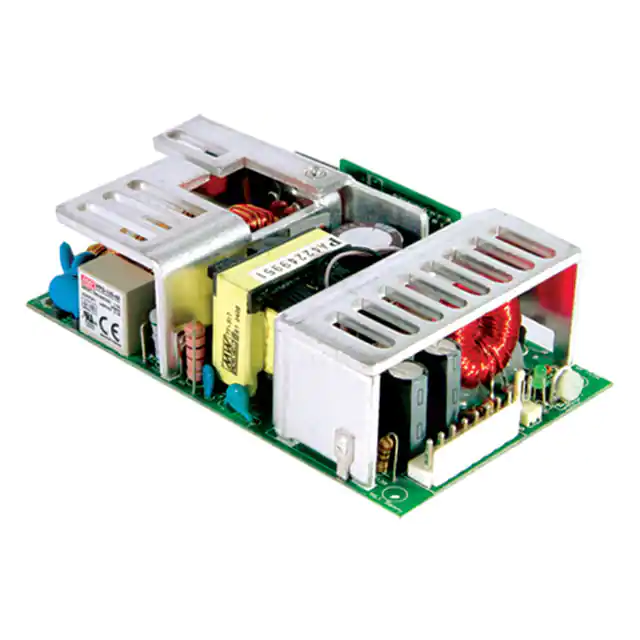

PPT-125DAC/DC CONVERTER 5V 24V 12V 101W |
3,949 |
|
数据手册 |
PPT-125 (125W) | Box | Active | Open Frame | 3 | 90 ~ 264 VAC, 127 ~ 370 VDC | 5V | 24V | 12V | - | - | - | 7 A | 2.5 A | 500 mA | - | - | - | 101W (126W Forced Air) | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.36" H (127.0mm x 76.2mm x 34.6mm) | ||
|
|
ZWS50C-12AC/DC CONVERTER 12V 60W |
2,561 |
|
数据手册 |
ZWS10-50C | Bulk | Active | Open Frame | 1 | 85 ~ 265 VAC | 12V | - | - | - | - | - | 5 A | - | - | - | - | - | 60W | Household Appliances, ITE (Commercial) | 500 V | -10°C ~ 70°C (With Derating) | Adjustable Output, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 3.00" L x 2.00" W x 0.95" H (76.2mm x 50.8mm x 24.2mm) | ||
|
CUS100ME-36AC/DC CONVERTER 36V 100W |
3,561 |
|
数据手册 |
CUS100ME (100W) | Bulk | Active | Open Frame | 1 | 85 ~ 264 VAC | 36V | - | - | - | - | - | 2.77 A | - | - | - | - | - | 100W | Household Appliances, ITE (Commercial), Medical | 4 kV | -20°C ~ 85°C (With Derating) | Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.24" H (101.6mm x 50.8mm x 31.5mm) |
