交流直流转换器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 2 | 电流 - 输出 3 | 电流 - 输出 4 | 电流 - 输出 5 | 电流 - 输出 6 | 功率（瓦特） | 应用 | 电压 - 隔离 | 效率 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VMS-300A-36-CNFAC/DC CONVERTER 36V 200W |
4,510 |
|
数据手册 |
VMS-300A-CNF (300W) | Box | Active | Enclosed | 1 | 90 ~ 264 VAC | 36V | - | - | - | - | - | 5.56 A | - | - | - | - | - | 200W (300W Forced Air) | Medical | 4 kV | -40°C ~ 80°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 5.35" L x 3.46" W x 1.59" H (136.0mm x 88.0mm x 40.4mm) | ||
|
TLP150R-96S36JAC/DC CONVERTER 36V 100W |
1,382 |
|
数据手册 |
TLP150 (150W) | Bulk | Active | Open Frame | 1 | 85 ~ 264 VAC | 36V | - | - | - | - | - | 2.7 A | - | - | - | - | - | 100W (150W Forced Air) | Medical | 4 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, PFC, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.25" H (127.0mm x 76.2mm x 31.8mm) | ||
|
NGB425S12CAC/DC CONVERTER 12V 300W |
4,212 |
|
数据手册 |
NGB425 (425W) | Bulk | Active | Open Frame | 1 | 80 ~ 264 VAC | 12V | - | - | - | - | - | 25 A | - | - | - | - | - | 300W | ITE (Commercial), Medical | 4.5 kV | -20°C ~ 80°C (With Derating) | Adjustable Output, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.50" H (127.0mm x 76.2mm x 38.1mm) | ||
|
TPI 300-148L-MAC/DC CONVERTER 48V 180W |
2,073 |
|
数据手册 |
TPI 300L-M (300W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC, 100 ~ 240 VAC, 120 ~ 370 VDC | 48V | - | - | - | - | - | 6.25 A | - | - | - | - | - | 180W (300W Forced Air) | ITE (Commercial) | 3 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 4.60" L x 2.44" W x 1.56" H (116.8mm x 62.0mm x 39.6mm) | ||
|
|
NGB425S15CAC/DC CONVERTER 15V 300W |
4,390 |
|
数据手册 |
NGB425 (425W) | Box | Active | Open Frame | 1 | 80 ~ 264 VAC | 15V | - | - | - | - | - | 20 A | - | - | - | - | - | 300W | ITE (Commercial), Medical | 4.5 kV | -20°C ~ 80°C (With Derating) | Adjustable Output, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.50" H (127.0mm x 76.2mm x 38.1mm) | ||
|
FSP750-50ABAAC/DC CNVRTR 3.3V 5V +/-12V 914W |
1,919 |
|
数据手册 |
FSP750-50ABA (750W) | Box | Active | ATX | 4 | 90 ~ 264 VAC | 3.3V | 5V | 12V | -12V | - | - | 20 A | 20 A | 62.5 A | 300 mA | - | - | 914W | ITE (Commercial) | - | 0°C ~ 40°C | Standby Output, Universal Input | Chassis Mount | 5.51" L x 5.91" W x 3.39" H (140.0mm x 150.1mm x 86.1mm) | ||
|
|
TLP150N-99S24JAC/DC CONVERTER 24V 100W |
2,040 |
|
数据手册 |
TLP150 (150W) | Bulk | Active | Open Frame | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 4.2 A | - | - | - | - | - | 100W (150W Forced Air) | Medical | 4 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, PFC, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.25" H (127.0mm x 76.2mm x 31.8mm) | ||
|
VF-S320-24AAC/DC CONVERTER 24V 180W |
4,953 |
|
数据手册 |
VF-S320 (320W) | Tray | Active | Open Frame | 1 | 90 ~ 132 VAC, 180 ~ 264 VAC | 24V | - | - | - | - | - | 7.5 A | - | - | - | - | - | 180W (320W Forced Air) | ITE (Commercial) | 3 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 6.00" L x 4.00" W x 1.50" H (152.4mm x 101.6mm x 38.1mm) | ||
|
|
LCM300U-T-4AC/DC CONVERTER 36V 310W |
1,052 |
|
数据手册 |
LCM300 (310W) | Bulk | Active | Front End | 1 | 90 ~ 264 VAC | 36V | - | - | - | - | - | 8.4 A | - | - | - | - | - | 310W | ITE (Commercial), Medical | 2.5 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, PMBus™, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 7.00" L x 4.00" W x 1.61" H (177.8mm x 101.6mm x 41.0mm) | ||
|
VCCS300S-36AC/DC CONVERTER 36V 300W |
3,941 |
|
数据手册 |
VCCS300S (300W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 36V | - | - | - | - | - | 8.33 A | - | - | - | - | - | 300W | ITE (Commercial) | 4 kV | -40°C ~ 85°C (With Derating) | DC Input Capable, IP10, Load Sharing, PFC, Universal Input | Chassis Mount | 3.99" L x 2.13" W x 1.58" H (101.3mm x 54.0mm x 40.2mm) | ||
|
VMS-450B-24-CNFAC/DC CONVERTER 24V 451W |
4,358 |
|
数据手册 |
VMS-450B-CNF (450W) | Box | Active | Enclosed | 1 | 100 ~ 240 VAC | 24V | - | - | - | - | - | 18.8 A | - | - | - | - | - | 451W | Medical | 4 kV | -20°C ~ 70°C (With Derating) | PFC, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.41" W x 1.97" H (127.0mm x 86.6mm x 50.0mm) | ||
|
|
TLP150N-99S24FJAC/DC CONVERTER 24V 100W |
3,274 |
|
数据手册 |
TLP150 (150W) | Bulk | Active | Open Frame | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 4.2 A | - | - | - | - | - | 100W (150W Forced Air) | Medical | 4 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, PFC, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.25" H (127.0mm x 76.2mm x 31.8mm) | ||
|
ABC200-1048GAC/DC CONVERTER 48V 200W |
3,366 |
|
数据手册 |
ABC200 (200W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 48V | - | - | - | - | - | 4.25 A | - | - | - | - | - | 200W | ITE (Commercial) | 4.2 kV | -10°C ~ 70°C (With Derating) | PFC, Remote Sense, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.44" H (101.6mm x 50.8mm x 36.6mm) | ||
|
LPS364-MAC/DC CONVERTER 15V 240W |
3,005 |
|
数据手册 |
LPS360-M (360W) | Bulk | Active | Open Frame | 1 | 90 ~ 264 VAC | 15V | - | - | - | - | - | 16 A | - | - | - | - | - | 240W (360W Forced Air) | ITE (Commercial), Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, I2C Interface, PFC, PMBus™, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.37" H (127.0mm x 76.2mm x 34.8mm) | ||
|

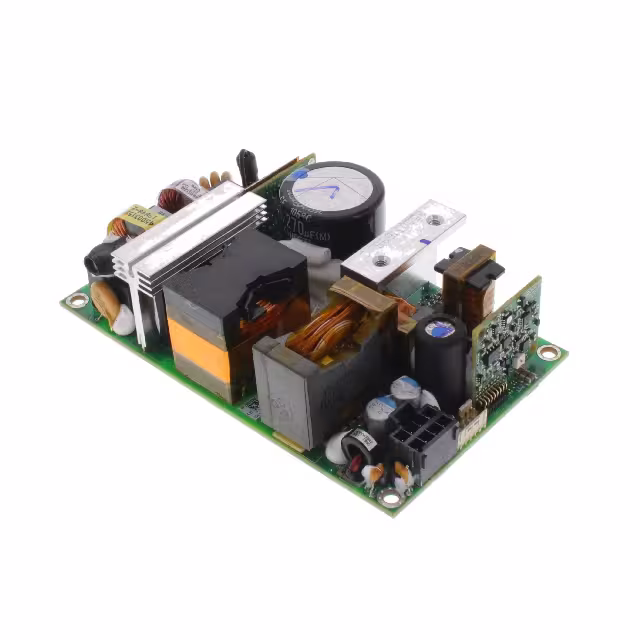

CLP0412FPXXXZ01AAC/DC CONVERTER 12V 450W |
4,169 |
|
数据手册 |
CLP0412FP (450W) | Box | Active | Open Frame | 1 | 90 ~ 265 VAC | 12V | - | - | - | - | - | 37.5 A | - | - | - | - | - | 450W | ITE (Commercial) | 3 kV | -40°C ~ 85°C | Remote On/Off | Chassis Mount | 5.00" L x 3.00" W x 1.26" H (127.0mm x 76.2mm x 32.0mm) | ||
|

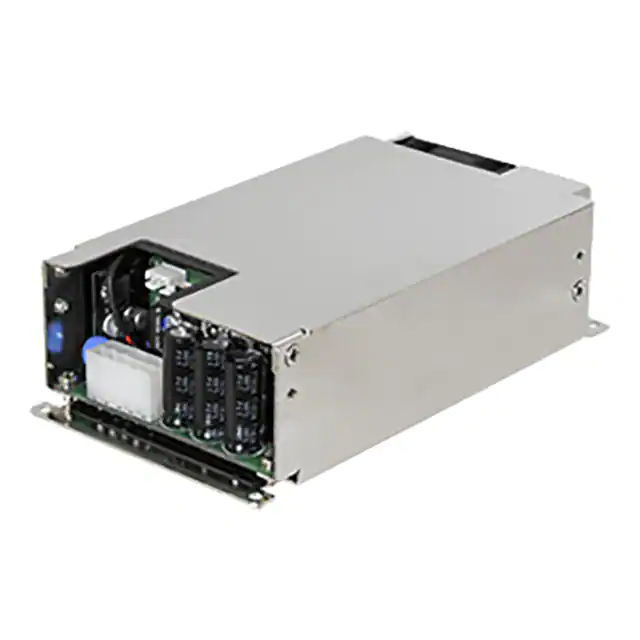

VMS-450B-48-CFSAC/DC CONVERTER 48V 451W |
2,574 |
|
数据手册 |
VMS-450B-CFS (450W) | Box | Active | Enclosed | 1 | 100 ~ 240 VAC | 48V | - | - | - | - | - | 9.4 A | - | - | - | - | - | 451W | Medical | 4 kV | -20°C ~ 70°C (With Derating) | PFC, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 5.83" L x 3.15" W x 1.60" H (148.1mm x 80.0mm x 40.6mm) | ||
|
|
VMS-450B-12-CFSAC/DC CONVERTER 12V 450W |
1,416 |
|
数据手册 |
VMS-450B-CFS (450W) | Box | Active | Enclosed | 1 | 100 ~ 240 VAC | 12V | - | - | - | - | - | 37.5 A | - | - | - | - | - | 450W | Medical | 4 kV | -20°C ~ 70°C (With Derating) | PFC, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 5.83" L x 3.15" W x 1.60" H (148.1mm x 80.0mm x 40.6mm) | ||
|
MWLC550-1012AC/DC CONVERTER 12V 200W |
1,803 |
|
数据手册 |
MWLC550 (550W) | Bulk | Active | Open Frame | 1 | 90 ~ 264 VAC, 390VDC | 12V | - | - | - | - | - | 16.67 A | - | - | - | - | - | 200W (500W Forced Air) | Medical | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.50" H (127.0mm x 76.2mm x 38.1mm) | ||
|
FLS250-1048AC/DC CONVERTER 48V 250W |
2,767 |
|
数据手册 |
FLS250 (250W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 48V | - | - | - | - | - | 7.2 A | - | - | - | - | - | 250W (346W Forced Air) | ITE (Commercial) | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Universal Input | Chassis Mount | 4.50" L x 2.50" W x 1.58" H (114.3mm x 63.5mm x 40.1mm) | ||
|
|
GTM9200P35012-S(R)AC/DC CONVERTER 12V 350W |
2,420 |
|
数据手册 |
GTM9200P350VV-X.X-S | Bulk | Active | Open Frame | 1 | 90 ~ 264 VAC | 12V | - | - | - | - | - | 29.17 A | - | - | - | - | - | 350W | Medical | 5.656 kV | 0°C ~ 50°C | Universal Input | Chassis Mount | 7.81" L x 4.22" W x 1.83" H (198.4mm x 107.2mm x 46.5mm) |
