交流直流转换器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 2 | 电流 - 输出 3 | 电流 - 输出 4 | 电流 - 输出 5 | 电流 - 输出 6 | 功率（瓦特） | 应用 | 电压 - 隔离 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LCM600L-4AC/DC CONVERTER 12V 600W ARTESYN / Advanced Energy |
1,998 |
|
数据手册 |
LCM600 (600W) | Bulk | Not For New Designs | Front End | 1 | 85 ~ 264 VAC | 12V | - | - | - | - | - | 52 A | - | - | - | - | - | 600W | ITE (Commercial), Medical | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 7.50" L x 4.50" W x 2.40" H (190.5mm x 114.3mm x 61.0mm) |
|
|
LCM600N-4AC/DC CONVERTER 15V 600W ARTESYN / Advanced Energy |
1,758 |
|
数据手册 |
LCM600 (600W) | Bulk | Not For New Designs | Front End | 1 | 85 ~ 264 VAC | 15V | - | - | - | - | - | 44 A | - | - | - | - | - | 600W | ITE (Commercial), Medical | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 7.50" L x 4.50" W x 2.40" H (190.5mm x 114.3mm x 61.0mm) |
|
|
LCM600N-T-4AC/DC CONVERTER 15V 600W ARTESYN / Advanced Energy |
1,797 |
|
数据手册 |
LCM600 (600W) | Bulk | Not For New Designs | Front End | 1 | 85 ~ 264 VAC | 15V | - | - | - | - | - | 44 A | - | - | - | - | - | 600W | ITE (Commercial), Medical | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 7.50" L x 4.50" W x 2.40" H (190.5mm x 114.3mm x 61.0mm) |
|
|
LCM600Q-4AC/DC CONVERTER 24V 600W ARTESYN / Advanced Energy |
2,712 |
|
数据手册 |
LCM600 (600W) | Bulk | Not For New Designs | Front End | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 27 A | - | - | - | - | - | 600W | ITE (Commercial), Medical | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 7.50" L x 4.50" W x 2.40" H (190.5mm x 114.3mm x 61.0mm) |
|
|
LCM600U-T-4AC/DC CONVERTER 36V 600W ARTESYN / Advanced Energy |
3,168 |
|
数据手册 |
LCM600 (600W) | Bulk | Not For New Designs | Front End | 1 | 85 ~ 264 VAC | 36V | - | - | - | - | - | 16.7 A | - | - | - | - | - | 600W | ITE (Commercial), Medical | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 7.50" L x 4.50" W x 2.40" H (190.5mm x 114.3mm x 61.0mm) |
|
|
LCM600W-4AC/DC CONVERTER 48V 600W ARTESYN / Advanced Energy |
2,704 |
|
数据手册 |
LCM600 (600W) | Bulk | Not For New Designs | Front End | 1 | 85 ~ 264 VAC | 48V | - | - | - | - | - | 14 A | - | - | - | - | - | 600W | ITE (Commercial), Medical | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 7.50" L x 4.50" W x 2.40" H (190.5mm x 114.3mm x 61.0mm) |
|
|
LCM600W-T-4AC/DC CONVERTER 48V 600W ARTESYN / Advanced Energy |
3,016 |
|
数据手册 |
LCM600 (600W) | Bulk | Not For New Designs | Front End | 1 | 85 ~ 264 VAC | 48V | - | - | - | - | - | 14 A | - | - | - | - | - | 600W | ITE (Commercial), Medical | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 7.50" L x 4.50" W x 2.40" H (190.5mm x 114.3mm x 61.0mm) |
|

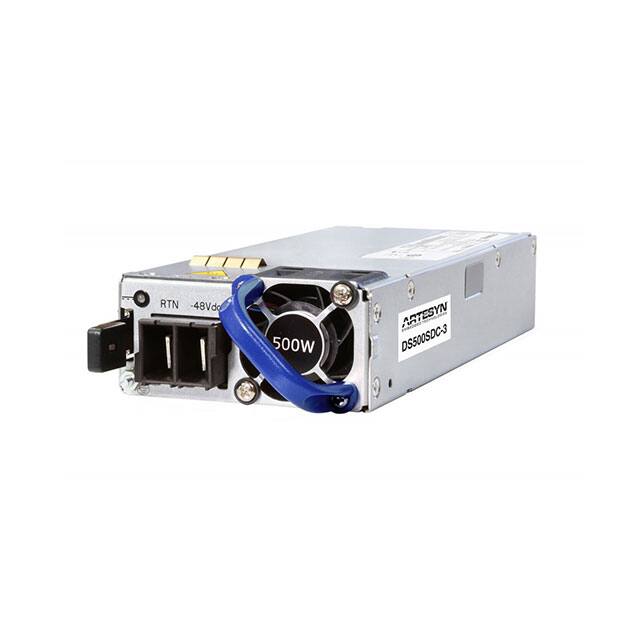

DS500SDC-3AC/DC CONVERTER 12V 12V 500W ARTESYN / Advanced Energy |
3,910 |
|
数据手册 |
DS500SDC (500W) | Bulk | Active | Front End | 2 | - | 12V | 12V | - | - | - | - | 41.67 A | 3 A | - | - | - | - | 500W | ITE (Commercial) | - | 0°C ~ 50°C | DC Input Capable, I2C Interface, Load Sharing, Remote On/Off, Remote Sense, Standby Output | Rack Mount | 7.74" L x 3.40" W x 1.58" H (196.5mm x 86.3mm x 40.2mm) |
|
|
DS500SDC-3-001AC/DC CONVERTER 12V 12V 500W ARTESYN / Advanced Energy |
2,464 |
|
数据手册 |
DS500SDC (500W) | Bulk | Active | Front End | 2 | - | 12V | 12V | - | - | - | - | 41.67 A | 3 A | - | - | - | - | 500W | ITE (Commercial) | - | 0°C ~ 40°C | DC Input Capable, I2C Interface, Load Sharing, Remote On/Off, Remote Sense, Standby Output | Rack Mount | 7.74" L x 3.40" W x 1.58" H (196.5mm x 86.3mm x 40.2mm) |
|

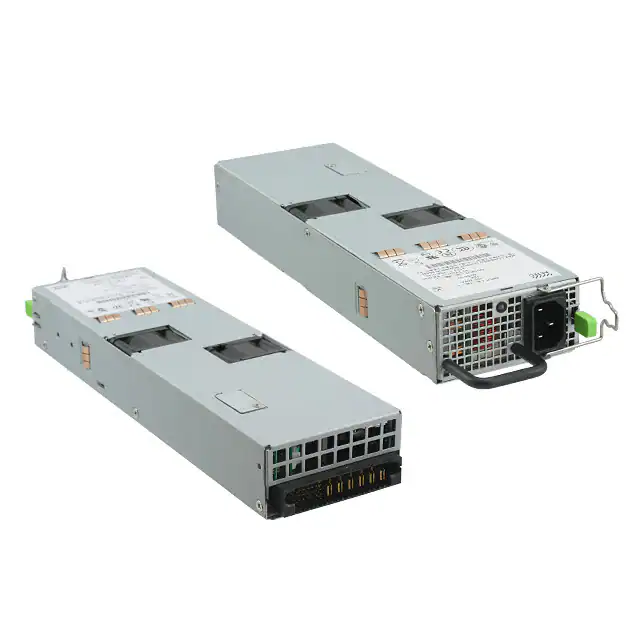

DS850-3AC/DC CONVERTER 12V 850W ARTESYN / Advanced Energy |
1,724 |
|
数据手册 |
DS850 (850W) | Bulk | Obsolete | Front End | 1 | 90 ~ 264 VAC | 12V | - | - | - | - | - | 70 A | - | - | - | - | - | 850W | ITE (Commercial) | - | -10°C ~ 50°C | Hot Swappable, I2C Interface, Load Sharing, PFC, Remote Sense, Standby Output, Universal Input | Rack Mount | 11.00" L x 3.20" W x 1.57" H (279.4mm x 81.3mm x 39.9mm) |
