交流直流转换器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 2 | 电流 - 输出 3 | 电流 - 输出 4 | 电流 - 输出 5 | 电流 - 输出 6 | 功率（瓦特） | 应用 | 电压 - 隔离 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LCC250-48U-7PEAC/DC CONVERTER 48V 250W ARTESYN / Advanced Energy |
2,214 |
|
数据手册 |
LCC250 (250W) | Bulk | Active | Enclosed | 1 | 90 ~ 264 VAC | 48V | - | - | - | - | - | 5.2 A | - | - | - | - | - | 250W | ITE (Commercial), Medical | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, Baseplate, IP64, PFC, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 7.00" L x 4.00" W x 1.48" H (177.8mm x 101.4mm x 37.6mm) |
|

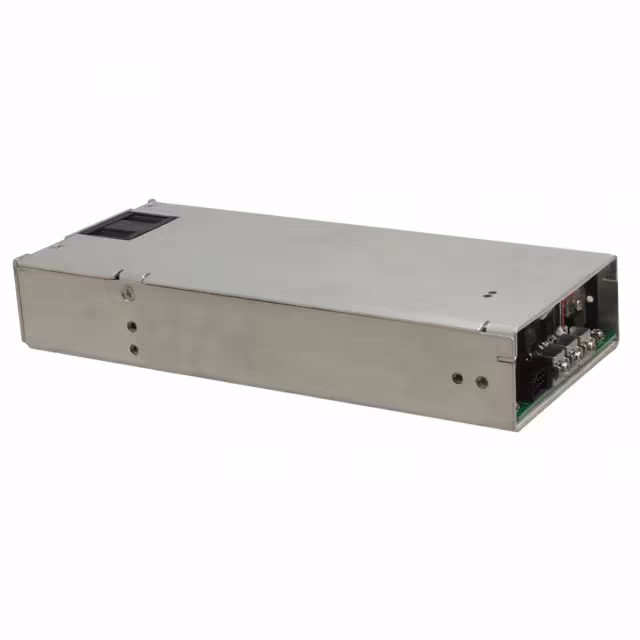

NTS355-CEFAC/DC CONVERTER 24V 200W ARTESYN / Advanced Energy |
1,079 |
|
数据手册 |
NTS350 (350W) | Bulk | Obsolete | Enclosed | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 8.3 A | - | - | - | - | - | 200W (350W Forced Air) | ITE (Commercial) | - | 0°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.15" L x 4.00" W x 1.61" H (232.3mm x 101.6mm x 40.9mm) |
|
DS450HE-3AC/DC CONVERTER 12V 450W ARTESYN / Advanced Energy |
4,240 |
|
数据手册 |
DS450HE-3 (450W) | Bulk | Active | Front End | 1 | 90 ~ 264 VAC | 12V | - | - | - | - | - | 37 A | - | - | - | - | - | 450W | ITE (Commercial) | - | -10°C ~ 50°C | Adjustable Output, Hot Swappable, I2C Interface, Load Sharing, Remote On/Off, Standby Output, Universal Input | Rack Mount | 12.03" L x 3.07" W x 1.52" H (305.6mm x 78.0mm x 38.6mm) |
|
|
DS550HE-3AC/DC CONVERTER 12V 550W ARTESYN / Advanced Energy |
4,496 |
|
数据手册 |
DS550HE-3 (550W) | Bulk | Active | Front End | 1 | 90 ~ 264 VAC | 12V | - | - | - | - | - | 45 A | - | - | - | - | - | 550W | ITE (Commercial) | - | -10°C ~ 50°C | Hot Swappable, I2C Interface, Load Sharing, PFC, PMBus™, Remote Sense, Standby Output, Universal Input | Rack Mount | 12.03" L x 3.07" W x 1.52" H (305.6mm x 78.0mm x 38.6mm) |
|
|
DS550HE-3-002AC/DC CONVERTER 12V 550W ARTESYN / Advanced Energy |
1,469 |
|
数据手册 |
DS550HE-3 (550W) | Bulk | Active | Front End | 1 | 90 ~ 264 VAC | 12V | - | - | - | - | - | 45 A | - | - | - | - | - | 550W | ITE (Commercial) | - | -10°C ~ 50°C | Hot Swappable, I2C Interface, Load Sharing, PFC, PMBus™, Remote Sense, Standby Output, Universal Input | Rack Mount | 12.03" L x 3.07" W x 1.52" H (305.6mm x 78.0mm x 38.6mm) |
|
LCM600UAC/DC CONVERTER 36V 600W ARTESYN / Advanced Energy |
1,726 |
|
数据手册 |
LCM600 (600W) | Bulk | Active | Front End | 1 | 85 ~ 264 VAC | 36V | - | - | - | - | - | 16.7 A | - | - | - | - | - | 600W | ITE (Commercial), Medical | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 7.50" L x 4.50" W x 2.40" H (190.5mm x 114.3mm x 61.0mm) |
|
LCM600NAC/DC CONVERTER 15V 600W ARTESYN / Advanced Energy |
2,766 |
|
数据手册 |
LCM600 (600W) | Bulk | Active | Front End | 1 | 85 ~ 264 VAC | 15V | - | - | - | - | - | 44 A | - | - | - | - | - | 600W | ITE (Commercial), Medical | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 7.50" L x 4.50" W x 2.40" H (190.5mm x 114.3mm x 61.0mm) |
|
|
LCM600N-TAC/DC CONVERTER 15V 600W ARTESYN / Advanced Energy |
3,651 |
|
数据手册 |
LCM600 (600W) | Bulk | Active | Front End | 1 | 85 ~ 264 VAC | 15V | - | - | - | - | - | 44 A | - | - | - | - | - | 600W | ITE (Commercial), Medical | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 7.50" L x 4.50" W x 2.40" H (190.5mm x 114.3mm x 61.0mm) |
|
|
LCM600U-4AC/DC CONVERTER 36V 600W ARTESYN / Advanced Energy |
2,575 |
|
数据手册 |
LCM600 (600W) | Bulk | Not For New Designs | Front End | 1 | 85 ~ 264 VAC | 36V | - | - | - | - | - | 16.7 A | - | - | - | - | - | 600W | ITE (Commercial), Medical | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 7.50" L x 4.50" W x 2.40" H (190.5mm x 114.3mm x 61.0mm) |
|
|
LCM600L-T-4AC/DC CONVERTER 12V 600W ARTESYN / Advanced Energy |
3,745 |
|
数据手册 |
LCM600 (600W) | Bulk | Not For New Designs | Front End | 1 | 85 ~ 264 VAC | 12V | - | - | - | - | - | 52 A | - | - | - | - | - | 600W | ITE (Commercial), Medical | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 7.50" L x 4.50" W x 2.40" H (190.5mm x 114.3mm x 61.0mm) |
