| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 2 | 电流 - 输出 3 | 电流 - 输出 4 | 电流 - 输出 5 | 电流 - 输出 6 | 功率(瓦特) | 应用 | 电压 - 隔离 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

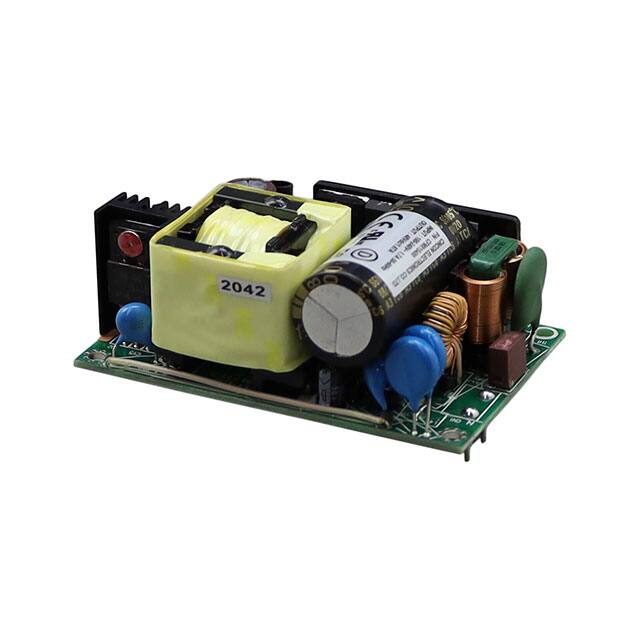

CFM81S480-PAC/DC CONVERTER 48V 80W Cincon Electronics Co. LTD |
3,439 |
|
数据手册 |
CFM81S (80W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 48V | - | - | - | - | - | 1.67 A | - | - | - | - | - | 80W | Household Appliances, ITE (Commercial) | 3 kV | -30°C ~ 85°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.00" L x 2.22" W x 1.34" H (76.2mm x 56.4mm x 34.0mm) |
|
CFM81S480AC/DC CONVERTER 48V 80W Cincon Electronics Co. LTD |
4,875 |
|
数据手册 |
CFM81S (80W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 48V | - | - | - | - | - | 1.67 A | - | - | - | - | - | 80W | Household Appliances, ITE (Commercial) | 3 kV | -30°C ~ 85°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.00" L x 2.22" W x 1.34" H (76.2mm x 56.4mm x 34.0mm) |
|
CFM81S120-PAC/DC CONVERTER 12V 80W Cincon Electronics Co. LTD |
1,059 |
|
数据手册 |
CFM81S (80W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 12V | - | - | - | - | - | 6.7 A | - | - | - | - | - | 80W | Household Appliances, ITE (Commercial) | 3 kV | -30°C ~ 85°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.00" L x 2.22" W x 1.34" H (76.2mm x 56.4mm x 34.0mm) |
|

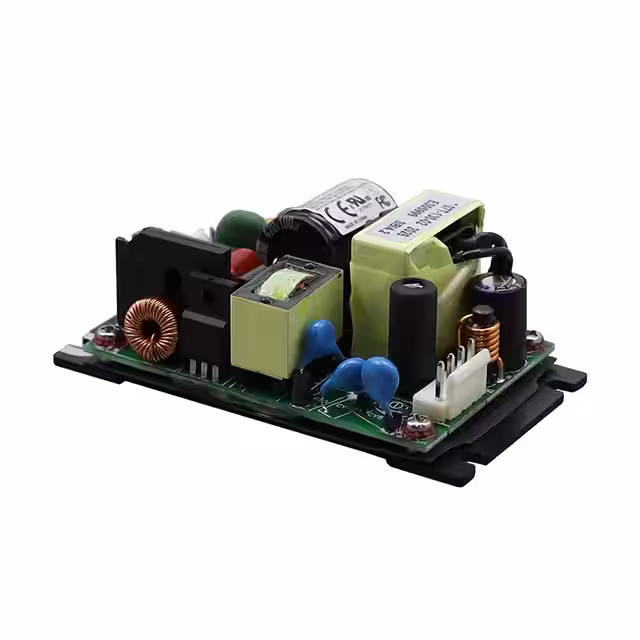

CFM130S240-BAC/DC CONVERTER 24V 101W Cincon Electronics Co. LTD |
4,692 |
|
数据手册 |
CFM130S (130W) | Box | Active | Open Frame | 1 | 100 ~ 240 VAC | 24V | - | - | - | - | - | 4.2 A | - | - | - | - | - | 101W (130W Forced Air) | Household Appliances, ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | PFC, Standby Output, Universal Input | Chassis Mount | 3.60" L x 2.00" W x 1.30" H (91.4mm x 50.8mm x 33.0mm) |
|

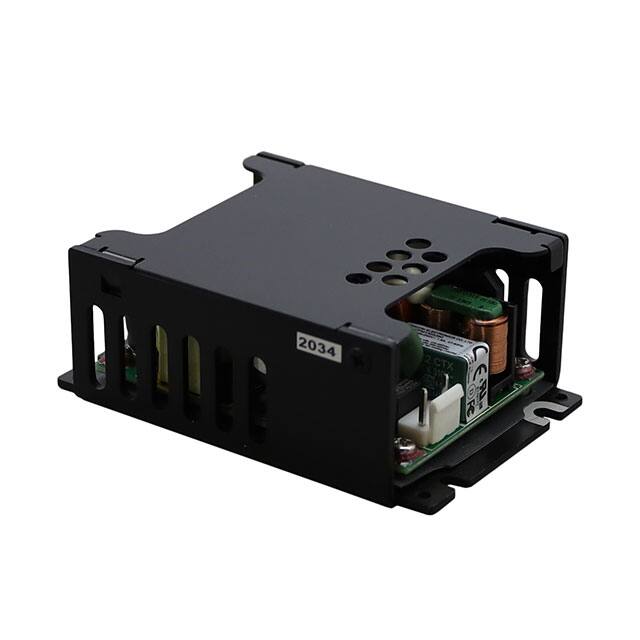

CFM130S360-BAC/DC CONVERTER 36V 101W Cincon Electronics Co. LTD |
1,675 |
|
数据手册 |
CFM130S (130W) | Box | Active | Open Frame | 1 | 100 ~ 240 VAC | 36V | - | - | - | - | - | 2.8 A | - | - | - | - | - | 101W (130W Forced Air) | Household Appliances, ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | PFC, Standby Output, Universal Input | Chassis Mount | 3.60" L x 2.00" W x 1.30" H (91.4mm x 50.8mm x 33.0mm) |
|
CFM130S480-BAC/DC CONVERTER 48V 101W Cincon Electronics Co. LTD |
4,128 |
|
数据手册 |
CFM130S (130W) | Box | Active | Open Frame | 1 | 100 ~ 240 VAC | 48V | - | - | - | - | - | 2.1 A | - | - | - | - | - | 101W (130W Forced Air) | Household Appliances, ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | PFC, Standby Output, Universal Input | Chassis Mount | 3.60" L x 2.00" W x 1.30" H (91.4mm x 50.8mm x 33.0mm) |
|
CFM130S360-CAC/DC CONVERTER 36V 101W Cincon Electronics Co. LTD |
4,454 |
|
数据手册 |
CFM130S (130W) | Box | Active | Enclosed | 1 | 100 ~ 240 VAC | 36V | - | - | - | - | - | 2.8 A | - | - | - | - | - | 101W (130W Forced Air) | Household Appliances, ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | PFC, Standby Output, Universal Input | Chassis Mount | 3.60" L x 2.52" W x 1.36" H (91.4mm x 64.0mm x 34.5mm) |
|
CFM130S120AC/DC CONVERTER 12V 100W Cincon Electronics Co. LTD |
2,773 |
|
数据手册 |
CFM130S (130W) | Box | Active | Open Frame | 1 | 100 ~ 240 VAC | 12V | - | - | - | - | - | 8.34 A | - | - | - | - | - | 100W (130W Forced Air) | Household Appliances, ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | PFC, Standby Output, Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.20" H (76.2mm x 50.8mm x 30.5mm) |
|

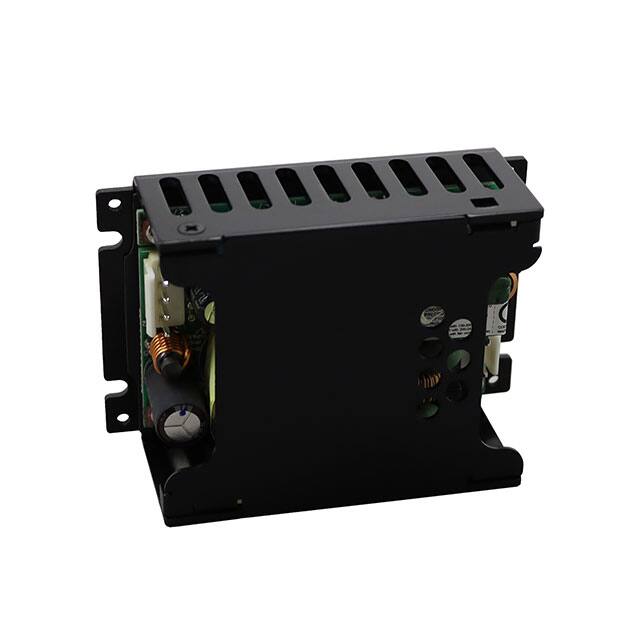

CFM130S480-CAC/DC CONVERTER 48V 101W Cincon Electronics Co. LTD |
2,031 |
|
数据手册 |
CFM130S (130W) | Box | Active | Enclosed | 1 | 100 ~ 240 VAC | 48V | - | - | - | - | - | 2.1 A | - | - | - | - | - | 101W (130W Forced Air) | Household Appliances, ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | PFC, Standby Output, Universal Input | Chassis Mount | 3.60" L x 2.52" W x 1.36" H (91.4mm x 64.0mm x 34.5mm) |
|
CFM130S240-CAC/DC CONVERTER 24V 101W Cincon Electronics Co. LTD |
1,175 |
|
数据手册 |
CFM130S (130W) | Box | Active | Enclosed | 1 | 100 ~ 240 VAC | 24V | - | - | - | - | - | 4.2 A | - | - | - | - | - | 101W (130W Forced Air) | Household Appliances, ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | PFC, Standby Output, Universal Input | Chassis Mount | 3.60" L x 2.52" W x 1.36" H (91.4mm x 64.0mm x 34.5mm) |
