交流直流转换器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 2 | 电流 - 输出 3 | 电流 - 输出 4 | 电流 - 输出 5 | 电流 - 输出 6 | 功率（瓦特） | 应用 | 电压 - 隔离 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CFM300S480AC/DC CONVERTER 48V 300W Cincon Electronics Co. LTD |
1,947 |
|
数据手册 |
CFM300S (300W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 48V | - | - | - | - | - | 6.25 A | - | - | - | - | - | 300W | ITE (Commercial) | 3 kV | -40°C ~ 80°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.42" H (127.0mm x 76.2mm x 36.1mm) |
|
CFM202S120CAC/DC CONVERTER 12V 180W Cincon Electronics Co. LTD |
4,397 |
|
数据手册 |
CFM202S (200W) | Box | Active | Enclosed | 1 | 90 ~ 264 VAC | 12V | - | - | - | - | - | 16.66 A | - | - | - | - | - | 180W (200W Forced Air) | Household Appliances, ITE (Commercial) | 4 kV | -40°C ~ 80°C (With Derating) | PFC, Standby Output, Universal Input | Chassis Mount | 4.60" L x 2.52" W x 1.36" H (116.8mm x 64.0mm x 34.5mm) |
|
|
CFM202S360CAC/DC CONVERTER 36V 180W Cincon Electronics Co. LTD |
2,393 |
|
数据手册 |
CFM202S (200W) | Box | Active | Enclosed | 1 | 90 ~ 264 VAC | 36V | - | - | - | - | - | 5.56 A | - | - | - | - | - | 180W (200W Forced Air) | Household Appliances, ITE (Commercial) | 4 kV | -40°C ~ 80°C (With Derating) | PFC, Standby Output, Universal Input | Chassis Mount | 4.60" L x 2.52" W x 1.36" H (116.8mm x 64.0mm x 34.5mm) |
|
|
CFM202S560CAC/DC CONVERTER 56V 180W Cincon Electronics Co. LTD |
1,547 |
|
数据手册 |
CFM202S (200W) | Box | Active | Enclosed | 1 | 90 ~ 264 VAC | 56V | - | - | - | - | - | 3.58 A | - | - | - | - | - | 180W (200W Forced Air) | Household Appliances, ITE (Commercial) | 4 kV | -40°C ~ 80°C (With Derating) | PFC, Standby Output, Universal Input | Chassis Mount | 4.60" L x 2.52" W x 1.36" H (116.8mm x 64.0mm x 34.5mm) |
|
|
CFM202S280CAC/DC CONVERTER 28V 180W Cincon Electronics Co. LTD |
2,133 |
|
数据手册 |
CFM202S (200W) | Box | Active | Enclosed | 1 | 90 ~ 264 VAC | 28V | - | - | - | - | - | 7.14 A | - | - | - | - | - | 180W (200W Forced Air) | Household Appliances, ITE (Commercial) | 4 kV | -40°C ~ 80°C (With Derating) | PFC, Standby Output, Universal Input | Chassis Mount | 4.60" L x 2.52" W x 1.36" H (116.8mm x 64.0mm x 34.5mm) |
|

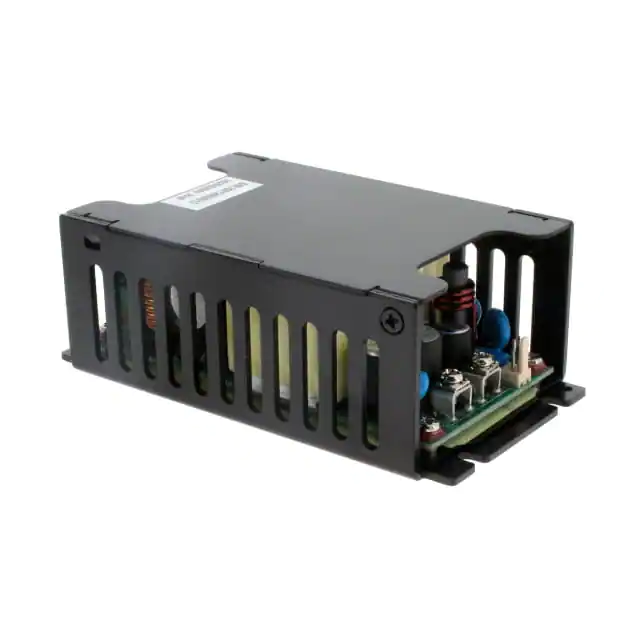

CFM260S120CAC/DC CONVERTER 12V 260W Cincon Electronics Co. LTD |
3,080 |
|
数据手册 |
CFM260S (260W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 12V | - | - | - | - | - | 21.67 A | - | - | - | - | - | 260W | Household Appliances, ITE (Commercial) | 3 kV | -30°C ~ 80°C (With Derating) | PFC, Universal Input | Chassis Mount | 4.60" L x 2.52" W x 1.59" H (116.8mm x 64.0mm x 40.5mm) |
|

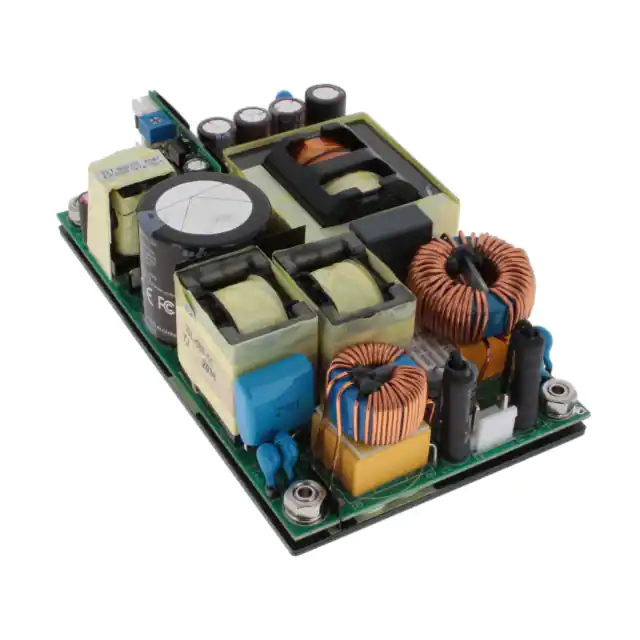

CFM500M480AC/DC CONVERTER 48V 320W Cincon Electronics Co. LTD |
2,395 |
|
数据手册 |
CFM500M (500W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 48V | - | - | - | - | - | 6.67 A | - | - | - | - | - | 320W (500W Forced Air) | Household Appliances, Medical | 4 kV | -30°C ~ 85°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.54" H (127.0mm x 76.2mm x 39.1mm) |
|

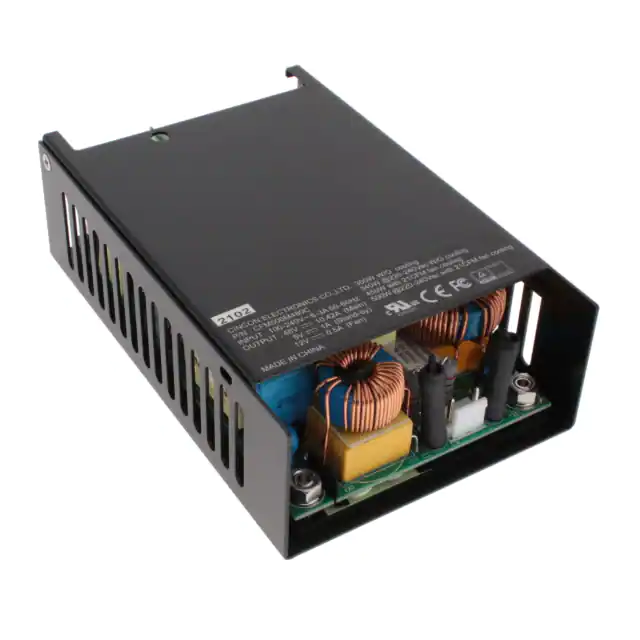

CFM500M480CAC/DC CONVERTER 48V 320W Cincon Electronics Co. LTD |
3,040 |
|
数据手册 |
CFM500M (500W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 48V | - | - | - | - | - | 6.67 A | - | - | - | - | - | 320W (500W Forced Air) | Household Appliances, Medical | 4 kV | -30°C ~ 85°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 5.35" L x 3.43" W x 1.67" H (136.0mm x 87.0mm x 42.5mm) |
|

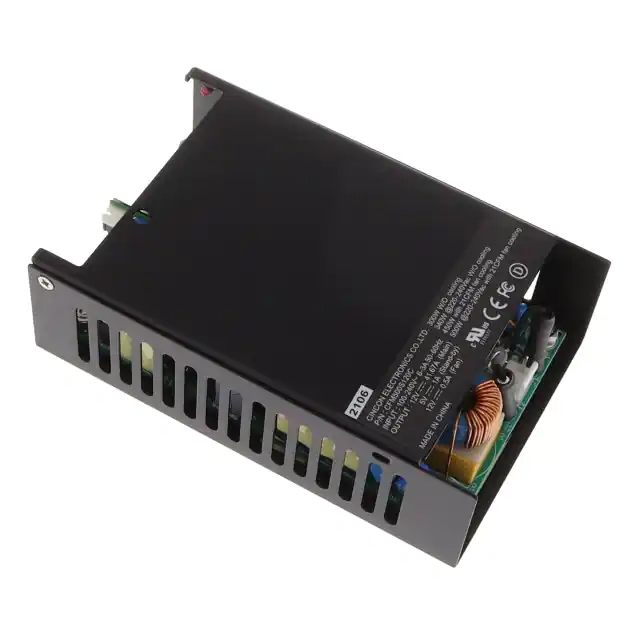

CFM500S120CAC/DC CONVERTER 12V 330W Cincon Electronics Co. LTD |
1,637 |
|
数据手册 |
CFM500S (500W) | Box | Active | Enclosed | 1 | 80 ~ 264 VAC | 12V | - | - | - | - | - | 27.5 A | - | - | - | - | - | 330W (500W Forced Air) | Household Appliances, ITE (Commercial) | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, Baseplate, PFC, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 5.35" L x 3.43" W x 1.67" H (136.0mm x 87.0mm x 42.5mm) |
|

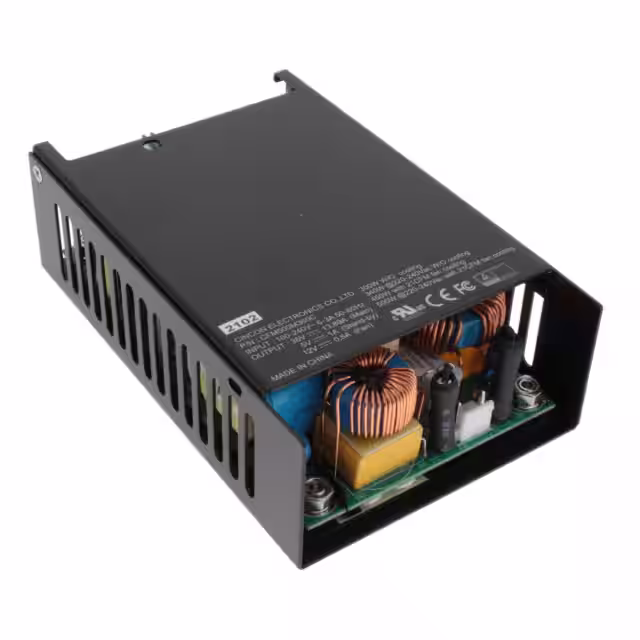

CFM500M360CAC/DC CONVERTER 36V 320W Cincon Electronics Co. LTD |
2,472 |
|
数据手册 |
CFM500M (500W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 36V | - | - | - | - | - | 8.89 A | - | - | - | - | - | 320W (500W Forced Air) | Household Appliances, Medical | 4 kV | -30°C ~ 85°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 5.35" L x 3.43" W x 1.67" H (136.0mm x 87.0mm x 42.5mm) |
