交流直流转换器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 2 | 电流 - 输出 3 | 电流 - 输出 4 | 电流 - 输出 5 | 电流 - 输出 6 | 功率（瓦特） | 应用 | 电压 - 隔离 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

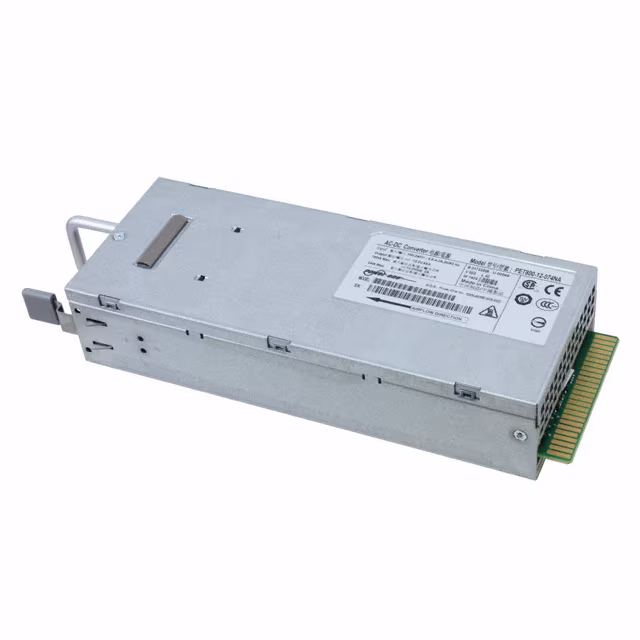

PET800-12-074NAAC/DC CONVERTER 12V 800W Bel Power Solutions |
4,457 |
|
数据手册 |
PET800 (800W) | Bulk | Active | Front End | 1 | 90 ~ 264 VAC | 12V | - | - | - | - | - | 65 A | - | - | - | - | - | 800W | ITE (Commercial) | - | 0°C ~ 50°C | Hot Swappable, I2C Interface, Load Sharing, PFC, PMBus™, Standby Output, Universal Input | Rack Mount | 7.28" L x 2.89" W x 1.54" H (185.0mm x 73.5mm x 39.0mm) |
|
MEPG500-1048POWERSUPPLY Bel Power Solutions |
4,605 |
|
数据手册 |
MEPG500 (500W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 48V | - | - | - | - | - | 10.41 A | - | - | - | - | - | 300W (500W Forced Air) | ITE (Commercial) | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, I2C Interface, PFC, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.58" H (127.0mm x 76.2mm x 40.0mm) |
|
|
MEPG300-1312-CKFPOWER SUPPLY MEPG300-1312-CKF Bel Power Solutions |
3,476 |
|
数据手册 |
MEPG300 (300W) | Box | Active | Enclosed | 1 | 90 ~ 264 VAC | 12V | - | - | - | - | - | 18 A | - | - | - | - | - | 140W (216 Forced Air) | Medical | 4.4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 4.47" L x 2.56" W x 2.81" H (113.5mm x 65.0mm x 71.4mm) |
|
MBC600-1012GAC/DC CONVERTER 12V 420W Bel Power Solutions |
3,171 |
|
数据手册 |
MBC600 (600W) | Bulk | Active | Open Frame | 1 | 90 ~ 277 VAC | 12V | - | - | - | - | - | 35 A | - | - | - | - | - | 420W (600W Forced Air) | Medical | 4.607 kV | -25°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Load Sharing, PFC, PMBus™ Interface, Remote Sense, Standby Output, Universal Input | Chassis Mount | 8.00" L x 5.01" W x 1.60" H (203.2mm x 127.2mm x 40.6mm) |
|
|
EPG500-1048-CKFPOWERSUPPLY Bel Power Solutions |
2,590 |
|
数据手册 |
EPG500 (500W) | Box | Active | Enclosed | 1 | 90 ~ 264 VAC | 48V | - | - | - | - | - | 10.41 A | - | - | - | - | - | 300W (500W Forced Air) | ITE (Commercial) | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, I2C Interface, PFC, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.58" H (127.0mm x 76.2mm x 40.0mm) |
|
ABC601-1T48-SAC/DC CONVERTER 48V 600W Bel Power Solutions |
4,656 |
|
数据手册 |
ABC601 (600W) | Box | Active | Enclosed | 1 | 85 ~ 305 VAC, 170 ~ 300 VDC | 48V | - | - | - | - | - | 12.5 A | - | - | - | - | - | 600W | ITE (Commercial), Medical | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 8.11" L x 4.21" W x 1.61" H (206.0mm x 107.0mm x 41.0mm) |
|
|
ABS400-1024AC/DC CONVERTER 24V 401W Bel Power Solutions |
4,202 |
|
数据手册 |
ABS400 (400W) | Box | Active | Enclosed | 1 | 90 ~ 264 VAC, 170 ~ 270 VDC | 24V | - | - | - | - | - | 16.7 A | - | - | - | - | - | 401W | ITE (Commercial), Medical | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, IP67, PFC, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 8.35" L x 3.27" W x 1.65" H (212.0mm x 83.0mm x 42.0mm) |
|
|
EPG500-1024-LPOWERSUPPLY Bel Power Solutions |
1,126 |
|
数据手册 |
EPG500 (500W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 24V | - | - | - | - | - | 20.83 A | - | - | - | - | - | 300W (500W Forced Air) | ITE (Commercial) | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, I2C Interface, PFC, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.58" H (127.0mm x 76.2mm x 40.0mm) |
|
|
MEPG500-1024POWERSUPPLY Bel Power Solutions |
4,814 |
|
数据手册 |
MEPG500 (500W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 24V | - | - | - | - | - | 20.83 A | - | - | - | - | - | 300W (500W Forced Air) | ITE (Commercial) | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, I2C Interface, PFC, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.58" H (127.0mm x 76.2mm x 40.0mm) |
|
|
MEPG500-1012POWERSUPPLY Bel Power Solutions |
1,061 |
|
数据手册 |
MEPG500 (500W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 12V | - | - | - | - | - | 33.33 A | - | - | - | - | - | 240W (400W Forced Air) | ITE (Commercial) | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, I2C Interface, PFC, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.58" H (127.0mm x 76.2mm x 40.0mm) |
