交流直流转换器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 2 | 电流 - 输出 3 | 电流 - 输出 4 | 电流 - 输出 5 | 电流 - 输出 6 | 功率（瓦特） | 应用 | 电压 - 隔离 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ABC601-1T24AC/DC CONVERTER 24V 600W Bel Power Solutions |
4,685 |
|
数据手册 |
ABC601 (600W) | Box | Active | Open Frame | 1 | 85 ~ 305 VAC, 170 ~ 300 VDC | 24V | - | - | - | - | - | 25 A | - | - | - | - | - | 600W | ITE (Commercial), Medical | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 7.03" L x 4.21" W x 1.61" H (178.5mm x 107.0mm x 41.0mm) |
|
PFS1200-12-054NAHAC/DC CONVERTER 12V 1200W Bel Power Solutions |
1,500 |
|
数据手册 |
PFS1200 (1200W) | Box | Active | Front End | 1 | 90 ~ 264 VAC, 180 ~ 400 VDC | 12V | - | - | - | - | - | 100 A | - | - | - | - | - | 1200W | ITE (Commercial) | - | -5°C ~ 70°C (With Derating) | I2C Interface, PFC, Universal Input | Rack Mount | 9.30" L x 2.15" W x 1.57" H (236.3mm x 54.5mm x 40.0mm) |
|
PFS1200-12-054RAHAC/DC CONVERTER 12V 1200W Bel Power Solutions |
1,045 |
|
数据手册 |
PFS1200 (1200W) | Box | Active | Front End | 1 | 90 ~ 264 VAC, 180 ~ 400 VDC | 12V | - | - | - | - | - | 100 A | - | - | - | - | - | 1200W | ITE (Commercial) | - | -5°C ~ 70°C (With Derating) | I2C Interface, PFC, Universal Input | Rack Mount | 9.30" L x 2.15" W x 1.57" H (236.3mm x 54.5mm x 40.0mm) |
|
PET2000-12-074NAAC/DC CONVERTER 12V 2000W Bel Power Solutions |
4,212 |
|
数据手册 |
PET2000 (2000W) | Bulk | Active | Front End | 1 | 90 ~ 140 VAC, 180 ~ 264 VAC | 12V | - | - | - | - | - | 167 A | - | - | - | - | - | 2000W | ITE (Commercial) | 4.242 kV | 0°C ~ 55°C | Hot Swappable, I2C Interface, Load Sharing, PFC, PMBus™, Remote Sense, Standby Output | Rack Mount | 10.43" L x 2.89" W x 1.57" H (265.0mm x 73.5mm x 40.0mm) |
|
|
PET2000-12-074RAAC/DC CONVERTER 12V 2000W Bel Power Solutions |
2,348 |
|
数据手册 |
PET2000 (2000W) | Box | Active | Front End | 1 | 90 ~ 140 VAC, 180 ~ 264 VAC | 12V | - | - | - | - | - | 167 A | - | - | - | - | - | 2000W | ITE (Commercial) | 4.242 kV | 0°C ~ 55°C | Hot Swappable, I2C Interface, Load Sharing, PFC, PMBus™, Remote Sense, Standby Output | Rack Mount | 10.43" L x 2.89" W x 1.57" H (265.0mm x 73.5mm x 40.0mm) |
|
CPA550-4530GAC/DC CNVRTR 5V 3.3V +/-12V 550W Bel Power Solutions |
3,603 |
|
数据手册 |
Melcher CPA (500W) | Bulk | Active | Enclosed | 4 | 90 ~ 264 VAC | 5V | 3.3V | 12V | -12V | - | - | 50 A | 60 A | 12 A | 4 A | - | - | 550W | ITE (Commercial) | 1.5 kV | -25°C ~ 50°C | DC Input Capable, Hot Swappable, Load Sharing, PFC, Remote Sense | Compact PCI® | 6.67" L x 1.59" W x 10.31" H (169.5mm x 40.3mm x 261.9mm) |
|

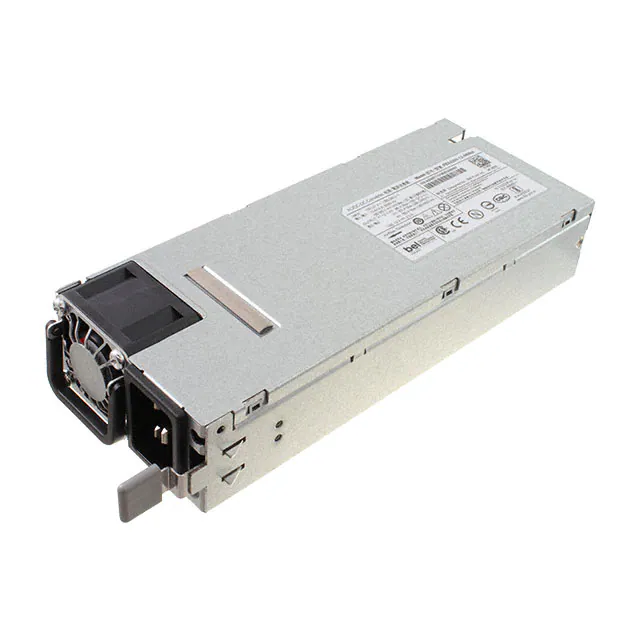

PES2200-12-080NAAC/DC CONVERTER 12V 2196W Bel Power Solutions |
1,014 |
|
数据手册 |
PES2200 (2200W) | Box | Active | Front End | 1 | 90 ~ 140 VAC, 180 ~ 264 VAC, 180 ~ 300 VDC | 12V | - | - | - | - | - | 183 A | - | - | - | - | - | 2196W | ITE (Commercial) | 4.242 kV | 0°C ~ 55°C | Adjustable Output, Load Sharing, PFC, Remote Sense, Standby Output | Rack Mount | 7.68" L x 3.15" W x 1.57" H (195.0mm x 80.0mm x 40.0mm) |
|
TET2000-12-086NAAC/DC CONVERTER 12V 2028W Bel Power Solutions |
4,603 |
|
数据手册 |
TET2000 (2100W) | Bulk | Active | Front End | 1 | 90 ~ 264 VAC, 180 ~ 300 VDC | 12V | - | - | - | - | - | 169 A | - | - | - | - | - | 2028W | ITE (Commercial) | 4.3 kV | 0°C ~ 50°C | Hot Swappable, I2C Interface, Load Sharing, PFC, PMBus™, Remote On/Off, Remote Sensing, Standby Output, Universal input | Rack Mount | 7.68" L x 3.39" W x 1.57" H (195.0mm x 86.0mm x 40.0mm) |
|

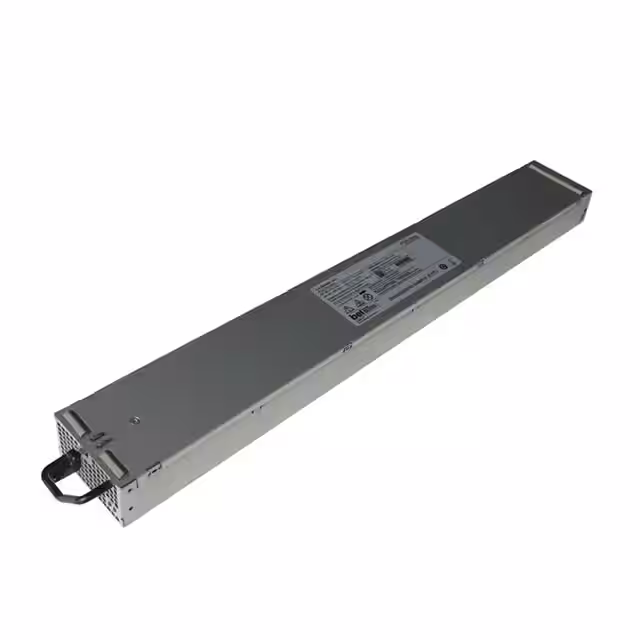

TET4000-48-069RAHAC/DC CONVERTER 48V 3984W Bel Power Solutions |
4,063 |
|
数据手册 |
- | Box | Active | Front End | 1 | 90 ~ 305 VAC, 192 ~ 400 VDC | 48V | - | - | - | - | - | 83 A | - | - | - | - | - | 3984W | ITE (Commercial) | - | 0°C ~ 45°C | Adjustable Output, PFC, Remote On/Off, Standby Output | Rack Mount | 20.80" L x 2.72" W x 1.60" H (528.4mm x 69.0mm x 40.6mm) |
|
|
TET2200-12-086RAAC/DC CONVERTER 12V 2196W Bel Power Solutions |
3,460 |
|
数据手册 |
TET2200 (2200W) | Bulk | Active | Front End | 1 | 100 ~ 240 VAC, 180 ~ 300 VDC | 12V | - | - | - | - | - | 183 A | - | - | - | - | - | 2196W | ITE (Commercial) | 4.242 kV | 0°C ~ 55°C | Adjustable Output, Remote Sense, Standby Output | Rack Mount | 7.74" L x 3.40" W x 1.57" H (196.5mm x 86.3mm x 40.0mm) |
