上传BOM单
交流直流转换器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 2 | 电流 - 输出 3 | 电流 - 输出 4 | 电流 - 输出 5 | 电流 - 输出 6 | 功率（瓦特） | 应用 | 电压 - 隔离 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

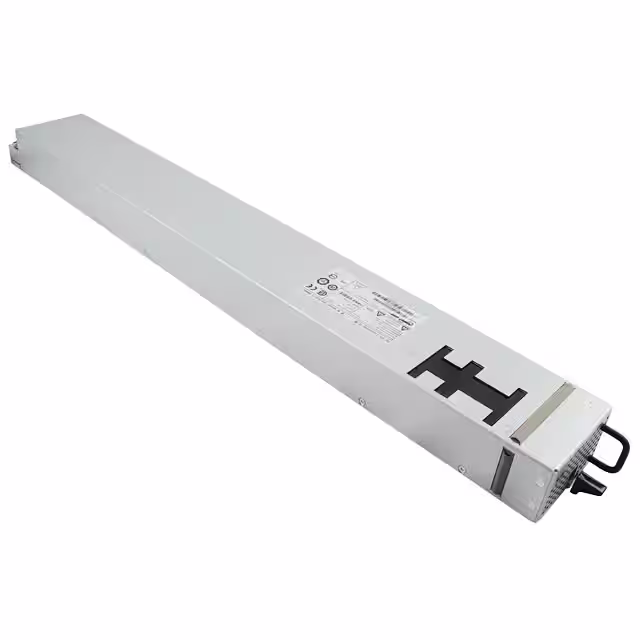

PFE3000-12-069RAAC/DC CONVERTER 12V 3000W Bel Power Solutions |
1,844 |
|
数据手册 |
PFE3000 (3000W) | Box | Active | Front End | 1 | 180 ~ 300 VAC | 12V | - | - | - | - | - | 244 A | - | - | - | - | - | 3000W | ITE (Commercial) | - | 0°C ~ 55°C (With Derating) | Adjustable Output, Hot Swappable, I2C Interface, Load Sharing, PMBus™, Remote Sense, Universal Input | Rack Mount | 22.98" L x 1.65" W x 2.72" H (583.7mm x 42.0mm x 69.0mm) |
|
LPC1902-9DAC-DC CONVERTER Bel Power Solutions |
2,521 |
|
数据手册 |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

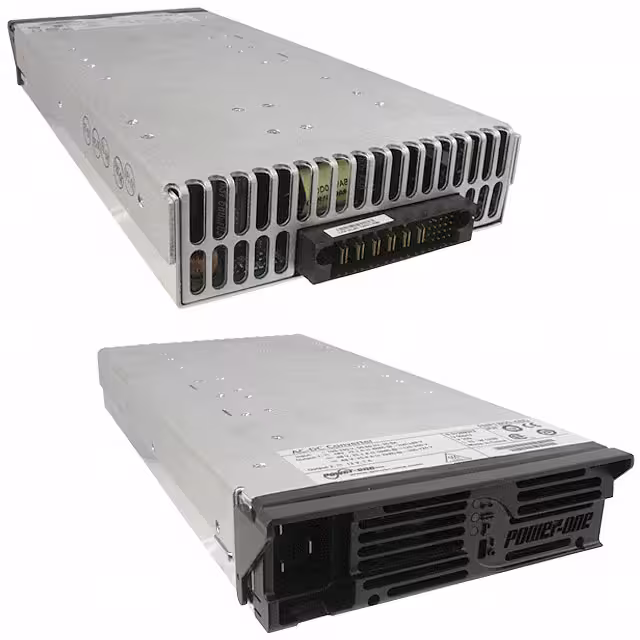

FNP1800-48GAC/DC CONVERTER 48V 12V 1800W Bel Power Solutions |
4,587 |
|
数据手册 |
FNP1800 (1800W) | Bulk | Obsolete | Front End | 2 | 85 ~ 264 VAC | 48V | 12V | - | - | - | - | 39.2 A | 1 A | - | - | - | - | 1800W | ITE (Commercial) | 4 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, I2C Interface, Remote Sense, Standby Output, Universal Input | Rack Mount | 11.00" L x 1.60" W x 5.60" H (279.4mm x 40.5mm x 141.2mm) |
|
|
LS2540-9ERGAC/DC CONVERTER 2X15V 100W Bel Power Solutions |
1,832 |
|
数据手册 |
Melcher S (100W) | Bulk | Active | Enclosed | 2 | 85 ~ 264 VAC, 88 ~ 372 VDC | 15V | 15V | 15V, 15V | - | - | - | 3.2 A | 3.2 A | - | - | - | - | 100W | ITE (Commercial) | 2 kV | -40°C ~ 71°C (With Derating) | Adjustable Output, Remote On/Off, Universal Input | Chassis Mount | 6.61" L x 4.37" W x 1.48" H (168.0mm x 111.0mm x 37.7mm) |
|
|
TET3600-48-069NAPOWER SUPPLY;TET3600-48-069NA;AC Bel Power Solutions |
4,957 |
|
数据手册 |
TET3600 (3600W) | Box | Active | Front End | 1 | 90 ~ 305 VAC, 192 ~ 400 VDC | 48V | - | - | - | - | - | 75 A | - | - | - | - | - | 3600W | ITE (Commercial) | 2.5 kV | 0°C ~ 50°C | Adjustable Output, DC Input Capable, Hot Swappable, I2C Interface, Load Sharing, PFC, Standby Output | Rack Mount | 19.29" L x 2.68" W x 1.57" H (490.0mm x 68.0mm x 40.0mm) |
|
LS4501-7RAC/DC CONVERTER 15V 100W Bel Power Solutions |
4,211 |
|
数据手册 |
Melcher S (100W) | Bulk | Active | Enclosed, Conformal Coated | 1 | 85 ~ 264 VAC | 15V | - | - | - | - | - | 6.5 A | - | - | - | - | - | 100W | ITE (Commercial) | 2.8 kV | -25°C ~ 71°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 6.60" L x 4.40" W x 2.40" H (168.0mm x 111.0mm x 60.0mm) |
|
|
LS4001-9ERAC/DC CONVERTER 5.1V 100W Bel Power Solutions |
1,604 |
|
数据手册 |
Melcher S (100W) | Bulk | Active | Enclosed, Conformal Coated | 1 | 85 ~ 264 VAC | 5.1V | - | - | - | - | - | 16 A | - | - | - | - | - | 100W | ITE (Commercial) | 2.8 kV | -40°C ~ 71°C | Adjustable Output, Baseplate, DC Input Capable, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 6.60" L x 4.40" W x 2.40" H (168.0mm x 111.0mm x 60.0mm) |
|
|
SPAFCBK-11GAC/DC CONVERTER 12V Bel Power Solutions |
2,391 |
|
数据手册 |
- | Bulk | Active | Enclosed | 1 | 200 ~ 277 VAC (3 Phase) | 12V | - | - | - | - | - | - | - | - | - | - | - | - | ITE (Commercial) | - | - | - | Rack Mount | - |
|
|
LK2320-9ERGAC/DC CONVERTER 12V 12V 150W Bel Power Solutions |
2,533 |
|
数据手册 |
Melcher K (150W) | Bulk | Active | Enclosed, Conformal Coated | 2 | 100 ~ 240 VAC | 12V | 12V | - | - | - | - | 6 A | 6 A | - | - | - | - | 150W | ITE (Commercial), Railway | 2.8 kV | -40°C ~ 71°C | Adjustable Output, DC Input Capable, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 6.60" L x 4.40" W x 3.20" H (168.0mm x 111.0mm x 80.0mm) |
|
|
LK2660-9ERGAC/DC CONVERTER 24V 24V 150W Bel Power Solutions |
1,242 |
|
数据手册 |
Melcher K (150W) | Bulk | Active | Enclosed, Conformal Coated | 2 | 100 ~ 240 VAC | 24V | 24V | - | - | - | - | 3 A | 3 A | - | - | - | - | 150W | ITE (Commercial), Railway | 2.8 kV | -40°C ~ 71°C | Adjustable Output, DC Input Capable, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 6.60" L x 4.40" W x 3.20" H (168.0mm x 111.0mm x 80.0mm) |
