交流直流转换器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 2 | 电流 - 输出 3 | 电流 - 输出 4 | 电流 - 输出 5 | 电流 - 输出 6 | 功率（瓦特） | 应用 | 电压 - 隔离 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LR2660-9BAC-DC,90-264V INPUT, 24V/24V/5.2 Bel Power Solutions |
3,175 |
|
数据手册 |
Melcher LR | Box | Active | Enclosed | 2 | 90 ~ 264 VAC, 125 ~ 300 VDC | 24V | 24V | - | - | - | - | 5.2 A | 5.2 A | - | - | - | - | 250W | ITE (Commercial), Railway | 2 kV | -40°C ~ 71°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Remote On/Off, Universal Input | Chassis Mount | 6.60" L x 4.40" W x 2.40" H (168.0mm x 111.0mm x 60.0mm) |
|
|
PFE1500-12-054NAHAC/DC CONVERTER 12V 1500W Bel Power Solutions |
1,376 |
|
数据手册 |
PFE1500 (1500W) | Bulk | Active | Front End | 1 | 90 ~ 264 VAC, 180 ~ 350 VDC | 12V | - | - | - | - | - | 125 A | - | - | - | - | - | 1500W | ITE (Commercial) | - | 0°C ~ 45°C (With Derating) | I2C Interface, PFC, Universal Input | Rack Mount | 12.66" L x 2.15" W x 1.57" H (321.5mm x 54.5mm x 40.0mm) |
|
|
PFE1500-12-054RAAC/DC CONVERTER 12V 1500W Bel Power Solutions |
4,292 |
|
数据手册 |
PFE1500 (1500W) | Bulk | Active | Front End | 1 | 90 ~ 264 VAC, 180 ~ 350 VDC | 12V | - | - | - | - | - | 125 A | - | - | - | - | - | 1500W | ITE (Commercial) | - | 0°C ~ 45°C (With Derating) | I2C Interface, PFC, Universal Input | Rack Mount | 12.66" L x 2.15" W x 1.57" H (321.5mm x 54.5mm x 40.0mm) |
|
|
FNP850-12ARGAC/DC CONVERTER 12V 850W Bel Power Solutions |
4,921 |
|
数据手册 |
FNP850 (850W) | Bulk | Active | Front End | 1 | 90 ~ 264 VAC | 12V | - | - | - | - | - | 73 A | - | - | - | - | - | 850W | ITE (Commercial) | 4 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, I2C Interface, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Rack Mount | 4.00" L x 1.65" W x 8.50" H (101.6mm x 41.9mm x 215.9mm) |
|

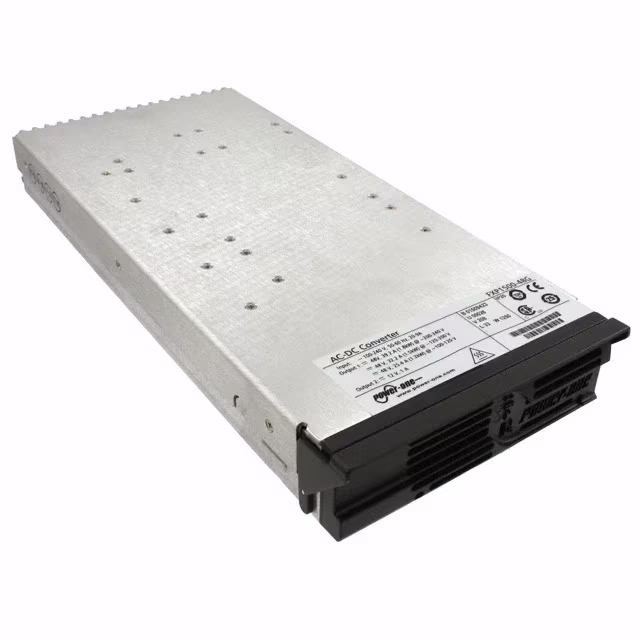

FXP1500-48GAC/DC CONVERTER 48V 12V 1500W Bel Power Solutions |
3,527 |
|
数据手册 |
FXP1500 (1500W) | Box | Obsolete | Front End | 2 | 85 ~ 264 VAC | 48V | 12V | - | - | - | - | 32.2 A | 1 A | - | - | - | - | 1500W | ITE (Commercial) | 4 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, Hot Swappable, I2C Interface, Remote Sense, Standby Output | Rack Mount | 12.00" L x 5.00" W x 1.60" H (305.0mm x 127.0mm x 41.0mm) |
|
|
LRP2660-9AC-DC,90-264V INPUT, 24V/24V/6.2 Bel Power Solutions |
1,528 |
|
数据手册 |
Melcher LR | Box | Active | Enclosed | 2 | 90 ~ 264 VAC, 125 ~ 300 VDC | 24V | 24V | - | - | - | - | 6.25 A | 6.25 A | - | - | - | - | 300W | ITE (Commercial), Railway | 2 kV | -40°C ~ 71°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Remote On/Off, Universal Input | Chassis Mount | 6.60" L x 4.40" W x 3.20" H (168.0mm x 111.0mm x 80.0mm) |
|
FNP850-12RGAC/DC CONVERTER 12V 850W Bel Power Solutions |
1,000 |
|
数据手册 |
FNP850 (850W) | Bulk | Active | Front End | 1 | 90 ~ 264 VAC | 12V | - | - | - | - | - | 73 A | - | - | - | - | - | 850W | ITE (Commercial) | 4 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, I2C Interface, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Rack Mount | 4.00" L x 1.65" W x 8.50" H (101.6mm x 41.9mm x 215.9mm) |
|
|
LRP2660-9B1AC-DC,90-264V INPUT, 24V/24V/6.2 Bel Power Solutions |
3,874 |
|
数据手册 |
Melcher LR | Box | Active | Enclosed | 2 | 90 ~ 264 VAC, 125 ~ 300 VDC | 24V | 24V | - | - | - | - | 6.25 A | 6.25 A | - | - | - | - | 300W | ITE (Commercial), Railway | 2 kV | -40°C ~ 71°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Remote On/Off, Universal Input | Chassis Mount | 6.60" L x 4.40" W x 3.20" H (168.0mm x 111.0mm x 80.0mm) |
|
|
LRP2660-9BAC-DC,90-264V INPUT, 24V/24V/6.2 Bel Power Solutions |
2,872 |
|
数据手册 |
Melcher LR | Box | Active | Enclosed | 2 | 90 ~ 264 VAC, 125 ~ 300 VDC | 24V | 24V | - | - | - | - | 6.25 A | 6.25 A | - | - | - | - | 300W | ITE (Commercial), Railway | 2 kV | -40°C ~ 71°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Remote On/Off, Universal Input | Chassis Mount | 6.60" L x 4.40" W x 3.20" H (168.0mm x 111.0mm x 80.0mm) |
|
|
PFC500-1048GAC/DC CONVERTER 48V 500W Bel Power Solutions |
1,005 |
|
数据手册 |
PFC500 (500W) | Bulk | Active | Enclosed | 1 | 85 ~ 264 VAC | 48V | - | - | - | - | - | 10.4 A | - | - | - | - | - | 500W | ITE (Commercial) | - | 0°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Load Sharing, PFC, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.00" L x 5.00" W x 2.50" H (228.6mm x 127.0mm x 63.5mm) |
