交流直流转换器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 2 | 电流 - 输出 3 | 电流 - 输出 4 | 电流 - 输出 5 | 电流 - 输出 6 | 功率（瓦特） | 应用 | 电压 - 隔离 | 效率 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VSCP-2K4-12AC/DC CONVERTER 12V 2400W |
2,393 |
|
数据手册 |
VSCP-2K4 (2400W) | Box | Obsolete | Enclosed | 1 | 90 ~ 260 VAC | 12V | - | - | - | - | - | 200 A | - | - | - | - | - | 2400W | ITE (Commercial) | - | 0°C ~ 50°C | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 13.07" L x 8.35" W x 4.88" H (332.0mm x 212.0mm x 123.9mm) | ||
|
|
VSCP-2K4-24AC/DC CONVERTER 24V 2400W |
4,023 |
|
数据手册 |
VSCP-2K4 (2400W) | Box | Obsolete | Enclosed | 1 | 90 ~ 260 VAC | 24V | - | - | - | - | - | 100 A | - | - | - | - | - | 2400W | ITE (Commercial) | - | 0°C ~ 50°C | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 13.07" L x 8.35" W x 4.88" H (332.0mm x 212.0mm x 123.9mm) | ||
|
|
VSCP-2K4-48AC/DC CONVERTER 48V 2400W |
3,937 |
|
数据手册 |
VSCP-2K4 (2400W) | Box | Obsolete | Enclosed | 1 | 90 ~ 260 VAC | 48V | - | - | - | - | - | 50 A | - | - | - | - | - | 2400W | ITE (Commercial) | - | 0°C ~ 50°C | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 13.07" L x 8.35" W x 4.88" H (332.0mm x 212.0mm x 123.9mm) | ||
|
|
VSCP-2K4-60AC/DC CONVERTER 60V 2400W |
2,618 |
|
数据手册 |
VSCP-2K4 (2400W) | Box | Obsolete | Enclosed | 1 | 90 ~ 260 VAC | 60V | - | - | - | - | - | 40 A | - | - | - | - | - | 2400W | ITE (Commercial) | - | 0°C ~ 50°C | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 13.07" L x 8.35" W x 4.88" H (332.0mm x 212.0mm x 123.9mm) | ||
|
GNT412ABTGAC/DC CONVERTER 12V 400W |
4,279 |
|
数据手册 |
GNT400 (400W) | Box | Obsolete | Enclosed | 1 | 90 ~ 270 VAC | 12V | - | - | - | - | - | 33.3 A | - | - | - | - | - | 400W | ITE (Commercial), Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote Sense, Standby Output, Universal Input | Chassis Mount | 7.00" L x 4.00" W x 1.50" H (177.8mm x 100.0mm x 40.0mm) | ||
|
|
GNT424CBEGAC/DC CONVERTER 24V 400W |
4,543 |
|
数据手册 |
GNT400 (400W) | Box | Obsolete | Enclosed | 1 | 90 ~ 270 VAC | 24V | - | - | - | - | - | 12.5 A | - | - | - | - | - | 400W | ITE (Commercial), Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.31" L x 3.94" W x 1.57" H (236.5mm x 100.0mm x 40.0mm) | ||
|
|
GNT428ABGAC/DC CONVERTER 28V 300W |
4,877 |
|
数据手册 |
GNT400 (400W) | Box | Obsolete | Enclosed | 1 | 90 ~ 270 VAC | 28V | - | - | - | - | - | 10.7 A | - | - | - | - | - | 300W (400W Forced Air) | ITE (Commercial), Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote Sense, Standby Output, Universal Input | Chassis Mount | 7.00" L x 4.00" W x 1.50" H (177.8mm x 100.0mm x 40.0mm) | ||
|
|
GNT428CBEGAC/DC CONVERTER 28V 400W |
1,755 |
|
数据手册 |
GNT400 (400W) | Box | Obsolete | Enclosed | 1 | 90 ~ 270 VAC | 28V | - | - | - | - | - | 10.7 A | - | - | - | - | - | 400W | ITE (Commercial), Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.31" L x 3.94" W x 1.57" H (236.5mm x 100.0mm x 40.0mm) | ||
|
|
GNT428ABTGAC/DC CONVERTER 28V 400W |
1,146 |
|
数据手册 |
GNT400 (400W) | Box | Obsolete | Enclosed | 1 | 90 ~ 270 VAC | 28V | - | - | - | - | - | 10.7 A | - | - | - | - | - | 400W | ITE (Commercial), Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote Sense, Standby Output, Universal Input | Chassis Mount | 7.00" L x 4.00" W x 1.50" H (177.8mm x 100.0mm x 40.0mm) | ||
|
|
GNT448CBEGAC/DC CONVERTER 48V 400W |
3,463 |
|
数据手册 |
GNT400 (400W) | Box | Obsolete | Enclosed | 1 | 90 ~ 270 VAC | 48V | - | - | - | - | - | 6.3 A | - | - | - | - | - | 400W | ITE (Commercial), Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.31" L x 3.94" W x 1.57" H (236.5mm x 100.0mm x 40.0mm) | ||
|
|
GNT448ABTGAC/DC CONVERTER 48V 400W |
4,880 |
|
数据手册 |
GNT400 (400W) | Box | Obsolete | Enclosed | 1 | 90 ~ 270 VAC | 48V | - | - | - | - | - | 6.3 A | - | - | - | - | - | 400W | ITE (Commercial), Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote Sense, Standby Output, Universal Input | Chassis Mount | 7.00" L x 4.00" W x 1.50" H (177.8mm x 100.0mm x 40.0mm) | ||
|

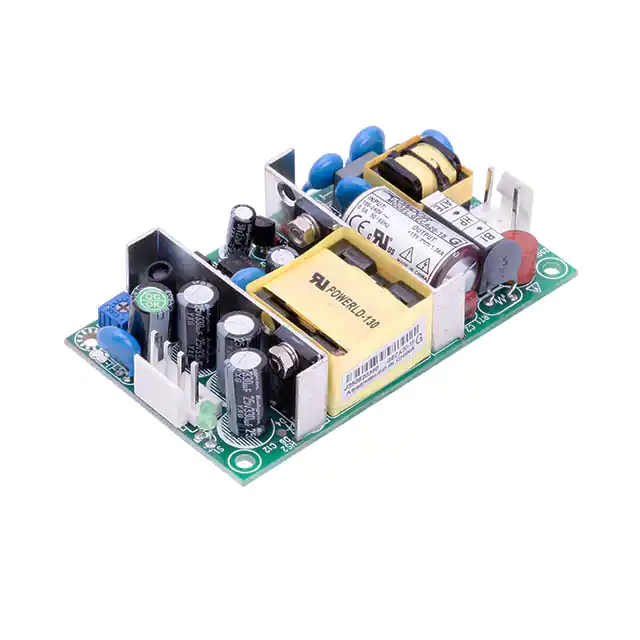

GECA20-5GAC/DC CONVERTER 5.1V 20W |
1,010 |
|
数据手册 |
GECA20 (20W) | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC | 5.1V | - | - | - | - | - | 4 A | - | - | - | - | - | 20W | ITE (Commercial) | - | 0°C ~ 45°C | Adjustable Output, Universal Input | Chassis Mount | 3.50" L x 2.00" W x 0.85" H (89.1mm x 51.0mm x 21.6mm) | ||
|
|
GECA20-15GAC/DC CONVERTER 15V 20W |
1,411 |
|
数据手册 |
GECA20 (20W) | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC | 15V | - | - | - | - | - | 1.34 A | - | - | - | - | - | 20W | ITE (Commercial) | - | 0°C ~ 45°C | Adjustable Output, Universal Input | Chassis Mount | 3.50" L x 2.00" W x 0.85" H (89.1mm x 51.0mm x 21.6mm) | ||
|
GECA40-12GAC/DC CONVERTER 12V 40W |
3,028 |
|
数据手册 |
GECA40 (40W) | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC | 12V | - | - | - | - | - | 3.3 A | - | - | - | - | - | 40W | ITE (Commercial) | - | 0°C ~ 45°C | Adjustable Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.25" H (127.0mm x 76.2mm x 31.8mm) | ||
|
|
GECA40-15GAC/DC CONVERTER 15V 40W |
1,904 |
|
数据手册 |
GECA40 (40W) | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC | 15V | - | - | - | - | - | 2.7 A | - | - | - | - | - | 40W | ITE (Commercial) | - | 0°C ~ 45°C | Adjustable Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.25" H (127.0mm x 76.2mm x 31.8mm) | ||
|
|
GECA40BGAC/DC CONVERTER 5V 12V -5V 40W |
3,440 |
|
数据手册 |
GECA40 (40W) | Box | Obsolete | Open Frame | 3 | 90 ~ 264 VAC | 5V | 12V | -5V | - | - | - | 3.5 A | 2 A | 300 mA | - | - | - | 40W | ITE (Commercial) | - | 0°C ~ 45°C | Adjustable Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.25" H (127.0mm x 76.2mm x 31.8mm) | ||
|
|
GECA40DGAC/DC CONVERTER 5V 24V -12V 40W |
2,486 |
|
数据手册 |
GECA40 (40W) | Box | Obsolete | Open Frame | 3 | 90 ~ 264 VAC | 5V | 24V | -12V | - | - | - | 3.5 A | 1.2 A | 300 mA | - | - | - | 40W | ITE (Commercial) | - | 0°C ~ 45°C | Adjustable Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.25" H (127.0mm x 76.2mm x 31.8mm) | ||
|
PAM150-4AC/DC CONVERTER 12V 80W |
1,112 |
|
数据手册 |
PAM150 (150W) | Bulk | Obsolete | Open Frame | 1 | 85 ~ 132 VAC, 180 ~ 264 VAC | 12V | - | - | - | - | - | 12.5 A | - | - | - | - | - | 80W (150W Forced Air) | Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 6.00" L x 4.00" W x 1.50" H (152.4mm x 101.6mm x 38.1mm) | ||
|
PAM150-6AC/DC CONVERTER 24V 80W |
1,100 |
|
数据手册 |
PAM150 (150W) | Bulk | Obsolete | Open Frame | 1 | 85 ~ 132 VAC, 180 ~ 264 VAC | 24V | - | - | - | - | - | 6.5 A | - | - | - | - | - | 80W (150W Forced Air) | Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 6.00" L x 4.00" W x 1.50" H (152.4mm x 101.6mm x 38.1mm) | ||
|
PAM150-9AC/DC CONVERTER 48V 80W |
1,168 |
|
数据手册 |
PAM150 (150W) | Bulk | Obsolete | Open Frame | 1 | 85 ~ 132 VAC, 180 ~ 264 VAC | 48V | - | - | - | - | - | 3.5 A | - | - | - | - | - | 80W (150W Forced Air) | Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 6.00" L x 4.00" W x 1.50" H (152.4mm x 101.6mm x 38.1mm) |
