交流直流转换器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 2 | 电流 - 输出 3 | 电流 - 输出 4 | 电流 - 输出 5 | 电流 - 输出 6 | 功率（瓦特） | 应用 | 电压 - 隔离 | 效率 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GLC50-28GAC/DC CONVERTER 28V 50W |
1,493 |
|
数据手册 |
GLC50 (50W) | Bulk | Obsolete | Open Frame | 1 | 90 ~ 264 VAC | 28V | - | - | - | - | - | 1.8 A | - | - | - | - | - | 50W | ITE (Commercial) | - | 0°C ~ 50°C | Adjustable Output, Universal Input | Chassis Mount | 4.25" L x 2.50" W x 1.25" H (108.0mm x 63.5mm x 31.8mm) | ||
|
|
GLC50BGAC/DC CONVERTER 5.05V +/-15V 50W |
2,737 |
|
数据手册 |
GLC50 (50W) | Bulk | Obsolete | Open Frame | 3 | 90 ~ 264 VAC | 5.05V | 15V | -15V | - | - | - | 4 A | 2.5 A | 200 mA | - | - | - | 50W | ITE (Commercial) | - | 0°C ~ 50°C | Adjustable Output, Universal Input | Chassis Mount | 4.25" L x 2.50" W x 1.25" H (108.0mm x 63.5mm x 31.8mm) | ||
|
|
GLC50GGAC/DC CONVERTER 3.3V +/-12V 50W |
4,209 |
|
数据手册 |
GLC50 (50W) | Bulk | Obsolete | Open Frame | 3 | 90 ~ 264 VAC | 3.3V | 12V | -12V | - | - | - | 4 A | 2.5 A | 200 mA | - | - | - | 50W | ITE (Commercial) | - | 0°C ~ 50°C | Adjustable Output, Universal Input | Chassis Mount | 4.25" L x 2.50" W x 1.25" H (108.0mm x 63.5mm x 31.8mm) | ||
|
GSC25BGAC/DC CONVERTER 5V +/-15V 25W |
3,833 |
|
数据手册 |
GSC25 (25W) | Bulk | Obsolete | Open Frame | 3 | 90 ~ 264 VAC | 5V | 15V | -15V | - | - | - | 2.5 A | 1.5 A | 200 mA | - | - | - | 25W | ITE (Commercial) | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.25" L x 2.50" W x 0.86" H (108.0mm x 63.5mm x 21.8mm) | ||
|
GPC55-12GAC/DC CONVERTER 12V 55W |
1,541 |
|
数据手册 |
GPC55 (55W) | Bulk | Obsolete | Open Frame | 1 | 85 ~ 264 VAC | 12V | - | - | - | - | - | 4.7 A | - | - | - | - | - | 55W | ITE (Commercial) | - | 0°C ~ 50°C | Adjustable Output, Universal Input | Chassis Mount | 6.30" L x 3.94" W x 1.68" H (160.0mm x 100.0mm x 42.7mm) | ||
|
GLC40-24GAC/DC CONVERTER 24V 40W |
3,203 |
|
数据手册 |
GLC40 (40W) | Bulk | Obsolete | Open Frame | 1 | 90 ~ 264 VAC | 24V | - | - | - | - | - | 1.7 A | - | - | - | - | - | 40W | ITE (Commercial) | - | 0°C ~ 50°C | Adjustable Output, Universal Input | Chassis Mount | 4.96" L x 2.96" W x 1.20" H (126.0mm x 75.2mm x 30.5mm) | ||
|
GPC40-5GAC/DC CONVERTER 5V 40W |
2,395 |
|
数据手册 |
GPC40 (40W) | Box | Obsolete | Open Frame | 1 | 85 ~ 264 VAC | 5V | - | - | - | - | - | 8 A | - | - | - | - | - | 40W (50W Forced Air) | ITE (Commercial) | - | 0°C ~ 50°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.28" H (127.0mm x 76.2mm x 32.5mm) | ||
|
|
GPC40BGAC/DC CONVERTER 5.1V +/-15V 40W |
1,364 |
|
数据手册 |
GPC40 (40W) | Box | Obsolete | Open Frame | 3 | 85 ~ 264 VAC | 5.1V | 15V | -15V | - | - | - | 4 A | 2 A | 400 mA | - | - | - | 40W (50W Forced Air) | ITE (Commercial) | - | 0°C ~ 50°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.28" H (127.0mm x 76.2mm x 32.5mm) | ||
|

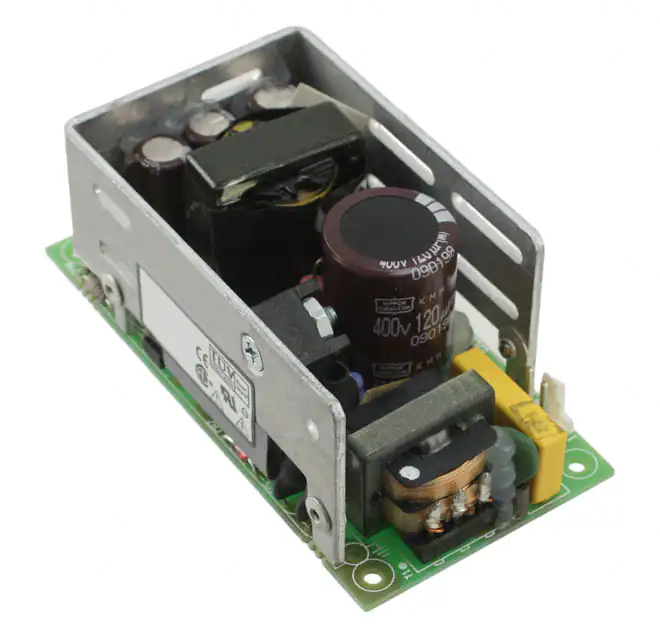

GPC41-15GAC/DC CONVERTER 15V 40W |
2,636 |
|
数据手册 |
GPC41 (41W) | Bulk | Obsolete | Open Frame | 1 | 85 ~ 264 VAC | 15V | - | - | - | - | - | 2.7 A | - | - | - | - | - | 40W | ITE (Commercial) | - | 0°C ~ 50°C | Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.50" H (101.6mm x 50.8mm x 38.1mm) | ||
|
VPU-S200-13.5AC/DC CONVERTER 13.5V 200W |
4,090 |
|
数据手册 |
VPU-S200 (200W) | Bulk | Obsolete | Open Frame | 1 | 85 ~ 264 VAC | 13.5V | - | - | - | - | - | 15 A | - | - | - | - | - | 200W | ITE (Commercial) | 3 kV | -10°C ~ 65°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 6.80" L x 3.80" W x 1.50" H (172.7mm x 96.5mm x 38.1mm) | ||
|
GNT60-12GAC/DC CONVERTER 12V 60W |
3,540 |
|
数据手册 |
GNT60 (65W) | Bulk | Obsolete | Open Frame | 1 | 100 ~ 240 VAC | 12V | - | - | - | - | - | 4.2 A | - | - | - | - | - | 60W | ITE (Commercial) | 4 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 0.97" H (101.6mm x 50.8mm x 24.6mm) | ||
|
|
GNT60-15GAC/DC CONVERTER 15V 60W |
4,432 |
|
数据手册 |
GNT60 (65W) | Bulk | Obsolete | Open Frame | 1 | 100 ~ 240 VAC | 15V | - | - | - | - | - | 4 A | - | - | - | - | - | 60W | ITE (Commercial) | 4 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 0.97" H (101.6mm x 50.8mm x 24.6mm) | ||
|
BLP30-1005GAC/DC CONVERTER 5V 30W |
2,542 |
|
数据手册 |
BLP30 (30W) | Bulk | Obsolete | Open Frame | 1 | 100 ~ 250 VAC | 5V | - | - | - | - | - | 5 A | - | - | - | - | - | 30W | ITE (Commercial) | 4.242 kV | 0°C ~ 70°C (With Derating) | DC Input Capable, Universal Input | Chassis Mount | 2.07" L x 4.00" W x 1.07" H (52.6mm x 101.6mm x 27.2mm) | ||
|
|
BLP30-1012GAC/DC CONVERTER 12V 30W |
2,412 |
|
数据手册 |
BLP30 (30W) | Bulk | Obsolete | Open Frame | 1 | 100 ~ 250 VAC | 12V | - | - | - | - | - | 2.1 A | - | - | - | - | - | 30W | ITE (Commercial) | 4.242 kV | 0°C ~ 70°C (With Derating) | DC Input Capable, Universal Input | Chassis Mount | 2.07" L x 4.00" W x 1.07" H (52.6mm x 101.6mm x 27.2mm) | ||
|
|
BLP30-1024GAC/DC CONVERTER 24V 30W |
3,437 |
|
数据手册 |
BLP30 (30W) | Bulk | Obsolete | Open Frame | 1 | 100 ~ 250 VAC | 24V | - | - | - | - | - | 1 A | - | - | - | - | - | 30W | ITE (Commercial) | 4.242 kV | 0°C ~ 70°C (With Derating) | DC Input Capable, Universal Input | Chassis Mount | 2.07" L x 4.00" W x 1.07" H (52.6mm x 101.6mm x 27.2mm) | ||
|
|
BLP30-3000GAC/DC CONVERTER 5V +/-12V 30W |
4,947 |
|
数据手册 |
BLP30 (30W) | Bulk | Obsolete | Open Frame | 3 | 100 ~ 250 VAC | 5V | 12V | -12V | - | - | - | 2.5 A | 1.2 A | 300 mA | - | - | - | 30W | ITE (Commercial) | 4.242 kV | 0°C ~ 70°C (With Derating) | DC Input Capable, Universal Input | Chassis Mount | 2.07" L x 4.00" W x 1.07" H (52.6mm x 101.6mm x 27.2mm) | ||
|
VSCP-800-24AC/DC CONVERTER 24V 800W |
1,426 |
|
数据手册 |
VSCP-800 (800W) | Box | Obsolete | Enclosed | 1 | 90 ~ 260 VAC | 24V | - | - | - | - | - | 33 A | - | - | - | - | - | 800W | ITE (Commercial) | - | 0°C ~ 65°C (With Derating) | Adjustable Output, DC Input Capable, Load Sharing, PFC, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 11.42" L x 4.72" W x 2.66" H (290.0mm x 120.0mm x 67.5mm) | ||
|
|
VSCP-800-48AC/DC CONVERTER 48V 800W |
3,289 |
|
数据手册 |
VSCP-800 (800W) | Box | Obsolete | Enclosed | 1 | 90 ~ 260 VAC | 48V | - | - | - | - | - | 16 A | - | - | - | - | - | 800W | ITE (Commercial) | - | 0°C ~ 65°C (With Derating) | Adjustable Output, DC Input Capable, Load Sharing, PFC, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 11.42" L x 4.72" W x 2.66" H (290.0mm x 120.0mm x 67.5mm) | ||
|
VSCP-1K5-24AC/DC CONVERTER 24V 1500W |
3,170 |
|
数据手册 |
VSCP-1K5 (1500W) | Box | Obsolete | Enclosed | 1 | 90 ~ 260 VAC | 24V | - | - | - | - | - | 62 A | - | - | - | - | - | 1500W | ITE (Commercial) | - | 0°C ~ 65°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 11.42" L x 4.72" W x 5.22" H (290.0mm x 120.0mm x 132.5mm) | ||
|
|
VSCP-1K5-48AC/DC CONVERTER 48V 1500W |
4,980 |
|
数据手册 |
VSCP-1K5 (1500W) | Box | Obsolete | Enclosed | 1 | 90 ~ 260 VAC | 48V | - | - | - | - | - | 31 A | - | - | - | - | - | 1500W | ITE (Commercial) | - | 0°C ~ 65°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 11.42" L x 4.72" W x 5.22" H (290.0mm x 120.0mm x 132.5mm) |
