交流直流转换器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 2 | 电流 - 输出 3 | 电流 - 输出 4 | 电流 - 输出 5 | 电流 - 输出 6 | 功率（瓦特） | 应用 | 电压 - 隔离 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
N12-HMMR-00A02AC-DC CONFIGURED NANOFLEX XP Power |
1,221 |
|
数据手册 |
nanofleX | Box | Active | Enclosed, Conformal Coated | 1 | 90 ~ 264 VAC | 12V | - | - | - | - | - | 20.8 A | - | - | - | - | - | 250W | ITE (Commercial), Medical | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, PMBus™, Remote Sense, Standby Output, Universal Input | Chassis Mount | 11.35" L x 4.20" W x 1.67" H (288.3mm x 106.7mm x 42.4mm) |
|
HDS1500PS24AC/DC CONVERTER 24V 1500W XP Power |
3,570 |
|
数据手册 |
HDS1500 (1500W) | Box | Active | Enclosed | 1 | 90 ~ 264 VAC | 24V | - | - | - | - | - | 62.5 A | - | - | - | - | - | 1500W | ITE (Commercial) | 3 kV | -20°C ~ 60°C (With Derating) | Adjustable Output, I2C Interface, Load Sharing, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 12.32" L x 5.00" W x 2.50" H (294.5mm x 127.0mm x 63.5mm) |
|
|
HDS1500PS36AC/DC CONVERTER 36V 1500W XP Power |
1,758 |
|
数据手册 |
HDS1500 (1500W) | Box | Active | Enclosed | 1 | 90 ~ 264 VAC | 36V | - | - | - | - | - | 41.7 A | - | - | - | - | - | 1500W | ITE (Commercial) | 3 kV | -20°C ~ 60°C (With Derating) | Adjustable Output, I2C Interface, Load Sharing, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 12.32" L x 5.00" W x 2.50" H (294.5mm x 127.0mm x 63.5mm) |
|
HPU1K5PS12AC/DC CONVERTER 12V 1200W XP Power |
1,397 |
|
数据手册 |
HPU1K5 (1500W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 12V | - | - | - | - | - | 100 A | - | - | - | - | - | 1200W | ITE (Commercial) | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Standby Output, Universal Input | Chassis Mount | 12.75" L x 4.00" W x 1.70" H (323.9mm x 101.6mm x 43.2mm) |
|
|
HPU1K5PS12-MAC/DC CONVERTER 12V 1200W XP Power |
4,417 |
|
数据手册 |
HPU1K5 (1500W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 12V | - | - | - | - | - | 100 A | - | - | - | - | - | 1200W | Medical | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Standby Output, Universal Input | Chassis Mount | 12.75" L x 4.00" W x 1.70" H (323.9mm x 101.6mm x 43.2mm) |
|
|
HPU1K5PS24-MAC/DC CONVERTER 24V 1500W XP Power |
4,892 |
|
数据手册 |
HPU1K5 (1500W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 50 A | - | - | - | - | - | 1500W | Medical | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Standby Output, Universal Input | Chassis Mount | 12.75" L x 4.00" W x 1.70" H (323.9mm x 101.6mm x 43.2mm) |
|
HDS3000PS15AC/DC CONVERTER 15V 3000W XP Power |
4,887 |
|
数据手册 |
HDS3000 (3000W) | Box | Active | Enclosed | 1 | 90 ~ 264 VAC | 15V | - | - | - | - | - | 200 A | - | - | - | - | - | 3000W | ITE (Commercial) | 3 kV | -20°C ~ 60°C (With Derating) | Adjustable Output, I2C Interface, Load Sharing, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 14.41" L x 5.00" W x 5.00" H (366.0mm x 127.0mm x 127.0mm) |
|
|
HDS3000PS36AC/DC CONVERTER 36V 3000W XP Power |
4,899 |
|
数据手册 |
HDS3000 (3000W) | Box | Active | Enclosed | 1 | 90 ~ 264 VAC | 36V | - | - | - | - | - | 83.5 A | - | - | - | - | - | 3000W | ITE (Commercial) | 3 kV | -20°C ~ 60°C (With Derating) | Adjustable Output, I2C Interface, Load Sharing, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 14.41" L x 5.00" W x 5.00" H (366.0mm x 127.0mm x 127.0mm) |
|
|
MCC6T3P2L2JSATRIPLE O/P MIL BASEPLATE-COOLED XP Power |
4,380 |
|
数据手册 |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

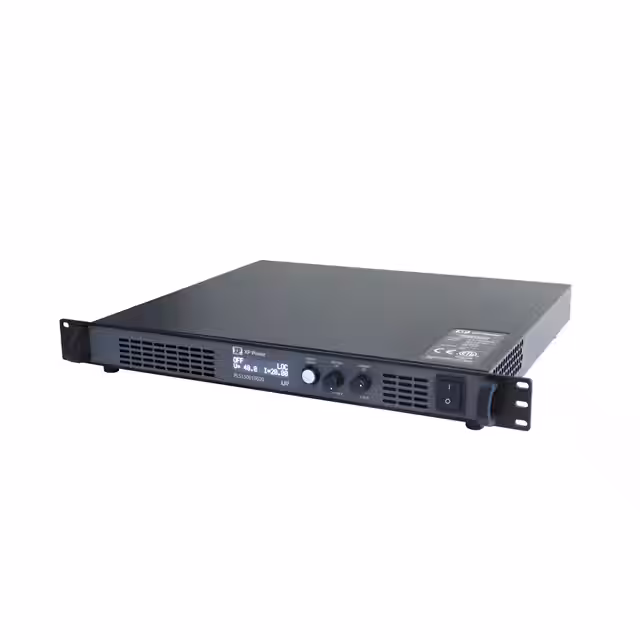

PLS150010020AC/DC CONVERTER XP Power |
1,505 |
|
数据手册 |
PLS1500 (1500W) | Box | Active | Enclosed | 1 | 90 ~ 265 VAC | 100V | - | - | - | - | - | 20 A | - | - | - | - | - | 2000W | ITE (Commercial) | - | 0°C ~ 40°C | Adjustable Output, PFC, Remote On/Off, Remote Sense, Universal Input | Rack Mount | 18.90" L x 15.79" W x 1.73" H (480.0mm x 401.0mm x 44.0mm) |
