交流直流转换器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 2 | 电流 - 输出 3 | 电流 - 输出 4 | 电流 - 输出 5 | 电流 - 输出 6 | 功率（瓦特） | 应用 | 电压 - 隔离 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FCM400PS36AC/DC CONVERTER 36V 400W XP Power |
2,842 |
|
数据手册 |
FCM (400W) | Box | Active | Enclosed | 1 | 80 ~ 275 VAC | 36V | - | - | - | - | - | 11.1 A | - | - | - | - | - | 400W | ITE (Commercial), Medical | 4 kV | -10°C ~ 70°C (With Derating) | Adjustable Output, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 6.00" L x 4.00" W x 1.93" H (152.4mm x 101.6mm x 49.0mm) |
|
CCM250PS15AC/DC CONVERTER 15V 251W XP Power |
3,496 |
|
数据手册 |
CCM (250W) | Box | Active | Open Frame | 1 | 80 ~ 275 VAC | 15V | - | - | - | - | - | 16.7 A | - | - | - | - | - | 251W | ITE (Commercial), Medical | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 6.00" L x 4.00" W x 1.54" H (152.4mm x 101.6mm x 39.1mm) |
|
SMM400PS48SINGLE O/P OPEN FRAME PSU, 400W, XP Power |
3,450 |
|
数据手册 |
SMM (400W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC, 120 ~ 370 VDC | 48V | - | - | - | - | - | 5.2 A | - | - | - | - | - | 250W (400W Forced Air) | ITE (Commercial), Medical | 4 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 8.00" L x 5.00" W x 1.60" H (203.2mm x 127.0mm x 40.6mm) |
|
CCL400PS30AC/DC CONVERTER 30V 399W XP Power |
1,889 |
|
数据手册 |
CCL400 (400W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 30V | - | - | - | - | - | 13.3 A | - | - | - | - | - | 399W | ITE (Commercial), Medical | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 7.00" L x 3.95" W x 1.57" H (177.8mm x 100.3mm x 39.9mm) |
|
|
HDS800PS60AC-DC CHASSIS-MOUNT PSU 800W XP Power |
3,006 |
|
数据手册 |
HDS800 (800W) | Box | Active | Enclosed | 1 | 90 ~ 264 VAC | 60V | - | - | - | - | - | 13.4 A | - | - | - | - | - | 800W | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, I2C Interface, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.80" L x 5.00" W x 1.60" H (248.9mm x 127.0mm x 40.6mm) |
|
EMH350PD22-EFAC/DC CONVERTER 12V 36V 350W XP Power |
4,076 |
|
数据手册 |
EMH (350W) | Box | Obsolete | Enclosed | 2 | 80 ~ 275 VAC | 12V | 36V | - | - | - | - | 16.5 A | 5.5 A | - | - | - | - | 350W | ITE (Commercial), Medical | 4 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 7.00" L x 4.00" W x 1.75" H (177.8mm x 101.6mm x 44.5mm) |
|
|
EMH350PD23-EFAC/DC CONVERTER 12V 48V 350W XP Power |
4,959 |
|
数据手册 |
EMH (350W) | Box | Obsolete | Enclosed | 2 | 80 ~ 275 VAC | 12V | 48V | - | - | - | - | 16.5 A | 4.2 A | - | - | - | - | 350W | ITE (Commercial), Medical | 4 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 7.00" L x 4.00" W x 1.75" H (177.8mm x 101.6mm x 44.5mm) |
|

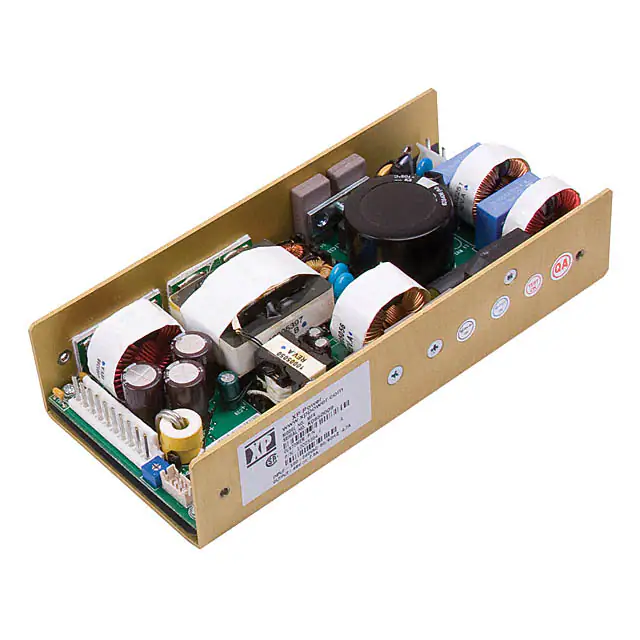

MFA420PS12AC/DC CONVERTER 12V 420W XP Power |
4,456 |
|
数据手册 |
MFA (420W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 12V | - | - | - | - | - | 35 A | - | - | - | - | - | 420W (434W Forced Air) | ITE (Commercial) | 3 kV | -10°C ~ 70°C (With Derating) | Adjustable Output, Hot Swappable, Load Sharing, Standby Output, Universal Input | Chassis Mount | 6.80" L x 3.20" W x 1.50" H (172.7mm x 81.3mm x 38.1mm) |
|
|
MFA420PS24AC/DC CONVERTER 24V 420W XP Power |
1,113 |
|
数据手册 |
MFA (420W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 17.5 A | - | - | - | - | - | 420W (434W Forced Air) | ITE (Commercial) | 3 kV | -10°C ~ 70°C (With Derating) | Adjustable Output, Hot Swappable, Load Sharing, Standby Output, Universal Input | Chassis Mount | 6.80" L x 3.20" W x 1.50" H (172.7mm x 81.3mm x 38.1mm) |
|

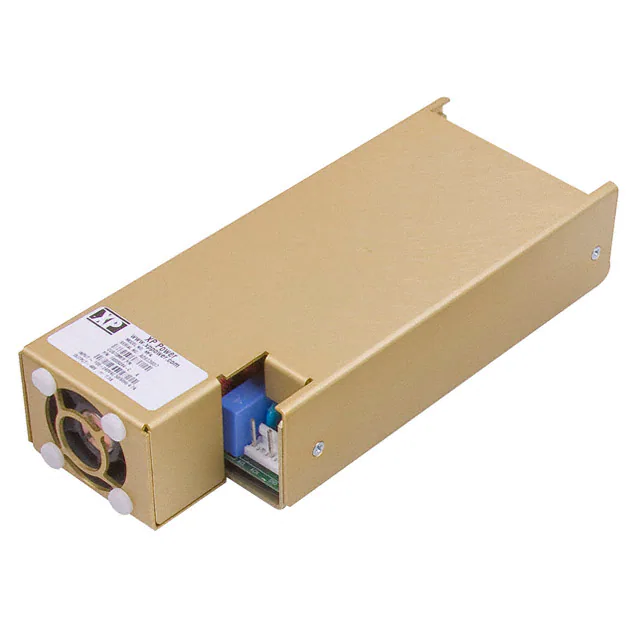

MFA420PS12-SEFAC/DC CONVERTER 12V 420W XP Power |
1,114 |
|
数据手册 |
MFA (420W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 12V | - | - | - | - | - | 35 A | - | - | - | - | - | 420W (434W Forced Air) | ITE (Commercial) | 3 kV | -10°C ~ 70°C (With Derating) | Adjustable Output, Hot Swappable, Load Sharing, Standby Output, Universal Input | Chassis Mount | 8.20" L x 3.33" W x 1.75" H (208.3mm x 84.5mm x 44.5mm) |
