交流直流转换器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 2 | 电流 - 输出 3 | 电流 - 输出 4 | 电流 - 输出 5 | 电流 - 输出 6 | 功率（瓦特） | 应用 | 电压 - 隔离 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

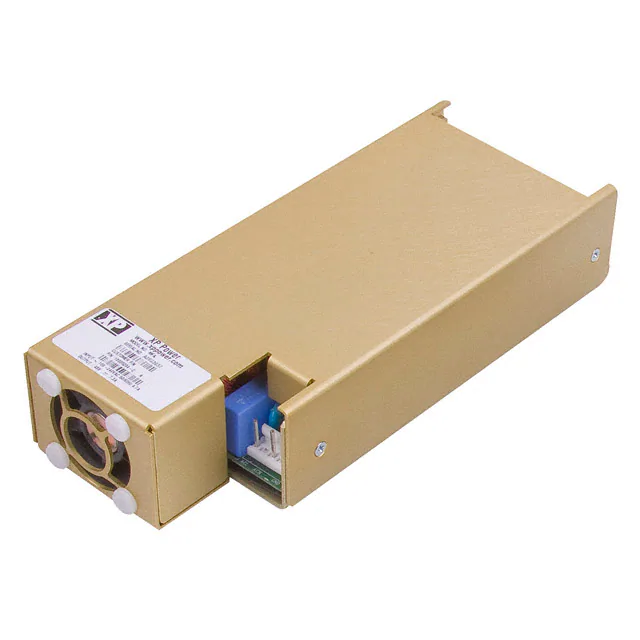

MFA350PS24-SEFAC/DC CONVERTER 24V 350W XP Power |
4,428 |
|
数据手册 |
MFA (350W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 14.5 A | - | - | - | - | - | 350W (361W Forced Air) | ITE (Commercial) | 3 kV | -10°C ~ 70°C (With Derating) | Adjustable Output, Hot Swappable, Load Sharing, Standby Output, Universal Input | Chassis Mount | 8.20" L x 3.33" W x 1.75" H (208.3mm x 84.5mm x 44.5mm) |
|
MFA350PS24-STFAC/DC CONVERTER 24V 350W XP Power |
4,978 |
|
数据手册 |
MFA (350W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 14.5 A | - | - | - | - | - | 350W (361W Forced Air) | ITE (Commercial) | 3 kV | -10°C ~ 70°C (With Derating) | Adjustable Output, Hot Swappable, Load Sharing, Standby Output, Universal Input | Chassis Mount | 6.80" L x 3.33" W x 2.80" H (172.7mm x 84.5mm x 52.8mm) |
|
|
MFA350PS48-SEFAC/DC CONVERTER 48V 350W XP Power |
2,608 |
|
数据手册 |
MFA (350W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 48V | - | - | - | - | - | 7.3 A | - | - | - | - | - | 350W (364W Forced Air) | ITE (Commercial) | 3 kV | -10°C ~ 70°C (With Derating) | Adjustable Output, Hot Swappable, Load Sharing, Standby Output, Universal Input | Chassis Mount | 8.20" L x 3.33" W x 1.75" H (208.3mm x 84.5mm x 44.5mm) |
|

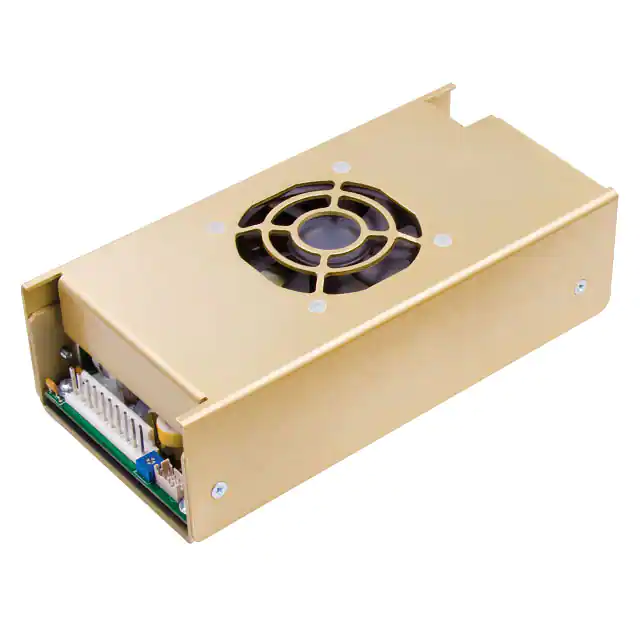

MFA350PS48-STFAC/DC CONVERTER 48V 350W XP Power |
1,107 |
|
数据手册 |
MFA (350W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 48V | - | - | - | - | - | 7.3 A | - | - | - | - | - | 350W (364W Forced Air) | ITE (Commercial) | 3 kV | -10°C ~ 70°C (With Derating) | Adjustable Output, Hot Swappable, Load Sharing, Standby Output, Universal Input | Chassis Mount | 6.80" L x 3.33" W x 2.80" H (172.7mm x 84.5mm x 52.8mm) |
|
SDC320AS12-EAC/DC CONVERTER 12V 180W XP Power |
3,247 |
|
数据手册 |
SDC (320W) | Bulk | Active | Enclosed | 1 | - | 12V | - | - | - | - | - | 15 A | - | - | - | - | - | 180W (320W Forced Air) | ITE (Commercial) | 3000 V | 0°C ~ 70°C (With Derating) | - | Chassis Mount | 7.00" L x 4.00" W x 1.60" H (177.8mm x 101.6mm x 40.6mm) |
|
|
SDC320AS24-EAC/DC CONVERTER 24V 180W XP Power |
1,868 |
|
数据手册 |
SDC (320W) | Bulk | Active | Enclosed | 1 | - | 24V | - | - | - | - | - | 7.5 A | - | - | - | - | - | 180W (320W Forced Air) | ITE (Commercial) | 3000 V | 0°C ~ 70°C (With Derating) | - | Chassis Mount | 7.00" L x 4.00" W x 1.60" H (177.8mm x 101.6mm x 40.6mm) |
|
|
SDC320AS48-EAC/DC CONVERTER 48V 180W XP Power |
2,601 |
|
数据手册 |
SDC (320W) | Bulk | Active | Enclosed | 1 | - | 48V | - | - | - | - | - | 3.75 A | - | - | - | - | - | 180W (320W Forced Air) | ITE (Commercial) | 3000 V | 0°C ~ 70°C (With Derating) | - | Chassis Mount | 7.00" L x 4.00" W x 1.60" H (177.8mm x 101.6mm x 40.6mm) |
|
EMH350PD22-UAC/DC CONVERTER 12V 36V 350W XP Power |
4,006 |
|
数据手册 |
EMH (350W) | Box | Active | Open Frame | 2 | 80 ~ 275 VAC | 12V | 36V | - | - | - | - | 16.5 A | 5.5 A | - | - | - | - | 350W | ITE (Commercial), Medical | 4 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 6.00" L x 4.00" W x 1.57" H (152.4mm x 101.6mm x 39.8mm) |
|
|
EMH350PD23-UAC/DC CONVERTER 12V 48V 350W XP Power |
1,284 |
|
数据手册 |
EMH (350W) | Box | Active | Open Frame | 2 | 80 ~ 275 VAC | 12V | 48V | - | - | - | - | 16.5 A | 4.2 A | - | - | - | - | 350W | ITE (Commercial), Medical | 4 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 6.00" L x 4.00" W x 1.57" H (152.4mm x 101.6mm x 39.8mm) |
|
|
EMH350PD24-UAC/DC CONVERTER 24V 48V 350W XP Power |
1,399 |
|
数据手册 |
EMH (350W) | Box | Active | Open Frame | 2 | 80 ~ 275 VAC | 24V | 48V | - | - | - | - | 8.3 A | 4.2 A | - | - | - | - | 350W | ITE (Commercial), Medical | 4 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 6.00" L x 4.00" W x 1.57" H (152.4mm x 101.6mm x 39.8mm) |
