| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 2 | 电流 - 输出 3 | 电流 - 输出 4 | 电流 - 输出 5 | 电流 - 输出 6 | 功率(瓦特) | 应用 | 电压 - 隔离 | 效率 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1010522CHCOREL-150-1008 CHCO |
4,484 |
|
数据手册 |
REL-150 (150W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 48V | - | - | - | - | - | 3.1 A | - | - | - | - | - | 150W | Industrial, ITE (Commercial), Laboratory, Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 6.25" L x 3.96" W x 1.48" H (156.8mm x 100.5mm x 37.6mm) | ||
|
1010518CHCOREL-150-1004 CHCO |
3,890 |
|
数据手册 |
REL-150 (150W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 12V | - | - | - | - | - | 12.5 A | - | - | - | - | - | 150W | Industrial, ITE (Commercial), Laboratory, Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 6.25" L x 3.96" W x 1.48" H (156.8mm x 100.5mm x 37.6mm) | ||
|
1010029SRW-65-3004 |
1,001 |
|
数据手册 |
SRW-65 (65W) | Box | Not For New Designs | Open Frame | 3 | 100 ~ 240 VAC | 5V | -5V | 12V | - | - | - | 5 A | 4 A | 2 A | - | - | - | 65W | Industrial, ITE (Commercial) | - | 0°C ~ 50°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 6.00" L x 4.00" W x 1.16" H (152.4mm x 101.6mm x 29.5mm) | ||
|
1010475CHREL-110-4005 CH |
4,333 |
|
数据手册 |
REL-110 (110W) | Box | Active | Chassis | 4 | 85 ~ 264 VAC | 5V | -5V | 15V | -15V | - | - | 10 A | 6 A | 2 A | 2 A | - | - | 110W | Industrial, ITE (Commercial), Laboratory, Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.25" L x 3.12" W x 1.48" H (133.4mm x 79.2mm x 37.6mm) | ||
|
1010476CHREL-110-4006 CH |
1,663 |
|
数据手册 |
REL-110 (110W) | Box | Active | Chassis | 4 | 85 ~ 264 VAC | 5V | 24V | 12V | -12V | - | - | 10 A | 2 A | 2 A | 2 A | - | - | 110W | Industrial, ITE (Commercial), Laboratory, Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.25" L x 3.12" W x 1.48" H (133.4mm x 79.2mm x 37.6mm) | ||
|
1010473CHREL-110-4003 CH |
2,318 |
|
数据手册 |
REL-110 (110W) | Box | Active | Chassis | 4 | 85 ~ 264 VAC | 5V | 3.3V | 15V | -15V | - | - | 10 A | 6 A | 2 A | 2 A | - | - | 110W | Industrial, ITE (Commercial), Laboratory, Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.25" L x 3.12" W x 1.48" H (133.4mm x 79.2mm x 37.6mm) | ||
|
1011328CHREL-110-4012 CH |
1,601 |
|
数据手册 |
REL-110 (110W) | Box | Active | Chassis | 4 | 85 ~ 264 VAC | 5V | -9V | 15V | -15V | - | - | 10 A | 3 A | 2 A | 2 A | - | - | 110W | Industrial, ITE (Commercial), Laboratory, Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 6.25" L x 3.96" W x 1.48" H (156.8mm x 100.5mm x 37.6mm) | ||
|
1010955CHREL-110-4011 CH |
4,050 |
|
数据手册 |
REL-110 (110W) | Box | Active | Chassis | 4 | 85 ~ 264 VAC | 32V | -32V | 12V | -12V | - | - | 2 A | 2 A | 1 A | 1 A | - | - | 110W | Industrial, ITE (Commercial), Laboratory, Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.25" L x 3.12" W x 1.48" H (133.4mm x 79.2mm x 37.6mm) | ||
|
1010477CHREL-110-4007 CH |
2,447 |
|
数据手册 |
REL-110 (110W) | Box | Active | Chassis | 4 | 85 ~ 264 VAC | 5V | 24V | 15V | -15V | - | - | 10 A | 2 A | 2 A | 2 A | - | - | 110W | Industrial, ITE (Commercial), Laboratory, Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.25" L x 3.12" W x 1.48" H (133.4mm x 79.2mm x 37.6mm) | ||
|
1010471CHREL-110-4001 CH |
3,088 |
|
数据手册 |
REL-110 (110W) | Box | Active | Chassis | 4 | 85 ~ 264 VAC | 3.3V | 5V | 12V | -12V | - | - | 10 A | 6 A | 2 A | 2 A | - | - | 110W | Industrial, ITE (Commercial), Laboratory, Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.25" L x 3.12" W x 1.48" H (133.4mm x 79.2mm x 37.6mm) | ||
|
1010745CHREL-110-4009 CH |
3,100 |
|
数据手册 |
REL-110 (110W) | Box | Active | Chassis | 4 | 85 ~ 264 VAC | 5V | 24V | 7V | -7V | - | - | 10 A | 2 A | 2.5 A | 2.5 A | - | - | 110W | Industrial, ITE (Commercial), Laboratory, Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.25" L x 3.12" W x 1.48" H (133.4mm x 79.2mm x 37.6mm) | ||
|
1010472CHREL-110-4002 CH |
1,235 |
|
数据手册 |
REL-110 (110W) | Box | Active | Chassis | 4 | 85 ~ 264 VAC | 5V | 3.3V | 12V | -12V | - | - | 10 A | 6 A | 2 A | 2 A | - | - | 110W | Industrial, ITE (Commercial), Laboratory, Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.25" L x 3.12" W x 1.48" H (133.4mm x 79.2mm x 37.6mm) | ||
|
1010918CHREL-110-4010 CH |
3,874 |
|
数据手册 |
REL-110 (110W) | Box | Active | Chassis | 4 | 85 ~ 264 VAC | 9V | 24V | 15V | 15V | - | - | 6 A | 2 A | 2 A | 2 A | - | - | 110W | Industrial, ITE (Commercial), Laboratory, Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.25" L x 3.12" W x 1.48" H (133.4mm x 79.2mm x 37.6mm) | ||
|
1010474CHREL-110-4004 CH |
2,669 |
|
数据手册 |
REL-110 (110W) | Box | Active | Chassis | 4 | 85 ~ 264 VAC | 5V | -5V | 12V | -12V | - | - | 10 A | 6 A | 2 A | 2 A | - | - | 110W | Industrial, ITE (Commercial), Laboratory, Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.25" L x 3.12" W x 1.48" H (133.4mm x 79.2mm x 37.6mm) | ||
|
VSBU-120-5AC/DC CONVERTER 5V 120W |
3,173 |
|
数据手册 |
VSBU-120 (120W) | Bulk | Not For New Designs | Open Frame | 1 | 90 ~ 260 VAC | 5V | - | - | - | - | - | 22 A | - | - | - | - | - | 120W | ITE (Commercial) | 4.242 kV | 0°C ~ 70°C (With Derating) | PFC, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.28" H (127.0mm x 76.2mm x 32.5mm) | ||
|
|

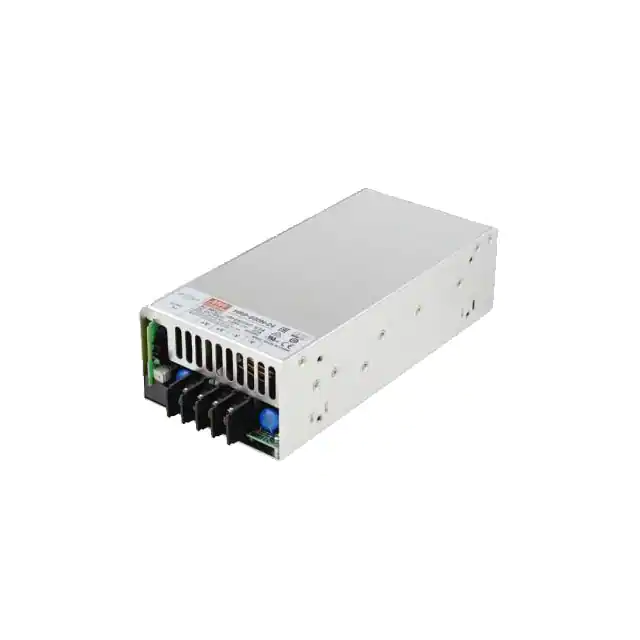

HRP-600N-48AC/DC CONVERTER 48V 624W |
3,144 |
|
数据手册 |
HRP-600N (600W) | Box | Obsolete | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 48V | - | - | - | - | - | 13 A | - | - | - | - | - | 624W | ITE (Commercial) | 3 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote Sense, Universal Input | Chassis Mount | 8.58" L x 4.13" W x 2.42" H (218.0mm x 105.0mm x 61.5mm) | ||
|
|
HRP-600N-24AC/DC CONVERTER 24V 648W |
4,121 |
|
数据手册 |
HRP-600N (600W) | Box | Obsolete | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 24V | - | - | - | - | - | 27 A | - | - | - | - | - | 648W | ITE (Commercial) | 3 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote Sense, Universal Input | Chassis Mount | 8.58" L x 4.13" W x 2.42" H (218.0mm x 105.0mm x 61.5mm) | ||
|
1010025SRW-65-4006 |
1,958 |
|
数据手册 |
SRW-65 (65W) | Box | Not For New Designs | Open Frame | 4 | 100 ~ 240 VAC | 5V | 24V | 15V | -15V | - | - | 5 A | 1 A | 2 A | 2 A | - | - | 65W | Industrial, ITE (Commercial) | - | 0°C ~ 50°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 6.00" L x 4.00" W x 1.16" H (152.4mm x 101.6mm x 29.5mm) | ||
|
1010024SRW-65-4005 |
2,229 |
|
数据手册 |
SRW-65 (65W) | Box | Not For New Designs | Open Frame | 4 | 100 ~ 240 VAC | 5V | 24V | 12V | -5V | - | - | 5 A | 1 A | 2 A | 2 A | - | - | 65W | Industrial, ITE (Commercial) | - | 0°C ~ 50°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 6.00" L x 4.00" W x 1.16" H (152.4mm x 101.6mm x 29.5mm) | ||
|
|

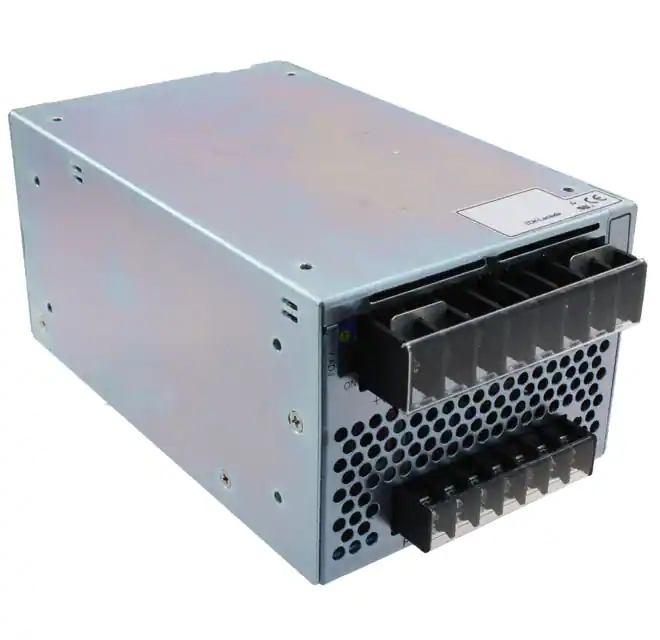

SWS600-3/CO2AC/DC CONVERTER 3.3V 600W |
181 |
|
数据手册 |
SWS600 (600W) | Bulk | Obsolete | Enclosed | 1 | 85 ~ 265 VAC | 3.3V | - | - | - | - | - | 100 A | - | - | - | - | - | 600W | ITE (Commercial) | 3 kV | -20°C ~ 74°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 7.48" L x 3.62" W x 4.72" H (190.0mm x 91.9mm x 119.9mm) |
