交流直流转换器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 2 | 电流 - 输出 3 | 电流 - 输出 4 | 电流 - 输出 5 | 电流 - 输出 6 | 功率（瓦特） | 应用 | 电压 - 隔离 | 效率 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1010037CHSRW-65-1002 CH |
4,406 |
|
数据手册 |
SRW-65 (65W) | Box | Not For New Designs | Chassis | 1 | 100 ~ 240 VAC | 12V | - | - | - | - | - | 5.4 A | - | - | - | - | - | 65W | Industrial, ITE (Commercial) | - | 0°C ~ 50°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 6.23" L x 4.25" W x 1.65" H (158.2mm x 108.0mm x 41.9mm) | ||
|
|
1010039CHSRW-65-1004 CH |
4,778 |
|
数据手册 |
SRW-65 (65W) | Box | Not For New Designs | Chassis | 1 | 100 ~ 240 VAC | 24V | - | - | - | - | - | 2.7 A | - | - | - | - | - | 65W | Industrial, ITE (Commercial) | - | 0°C ~ 50°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 6.23" L x 4.25" W x 1.65" H (158.2mm x 108.0mm x 41.9mm) | ||
|
GPM40-12GAC/DC CONVERTER 12V 40W |
1,995 |
|
数据手册 |
GPM40 (40W) | Bulk | Obsolete | Open Frame | 1 | 85 ~ 264 VAC | 12V | - | - | - | - | - | 3.3 A | - | - | - | - | - | 40W (50W Forced Air) | Medical | - | 0°C ~ 50°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.28" H (127.0mm x 76.2mm x 32.5mm) | ||
|
1010478CHCOREL-110-3001 CHCO |
1,672 |
|
数据手册 |
REL-110 (110W) | Box | Active | Enclosed | 3 | 85 ~ 264 VAC | 5V | 12V | - | -12V | - | - | 10 A | 3 A | 3 A | - | - | - | 110W | Industrial, ITE (Commercial), Laboratory, Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.25" L x 3.12" W x 1.48" H (133.4mm x 79.2mm x 37.6mm) | ||
|
|
1010479CHCOREL-110-3002 CHCO |
1,024 |
|
数据手册 |
REL-110 (110W) | Box | Active | Enclosed | 3 | 85 ~ 264 VAC | 5V | 15V | - | -15V | - | - | 10 A | 2 A | 2 A | - | - | - | 110W | Industrial, ITE (Commercial), Laboratory, Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.25" L x 3.12" W x 1.48" H (133.4mm x 79.2mm x 37.6mm) | ||
|
|
1011318CHCOREL-110-3006 CHCO |
3,108 |
|
数据手册 |
REL-110 (110W) | Box | Active | Enclosed | 3 | 85 ~ 264 VAC | 5V | 15V | - | 15V | - | - | 7 A | 3.5 A | 2 A | - | - | - | 110W | Industrial, ITE (Commercial), Laboratory, Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.25" L x 3.12" W x 1.48" H (133.4mm x 79.2mm x 37.6mm) | ||
|
|
1010841CHCOREL-110-3005 CHCO |
3,465 |
|
数据手册 |
REL-110 (110W) | Box | Active | Enclosed | 3 | 85 ~ 264 VAC | 5V | 9.5V | - | 9.5V | - | - | 12 A | 1 A | 1 A | - | - | - | 110W | Industrial, ITE (Commercial), Laboratory, Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.25" L x 3.12" W x 1.48" H (133.4mm x 79.2mm x 37.6mm) | ||
|
|
1011051CHCOREL-110-3007 CHCO |
3,004 |
|
数据手册 |
REL-110 (110W) | Box | Active | Enclosed | 3 | 85 ~ 264 VAC | 20V | 12V | - | 12V | - | - | 2.5 A | 2.5 A | 2.5 A | - | - | - | 110W | Industrial, ITE (Commercial), Laboratory, Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.25" L x 3.12" W x 1.48" H (133.4mm x 79.2mm x 37.6mm) | ||
|
|
1010827CHCOREL-110-3004 CHCO |
3,626 |
|
数据手册 |
REL-110 (110W) | Box | Active | Enclosed | 3 | 85 ~ 264 VAC | 9V | 24V | 13V | - | - | - | 3 A | 3 A | 2 A | - | - | - | 110W | Industrial, ITE (Commercial), Laboratory, Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.25" L x 3.12" W x 1.48" H (133.4mm x 79.2mm x 37.6mm) | ||
|
DB12-10AC/DC CONVERTER |
999 |
|
数据手册 |
- | Bulk | Active | Enclosed | 2 | 105 ~ 125 VAC | 12V | -12V | - | - | - | - | 100 mA | 100 mA | - | - | - | - | - | ITE (Commercial) | - | -20°C ~ 71°C | Adjustable Output | Chassis Mount | 3.53" L x 2.53" W x 1.41" H (89.7mm x 64.3mm x 35.8mm) | ||
|
DB15-10AC/DC CONVERTER |
993 |
|
数据手册 |
- | Bulk | Active | Enclosed | 2 | 105 ~ 125 VAC | 15V | -15V | - | - | - | - | 100 mA | 100 mA | - | - | - | - | - | ITE (Commercial) | - | -20°C ~ 71°C | Adjustable Output | Chassis Mount | 3.53" L x 2.53" W x 1.41" H (89.7mm x 64.3mm x 35.8mm) | ||
|

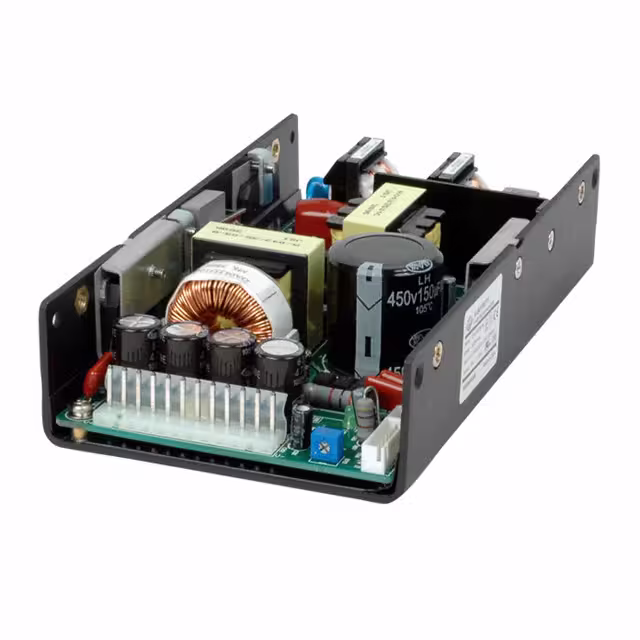

VPU-S200-36AC/DC CONVERTER 36V 200W |
3,777 |
|
数据手册 |
VPU-S200 (200W) | Bulk | Obsolete | Open Frame | 1 | 85 ~ 264 VAC | 36V | - | - | - | - | - | 5.5 A | - | - | - | - | - | 200W | ITE (Commercial) | 3 kV | -10°C ~ 65°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 6.80" L x 3.80" W x 1.50" H (172.7mm x 96.5mm x 38.1mm) | ||
|
VOF-275-12AC/DC CONVERTER 12V 160W |
3,901 |
|
数据手册 |
VOF-275 (275W) | Bulk | Obsolete | Open Frame | 1 | 80 ~ 264 VAC | 12V | - | - | - | - | - | 13.33 A | - | - | - | - | - | 160W (275W Forced Air) | ITE (Commercial) | 3 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 0.75" H (127.0mm x 76.2mm x 19.1mm) | ||
|
1010772CHCOREL-150-1010 CHCO |
4,117 |
|
数据手册 |
REL-150 (150W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 36V | - | - | - | - | - | 4.16 A | - | - | - | - | - | 150W | Industrial, ITE (Commercial), Laboratory, Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 6.25" L x 3.96" W x 1.48" H (156.8mm x 100.5mm x 37.6mm) | ||
|
|
1010520CHCOREL-150-1006 CHCO |
4,709 |
|
数据手册 |
REL-150 (150W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 6.3 A | - | - | - | - | - | 150W | Industrial, ITE (Commercial), Laboratory, Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 6.25" L x 3.96" W x 1.48" H (156.8mm x 100.5mm x 37.6mm) | ||
|
|
1010517CHCOREL-150-1003 CHCO |
2,195 |
|
数据手册 |
REL-150 (150W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 5V | - | - | - | - | - | 30 A | - | - | - | - | - | 150W | Industrial, ITE (Commercial), Laboratory, Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 6.25" L x 3.96" W x 1.48" H (156.8mm x 100.5mm x 37.6mm) | ||
|
|
1010516CHCOREL-150-1002 CHCO |
3,846 |
|
数据手册 |
REL-150 (150W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 3.3V | - | - | - | - | - | 30 A | - | - | - | - | - | 150W | Industrial, ITE (Commercial), Laboratory, Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 6.25" L x 3.96" W x 1.48" H (156.8mm x 100.5mm x 37.6mm) | ||
|
|
1010515CHCOREL-150-1001 CHCO |
3,645 |
|
数据手册 |
REL-150 (150W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 2.5V | - | - | - | - | - | 30 A | - | - | - | - | - | 150W | Industrial, ITE (Commercial), Laboratory, Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 6.25" L x 3.96" W x 1.48" H (156.8mm x 100.5mm x 37.6mm) | ||
|
|
1010521CHCOREL-150-1007 CHCO |
1,689 |
|
数据手册 |
REL-150 (150W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 28V | - | - | - | - | - | 5.4 A | - | - | - | - | - | 150W | Industrial, ITE (Commercial), Laboratory, Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 6.25" L x 3.96" W x 1.48" H (156.8mm x 100.5mm x 37.6mm) | ||
|
|
1010519CHCOREL-150-1005 CHCO |
4,510 |
|
数据手册 |
REL-150 (150W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 15V | - | - | - | - | - | 10 A | - | - | - | - | - | 150W | Industrial, ITE (Commercial), Laboratory, Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 6.25" L x 3.96" W x 1.48" H (156.8mm x 100.5mm x 37.6mm) |
