交流直流转换器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 2 | 电流 - 输出 3 | 电流 - 输出 4 | 电流 - 输出 5 | 电流 - 输出 6 | 功率（瓦特） | 应用 | 电压 - 隔离 | 效率 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1010981CHNXT-100-1007,RE CH |
3,374 |
|
数据手册 |
NXT-100 (100W) | Box | Active | Chassis | 1 | 100 ~ 240 VAC | 28V | - | - | - | - | - | 3.6 A | - | - | - | - | - | 100W | ITE (Commercial), Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 4.81" L x 2.59" W x 1.30" H (122.2mm x 65.8mm x 33.0mm) | ||
|
PMMK150S-24UAC/DC CONVERTER 24V 151W |
310 |
|
数据手册 |
PMMK150U (151W) | Bulk | Active | Open Frame | 1 | 90 ~ 264 VAC | 24V | - | - | - | - | - | 6.3 A | - | - | - | - | - | 151W | Medical | 5.656 kV | -10°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 5.50" L x 3.17" W x 1.60" H (139.7mm x 80.5mm x 40.6mm) | ||
|
|
PMMK150D-CAC/DC CONVERTER 12V 24V 168W |
3,710 |
|
数据手册 |
PMMK150U (168W) | Bulk | Active | Open Frame | 2 | 90 ~ 264 VAC | 12V | 24V | - | - | - | - | 7 A | 3.5 A | - | - | - | - | 168W | Medical | 5.656 kV | -10°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 5.50" L x 3.17" W x 1.60" H (139.7mm x 80.5mm x 40.6mm) | ||
|
|
MK320S-15AC/DC CONVERTER 15V 300W |
2,010 |
|
数据手册 |
MK320S (300W) | Bulk | Active | Enclosed | 1 | 100VAC | 15V | - | - | - | - | - | 20 A | - | - | - | - | - | 300W | ITE (Commercial) | 4.242 kV | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 7.00" L x 4.00" W x 2.00" H (177.8mm x 101.6mm x 50.8mm) | ||
|
|
GU300S24KAC/DC CONVERTER 24V 184W |
4,726 |
|
数据手册 |
GU300 (300W) | Bulk | Obsolete | Open Frame | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 7.7 A | - | - | - | - | - | 184W (284W Forced Air) | ITE (Commercial), Medical | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, PMBus™, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.50" H (127.0mm x 76.2mm x 38.1mm) | ||
|

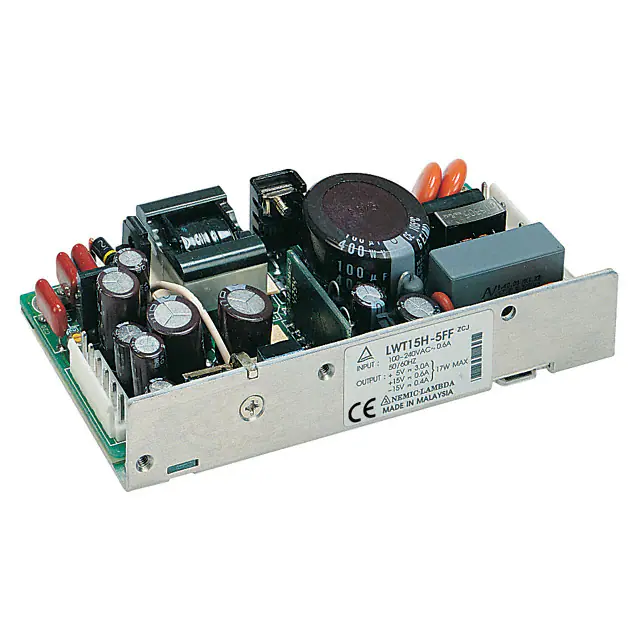

LWT15H-522AC/DC CONVERTER 5V +/-12V 15W |
1,696 |
|
数据手册 |
LW (17W) | Bulk | Obsolete | Open Frame | 3 | 85 ~ 265 VAC | 5V | 12V | -12V | - | - | - | 3 A | 600 mA | 400 mA | - | - | - | 15W | ITE (Commercial) | 3 kV | 0°C ~ 60°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 5.03" L x 2.36" W x 0.98" H (128.0mm x 59.9mm x 25.0mm) | ||
|
|
LWT15H-5FFAC/DC CONVERTER 5V +/-15V 15W |
1,582 |
|
数据手册 |
LW (17W) | Bulk | Obsolete | Open Frame | 3 | 85 ~ 265 VAC | 5V | 15V | -15V | - | - | - | 3 A | 600 mA | 400 mA | - | - | - | 15W | ITE (Commercial) | 3 kV | 0°C ~ 60°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 5.03" L x 2.36" W x 0.98" H (128.0mm x 59.9mm x 25.0mm) | ||
|
1010992NXT-100-1002,LS-RE |
4,355 |
|
数据手册 |
NXT-100 (100W) | Box | Active | Open Frame | 1 | 100 ~ 240 VAC | 3.3V | - | - | - | - | - | 20 A | - | - | - | - | - | 100W | ITE (Commercial), Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 4.50" L x 2.50" W x 1.00" H (114.3mm x 63.5mm x 25.4mm) | ||
|
|
1010993NXT-100-1003,LS-RE |
2,653 |
|
数据手册 |
NXT-100 (100W) | Box | Active | Open Frame | 1 | 100 ~ 240 VAC | 5V | - | - | - | - | - | 20 A | - | - | - | - | - | 100W | ITE (Commercial), Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 4.50" L x 2.50" W x 1.00" H (114.3mm x 63.5mm x 25.4mm) | ||
|
|
1010991NXT-100-1001,LS-RE |
3,200 |
|
数据手册 |
NXT-100 (100W) | Box | Active | Open Frame | 1 | 100 ~ 240 VAC | 2.5V | - | - | - | - | - | 20 A | - | - | - | - | - | 100W | ITE (Commercial), Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 4.50" L x 2.50" W x 1.00" H (114.3mm x 63.5mm x 25.4mm) | ||
|
|
1010994NXT-100-1004,LS-RE |
3,043 |
|
数据手册 |
NXT-100 (100W) | Box | Active | Open Frame | 1 | 100 ~ 240 VAC | 12V | - | - | - | - | - | 8.3 A | - | - | - | - | - | 100W | ITE (Commercial), Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 4.50" L x 2.50" W x 1.00" H (114.3mm x 63.5mm x 25.4mm) | ||
|
|
1010998NXT-100-1008,LS-RE |
4,617 |
|
数据手册 |
NXT-100 (100W) | Box | Active | Open Frame | 1 | 100 ~ 240 VAC | 48V | - | - | - | - | - | 2.1 A | - | - | - | - | - | 100W | ITE (Commercial), Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 4.50" L x 2.50" W x 1.00" H (114.3mm x 63.5mm x 25.4mm) | ||
|
|
1010995NXT-100-1005,LS-RE |
4,955 |
|
数据手册 |
NXT-100 (100W) | Box | Active | Open Frame | 1 | 100 ~ 240 VAC | 15V | - | - | - | - | - | 6.7 A | - | - | - | - | - | 100W | ITE (Commercial), Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 4.50" L x 2.50" W x 1.00" H (114.3mm x 63.5mm x 25.4mm) | ||
|
|
1010996NXT-100-1006,LS-RE |
2,378 |
|
数据手册 |
NXT-100 (100W) | Box | Active | Open Frame | 1 | 100 ~ 240 VAC | 24V | - | - | - | - | - | 4.2 A | - | - | - | - | - | 100W | ITE (Commercial), Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 4.50" L x 2.50" W x 1.00" H (114.3mm x 63.5mm x 25.4mm) | ||
|
1010985CHCONXT-100-1003,LS CHCO |
1,923 |
|
数据手册 |
NXT-100 (100W) | Box | Active | Enclosed | 1 | 100 ~ 240 VAC | 5V | - | - | - | - | - | 20 A | - | - | - | - | - | 100W | ITE (Commercial), Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 4.81" L x 2.59" W x 1.30" H (122.2mm x 65.8mm x 33.0mm) | ||
|
|
1010989CHCONXT-100-1007,LS CHCO |
1,750 |
|
数据手册 |
NXT-100 (100W) | Box | Active | Enclosed | 1 | 100 ~ 240 VAC | 28V | - | - | - | - | - | 3.6 A | - | - | - | - | - | 100W | ITE (Commercial), Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 4.81" L x 2.59" W x 1.30" H (122.2mm x 65.8mm x 33.0mm) | ||
|
|
1010988CHCONXT-100-1006,LS CHCO |
1,984 |
|
数据手册 |
NXT-100 (100W) | Box | Active | Enclosed | 1 | 100 ~ 240 VAC | 24V | - | - | - | - | - | 4.2 A | - | - | - | - | - | 100W | ITE (Commercial), Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 4.81" L x 2.59" W x 1.30" H (122.2mm x 65.8mm x 33.0mm) | ||
|
|
1010986CHCONXT-100-1004,LS CHCO |
3,671 |
|
数据手册 |
NXT-100 (100W) | Box | Active | Enclosed | 1 | 100 ~ 240 VAC | 12V | - | - | - | - | - | 8.3 A | - | - | - | - | - | 100W | ITE (Commercial), Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 4.81" L x 2.59" W x 1.30" H (122.2mm x 65.8mm x 33.0mm) | ||
|
|
1010983CHCONXT-100-1001,LS CHCO |
3,405 |
|
数据手册 |
NXT-100 (100W) | Box | Active | Enclosed | 1 | 100 ~ 240 VAC | 2.5V | - | - | - | - | - | 20 A | - | - | - | - | - | 100W | ITE (Commercial), Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 4.81" L x 2.59" W x 1.30" H (122.2mm x 65.8mm x 33.0mm) | ||
|
|
1010990CHCONXT-100-1008,LS CHCO |
1,009 |
|
数据手册 |
NXT-100 (100W) | Box | Active | Enclosed | 1 | 100 ~ 240 VAC | 48V | - | - | - | - | - | 2.1 A | - | - | - | - | - | 100W | ITE (Commercial), Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 4.81" L x 2.59" W x 1.30" H (122.2mm x 65.8mm x 33.0mm) |
