交流直流转换器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 2 | 电流 - 输出 3 | 电流 - 输出 4 | 电流 - 输出 5 | 电流 - 输出 6 | 功率（瓦特） | 应用 | 电压 - 隔离 | 效率 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

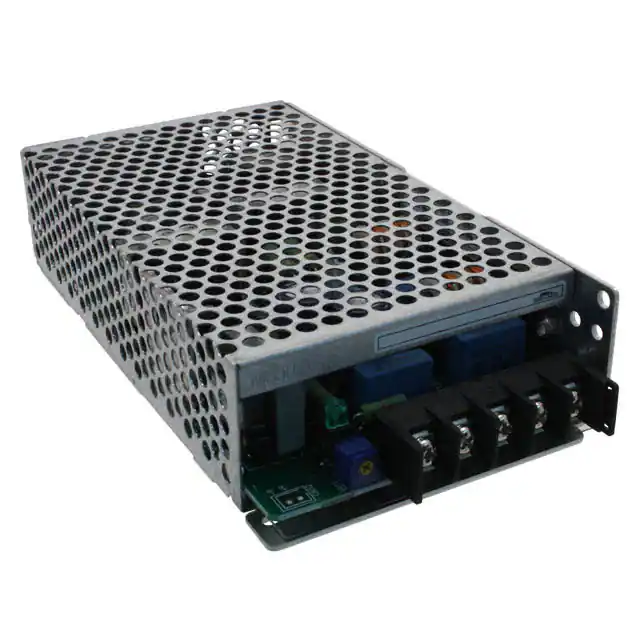

JWS50-28/AAC/DC CONVERTER 28V 50W |
4,841 |
|
数据手册 |
JWS (50W) | Bulk | Obsolete | Enclosed | 1 | 85 ~ 265 VAC | 28V | - | - | - | - | - | 2 A | - | - | - | - | - | 50W | ITE (Commercial) | 3 kV | -10°C ~ 60°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Universal Input | Chassis Mount | 6.25" L x 3.35" W x 1.45" H (158.8mm x 85.1mm x 36.8mm) | ||
|
HDM500U-148AC/DC CONVERTER 48V 500W |
103 |
|
数据手册 |
HDM500 (500W) | Bulk | Active | Open Frame | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 48V | - | - | - | - | - | 10.41 A | - | - | - | - | - | 500W | ITE (Commercial), Medical | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 5.50" L x 3.25" W x 1.60" H (139.7mm x 82.6mm x 40.6mm) | ||
|
1010113CHCOSRW-45-4005 CHCO |
2,152 |
|
数据手册 |
SRW-45 (45W) | Box | Not For New Designs | Enclosed | 4 | 100 ~ 240 VAC | 5V | 24V | -12V | -5V | - | - | 5 A | 1 A | 700 mA | 700 mA | - | - | 45W | Industrial, ITE (Commercial) | - | 0°C ~ 50°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.15" L x 3.25" W x 1.56" H (130.8mm x 82.6mm x 39.6mm) | ||
|
|
1010252CHCOSRW-45-4008 CHCO |
3,090 |
|
数据手册 |
SRW-45 (45W) | Box | Not For New Designs | Enclosed | 4 | 100 ~ 240 VAC | 3.3V | 3.3V | 5V | 12V | - | - | 5 A | 3 A | 3 A | 700 mA | - | - | 45W | Industrial, ITE (Commercial) | - | 0°C ~ 50°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.15" L x 3.25" W x 1.56" H (130.8mm x 82.6mm x 39.6mm) | ||
|
|
1010448CHCOSRW-45-4012 CHCO |
3,998 |
|
数据手册 |
SRW-45 (45W) | Box | Not For New Designs | Enclosed | 4 | 100 ~ 240 VAC | 5V | 12V | 9V | -12V | - | - | 5 A | 3 A | 1 A | 700 mA | - | - | 45W | Industrial, ITE (Commercial) | - | 0°C ~ 50°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.15" L x 3.25" W x 1.56" H (130.8mm x 82.6mm x 39.6mm) | ||
|
|
1010112CHCOSRW-45-4004 CHCO |
1,719 |
|
数据手册 |
SRW-45 (45W) | Box | Not For New Designs | Enclosed | 4 | 100 ~ 240 VAC | 5V | 24V | 15V | -15V | - | - | 5 A | 1 A | 700 mA | 700 mA | - | - | 45W | Industrial, ITE (Commercial) | - | 0°C ~ 50°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.15" L x 3.25" W x 1.56" H (130.8mm x 82.6mm x 39.6mm) | ||
|
|
1010110CHCOSRW-45-4002 CHCO |
3,603 |
|
数据手册 |
SRW-45 (45W) | Box | Not For New Designs | Enclosed | 4 | 100 ~ 240 VAC | 5V | -5V | 15V | -15V | - | - | 5 A | 2 A | 700 mA | 700 mA | - | - | 45W | Industrial, ITE (Commercial) | - | 0°C ~ 50°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.15" L x 3.25" W x 1.56" H (130.8mm x 82.6mm x 39.6mm) | ||
|
|
1010251CHCOSRW-45-4007 CHCO |
3,856 |
|
数据手册 |
SRW-45 (45W) | Box | Not For New Designs | Enclosed | 4 | 100 ~ 240 VAC | 8V | 8V | 18V | 18V | - | - | 2 A | 500 mA | 700 mA | 700 mA | - | - | 45W | Industrial, ITE (Commercial) | - | 0°C ~ 50°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.15" L x 3.25" W x 1.56" H (130.8mm x 82.6mm x 39.6mm) | ||
|
|
1010111CHCOSRW-45-4003 CHCO |
3,472 |
|
数据手册 |
SRW-45 (45W) | Box | Not For New Designs | Enclosed | 4 | 100 ~ 240 VAC | 5V | 24V | 12V | -12V | - | - | 5 A | 1 A | 700 mA | 700 mA | - | - | 45W | Industrial, ITE (Commercial) | - | 0°C ~ 50°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.15" L x 3.25" W x 1.56" H (130.8mm x 82.6mm x 39.6mm) | ||
|
|
1010109CHCOSRW-45-4001 CHCO |
4,793 |
|
数据手册 |
SRW-45 (45W) | Box | Not For New Designs | Enclosed | 4 | 100 ~ 240 VAC | 5V | -5V | 12V | -12V | - | - | 5 A | 2 A | 700 mA | 700 mA | - | - | 45W | Industrial, ITE (Commercial) | - | 0°C ~ 50°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.15" L x 3.25" W x 1.56" H (130.8mm x 82.6mm x 39.6mm) | ||
|
|
1010361CHCOSRW-45-4009 CHCO |
4,550 |
|
数据手册 |
SRW-45 (45W) | Box | Not For New Designs | Enclosed | 4 | 100 ~ 240 VAC | 5V | 27V | 15V | -15V | - | - | 5 A | 1 A | 700 mA | 700 mA | - | - | 45W | Industrial, ITE (Commercial) | - | 0°C ~ 50°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.15" L x 3.25" W x 1.56" H (130.8mm x 82.6mm x 39.6mm) | ||
|
|
1010114CHCOSRW-45-4006 CHCO |
3,371 |
|
数据手册 |
SRW-45 (45W) | Box | Not For New Designs | Enclosed | 4 | 100 ~ 240 VAC | 5V | 15V | 15V | -15V | - | - | 5 A | 2 A | 700 mA | 700 mA | - | - | 45W | Industrial, ITE (Commercial) | - | 0°C ~ 50°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.15" L x 3.25" W x 1.56" H (130.8mm x 82.6mm x 39.6mm) | ||
|
CFM351M240AC/DC CONVERTER 24V 350W |
1,001 |
|
数据手册 |
CFM351M (350W) | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC | 24V | - | - | - | - | - | 14.6 A | - | - | - | - | - | 350W | ITE (Commercial), Medical | 5.656 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 6.50" L x 4.00" W x 1.52" H (165.1mm x 101.6mm x 38.6mm) | ||
|
1010977CHNXT-100-1003,RE CH |
2,207 |
|
数据手册 |
NXT-100 (100W) | Box | Active | Chassis | 1 | 100 ~ 240 VAC | 5V | - | - | - | - | - | 20 A | - | - | - | - | - | 100W | ITE (Commercial), Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 4.81" L x 2.59" W x 1.30" H (122.2mm x 65.8mm x 33.0mm) | ||
|
|
1010979CHNXT-100-1005,RE CH |
3,922 |
|
数据手册 |
NXT-100 (100W) | Box | Active | Chassis | 1 | 100 ~ 240 VAC | 15V | - | - | - | - | - | 6.7 A | - | - | - | - | - | 100W | ITE (Commercial), Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 4.81" L x 2.59" W x 1.30" H (122.2mm x 65.8mm x 33.0mm) | ||
|
|
1010975CHNXT-100-1001,RE CH |
3,988 |
|
数据手册 |
NXT-100 (100W) | Box | Active | Chassis | 1 | 100 ~ 240 VAC | 2.5V | - | - | - | - | - | 20 A | - | - | - | - | - | 100W | ITE (Commercial), Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 4.81" L x 2.59" W x 1.30" H (122.2mm x 65.8mm x 33.0mm) | ||
|
|
1010978CHNXT-100-1004,RE CH |
3,176 |
|
数据手册 |
NXT-100 (100W) | Box | Active | Chassis | 1 | 100 ~ 240 VAC | 12V | - | - | - | - | - | 8.3 A | - | - | - | - | - | 100W | ITE (Commercial), Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 4.81" L x 2.59" W x 1.30" H (122.2mm x 65.8mm x 33.0mm) | ||
|
|
1010982CHNXT-100-1008,RE CH |
2,915 |
|
数据手册 |
NXT-100 (100W) | Box | Active | Chassis | 1 | 100 ~ 240 VAC | 48V | - | - | - | - | - | 2.1 A | - | - | - | - | - | 100W | ITE (Commercial), Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 4.81" L x 2.59" W x 1.30" H (122.2mm x 65.8mm x 33.0mm) | ||
|
|
1010976CHNXT-100-1002,RE CH |
4,050 |
|
数据手册 |
NXT-100 (100W) | Box | Active | Chassis | 1 | 100 ~ 240 VAC | 3.3V | - | - | - | - | - | 20 A | - | - | - | - | - | 100W | ITE (Commercial), Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 4.81" L x 2.59" W x 1.30" H (122.2mm x 65.8mm x 33.0mm) | ||
|
|
1010980CHNXT-100-1006,RE CH |
2,505 |
|
数据手册 |
NXT-100 (100W) | Box | Active | Chassis | 1 | 100 ~ 240 VAC | 24V | - | - | - | - | - | 4.2 A | - | - | - | - | - | 100W | ITE (Commercial), Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 4.81" L x 2.59" W x 1.30" H (122.2mm x 65.8mm x 33.0mm) |
