交流直流转换器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 2 | 电流 - 输出 3 | 电流 - 输出 4 | 电流 - 输出 5 | 电流 - 输出 6 | 功率（瓦特） | 应用 | 电压 - 隔离 | 效率 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1010107CHSRW-45-3002 CH |
3,353 |
|
数据手册 |
SRW-45 (45W) | Box | Not For New Designs | Chassis | 3 | 100 ~ 240 VAC | 5V | 15V | - | -15V | - | - | 5 A | 2 A | 700 mA | - | - | - | 45W | Industrial, ITE (Commercial) | - | 0°C ~ 50°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.15" L x 3.25" W x 1.56" H (130.8mm x 82.6mm x 39.6mm) | ||
|
|
1010234CHSRW-45-3005 CH |
3,908 |
|
数据手册 |
SRW-45 (45W) | Box | Not For New Designs | Chassis | 3 | 100 ~ 240 VAC | 5V | 18V | - | -18V | - | - | 5 A | 2 A | 700 mA | - | - | - | 45W | Industrial, ITE (Commercial) | - | 0°C ~ 50°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.15" L x 3.25" W x 1.56" H (130.8mm x 82.6mm x 39.6mm) | ||
|
1010489CHREL-110-1005 CH |
4,481 |
|
数据手册 |
REL-110 (110W) | Box | Active | Chassis | 1 | 85 ~ 264 VAC | 15V | - | - | - | - | - | 7.3 A | - | - | - | - | - | 110W | Industrial, ITE (Commercial), Laboratory, Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.25" L x 3.12" W x 1.48" H (133.4mm x 79.2mm x 37.6mm) | ||
|
|
1010487CHREL-110-1003 CH |
1,683 |
|
数据手册 |
REL-110 (110W) | Box | Active | Chassis | 1 | 85 ~ 264 VAC | 5V | - | - | - | - | - | 22 A | - | - | - | - | - | 110W | Industrial, ITE (Commercial), Laboratory, Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.25" L x 3.12" W x 1.48" H (133.4mm x 79.2mm x 37.6mm) | ||
|
|
1010486CHREL-110-1002 CH |
1,973 |
|
数据手册 |
REL-110 (110W) | Box | Active | Chassis | 1 | 85 ~ 264 VAC | 3.3V | - | - | - | - | - | 22 A | - | - | - | - | - | 110W | Industrial, ITE (Commercial), Laboratory, Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.25" L x 3.12" W x 1.48" H (133.4mm x 79.2mm x 37.6mm) | ||
|
|
1010488CHREL-110-1004 CH |
3,815 |
|
数据手册 |
REL-110 (110W) | Box | Active | Chassis | 1 | 85 ~ 264 VAC | 12V | - | - | - | - | - | 9.2 A | - | - | - | - | - | 110W | Industrial, ITE (Commercial), Laboratory, Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.25" L x 3.12" W x 1.48" H (133.4mm x 79.2mm x 37.6mm) | ||
|
|
1010491CHREL-110-1007 CH |
4,155 |
|
数据手册 |
REL-110 (110W) | Box | Active | Chassis | 1 | 85 ~ 264 VAC | 28V | - | - | - | - | - | 3.9 A | - | - | - | - | - | 110W | Industrial, ITE (Commercial), Laboratory, Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.25" L x 3.12" W x 1.48" H (133.4mm x 79.2mm x 37.6mm) | ||
|
|
1010485CHREL-110-1001 CH |
4,331 |
|
数据手册 |
REL-110 (110W) | Box | Active | Chassis | 1 | 85 ~ 264 VAC | 2.5V | - | - | - | - | - | 22 A | - | - | - | - | - | 110W | Industrial, ITE (Commercial), Laboratory, Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.25" L x 3.12" W x 1.48" H (133.4mm x 79.2mm x 37.6mm) | ||
|
|
1010492CHREL-110-1008 CH |
4,191 |
|
数据手册 |
REL-110 (110W) | Box | Active | Chassis | 1 | 85 ~ 264 VAC | 48V | - | - | - | - | - | 2.3 A | - | - | - | - | - | 110W | Industrial, ITE (Commercial), Laboratory, Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.25" L x 3.12" W x 1.48" H (133.4mm x 79.2mm x 37.6mm) | ||
|
|
1010490CHREL-110-1006 CH |
2,961 |
|
数据手册 |
REL-110 (110W) | Box | Active | Chassis | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 4.6 A | - | - | - | - | - | 110W | Industrial, ITE (Commercial), Laboratory, Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.25" L x 3.12" W x 1.48" H (133.4mm x 79.2mm x 37.6mm) | ||
|
400152-01-3AC/DC CONVERTER 5V +/-12V 167W |
4,051 |
|
数据手册 |
XR125 (125W) | Bulk | Active | Open Frame | 3 | 100 ~ 240 VAC | 5V | 12V | -12V | - | - | - | 16.5 A | 6 A | - | 1 A | - | - | 167W | ITE (Commercial) | 3 kV | -25°C ~ 70°C (With Derating) | Load Sharing, PFC, Remote Sense, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.32" H (127.0mm x 76.2mm x 33.6mm) | ||
|

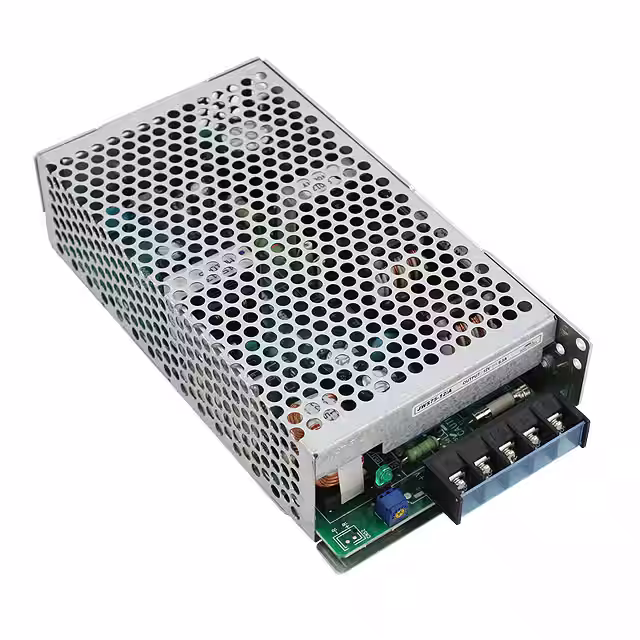

JWS75-48/AAC/DC CONVERTER 48V 75W |
4,099 |
|
数据手册 |
JWS (75W) | Bulk | Obsolete | Enclosed | 1 | 85 ~ 265 VAC | 48V | - | - | - | - | - | 1.6 A | - | - | - | - | - | 75W | ITE (Commercial) | 3 kV | -10°C ~ 60°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Universal Input | Chassis Mount | 6.88" L x 3.62" W x 1.65" H (174.8mm x 91.9mm x 41.9mm) | ||
|
1010989NXT-100-1007,LS |
1,235 |
|
数据手册 |
NXT-100 (100W) | Box | Active | Open Frame | 1 | 100 ~ 240 VAC | 28V | - | - | - | - | - | 3.6 A | - | - | - | - | - | 100W | ITE (Commercial), Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 4.50" L x 2.50" W x 1.00" H (114.3mm x 63.5mm x 25.4mm) | ||
|
|
1010990NXT-100-1008,LS |
4,293 |
|
数据手册 |
NXT-100 (100W) | Box | Active | Open Frame | 1 | 100 ~ 240 VAC | 48V | - | - | - | - | - | 2.1 A | - | - | - | - | - | 100W | ITE (Commercial), Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 4.50" L x 2.50" W x 1.00" H (114.3mm x 63.5mm x 25.4mm) | ||
|
|
1010988NXT-100-1006,LS |
4,761 |
|
数据手册 |
NXT-100 (100W) | Box | Active | Open Frame | 1 | 100 ~ 240 VAC | 24V | - | - | - | - | - | 4.2 A | - | - | - | - | - | 100W | ITE (Commercial), Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 4.50" L x 2.50" W x 1.00" H (114.3mm x 63.5mm x 25.4mm) | ||
|
|
1010985NXT-100-1003,LS |
1,926 |
|
数据手册 |
NXT-100 (100W) | Box | Active | Open Frame | 1 | 100 ~ 240 VAC | 5V | - | - | - | - | - | 20 A | - | - | - | - | - | 100W | ITE (Commercial), Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 4.50" L x 2.50" W x 1.00" H (114.3mm x 63.5mm x 25.4mm) | ||
|
|
1010983NXT-100-1001,LS |
2,346 |
|
数据手册 |
NXT-100 (100W) | Box | Active | Open Frame | 1 | 100 ~ 240 VAC | 2.5V | - | - | - | - | - | 20 A | - | - | - | - | - | 100W | ITE (Commercial), Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 4.50" L x 2.50" W x 1.00" H (114.3mm x 63.5mm x 25.4mm) | ||
|
|
1010984NXT-100-1002,LS |
4,952 |
|
数据手册 |
NXT-100 (100W) | Box | Active | Open Frame | 1 | 100 ~ 240 VAC | 3.3V | - | - | - | - | - | 20 A | - | - | - | - | - | 100W | ITE (Commercial), Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 4.50" L x 2.50" W x 1.00" H (114.3mm x 63.5mm x 25.4mm) | ||
|
|
1010987NXT-100-1005,LS |
3,002 |
|
数据手册 |
NXT-100 (100W) | Box | Active | Open Frame | 1 | 100 ~ 240 VAC | 15V | - | - | - | - | - | 6.7 A | - | - | - | - | - | 100W | ITE (Commercial), Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 4.50" L x 2.50" W x 1.00" H (114.3mm x 63.5mm x 25.4mm) | ||
|
HC15-3-A+GAC/DC CONVERTER 15V 45W |
2,782 |
|
数据手册 |
Linear C | Bulk | Active | Linear | 1 | 100 ~ 240 VAC | 15V | - | - | - | - | - | 3 A | - | - | - | - | - | 45W | ITE (Commercial) | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.63" L x 4.88" W x 2.50" H (143.0mm x 124.0mm x 63.5mm) |
