| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 2 | 电流 - 输出 3 | 电流 - 输出 4 | 电流 - 输出 5 | 电流 - 输出 6 | 功率(瓦特) | 应用 | 电压 - 隔离 | 效率 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

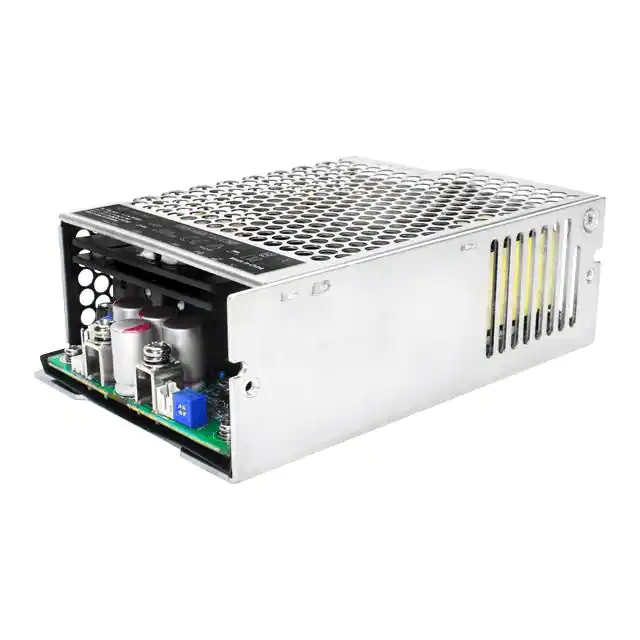

VMS-550C-27-CNFAC/DC CONVERTER 27V 551W |
4,540 |
|
数据手册 |
VMS-550C-CNF (550W) | Box | Not For New Designs | Enclosed | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 27V | - | - | - | - | - | 20.4 A | - | - | - | - | - | 551W | ITE (Commercial), Medical | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Remote Sense, Standby Output, Universal Input | Chassis Mount | 5.12" L x 3.39" W x 1.69" H (130.0mm x 86.0mm x 43.0mm) | ||
|
1010970NXT-100-1004 |
2,516 |
|
数据手册 |
NXT-100 (100W) | Box | Active | Open Frame | 1 | 100 ~ 240 VAC | 12V | - | - | - | - | - | 8.3 A | - | - | - | - | - | 100W | ITE (Commercial), Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 4.50" L x 2.50" W x 1.00" H (114.3mm x 63.5mm x 25.4mm) | ||
|
1010968NXT-100-1002 |
3,074 |
|
数据手册 |
NXT-100 (100W) | Box | Active | Open Frame | 1 | 100 ~ 240 VAC | 3.3V | - | - | - | - | - | 20 A | - | - | - | - | - | 100W | ITE (Commercial), Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 4.50" L x 2.50" W x 1.00" H (114.3mm x 63.5mm x 25.4mm) | ||
|
1010967NXT-100-1001 |
1,367 |
|
数据手册 |
NXT-100 (100W) | Box | Active | Open Frame | 1 | 100 ~ 240 VAC | 2.5V | - | - | - | - | - | 20 A | - | - | - | - | - | 100W | ITE (Commercial), Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 4.50" L x 2.50" W x 1.00" H (114.3mm x 63.5mm x 25.4mm) | ||
|
1010969NXT-100-1003 |
4,610 |
|
数据手册 |
NXT-100 (100W) | Box | Active | Open Frame | 1 | 100 ~ 240 VAC | 5V | - | - | - | - | - | 20 A | - | - | - | - | - | 100W | ITE (Commercial), Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 4.50" L x 2.50" W x 1.00" H (114.3mm x 63.5mm x 25.4mm) | ||
|
1010971NXT-100-1005 |
1,924 |
|
数据手册 |
NXT-100 (100W) | Box | Active | Open Frame | 1 | 100 ~ 240 VAC | 15V | - | - | - | - | - | 6.7 A | - | - | - | - | - | 100W | ITE (Commercial), Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 4.50" L x 2.50" W x 1.00" H (114.3mm x 63.5mm x 25.4mm) | ||
|
1010234SRW-45-3005 |
1,951 |
|
数据手册 |
SRW-45 (45W) | Box | Not For New Designs | Open Frame | 3 | 100 ~ 240 VAC | 5V | 18V | - | -18V | - | - | 5 A | 2 A | 700 mA | - | - | - | 45W | Industrial, ITE (Commercial) | - | 0°C ~ 50°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.25" H (127.0mm x 76.2mm x 31.8mm) | ||
|
1010102CHCOSRW-45-2002 CHCO |
2,924 |
|
数据手册 |
SRW-45 (45W) | Box | Not For New Designs | Enclosed | 2 | 100 ~ 240 VAC | 5V | -5V | - | - | - | - | 5 A | 4 A | - | - | - | - | 45W | Industrial, ITE (Commercial) | - | 0°C ~ 50°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.15" L x 3.25" W x 1.56" H (130.8mm x 82.6mm x 39.6mm) | ||
|
1010359CHCOSRW-45-2008 CHCO |
3,766 |
|
数据手册 |
SRW-45 (45W) | Box | Not For New Designs | Enclosed | 2 | 100 ~ 240 VAC | 5V | 13V | - | - | - | - | 5 A | 3 A | - | - | - | - | 45W | Industrial, ITE (Commercial) | - | 0°C ~ 50°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.15" L x 3.25" W x 1.56" H (130.8mm x 82.6mm x 39.6mm) | ||
|
1010104CHCOSRW-45-2004 CHCO |
1,062 |
|
数据手册 |
SRW-45 (45W) | Box | Not For New Designs | Enclosed | 2 | 100 ~ 240 VAC | 12V | -12V | - | - | - | - | 3 A | 2 A | - | - | - | - | 45W | Industrial, ITE (Commercial) | - | 0°C ~ 50°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.15" L x 3.25" W x 1.56" H (130.8mm x 82.6mm x 39.6mm) | ||
|
1010999CHCOSRW-45-2013 CHCO |
1,011 |
|
数据手册 |
SRW-45 (45W) | Box | Not For New Designs | Enclosed | 2 | 100 ~ 240 VAC | 24V | -24V | - | - | - | - | 1 A | 1 A | - | - | - | - | 45W | Industrial, ITE (Commercial) | - | 0°C ~ 50°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.15" L x 3.25" W x 1.56" H (130.8mm x 82.6mm x 39.6mm) | ||
|
1010358CHCOSRW-45-2007 CHCO |
4,871 |
|
数据手册 |
SRW-45 (45W) | Box | Not For New Designs | Enclosed | 2 | 100 ~ 240 VAC | 18V | -18V | - | - | - | - | 1.5 A | 1 A | - | - | - | - | 45W | Industrial, ITE (Commercial) | - | 0°C ~ 50°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.15" L x 3.25" W x 1.56" H (130.8mm x 82.6mm x 39.6mm) | ||
|
1010868CHCOSRW-45-2012 CHCO |
4,322 |
|
数据手册 |
SRW-45 (45W) | Box | Not For New Designs | Enclosed | 2 | 200 ~ 240 VAC | 5V | 21V | - | - | - | - | 2.5 A | 1 A | - | - | - | - | 35W | Industrial, ITE (Commercial) | - | 0°C ~ 50°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.15" L x 3.25" W x 1.56" H (130.8mm x 82.6mm x 39.6mm) | ||
|
1010103CHCOSRW-45-2003 CHCO |
1,996 |
|
数据手册 |
SRW-45 (45W) | Box | Not For New Designs | Enclosed | 2 | 100 ~ 240 VAC | 5V | 24V | - | - | - | - | 5 A | 1.5 A | - | - | - | - | 45W | Industrial, ITE (Commercial) | - | 0°C ~ 50°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.15" L x 3.25" W x 1.56" H (130.8mm x 82.6mm x 39.6mm) | ||
|
1010101CHCOSRW-45-2001 CHCO |
4,017 |
|
数据手册 |
SRW-45 (45W) | Box | Not For New Designs | Enclosed | 2 | 100 ~ 240 VAC | 5V | 12V | - | - | - | - | 5 A | 3 A | - | - | - | - | 45W | Industrial, ITE (Commercial) | - | 0°C ~ 50°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.15" L x 3.25" W x 1.56" H (130.8mm x 82.6mm x 39.6mm) | ||
|
1010462CHCOSRW-45-2006 CHCO |
1,095 |
|
数据手册 |
SRW-45 (45W) | Box | Not For New Designs | Enclosed | 2 | 100 ~ 240 VAC | 5V | 15V | - | - | - | - | 5 A | 3 A | - | - | - | - | 45W | Industrial, ITE (Commercial) | - | 0°C ~ 50°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.15" L x 3.25" W x 1.56" H (130.8mm x 82.6mm x 39.6mm) | ||
|
MINT1180A1275K01AC/DC CONVERTER 12V 180W |
153 |
|
数据手册 |
MINT1180 (180W) | Bulk | Obsolete | Open Frame | 1 | 100 ~ 240 VAC | 12V | - | - | - | - | - | 15 A | - | - | - | - | - | 180W | Medical | 4 kV | -10°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.30" H (127.0mm x 76.2mm x 31.8mm) | ||
|
28E04AC/DC CONVERTER |
497 |
|
数据手册 |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | ||
|

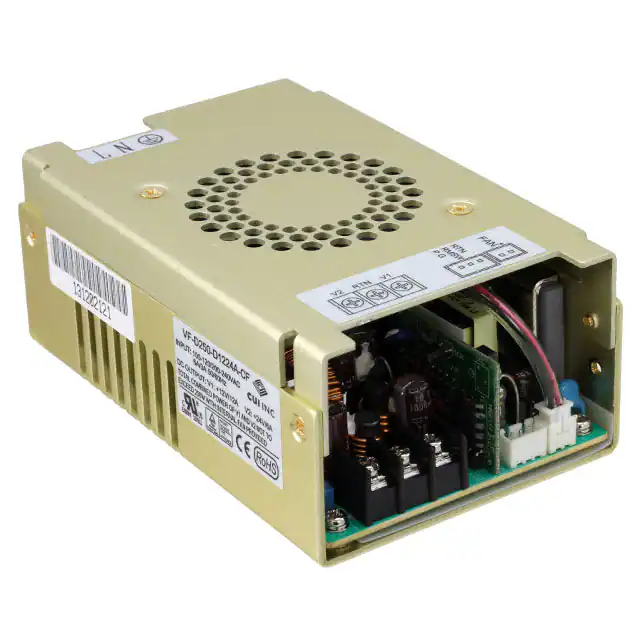

VF-D250-D1224A-CFAC/DC CONVERTER 12V 24V 250W |
273 |
|
数据手册 |
VF-D250-D (250W) | Tray | Active | Enclosed | 2 | 90 ~ 264 VAC | 12V | 24V | - | - | - | - | 12 A | 6 A | - | - | - | - | 250W | ITE (Commercial) | 3 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote On/Off | Chassis Mount | 5.00" L x 3.20" W x 1.50" H (127.0mm x 81.3mm x 38.1mm) | ||
|
CFM361S120AC/DC CONVERTER 12V 355W |
3,608 |
|
数据手册 |
CFM361S (360W) | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC | 12V | - | - | - | - | - | 29.6 A | - | - | - | - | - | 355W | ITE (Commercial) | 4.242 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.60" H (127.0mm x 76.2mm x 40.6mm) |
