上传BOM单
拨动开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 安装类型 | 电路 | 开关功能 | 电流额定值（安培） | 电压额定值 - 交流 | 电压额定值 - 直流 | 执行器类型 | 执行器长度 | 照明 | 照明类型，颜色 | 照明电压（额定值） | 端接样式 | 面板开孔尺寸 | 衬套螺纹 | 防护等级 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
100AWDP1T2B4M2QESWITCH TOGGLE DPDT 5A 120V E-Switch |
1,386 |
|
数据手册 |
100A | Bulk | Active | Through Hole | DPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 7.62mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

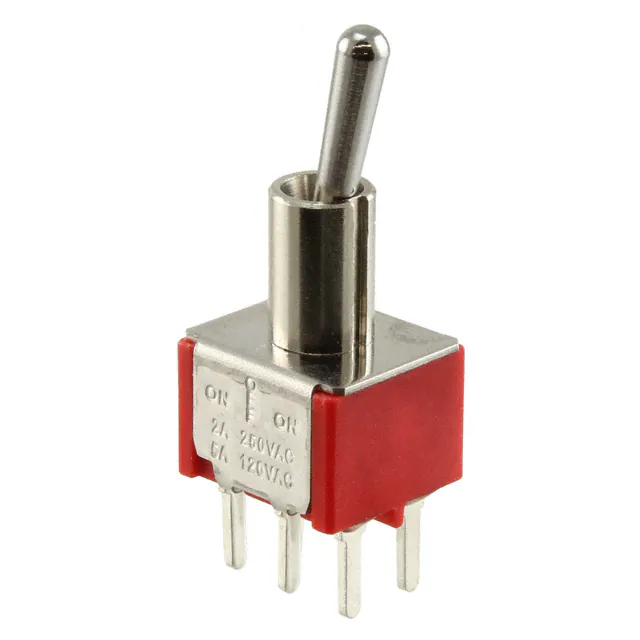

100DP3T1B2M2QESWITCH TOGGLE DPDT 5A 120V E-Switch |
910 |
|
数据手册 |
100 | Bulk | Active | Through Hole | DPDT | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
ST164D00SWITCH TOGGLE SPST-NO 20A 125V E-Switch |
887 |
|
数据手册 |
ST1 | Bulk | Active | Panel Mount | SPST-NO | Off-Mom | 20A (AC) | 125 V | - | Standard Round | 19.50mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.00mm Dia | M12 x 1 | - | - | 0°C ~ 85°C |
|
100SP3T1B4M6RESWITCH TOGGLE SPDT 0.4VA 20V E-Switch |
300 |
|
数据手册 |
100 | Bulk | Active | Through Hole, Right Angle | SPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 10.41mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
100SP3T1B4VS2RESWITCH TOGGLE SPDT 0.4VA 20V E-Switch |
240 |
|
数据手册 |
100 | Bulk | Active | Through Hole | SPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 10.41mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
200USP9T1A1M2RESWITCH TOGGLE SPST 0.4VA 20V E-Switch |
2,594 |
|
数据手册 |
200U | Bulk | Active | Through Hole | SPST | On-Off | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 3.80mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
100SP3T1B4M7QESWITCH TOGGLE SPDT 5A 120V E-Switch |
314 |
|
数据手册 |
100 | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
100DP1T1B1M6QESWITCH TOGGLE DPDT 5A 120V E-Switch |
493 |
|
数据手册 |
100 | Bulk | Active | Panel Mount, Right Angle | DPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
200MSP1T2B2M7RESWITCH TOGGLE SPDT 0.4VA 20V E-Switch |
243 |
|
数据手册 |
200 | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 5.33mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
100SP3T1B1M1REHSWITCH TOGGLE SPDT 0.4VA 20V E-Switch |
872 |
|
数据手册 |
100 | Bulk | Active | Panel Mount | SPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 10.41mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
