拨动开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 安装类型 | 电路 | 开关功能 | 电流额定值（安培） | 电压额定值 - 交流 | 电压额定值 - 直流 | 执行器类型 | 执行器长度 | 照明 | 照明类型，颜色 | 照明电压（额定值） | 端接样式 | 面板开孔尺寸 | 衬套螺纹 | 防护等级 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
100SP3T1B4M5RESWITCH TOGGLE SPDT 0.4VA 20V E-Switch |
4,787 |
|
数据手册 |
100 | Bulk | Active | Through Hole | SPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 10.41mm | Non-Illuminated | - | - | Wire Wrap | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
200MSP1T3B3M7QEHSWITCH TOGGLE SPDT 3A 120V E-Switch |
2,318 |
|
数据手册 |
200 | Bulk | Active | Panel Mount, Right Angle, Vertical | SPDT | On-On | 3A (AC/DC) | 120 V | 28 V | Standard Round | 7.37mm | Non-Illuminated | - | - | PC Pin | Circular - 4.95mm Dia | 10-48 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100SP1T1B4M7QESWITCH TOGGLE SPDT 5A 120V E-Switch |
4,231 |
|
数据手册 |
100 | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
200MSP2T1B1M6QESWITCH TOGGLE SPDT 3A 120V E-Switch |
1,203 |
|
数据手册 |
200 | Tray | Active | Panel Mount, Right Angle | SPDT | On-Mom | 3A (AC/DC) | 120 V | 28 V | Standard Round | 9.40mm | Non-Illuminated | - | - | PC Pin | Circular - 4.95mm Dia | 10-48 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
200MSP1T5B2VS2RESWITCH TOGGLE SPDT 0.4VA 20V E-Switch |
4,322 |
|
数据手册 |
200 | Bulk | Active | Through Hole | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 7.88mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
200MSP1T1B5M1REHSWITCH TOGGLE SPDT 0.4VA 20V E-Switch |
1,001 |
|
数据手册 |
200 | Tray | Active | Panel Mount | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 9.40mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
200MSP1T5B7M2REHSWITCH TOGGLE SPDT 0.4VA 20V E-Switch |
3,039 |
|
数据手册 |
200 | Tray | Active | Panel Mount | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 6.86mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100SP1T1B1VS2RESWITCH TOGGLE SPDT 0.4VA 20V E-Switch |
3,193 |
|
数据手册 |
100 | Bulk | Active | Through Hole | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 10.41mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

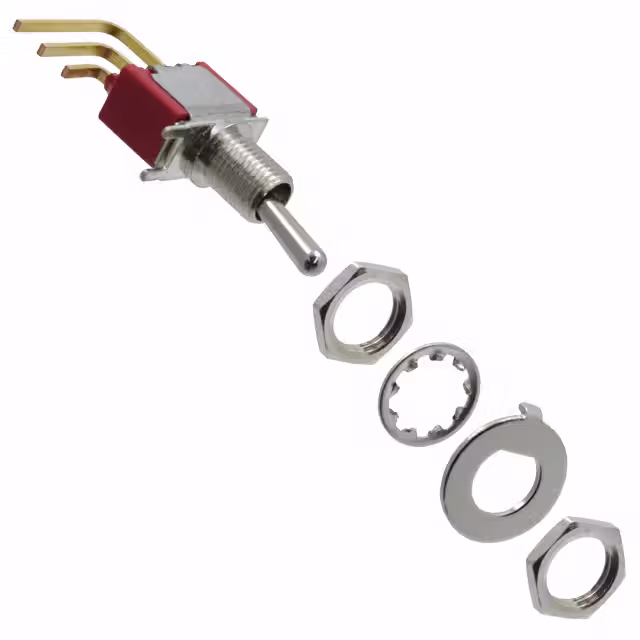

100SP1T1B5M7REHSWITCH TOGGLE SPDT 0.4VA 20V E-Switch |
2,748 |
|
数据手册 |
100 | Bulk | Active | Panel Mount, Right Angle, Vertical | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 10.41mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100SP1T1B6M7REHSWITCH TOGGLE SPDT 0.4VA 20V E-Switch |
4,767 |
|
数据手册 |
100 | Bulk | Active | Panel Mount, Right Angle, Vertical | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 10.41mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
