电子元器件供应链解决方案商
上传BOM单
拨动开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 安装类型 | 电路 | 开关功能 | 电流额定值（安培） | 电压额定值 - 交流 | 电压额定值 - 直流 | 执行器类型 | 执行器长度 | 照明 | 照明类型，颜色 | 照明电压（额定值） | 端接样式 | 面板开孔尺寸 | 衬套螺纹 | 防护等级 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

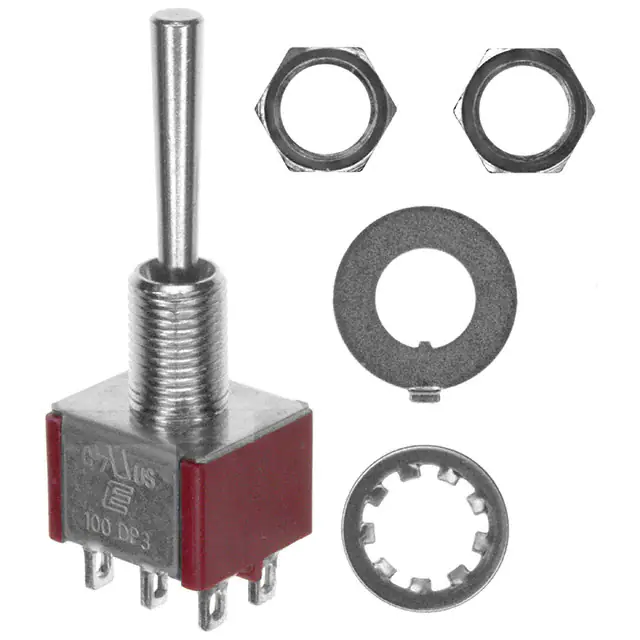

100DP3T4B1M1QEHSWITCH TOGGLE DPDT 5A 120V E-Switch |
4,525 |
|
数据手册 |
100 | Bulk | Active | Panel Mount | DPDT | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 16.26mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
100DP3T5B1M1QEHSWITCH TOGGLE DPDT 5A 120V E-Switch |
2,697 |
|
数据手册 |
100 | Bulk | Active | Panel Mount | DPDT | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 21.34mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100DP3T5B3M1QEHSWITCH TOGGLE DPDT 5A 120V E-Switch |
2,912 |
|
数据手册 |
100 | Bulk | Active | Panel Mount | DPDT | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 21.34mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100DP3T1B1M3QEHSWITCH TOGGLE DPDT 5A 120V E-Switch |
1,469 |
|
数据手册 |
100 | Bulk | Active | Panel Mount | DPDT | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | Quick Connect - 0.062" (1.5mm) | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100AWSP1T2B1M1QESWITCH TOGGLE SPDT 5A 120V E-Switch |
2,644 |
|
数据手册 |
100A | Bulk | Active | Panel Mount | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 5.08mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100SP5T1B1M2RESWITCH TOGGLE SPDT 0.4VA 20V E-Switch |
3,391 |
|
数据手册 |
100 | Bulk | Active | Panel Mount | SPDT | On-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 10.41mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
ST14CD00SWITCH TOGGLE SPDT 20A 125V E-Switch |
4,024 |
|
数据手册 |
ST1 | Bulk | Active | Panel Mount | SPDT | On-Off-Mom | 20A (AC) | 125 V | - | Standard Round | 19.50mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.00mm Dia | M12 x 1 | - | - | 0°C ~ 85°C |
|
|
100AWSP3T2B1M2REHSWITCH TOGGLE 3PST 0.4VA 20V E-Switch |
4,307 |
|
数据手册 |
100A | Bulk | Active | Through Hole, Right Angle | 3PST | On-On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 6.46mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | IP67 - Dust Tight, Waterproof | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
|
100SP2T6B1M1QESWITCH TOGGLE SPDT 5A 120V E-Switch |
1,167 |
|
数据手册 |
100 | Bulk | Active | Panel Mount | SPDT | On-Mom | 5A (AC/DC) | 120 V | 28 V | Flat Anti-Rotation | 12.30mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100SP2T1B5VS2RESwitches E-Switch |
3,915 |
|
数据手册 |
100 | Bulk | Active | Panel Mount | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 10.41mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | - | -30°C ~ 85°C |
